C
ONFIGURING THE

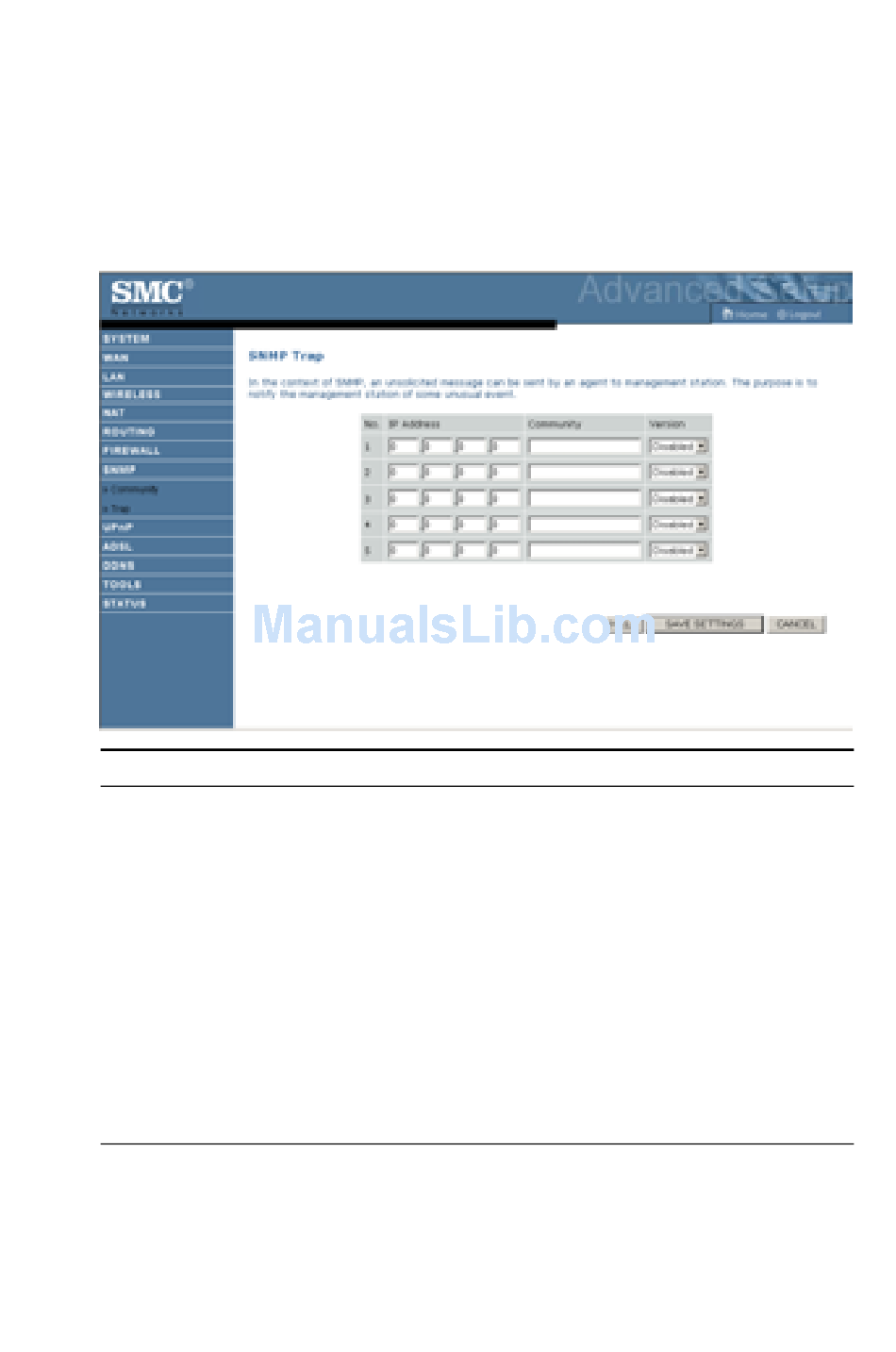

Trap
Specify the IP address of the NMS to notify when a significant event is
detected by the agent. When a trap condition occurs, the SNMP agent
sends an SNMP trap message to any NMS specified as a trap receiver.
Parameter Description
IP Address
Community A community string (password) specified for trap management.
Version
4-62
B
ARRICADE
Traps are sent to this address when errors or specific events occur on
the network.
Enter a word, something other than public or private, to prevent
unauthorized individuals from accessing information on your system.
Sets the trap status to disabled, or enabled with V1 or V2c.
The v2c protocol was proposed in late 1995 and includes
enhancements to v1 that are universally accepted. These include a
get-bulk command to reduce network management traffic when
retrieving a sequence of MIB variables, and a more elaborate set of
error codes for improved reporting to a Network Management
Station.
