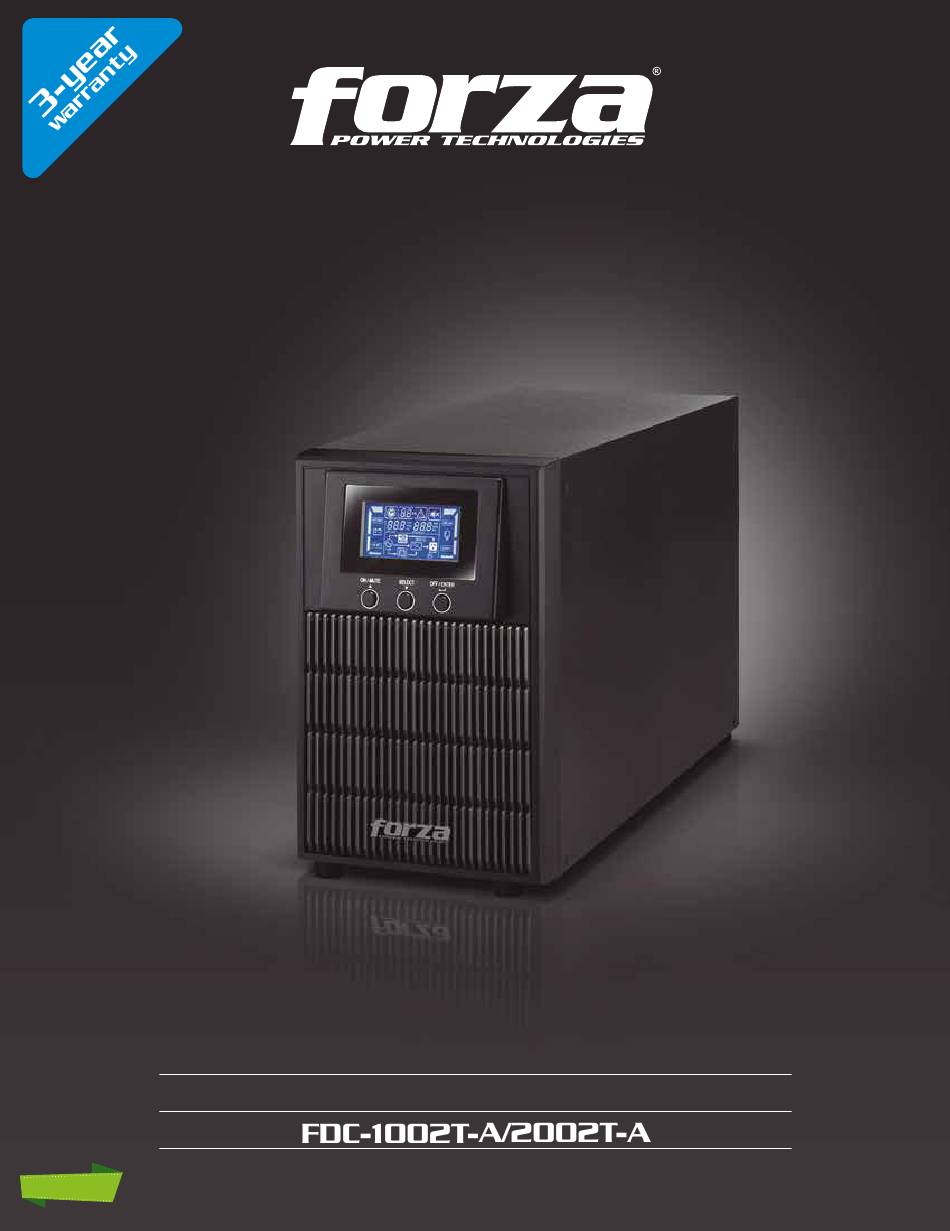

- Page 1 User Manual Uninterruptible Power Supply System Ajustes 06_20_2017...
- Page 2 Table of content 1. Introduction Thank you for purchasing the EOS Series of Online UPS from Forza. To enjoy all the features and benefits of this unit, please 1. Introduction read and follow all installation and operation instructions thoroughly before unpacking, installing or operating this device.
- Page 3 2-5. ForzaTracker monitoring software ForzaTracker is a new generation of UPS monitoring software, which provides user-friendly interface to monitor and control your UPS FDC-1002T-A/FDC- 2002T-A system. This unique software provides safe auto-shutdown for multi-computer systems during power failures. With this software, users...
- Page 4 Installation procedure for Windows users: Display Function Backup time information 1. Use the supplied CD or go to the website: http://www.forzaups.com. 2. After clicking the software icon, choose the required operation system. Indicates the remaining backup time in pie chart 3.
- Page 5 3-3. Audible alarm 01: Output voltage settings Battery mode Beeps once every 4 seconds Interface Setting Low battery Beeps once every second Parameter 3: Output voltage For 200/208/220/230/240 VAC, you may choose any of the Overload Beeps twice every second following output voltages 200: The output voltage is 200VAC Fault...
- Page 6 05: ECO voltage range settings 09: Backup time setting for outlets Interface Setting Interface Setting Parameter 2 & 3: Press the UP or Down key to choose the Parameter 3: Sets up backup interval on battery mode acceptable high and low voltage values for the ECO mode. for default outlets.
- Page 7 3-7. Fault codes 4. Troubleshooting guide If the UPS system does not operate correctly, use the table below to troubleshoot the problem. Fault Fault Symptom Possible cause Solution Fault event Fault event Icon code code The AC input cable is not Check to make sure the power cord is Bus start failure Low inverter voltage...
- Page 8 Every 2 months 1-2 hours Fault: Continuous sound Communication ports SNMP, RS-232, USB Power management software ForzaTracker 6. Technical specifications Environment Operating temperature 32°F-104°F FDC-1002T-A FDC-2002T-A Storage temperature UPS: -4°F-122°F General Relative humidity 20-90% non-condensing Capacity 1000VA/800W 2000VA/1600W <1000m Operating altitude...
