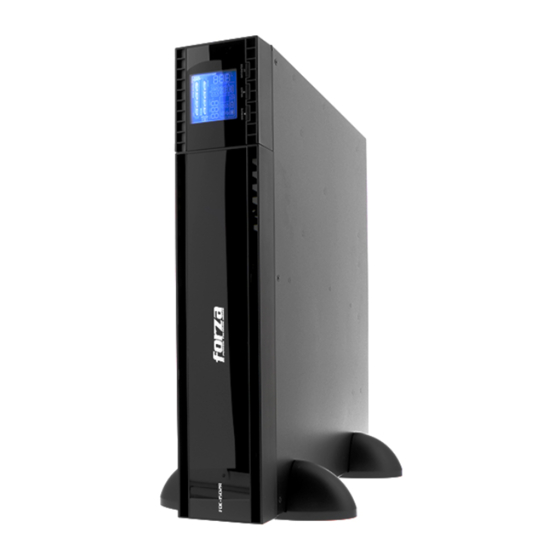

Forza FDC-1502R Manual

Unonterruptible power supply system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FDC-1502R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Forza FDC-1502R

Summary of Contents for Forza FDC-1502R

  • Page 2: Table Of Contents

    1. Introduction Thank you for purchasing the Forza FDC-1502R and FDC -3002R Online UPS. To enjoy all the features and benefits of this unit, please read and follow all installation and operation instructions thoroughly before unpacking, installing or operating this device. After you have read this manual, keep it in a safe place for future reference.

  • Page 3: Maintenance, Service And Faults

    • When replacing the battery, make sure to use the same type and number of sealed lead-acid batteries specified. We recommend using the Forza FUB-1290, a 12V 9A cell. • Do not dispose of batteries in a fire. Batteries may explode if exposed to high temperatures.

  • Page 4: Ups Connections

    2.3.1 Initial setup 2-4. UPS connections • For safety considerations, the UPS is shipped out from the factory with battery wires disconnected. 2-4.1 UPS input connection • Before installing the UPS, the user must first reconnect the wires. To do so, follow the steps illustrated below. •...

  • Page 5: Turning On The Ups

    2.5 Turning on the UPS 2-7 ForzaTracker monitoring software Press the ON/Mute button on the front panel for two seconds to power on the UPS. ForzaTracker is a new generation of UPS monitoring software, which provides user-friendly interface to monitor and control your UPS Note: The battery charges fully during the first five hours of normal operation.

  • Page 6: Lcd Panel

    Display Function Button Function Backup time information Switch to bypass mode: When the utility power is normal, press ON/Mute Load information ON/Mute + and Select buttons simultaneously for 3 seconds to transfer the UPS to Overload indicator Select button bypass mode. This action will be ineffective if the input voltage is not within an acceptable range.

  • Page 7: Abbreviations On The Lcd Display

    3-4. Abbreviations on the LCD display 02: Frequency Converter enable/disable Abreviation Display content Meaning Interface Setting Enable Activates or cancels the converter mode. Disable CF ENA: Enable converter mode Escape CF DIS: Disable converter mode (Default) High loss Low loss Site fault 03: Output frequency settings Over temperature...
  • Page 8 06: ECO voltage range setting 08: Bypass voltage range setting Interface Setting Interface Setting Parameter 2 & 3: Press the UP or Down key to choose the Use this menu to set the acceptable high voltage point and low voltage point for ECO & AECO mode by pressing acceptable high and low voltage values for Bypass operation HS: High voltage adjustment in bypass mode Down key or Up key.
  • Page 9 12: Backup time setting for general outlets 09: Bypass frequency range setting Interface Setting Interface Setting Use this setting to configure the backup time on battery Use this menu to set the acceptable high frequency point mode for general outlets. and acceptable low frequency point for Bypass mode by 0-999: Sets the backup time in minutes, from 0-999 for pressing the Down key or Up key.

  • Page 10: Operation Mode Description

    3-6. Operation mode description 16: Charger float voltage setting Interface Operation mode Description LCD display Use this setting to determine the float voltage level. Rack display Tower display 220-233: Sets the charger float voltage from 220 to 233 (unit: 0.01V/cell). (Default:228) When the input voltage is within acceptable range, the UPS will supply pure and stable AC power to connected loads.
  • Page 11 3-7. Fault codes 4. Troubleshooting guide If the UPS system does not operate correctly, use the table below to troubleshoot the problem. Fault Fault Fault event Fault event Icon code code Symptom Possible cause Remedy Bus start failure Inverter output is short circuited The AC input cable is not Check to make sure the power cord is Bus over...
  • Page 12 6. Specifications FDC-1502R FDC-3002R General Symptom Possible cause Remedy Capacity 1500VA/1350W 3000VA/2700W Topology Double conversion Double conversion Fault code 14 becomes illuminated The UPS shuts down Check the output wiring and and the alarm starts beeping automatically upon Input if connected devices are continuously.
