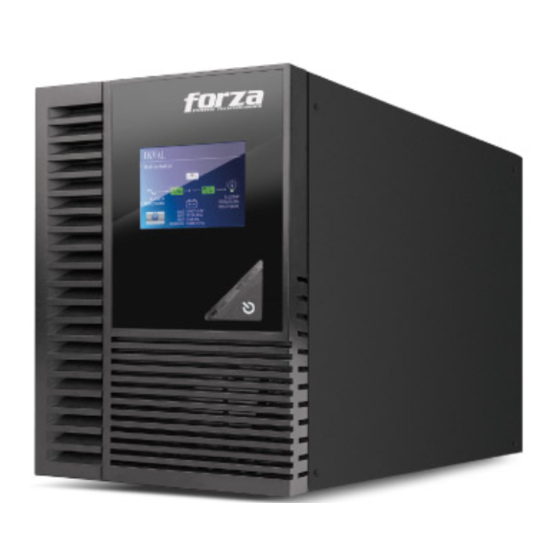

Forza FDC-1002T User Manual

Uninterruptible power supply system
Hide thumbs Also See for FDC-1002T:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
Uninterruptible Power Supply System
FDC-1002T/FDC-2002T Online UPS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FDC-1002T and is the answer not in the manual?

Questions and answers

Related Manuals for Forza FDC-1002T

Summary of Contents for Forza FDC-1002T

  • Page 1 User Manual Uninterruptible Power Supply System FDC-1002T/FDC-2002T Online UPS...

  • Page 2: Table Of Contents

    Table of contents 1. Introduction 1-1. Transportation 1-2. Preliminary steps 1-3. Initial setup 1-4. Important safety instructions 1-5. Maintenance, service and faults 2. Operation 2.1. Unpacking and inspection 2.2. Product overview 2.3. Installation procedure 2.4. UPS connections 2.5. ForzaTracker monitoring software 3.

  • Page 3: Introduction

    1. Introduction Thank you for purchasing the Forza FDC-1002T and FDC-2002T Online UPS. To enjoy all the features and benefits of this unit, please read and follow all installation and operation instructions thoroughly before unpacking, installing or operating this device. After you have read this manual, keep it in a safe place for future reference.

  • Page 4: Maintenance, Service And Faults

    1-5. Maintenance, service and faults • The voltage used by this UPS may be hazardous. The unit contains no user serviceable parts; do not attempt to disassemble the unit. Only qualified service technicians can perform maintenance on the unit. Failure to adhere to this could cause personal injury or equipment malfunction and void the warranty.

  • Page 5: Installation Procedure

    FDC-1002T FDC-2002T Rear panel view 1. AC input 2. Input circuit breaker 3. USB communication port 4. RS-232 communication port 5. SNMP intelligent slot (optional) 6. Output receptacles 2.3. Installation procedure Choose location Install the UPS unit in any protected environment that provides adequate airflow around the unit, and free from excessive dust, corrosive fumes and conductive contaminants.

  • Page 6: Forzatracker Monitoring Software

    Communication port: USB port RS-232 port Intelligent slot To allow for unattended UPS shutdown/start-up and status monitoring, connect one end of the communication cable to the USB/RS-232 port, and the other end to the communication port of your PC. With the monitoring software installed, you can schedule UPS shutdown/start-up and monitor its status through a PC.

  • Page 7: Touch Panel And Configuration Menus

    3-2. Touch panel and configuration menus As soon as power is supplied to the UPS, the LCD will be initialized automatically. Once the process concludes, the LCD will change to display the main screen. By tapping on the icon on the Home page, the five sub-menus will come up: Control, values, setting, information, and data log.
  • Page 8 • Once the starup process concludes, the main screen will be displayed. Tap on the settings icon. That will bring up the five icons representing five sub-menus: CONTROL, VALUES, SETTING, INFO, DATALOG. 3-2.2. Control screen Touch the icon to enter the control sub-menu. Touch the icon to return to the main interface, regardless of whether any of the submenu screens are active or not.
  • Page 9 UPS On/Off It will display Turn on UPS? when the unit is off. It will display Turn off UPS? when the unit is on. Tap on YES to power the UPS on or off. Then, the screen will return to the main interface. Tap on Back to return to the main screen immediately or No to cancel this operation and restore the main menu inter- face.
  • Page 10 Audio mute When audio is enabled, Mute all appears on the screen. • Select Yes to mute the unit. If Mute all is enabled, the icon will appear on the top left corner of the main screen. Touch Back to return to the CONTROL screen immediately or No to cancel this operation and restore the control interface.
  • Page 11 LINE CURRENT: Input current in amps. INV CURRENT: Inverter current in amps. OP CURRENT: Output current in amps. BAT VOL: Battery voltage in volts. Value screen- page 2 VA: Output power percentage in VA. WATT: Output power percentage in watts. BUS VOL: The real-time value of DC BUS (P and N) voltage.
  • Page 12 3-2.4. Setting screen This sub-menu is used to set the parameters of the UPS. Touch the icon to enter the Setting menu page. There are 2 options: Basic and Advanced. Touch the icon to return to the main screen. Touch the icon to go back to the previous menu.
  • Page 13 GENERAL General screen - Page 1 • Language: Sets the language of the LCD interface. There are two options available: English and Spanish. English is the default setting. • Input source: Selects the input source. Only Line (utility) is available. General screen - Page 2 Buzzer: •...
  • Page 14 Advance → User Enter the default password 0000 to access the Advance →User setting menu page. If the password is correct, the setting screen will be opened. However, if the wrong password is entered, then the system will ask the user to make another attempt. Password error page Advance setting menu page There are three sub-menus under Advance →...
  • Page 15 Electric setting --Page 2 • Bypass at UPS off: Select the bypass status when manually turning off the UPS. This setting is only available when Bypass forbid is set to Disable. - Enable: Bypass enabled. When selected, the bypass mode is active. - Disable: Bypass disabled.
  • Page 16 BATTERY Battery setting page Battery parameter: - Battery AH: It is the battery capacity value. 9Ah is the default setting. OTHERS OTHERS setting page • Auto restart - Enable: If this option is selected, when the UPS shuts down due to low battery, the UPS will return to line mode once utility power is restored.
  • Page 17 Advance Password Page ADVANCE → Administrator A password is required to access the Advance →Administrator setting menu page. The default password is 0729. If the password is correct, the following screen will come up. However, if the wrong password is entered, then the sys- tem will ask the user to make another attempt.
  • Page 18 SYS PARAMETER SYSTEM PARAMETER- Page 1 SYSTEM PARAMETER --Page 2 • Model Name: In this field, enter the UPS model. • Serial Number: In this field, enter the serial number. • Company: Displays the UPS manufacturer. • BATT Number: Displays total number of installed batteries. (The UPS should be restarted after being set.) •...
  • Page 19 • DATA LOG: When you press this option, a confirmation window will be displayed as shown in the image above. Tap on YES to clear the DATALOG page. Tap on No to cancel this operation or select if you prefer to return to the INITIAL menu page.
  • Page 20 ELECTRIC Electric setting - Page 1 • Output VOL.: Selects the output rated voltage. - The settings available for a HV system are: 208V, 220V, 230V and 240V. - The settings available for a LV system are: 110V, 115V, 120V and 127V. •...
  • Page 21 • Bypass at UPS off: Selects the bypass status when manually turning off the UPS. This setting is only available when Bypass forbid is set to Disable. - Enable: Bypass enabled. When selected, the bypass mode is active. - Disable: Bypass disabled. When selected, there will be no output through bypass when manually turning off the UPS.
  • Page 22 BATTERY TEST When the UPS is not on test mode, Deep Test will appear on the screen. • Deep Test: After clicking on Deep test, a confirmation window will come up, as shown above. Tap on Yes to start the battery self-test. Tap on No to cancel this operation or select if you prefer to return to the BAT TEST menu page.
  • Page 23 OTHERS OTHERS setting page 1 • Auto restart - Enable: If this option is selected, when the UPS shuts down due to low battery, the UPS will return to line mode once utility power is restored. - Disable: If this option is selected, when the UPS shuts down, the UPS will not automatically turn on once utility power is restored.
  • Page 24 3-2.5. Information screen Tap on the icon to open the information page. This will bring up three sub-menus. BASIC, RATED and PARAMETER. Touch the icon to return to main screen. To go back to the previous menu, select the icon on the bottom-of the screen.
  • Page 25 Rated Information- Page 2 • Bypass at UPS Off: Enables/Disables the autobypass function when the UPS is off. • Auto Restart: Enables/Disables the automatic start-up feature on the UPS. • ECO Mode: Enables/Disables the ECO function. Parameter Information Parameter Information--Page 1 •...
  • Page 26 Parameter Information--Page 3 • Shutdown Voltage: If the battery voltage goes below this point, the UPS will automatically shut down. • Shutdown Delay: The UPS will shut down after a set number of minutes. The countdown will start once the dialogue box is confirmed.

  • Page 27: Audible Alarm And Led Indicators

    3-3. Audible alarm and LED indicators Description Alarm Mute control UPS status Bypass mode Beeps once every 2 minutes Green on Battery mode Beeps once every 4 seconds Blue on Fault mode Beeps continuously Red on Other normal mode Blue on Warning Overload Beeps twice every second...
  • Page 28 4. Troubleshooting guide If the UPS system does not operate correctly, use the table below to troubleshoot the issue. Symptom Possible cause Solution Even though the mains supply is The AC input cable is not properly Check to make sure the power cord normal, there are no status indicators connected is firmly connected to an AC wall...

  • Page 29: Storage And Maintenance

    5. Storage and maintenance The UPS system contains no user-serviceable parts. If the battery service life (3~5 years at 25°C ambient temperature) has been exceeded, the batteries must be replaced. In this case, please contact your dealer or service center. Batteries must not be discarded as regular household waste! As part of the company’s eco-friendly approach, we encourage you to follow all applicable local waste regulations to dispose of your used devices and batteries properly.

  • Page 30: Technical Specifications

    6. Technical specifications FDC-1002T FDC-2002T General Capacity 1000VA/900W 2000VA/1800W Topology Double conversion Input Nominal voltage 200-240VAC 180VAC / 160VAC / 140VAC / 120VAC ± 5% Voltage range (low line transfer) (based on load percentage 100%-80% / 80%-70% / 70%-60% /...
  • Page 31 Environment Operating temperature 32°F-104°F Storage temperature UPS: -4°F-122°F Relative humidity 20-90% non-condensing Operating altitude Above 1000m, the output power decreases 1% every 100m Audible noise <50dB at 1 meter Physical appearance Dimensions 5.7x8.7x11.1in 5.7x8.7x15.6in Weight 22lb 38lb Cord length 3.7ft Additional information Warranty Three years*...

This manual is also suitable for:

Fdc-2002t
