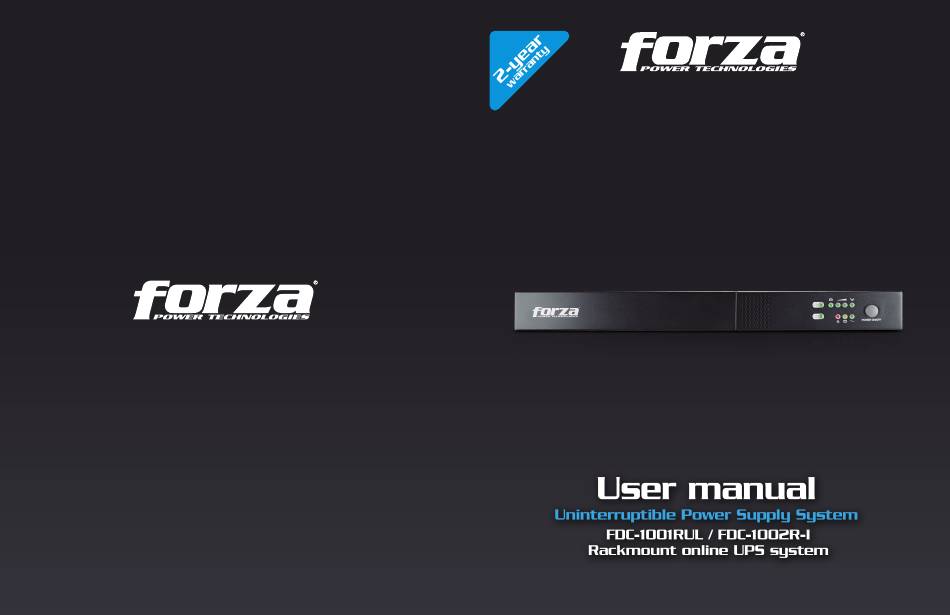

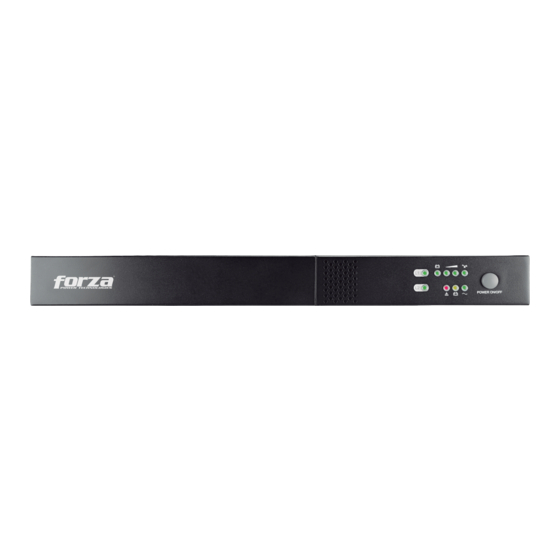

- Page 2 1. Introduction Thank you for purchasing the Forza FDC-1001RUL and FDC -1002R-I Online UPS. To enjoy all the features and benefits of this unit, please read and follow all installation and operation instructions thoroughly before unpacking, installing or operating this device. After 1.
- Page 3 • Caution: - risk of electric shock. Even after the unit is disconnected from the mains, components inside the UPS system are still connected to the battery packs which are potentially dangerous. FDC-1001RUL • Before carrying out any kind of service and/or maintenance, disconnect the batteries and verify that no current is present and no hazardous voltage exists in the terminals of high capacity capacitors, such as BUS-capacitors.
- Page 4 2.3.1 Initial setup To allow for unattended UPS shutdown/start-up and status monitoring, connect one end of the communication cable to the USB port, and the other end to the communication port of your PC. With the monitoring software installed, you can schedule UPS •...
- Page 5 3-2. LED panel 2.7 ForzaTracker monitoring software ForzaTracker is a new generation of UPS monitoring software, which provides user-friendly interface to monitor and control your UPS system. This unique software provides safe auto-shutdown for multi-computer systems during power failures. With this software, users can monitor and control any UPS on the same LAN no matter how far they might be from the UPS.
- Page 6 firmly connected to mains indicators or alarms. 6. Technical specifications The AC input is connected to the UPS Plug the power cord outlet to a wall socket. FDC-1001RUL FDC-1002R-I General Capacity 1000VA/800W 1000VA/800W Even though the mains supply...
- Page 7 Output Environment Nominal voltage 120VAC 220VAC Operating temperature 32° F-104°F 32° F-104° F AC voltage regulation (battery ±1% ±1% Storage temperature -4° F-122° F -4° F-122° F mode) Relative humidity 20-90% non-condensing 20-90% non-condensing Frequency (synchronized range) 47-53Hz at 50Hz system / 57-63Hz 47-53Hz at 50Hz system / 57-63Hz Operating altitude 4000m...
- Page 8 NOTES / NOTAS NOTES / NOTAS...
