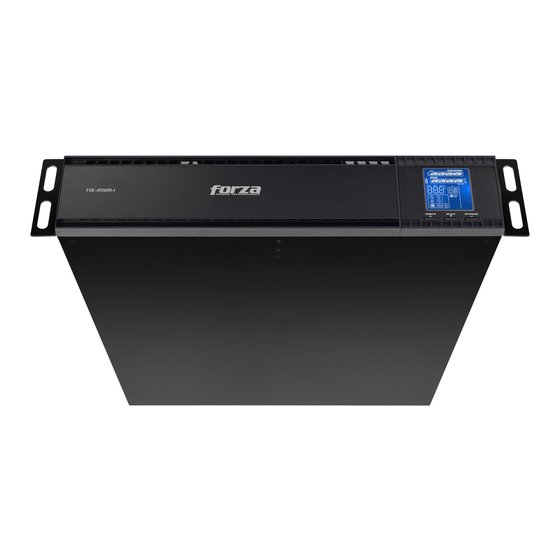

Forza FDC-2012R-I User Manual

Uninterruptible power supply system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
Uninterruptible Power Supply System
Ajustes 05_19_2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FDC-2012R-I and is the answer not in the manual?

Questions and answers

Related Manuals for Forza FDC-2012R-I

Summary of Contents for Forza FDC-2012R-I

  • Page 1 User Manual Uninterruptible Power Supply System Ajustes 05_19_2017...

  • Page 2: Table Of Contents

    Table of content 1. Introduction Thank you for purchasing the Forza FDC-2012R-I and FDC -3012R-I Online UPS. To enjoy all the features and benefits of this unit, 1. Introduction please read and follow all installation and operation instructions thoroughly before unpacking, installing or operating this device. After you have read this manual, keep it in a safe place for future reference.

  • Page 3: Initial Setup

    - Use only tools with insulated grips and handles. 1. Programmable outlets for non-critical loads - Wear rubber gloves and boots. 2. Dedicated outlets for critical loads - Do not lay tools or metal parts on top of batteries. 3. AC input - Disconnect charging source prior to connecting or disconnecting battery terminals.

  • Page 4: Ups Connections

    Tower installation To allow for unattended UPS shutdown/start-up and status monitoring, connect one end of the communication cable to the USB/RS-232 port, and the other end to the communication port of your PC. With the monitoring software installed, you can schedule UPS shutdown/start-up and monitor its status through a PC.

  • Page 5: Forzatracker Monitoring Software

    Step 4 Step 5 Step 6 Button Function Remove the top cover of When done, replace the cover of Reconnect the battery wires • Turn on the UPS: Press and hold the ON/Mute button for at least 2 seconds to turn on the the compartment and the battery compartment and replace the batteries.

  • Page 6: Audible Alarm

    3-4. Abbreviations on the LCD display Display Function Backup time information Abbreviation Display content Meaning Indicates the remaining backup time in pie chart or in numbers H: hour, M: minute. Enable Disable Configuration and fault information Indicates that configuration parameters are being set. Escape High loss Warning and fault code indicators.
  • Page 7 01: Output voltage settings 05: ECO voltage range setting Interface Setting Interface Setting Parameter 2: Output voltage Parameter 2: Use this menu to set the acceptable high voltage point and low voltage point for ECO mode by pressing Down key or Up key. For 200/208/220/230/240 VAC, you may choose any of the HLS: High loss voltage in ECO mode.
  • Page 8 08: Bypass frequency range setting 11: Backup time setting for general outlets Interface Setting Interface Setting Parameter 2: Use this menu to set the acceptable high Parameter 2: Use this setting to configure the backup time on frequency point and acceptable low frequency point for Bypass battery mode for general outlets.
  • Page 9 14: Charger boost voltage setting 18: Runtime setting display Interface Setting Interface Setting Parameter 2: Use this setting to configure the boost voltage Parameter 2: Use this setting to configure the runtime on the level. display. 2.25-2.40: Sets the charger boost voltage from 2.25 to 2.40 EAT: If EAT is selected, it will show the estimated runtime on V/cell.

  • Page 10: Operation Mode Description

    3-6. Operation mode description 3-7. Fault codes Operation mode Description LCD display Fault Icon Fault Fault event Fault event Icon code code Rack display Tower display Bus start failure Battery voltage too high When the input voltage is within acceptable range, the UPS Bus over Battery voltage too low will supply pure and stable AC power to connected loads.

  • Page 11: Storage And Maintenance

    4. Troubleshooting guide If the UPS system does not operate correctly, use the table below to troubleshoot the problem Battery backup time is shorter than Batteries are not fully charged Charge the batteries for at least 5 hours Symptom Possible cause Solution its nominal value and then check their capacity.

  • Page 12: Technical Specifications

    6. Technical specifications Derate capacity to 80% when the output voltage is adjusted to 200VAC or 208VAC. FDC-2012R-I FDC-3012R-I ** If the UPS is installed or used in a place where the altitude is above than 1000m, the output power must be derated one percent per 100m.

This manual is also suitable for:

Fdc-3012r-i
