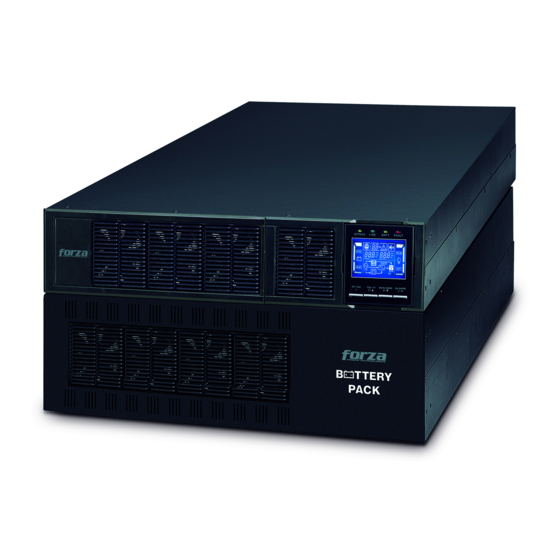

Forza FDC-106KMR-ISO User Manual

Forza FDC-106KMR-ISO User Manual

Uninterruptible power supply system

Advertisement

Quick Links

User manual
Uninterruptible Power Supply System
Ajustes 07_14_2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FDC-106KMR-ISO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Forza FDC-106KMR-ISO

  • Page 1 User manual Uninterruptible Power Supply System Ajustes 07_14_2017...
  • Page 2: Table Of Contents

    Table of content 1. Introduction Thank you for purchasing the Forza Atlas FDC-106KMR-ISO/FDC-110KMR-ISO/FDC-206KMR/FDC-210KMR Modular Rack- 1. Introduction mountable Online UPS. To enjoy all the features and benefits of this unit, please read and follow all installation and operation instructions thoroughly before unpacking, installing or operating this device. After you have read this manual, keep it in a safe place 1.1 Transportation and storage...
  • Page 3: Standards

    Warning labels should be placed on all primary power switches installed in places away from the device to alert the electrical maintenance personnel of the presence of a UPS in the circuit. The label will bear the following or an equivalent text: The Forza Atlas series is offered in four different models, as shown in the table below. Model...
  • Page 4: Unpacking And Inspection

    2-1. Unpacking and inspection Remove the UPS from its package and make sure that all the following items are included: Isolation transformer version (110V) Standard version (220V) - Online UPS - Online UPS - Battery bank - Battery bank - Isolation transformer - CD with ForzaTracker monitoring software Diagram 2: Battery pack Diagram 3: Isolation transformer...
  • Page 5: Output Configuration

    Note 1: The cable for 6K should be able to withstand currents of over 40A. It is recommended to use a 10AWG or thicker wire for safety and efficiency. Note 2: The cable for 10K should be able to withstand currents of over 63A. It is recommended to use an 8AWG or thicker wire for safety and efficiency.
  • Page 6 240V input * Option 2: Isolation transformer terminals Output 1 Output 2 208V input The following connection will give you two sets of 120V outputs, each output takes 5KVA load max. Connect X1-N – 120V output for 5KVA load Connect X3-N – 120V output for 5KVA load * Option 3: Isolation transformer terminals...
  • Page 7: Forzatracker Monitoring Software

    2-5. ForzaTracker monitoring software Bypass Line Battery Fault Mode ForzaTracker is a new generation of UPS monitoring software, which provides user-friendly interface to monitor and control your UPS startup Uninterruptible Power System. This unique software provides safe auto-shutdown for multi-computer systems during power failures.
  • Page 8: Audible Alarm

    Indicates the load level at 0-25%, 26-50%, 51-75%, and 76-100% Indicates the ECO mode is enabled. 2) Press and hold the ON button for 0.5 second to power on the UPS. The buzzer will beep once. Indicates the inverter circuit is working. Overload indication.
  • Page 9 7. Turn off the UPS with utility power in AC mode 6) Then, modify charger voltage according to the table below to match the setting number on the control board. There are 5 jumpers on the charger board. Please refer to the below table to modify charger voltage. 1) Turn off the inverter of the UPS by pressing the OFF button for at least 0.5 second.
  • Page 10 2. Parallel system connection NOTE: For parallel installation each UPS must have a maintenance bypass output breaker/switch connected. This device is offered separately. MAINTENANCE BYPASS BATTERY PACK ISO (Output to load) Diagram 1: Power cable connection Full installation with maintenance bypass and isolation transformer (110V or 220V operation) Parallel communication port connection MAINTENANCE Ground...
  • Page 11: Abbreviations In The Lcd Display

    4. Removing one unit from the parallel system 3-7. UPS parameter settings There are two methods that can be used to remove one UPS from the parallel system: Three parameters need to be configured in order to set up the UPS. Refer to following diagram: First method: Parameter 1 1) Press the OFF button twice for about 0.5 second each.
  • Page 12 02: Output frequency settings 05: ECO mode enable/disable Interface Setting Interface Setting 60 Hz, CVCF mode Parameter 2: Output frequency Parameter 3: Enables or disables the ECO feature. You may choose between To set the output frequency, choose any of the following three options in the following two options: parameter 2: DIS: Disables the ECO feature...
  • Page 13: Operating Mode/Status Description

    09: Battery backup time setting 13: Battery voltage adjustment Interface Setting Interface Setting Parameter 3: Parameter 2: Select Add or Sub function to adjust battery voltage to its 000~999: Sets the maximum backup time from 0min to 999min. UPS will shut actual reading.
  • Page 14: Fault Codes

    Operating mode/status Operating mode/status When the input voltage is within an acceptable range, the UPS will provide pure and stable When the input voltage is within an acceptable range, the UPS will provide pure and stable Description Description AC power to the output. The UPS will also charge the battery in AC mode. AC power to the output.
  • Page 15: Troubleshooting Guide

    4. Troubleshooting guide 5. Storage and maintenance If the UPS system does not operate correctly, use the table below to troubleshoot the problem. 5-1. Storage Charge the UPS for at least 7 hours before storing the unit. Cover the UPS, and place it upright in a cool, dry location. During Symptom Possible cause Solution...
  • Page 16: Technical Specifications

    Relative humidity 0 -90% non-condensing 6. Technical specifications Operating altitude <1000m Every 100m above 1000m decreases output power 1% up to 4000m Audible noise <55dB at 1 meter FDC-106KMR-ISO FDC-110KMR-ISO FDC-206KMR FDC-210KMR Physical appearance General Housing ABS and metal Capacity...
