Specifications

5.2.3 315 kW and 400 kW Enclosure

A
600 mm
23.6 in
32.25 mm (1.27 in)
46.5 mm (1.83 in)
486.5 mm
(19.15 in)
A Front view
D Bottom view

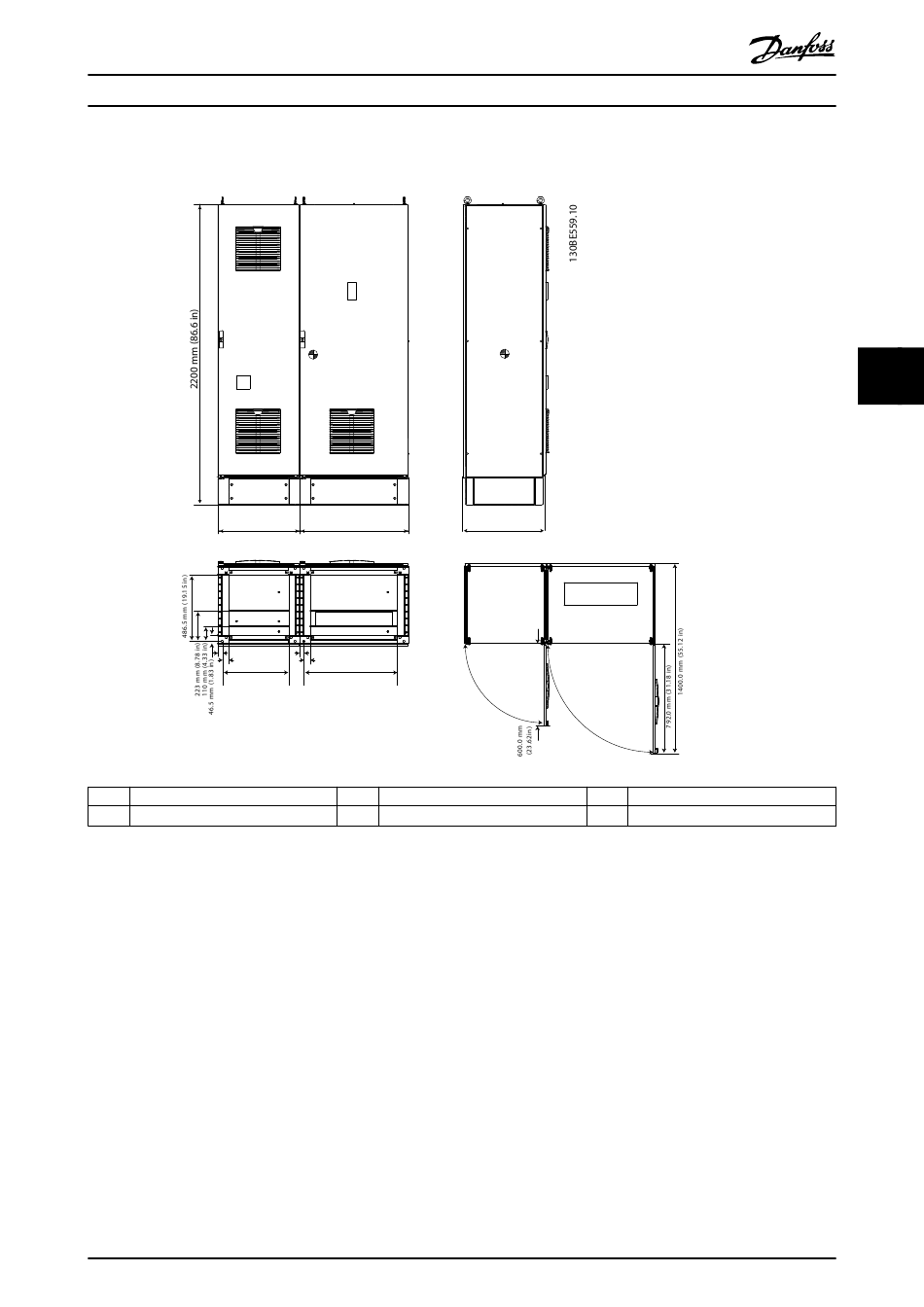

Illustration 5.3 Front, Side Dimensions, Door Clearance, and Center of Gravity for 315 kW and 400 kW Enclosure
MG13B102
Installation Guide
C
800 mm
31.5 in
D E
32.25 mm (1.27 in)
46.5 mm (1.83 in)
686.5 mm
(27.03in)
B Side view
E Top view
