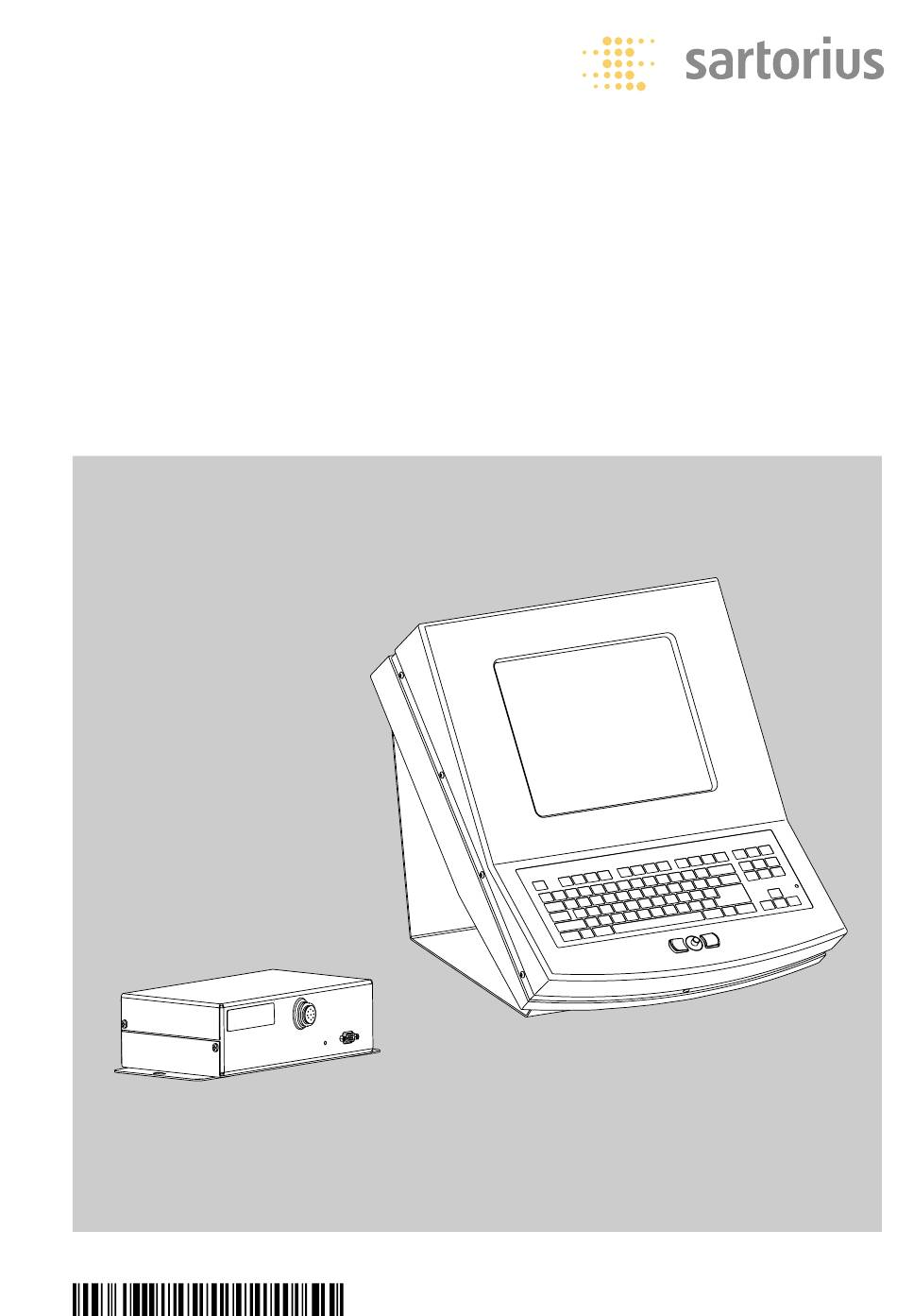

- Page 1 Installation Instructions Sartorius TopMix Model TM01-Y Electronic Paint-mixing Weighing System 98648-013-39...
-
Page 2: General View Of The Equipment
General View of the Equipment 1 Terminal/display and control unit (TM01-Y) 12 USB port 2 LC-display (SVGA) 13 Connector for monitor (VGA test monitor, 3 QWERTY keypad 800x600 pixels) outside the hazardous area. 4 Mouse 14 Connector for the VGA video cable 5 Scale connection (e.g., PMA) (YCC01-0039M3;... -
Page 3: Table Of Contents
When using accessories not supplied installation and operation, as well as by Sartorius, the operator is responsible for ensuring the safety of system. while performing maintenance and repair work on the equipment. It is... -
Page 4: Warnings And Safety Precautions
– If you use electrical equipment in instal- must be kept away from these cables. lations and under ambient conditions All components of the TopMix TM01-Y subject to stricter safety standards, you paint-mixing weighing system are must comply with the provisions as... - Page 5 Ask your local Sartorius ticles >1 mm in diameter. office or dealer for information on the legal regulations applicable in your...
- Page 6 Connection Options EX-Zone 2 Safe area LEDs Cable length: 20 m max. Cable Power cord length: 3 m USB + VGA Cable length: 3 m Power sypply Optional connection Alternative connection...
-
Page 7: Getting Started
Getting Started Unpacking the Equipment § After unpacking the equipment, check it immediately for any visible sign of damage resulting from rough handling during shipment. $ If any sign of damage is visible, refer to the section entitled “Safety Inspection” in the chapter entitled “Care and Maintenance.”... - Page 8 Installation Instructions The TopMix TM01-Y is designed for installation in a Zone 2 hazardous area. The Ex-link box (YCO10-Z) must be installed outside the hazardous area. To ensure fast and reliable results, avoid the following when choosing locations for setting up the equipment: –...
- Page 9 (e.g., display remains blank, no display backlighting, etc.) due to damage during transport, disconnect the equipment from power and notify your nearest Sartorius Service Center. Before connecting or disconnecting data cables or control lines to or from the device, make sure all equipment is disconnected from power.
-
Page 10: Installing The Topmix System
Installing the TopMix System Before the equipment is energized and before the TM01-Y is placed in a Zone 2 hazardous area, any data input or output ports must be covered by protective caps. § Attach the bracket (strain-relief clamp /occluder; included in delivery) to the USB port (see illustration). - Page 11 § Connect the weighing instrument (e.g., PMA) scale using the TopMix<—>PMA series cable (YCC01-0041M3). Tighten the fastening screws. § Connect the equipotential bonding conductor. Use grounding cable (not included in delivery) to connect the grounding terminals on all devices to the equipotential bonding conductor of the power supply in use at the place of installation.
- Page 12 § A peripheral device (e.g., a printer) can be connected to the COM port. § An additional peripheral device can be connected to the USB port. Note: The current consumption of this device must not exceed 250 mA. § Use the bracket supplied to provide strain relief for the USB cable.
- Page 13 Installing the Ex-link Box (YCO10-Z) § Connect the TopMix <—> Ex-link cable (YCC01-0042M20; length: 20 m) to the Ex-link box (YCO10-Z) (Ex side). Tighten the connector. § Connect the TopMix <—> VGA video cable (YCC01-0037M20; length: 20 m) to the Ex-link box (YCO10-Z) (Ex side).
- Page 14 § Connect the PC video cable (YCC01-0039M3; length: 3 m) for a standard computer to the Ex-link box outside the hazardous area (PC side). Tighten the fastening screws. § Monitor connection: VGA control monitor, 800x600 pixels; outside the hazardous area (PC side). §...
- Page 15 Switching the TopMix On and Off § The TopMix TM01-Y terminal is switched on/off when the computer is switched on/off. When the computer is off or in standby mode, no video signal is active and the backlighting on the TM01-Y display is switched off.
-
Page 16: Care And Maintenance
Storage and Shipping Conditions In this case, notify your nearest Sartorius – Allowable storage temperature: Service Center. Only service technicians –40° to +70° C (–40° to +158° F) who are authorized by Sartorius and... - Page 17 Recycling The packaging protects the equipment from damage during transport. After successful installation of the equipment, you should return this pack- aging for recycling. For information on recycling options, including recycling of used equipment, contact your municipal waste disposal center or local recycling depot.
-
Page 18: Specifications
Specifications TopMix TM01-Y with Ex-link box (YCO10-Z) Model TM01-Y Allowable ambient operating temperature °C 0 to +40 (32° to 104° F) Housing dimensions (WxDxH) TopMix display and control unit 420 x 444 x 396 Ex-link box 249 x 175 x 73 Net weight: TopMix display and control unit, approx. -
Page 19: Interfaces
Interfaces Scale Interface Assignment Not connected Not connected COM port interface Assignment Not connected Not connected... -
Page 20: Declaration Of Conformity
Declaration of Conformity... - Page 21 Non-hazardous Zone 2 hazardous area area Gas group IIB; temperature class T4 Ambient temperature: 0°C ... +40°C AC power 100 -240 Vac Zone 2 Power equip- ment Ex-Link YCC01-0037M20 YCO10-Z YCC01-0042M20 Control panel Monitor TM01-Y Port 3 (USB) AC power Equipo- Port 2 Port 1...
- Page 22 If your equipment needs to be repaired, use only original replacement parts supplied by the manufacturer! Any tampering with the equipment by anyone, other than repair work done by authorized Sartorius service technicians, will result in the loss of Ex conformity for Zone 2 and in the forfeiture of all claims under the manufacturer's warranty.
-
Page 23: Certificates
Certificates... - Page 27 Sartorius AG Weender Landstrasse 94–108 37075 Goettingen, Germany Phone +49.551.308.0 Fax +49.551.308.3289 www.sartorius.com Copyright by Sartorius AG, Goettingen, Germany. All rights reserved. No part of this publication may be reprinted or translated in any form or by any means without the prior written permission of Sartorius AG.
