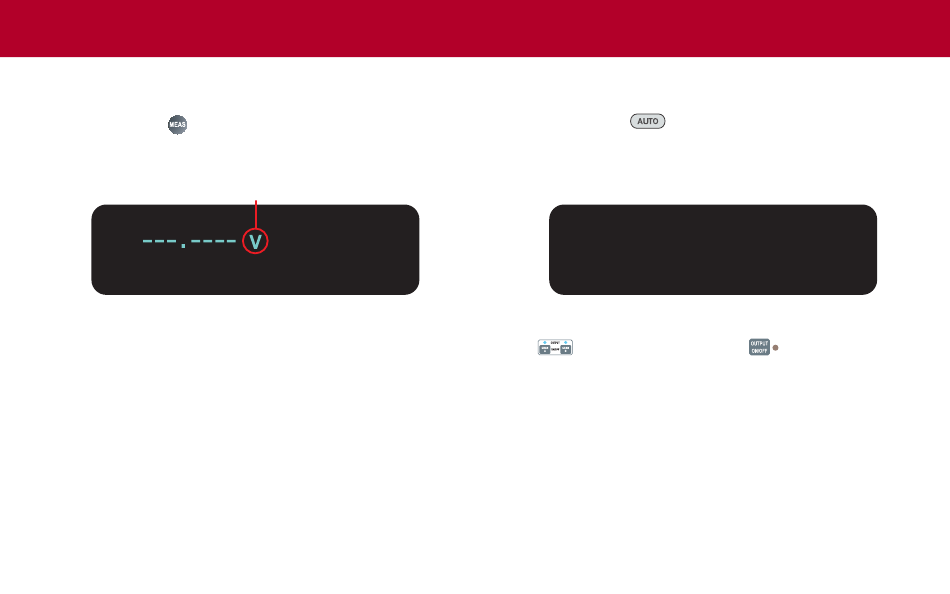

Step 3: Set measurement function and range
1. Press the MEAS
key as many times as needed to select
the V (voltage) measurement function. In the following figure,
the measurement function has been set to "V."
Measurement function set to voltage (V)
SrcA:+20.0000 V LimA:10.0000mA
AUTO
2. Press the AUTO
select the AUTO range function. When AUTO is selected,
the Series 2600B automatically selects the best range for the
measured value. You will briefly see the display shown below,
and then the main display screen reappears.
AUTO
SrcA:+20.0000 V LimA:10.0000mA
Step 4: Turn the output on
Turn the output on by pressing the OUTPUT ON/OFF
control (for 2634B and 2636B) or
OFF indicator LED lights and measurements begin.
Step 5: Observe measurements
Observe the measured voltage on the main area of
front-panel display. The readings should be very close to the
20 V source value.
key as many times as needed to
AUTO
(2635B). The ON/
