Open architecture cylindrical lock

Advertisement

Quick Links

The VIP 5100 series lock is a microprocessor controlled, electromechanical locking system.
It is an open architecture product designed to interface with 3rd party panels ecompassing
all the features of the lock, reader, door status* and egress (rex/request to exit) indication in
one fire-rated piece of hardware. The 5100 employs a heavy-duty mechanical design tested
and complying with ANSI/BHMA grade 1 standards for performance and reliability. It is pow-
ered by 12 or 24 volts DC with only four wires required - two for power and two for commu-
nications. The lock communicates with a PIB (panel interface board) which communicates
with the panel as if it were separate components of an access control system.
Operationally, the outside lever is normally locked and the inside lever always retracts the
bolt to allow egress. Electronic access control is achieved by entering an"Access Credential"
(magnetic stripe card or Prox fob or card). The panel controls the lock through the PIB.
*Cylindrical model requires separate door status switch (included) to be installed in the door
and frame and connected to the VIP lock.
Please refer to all instruction manuals involved in the installation before you begin.
Functions:
VIP 5196-FSA: Cylindrical, Fail Safe (unlocked)
VIP 5196-FSE: Cylindrical, Fail Secure (locked)
Models:
MG:
Magnetic stripe card reader
PX:
HID Prox card reader
Standard Monitoring Switches:
DSM:
Provides door status via data link to panel interface
KSM:
Provides mechanical key use events via data link to panel interface
REX:
Provides indication of inside lever use for request to exit input via data link
to panel interface
Options:
T3:
Track 3 card reader (data must be ABA track 2 format) - MG only
EXT:
exterior use option - MG only (PX model has this standard)
KD:
Keyed Different, includes Schlage Everest cylinder
KA:
Keyed Alike, includes Schlage Everest cylinder
LC:
Less Cylinder
SLB:
2-3/4" backset, 1/2" latch bolt
OLB:
2-3/8" backset, 1/2" latch bolt
ELB:
2-3/4" backset, 3/4" latch bolt
BEFORE YOU BEGIN:
Standard units are shipped from the factory to fit 1-3/4" doors. Verify the
door thickness. If the door is not 1-3/4" thick, verify that the door thickness
option was ordered or consult factory.
PRE-INSTALLATION CHECK:
AN OPEN ARCHITECTURE SYSTEM REQUIRES AT LEAST THREE COMPO-
NENTS - A PANEL INTERFACE BOARD (PIB), AN ACCESS CONTROL PANEL
(BY OTHERS) TO WHICH THE PIB IS CONNECTED AND THE VIP LOCK. SEE
DOCUMENTATION FOR THE ACCESS CONTROL PANEL/SOFTWARE THIS
LOCK WILL BE USED WITH FOR ANY PRE-INSTALLATION TESTING REQUIRE-
MENTS AND REMEDIES. REFER TO THE WIRING INFORMATION INCLUDED
WITH THE PIB FOR MORE INFORMATION.
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept any interference received, including any interference that may
cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
Form 57032 Rev. A

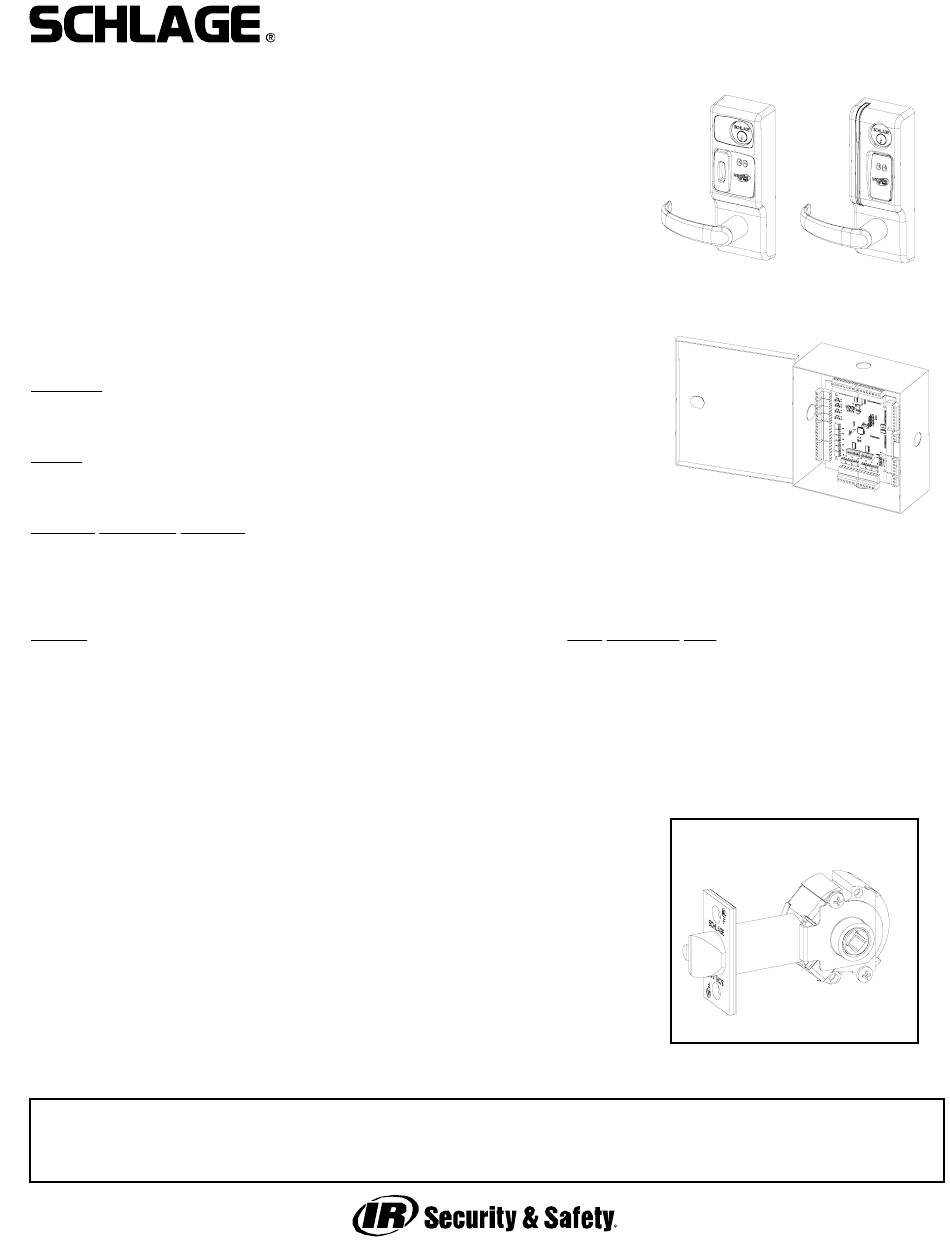

VIP 5100 OPEN ARCHITECTURE CYLINDRICAL LOCK
INSTALLATION MANUAL
PX
Door Thickness Kits:
Available in 1/8" increments from 1-3/8" to 2-1/2"
5100 CYLINDRICAL
LOCKSET - STANDARD
MG
PIB
01-05-2004
