Door Preparation Instructions
for Door with No Holes

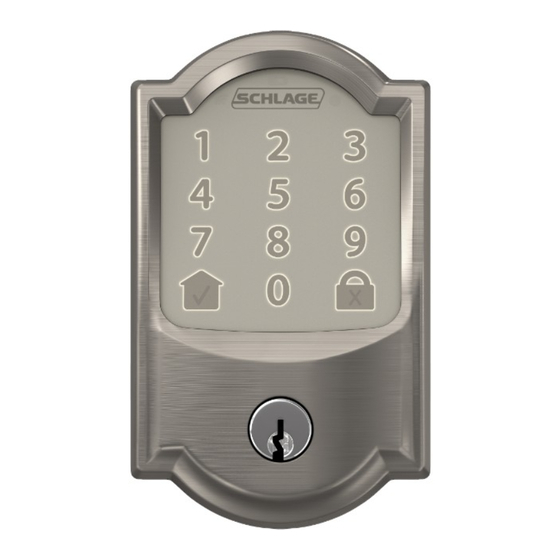

Schlage Encode™, BE489
Tools Needed
L If you are uncomfortable performing these steps, call
a locksmith for assistance.
1
Measure door thickness.
If the door is thinner than 1C\," or thicker than 1C\v", then the
lock will not fit properly on the door.
A thick door kit is used to fit the Schlage Encode to doors
that are between 1M\," and 2Z\v" thick.
L A thick door kit is available from Product Support at
(888) 805-9837
Tape Measure
Pencil
Drill and Drill Bits
Bit Sizes: Z\,", 1"
Hole Saws
1", 2Z\,"
Chisel
Hammer
1C\," - 1C\v"
2
Mark door.
Mark lock centerline on door face, door edge and door jamb.
Door Edge
Door Jamb
3
Prepare cross bore.
3a Measure backset and mark center of hole.
3b Drill hole with hole saw.
2Z\," Hole Saw
4
Prepare door edge hole.
4a Measure and mark Z\x door thickness.
Z\x" Door
Thickness
Door Face
38" from finished floor
2C\v" or 2C\,"
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Schlage Encode BE489
Summary of Contents for Schlage Encode BE489
- Page 1 If the door is thinner than 1C\,” or thicker than 1C\v”, then the lock will not fit properly on the door. Prepare door edge hole. A thick door kit is used to fit the Schlage Encode to doors 4a Measure and mark Z\x door thickness. that are between 1M\,” and 2Z\v” thick.
- Page 2 6a Mark center for strike hole exactly opposite latch hole. Please don’t return it to the store! Let us help you first! www.schlage.com/faqs-encode Schlage Customer Service Calling From: USA: (888) 805-9837 Canada: (800) 997-4734 © Allegion 2018 Schlage Encode door prep with no holes México: 018005067866 Rev. 10/18-a...
