Schlage F Series Quick Start Manual
Knobs and levers
Hide thumbs
Also See for F Series:
- Installation instructions (4 pages) ,
- Service manual (204 pages) ,
- Price book (108 pages)
Table of Contents
Advertisement
Quick Links
F Series
Knobs and Levers
Quick Start Guide
Hall and closet
Bed and bath
Keyed entry
This guide shows keyed
entry installation. Go
online for more specific
interactive instructions,
videos, faqs, warranty and
more!
alle.co/fseries
Questions about your new lock?
Please don't return it to the store!
Let us help you first!
(888) 805-9837
*47642581*
47642581
© Allegion 2022
Printed in U.S.A.
47642581 Rev. 03/23-b
1
Check door preparation.
Either style is fine. If you have questions about
door prep, see alle.co/std-door-prep.
Change to
No change
the circular
needed.
faceplate.
3
Install the strike into the door frame.
5
Install the interior knob/lever.
While holding exterior knob/lever in place,
align hole with post and push against door.
Keyed entry
shown
2
Install the latch.
If the latch does not fit, you will need to adjust
your door prep. See alle.co/std-door-prep.
bevel must
face door
4
Install the exterior knob/lever.
Keyed entry
shown
6
Install the chassis screws.
Make sure the chassis is straight on the
door before tightening the screws.
Keyed entry
shown
UL
Install cup before step 2.
Outside
Open end
toward outside.
Latch
Lever position
Recommended lever position is shown in solid line
frame
drawing. See alle.co/fseries for instructions.
Emergency unlock (Bed and bath)
To unlock from the outside, insert the pin and turn.
Circular faceplate
Inside
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Schlage F Series
Summary of Contents for Schlage F Series
- Page 1 Install cup before step 2. Either style is fine. If you have questions about If the latch does not fit, you will need to adjust door prep, see alle.co/std-door-prep. your door prep. See alle.co/std-door-prep. F Series Outside Inside Knobs and Levers Quick Start Guide Open end toward outside.
- Page 2 Verifique la preparación de la puerta. Instale el pestillo. Vérifiez le fonctionnement de la porte. Installez le loquet. Instale la copa antes del paso 2. Installez la coupelle avant l’étape 2. Es la misma para todos los estilos. Si tiene alguna duda sobre Si el pestillo no encaja, tendrá...
Need help?
Do you have a question about the F Series and is the answer not in the manual?
Questions and answers

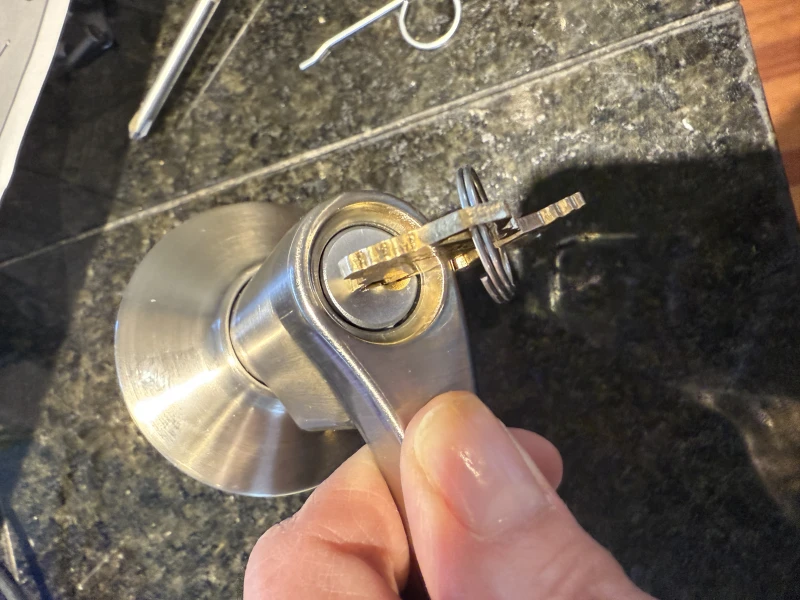

Installing a brand new keyed lock and can't get the key out
