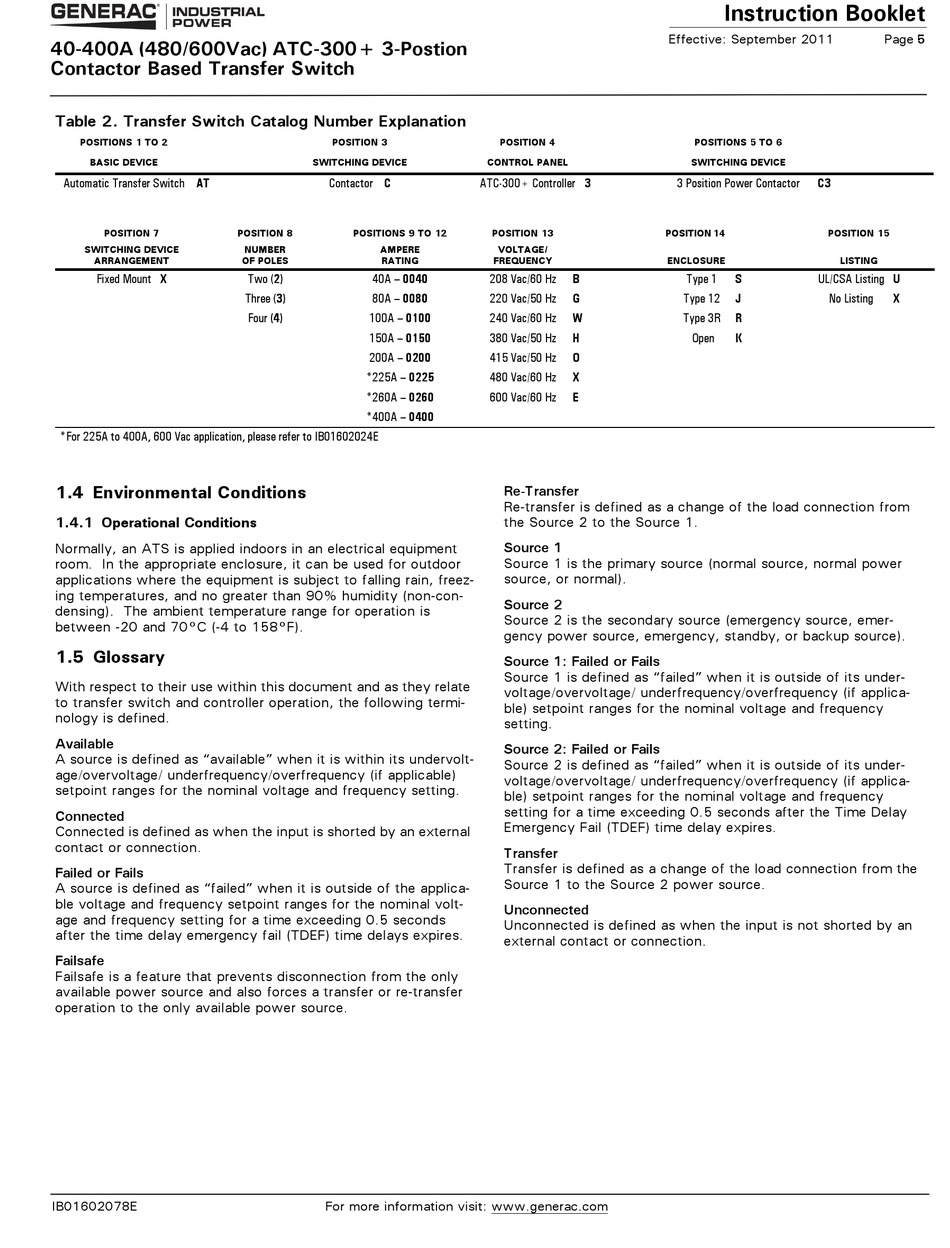

Generac Power Systems ATC-300+ Operation And Maintenance Manual page 5

40-400A (480/600Vac) ATC-300+ 3-Postion
Contactor Based Transfer Switch
Table 2. Transfer Switch Catalog Number Explanation
POSITIONS 1 TO 2
BASIC DEVICE
Automatic Transfer Switch AT
POSITION 7
SWITCHING DEVICE
ARRANGEMENT
Fixed Mount X
*For 225A to 400A, 600 Vac application, please refer to IB01602024E
1.4 Environmental Conditions
1.4.1 Operational Conditions
Normally, an ATS is applied indoors in an electrical equipment
room. In the appropriate enclosure, it can be used for outdoor
applications where the equipment is subject to falling rain, freez-
ing temperatures, and no greater than 90% humidity (non-con-
densing). The ambient temperature range for operation is
between -20 and 70°C (-4 to 158°F).
1.5 Glossary
With respect to their use within this document and as they relate
to transfer switch and controller operation, the following termi-
nology is defined.
Available
A source is defined as "available" when it is within its undervolt-
age/overvoltage/ underfrequency/overfrequency (if applicable)
setpoint ranges for the nominal voltage and frequency setting.
Connected
Connected is defined as when the input is shorted by an external
contact or connection.
Failed or Fails
A source is defined as "failed" when it is outside of the applica-
ble voltage and frequency setpoint ranges for the nominal volt-
age and frequency setting for a time exceeding 0.5 seconds
after the time delay emergency fail (TDEF) time delays expires.
Failsafe
Failsafe is a feature that prevents disconnection from the only
available power source and also forces a transfer or re-transfer
operation to the only available power source.
IB01602078E
POSITION 3
SWITCHING DEVICE
Contactor C
POSITION 8 POSITIONS 9 TO 12
NUMBER AMPERE
OF POLES RATING
Two (2) 40A – 0040
Three (3) 80A – 0080
Four (4) 100A – 0100
150A – 0150
200A – 0200
*225A – 0225
*260A – 0260
*400A – 0400
For more information visit: www.generac.com
POSITION 4
CONTROL PANEL
ATC-300+ Controller 3
POSITION 13
VOLTAGE/
FREQUENCY
208 Vac/60 Hz B
220 Vac/50 Hz G
240 Vac/60 Hz W
380 Vac/50 Hz H
415 Vac/50 Hz O
480 Vac/60 Hz X
600 Vac/60 Hz E
Re-Transfer
Re-transfer is defined as a change of the load connection from
the Source 2 to the Source 1.
Source 1
Source 1 is the primary source (normal source, normal power
source, or normal).
Source 2
Source 2 is the secondary source (emergency source, emer-
gency power source, emergency, standby, or backup source).
Source 1: Failed or Fails
Source 1 is defined as "failed" when it is outside of its under-
voltage/overvoltage/ underfrequency/overfrequency (if applica-
ble) setpoint ranges for the nominal voltage and frequency
setting.
Source 2: Failed or Fails
Source 2 is defined as "failed" when it is outside of its under-
voltage/overvoltage/ underfrequency/overfrequency (if applica-
ble) setpoint ranges for the nominal voltage and frequency
setting for a time exceeding 0.5 seconds after the Time Delay
Emergency Fail (TDEF) time delay expires.
Transfer
Transfer is defined as a change of the load connection from the
Source 1 to the Source 2 power source.
Unconnected
Unconnected is defined as when the input is not shorted by an
external contact or connection.
Instruction Booklet
Effective: September 2011
POSITIONS 5 TO 6
SWITCHING DEVICE
3 Position Power Contactor C3
POSITION 14 POSITION 15
ENCLOSURE LISTING
Type 1 S UL/CSA Listing U
Type 12 J No Listing
Type 3R R
Open K
Page 5
