Mira Azora Installation And User Manual page 8

•
Avoid layouts where the shower hose will be sharply kinked. This may reduce
the life of the hose.
•
A Hose Retaining Ring is supplied to prevent the handset from dropping below
the spill-over level of the bath or shower tray, which could lead to contamination
from back-siphoning. The supplied Hose Retaining Ring should meet the
majority of user requirements for shower installations with flexible outlet fittings.
However, there will be occasions when it will not provide a suitable solution.
In these instances an outlet double checkvalve, e.g. a Mira DCV-H, MUST
be fitted. This will increase the required supply pressure typically by 10 kPa
(0.1 bar). Refer to section "Accessories".
•
Supply pipework MUST be flushed to clear debris before connecting to the
appliance.
•
To avoid damage to the case when soldered fittings are used, pre-solder
the pipework and fittings before connecting them to the inlet connector
assembly.
•
To ensure the case and other components are not put under strain during
installation always provide mechanical support when making plumbing
connections. Upon completion of the installation ensure connections and
back case are not under any stress due to misaligned pipework or electrical
cables.

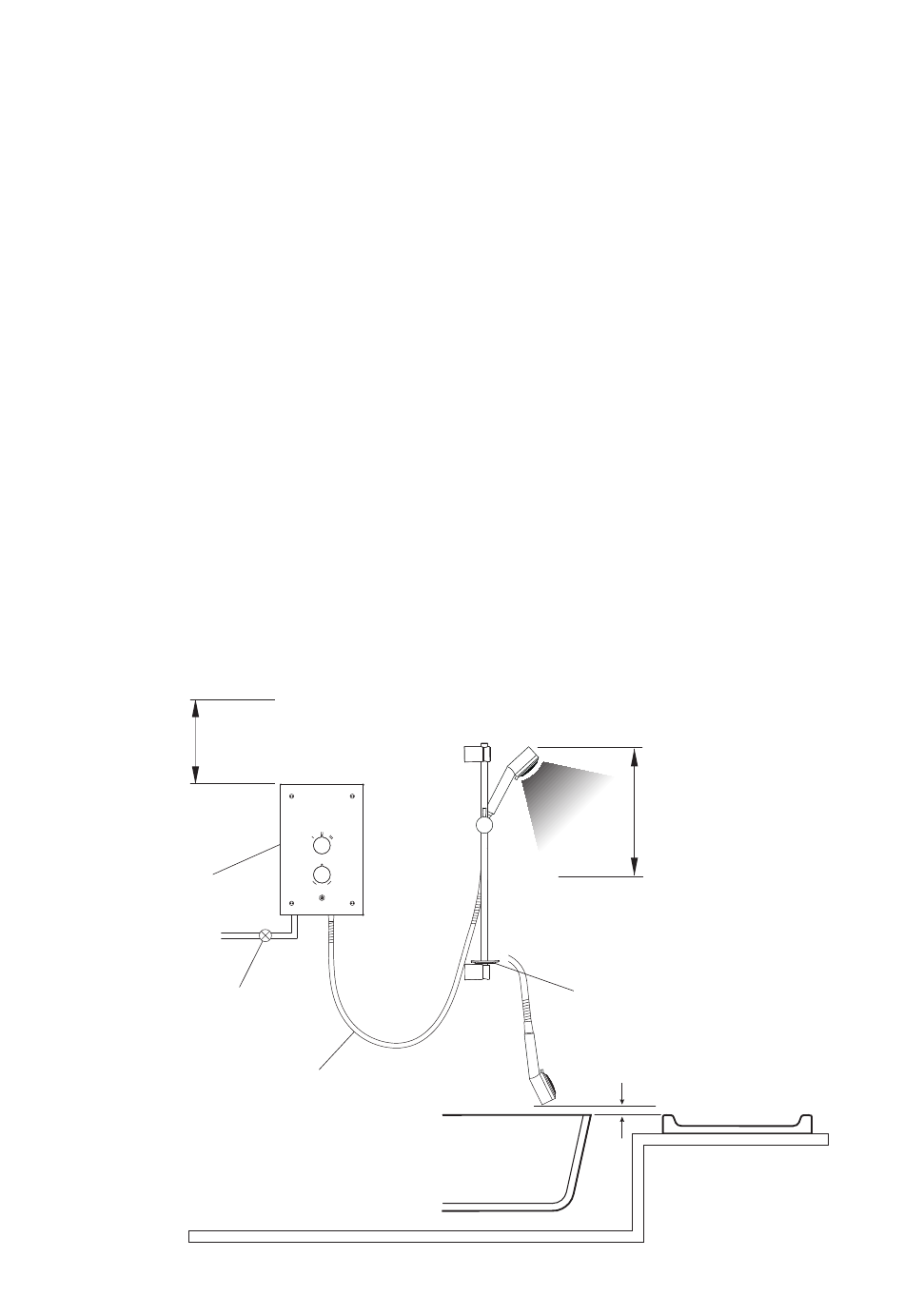

Minimum
200 mm from
ceiling
Fixed to finished
wall surface
Isolating Valve
Avoid Sharp Kinks
Hose Retaining Ring
25 mm Min
Bath
8
Convenient height
for all the family
Shower Tray
