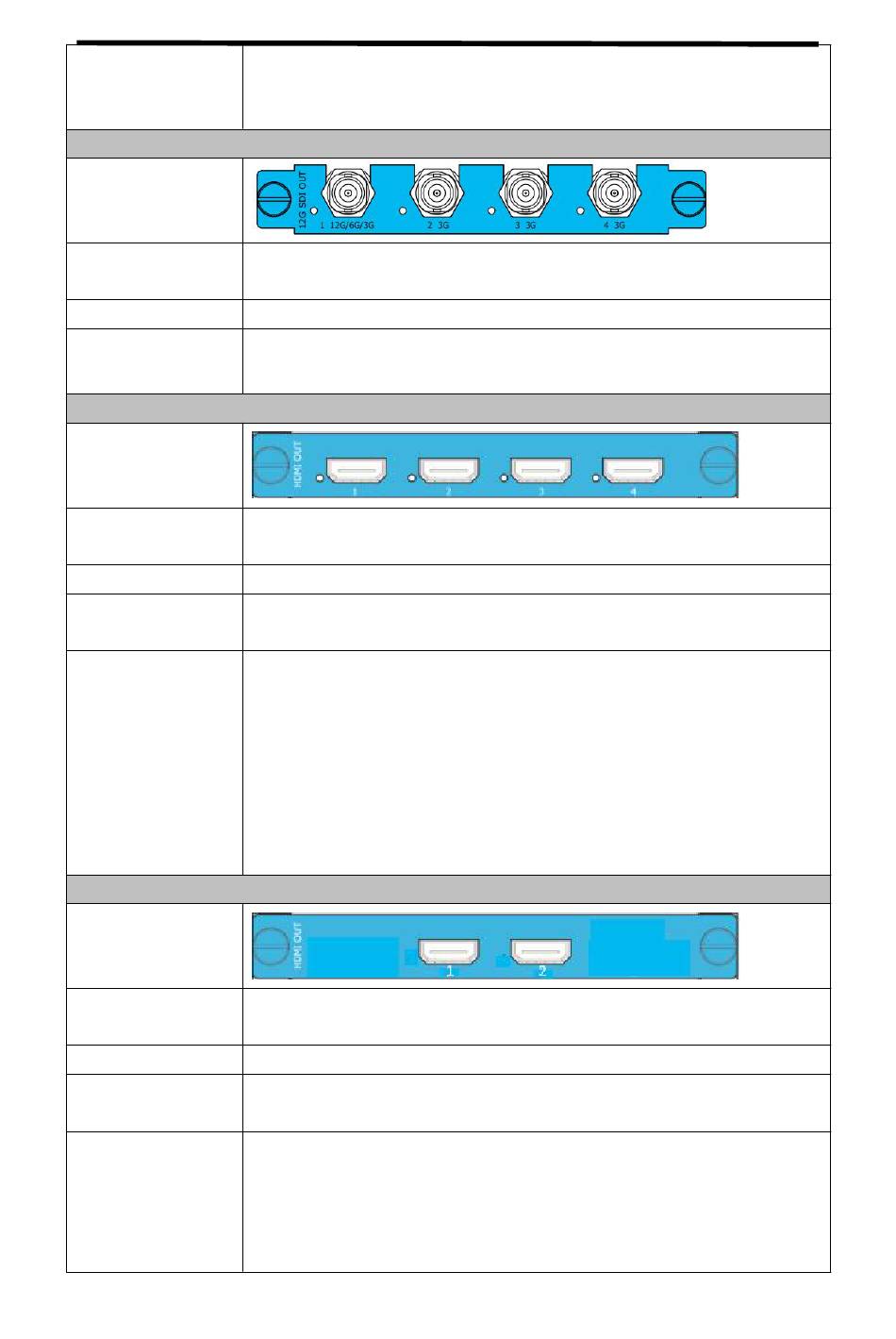

RGBlink D6 User Manual page 56

SDI Output Module
Interface
Appearance
Number of
Outputs
Connector
Output
Resolutions
HDMI 1.3 Output Module
Interface
Appearance
Number of
Outputs
Connector
Supported
Standards
Output
Resolutions
HDMI 2.0 Output Module
Interface
Appearance
Number of
Outputs
Connector
Supported
Standards
Output
Resolutions
D6
1920x1080@50/60Hz | 2048x1152@50/60Hz |
2560x1600@50/60Hz | 3840x1080@50/60Hz |
3840x2160@24/25/30/50/60Hz | 4096x2160@50/60Hz
4
1 × 12G/6G SDI or 4 × 3G/HD/SD SDI
480i | 576i | 720p@25/30/50/60Hz | 1080i@50/59.94/60Hz
1080p@23.98/24/25/29.97/30/50/59.94/60Hz
1080psf@23.98/24/25/29.97/30Hz | 2160p@30/50/60Hz
4
Standard HDMI 1.3 Socket
1.3
SMPTE:
720p@50/60Hz | 1080p@50/60Hz
VESA:
800x600@50/60Hz | 1024x768@50/60Hz | 1280x720@50/60Hz |
1280x800@50/60Hz | 1280x960@50/60Hz | 1280x1024@50/60Hz |
1400x1050@50/60Hz | 1600x1200@50/60Hz |
1920x1080@50/60Hz |
2048x1152@50/60Hz |
2
Standard HDMI 2.0 Socket
2.0
SMPTE:
480i | 576i | 720p@50/60Hz | 1080i@50/60Hz |
1080p@50/60Hz | 2160p@50/60Hz
VESA:
800x600@50/60Hz | 1024x768@50/60Hz | 1280x720@50/60Hz |
