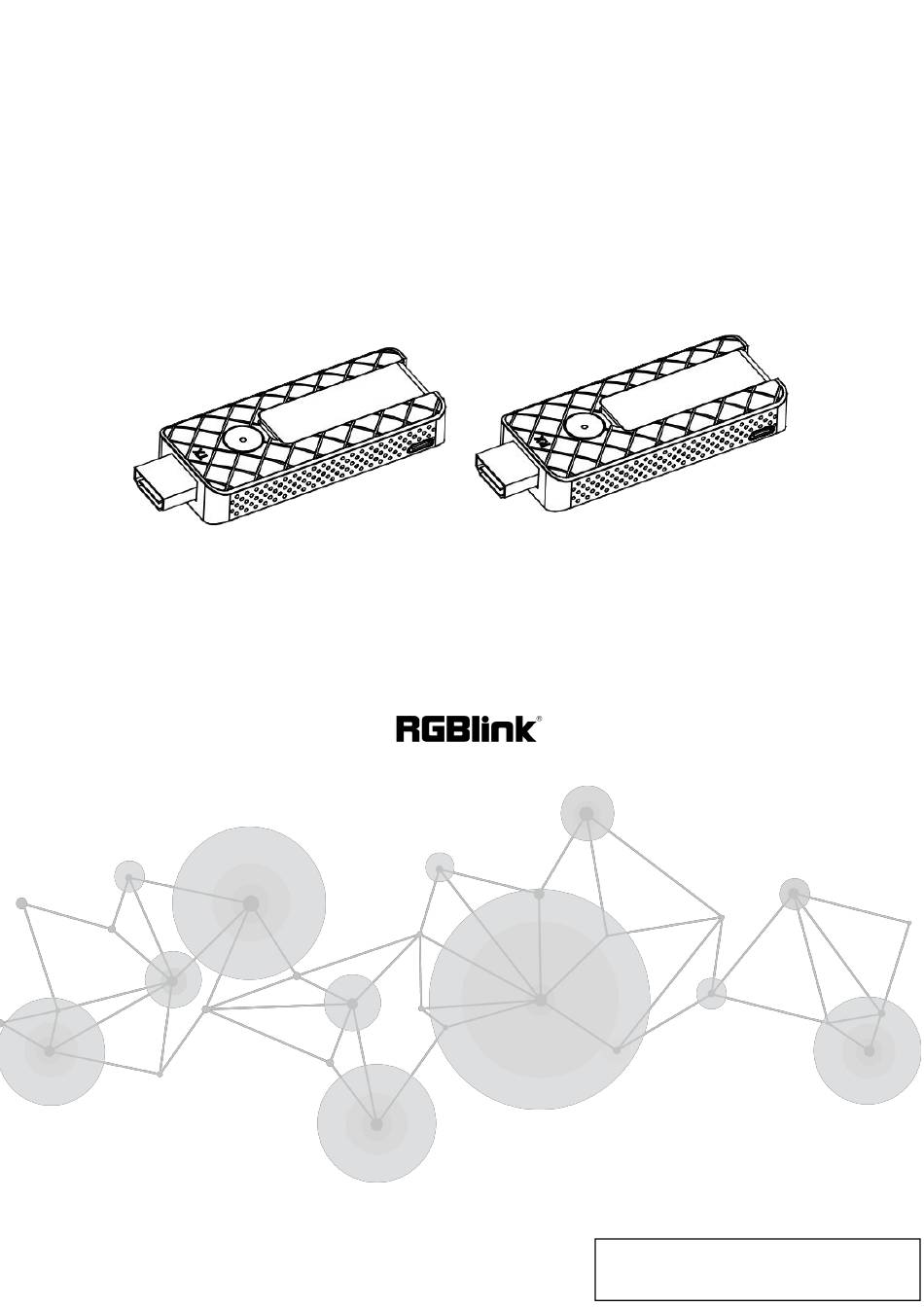

- Page 1 ASK nano Wireless Presentation and Collaboration System USER MANUAL Article No: RGB-RD-UM-ASK nano E003 ASK nano User Manual Revision No: V1.3...
-
Page 2: Table Of Contents
Content Declarations..................................3 FCC/Warranty................................3 Operators Safety Summary.............................4 Installation Safety Summary........................... 4 Chapter 1 Your Product..............................5 1.1 In the Box................................5 1.2 Product Overview............................. 6 1.2.1 Interface..............................6 Chapter 2 Install Your Product............................8 2.1 Pairing of TX and RX............................8 2.2 Receiver Installation............................8 2.3 Transmitter Installation.............................9 Chapter 3 Use Your Product............................10 3.1 Homepage............................... -
Page 3: Declarations
RGBlink. If the purchaser or a third party carries out modifications or repairs on goods delivered by RGBlink, or if the goods are handled incorrectly, in particular if the systems are commissioned operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid. -
Page 4: Operators Safety Summary
Operators Safety Summary The general safety information in this summary is for operating personnel. Do Not Remove Covers or Panels There are no user-serviceable parts within the unit. Removal of the top cover will expose dangerous voltages. To avoid personal injury, do not remove the top cover. Do not operate the unit without the cover installed. -
Page 5: Chapter 1 Your Product
Chapter 1 Your Product 1.1 In the Box ASK nano Meet Set(TX*2+RX*1) Type C - HDMI 2.4G Wireless micro USB HDMI HDMI Adapter*1 Cable*1 Adapter(female Cable(male to Cable*2 tot female)*1 female)*1 ASK nano Starter Set(TX*1+RX*1) micro USB HDMI 2.4G Wireless HDMI Cable*2 Cable*1... -
Page 6: Product Overview
1.2 Product Overview ASK nano is an intuitive and high efficiency wireless presentation and collaboration system that enables any meeting participant to simply share the content from their laptop, mobile phone, or tablet on the projector or large screen wirelessly, no APP required, no set up, no messy cables, just touch and share. ASK nano also supports multicast, which is a group communication, where video transmission from one transmitter is addressed to a group of receivers simultaneously. - Page 7 TX Illumination HDMI interface, connect display or projector Projection key Indicator light Micro USB Power interface RX Illumination HDMI interface,connect display or projector Mode switch key,switch TX/DLNA/AirPlay Mode and Miracast Mode Indicator light Micro USB power interface Indicator light Illumination Light Red TX is opening Flash Blue...
-
Page 8: Chapter 2 Install Your Product
Chapter 2 Install Your Product 2.1 Pairing of TX and RX Before delivery, each ASK nano set has been paired , but when extra TX are required, following steps are the method for users to finish TX/RX pairing. (1) If you want to determine whether TX and RX have been paired: ①... -
Page 9: Transmitter Installation
2.3 Transmitter Installation 1. Connect the TX’s HDMI port to the PC’s HDMI port. 2. The light turns from red to flashing blue when TX is ready for projection. 3. Touch the projection key and the indicator light turns static purple,which means the projection is successful. Note:If projection is unsuccessful,unplug the TX, and supply power to TX’s HDMI port via microUSB-USB cable and power adapter,then connect TX’s HDMI port to the PC’s HDMI port again,touch the projection key to project. -
Page 10: Chapter 3 Use Your Product
Chapter 3 Use Your Product 3.1 Homepage After RX is connected to big screen, the screen enters homepage,which will be set in English by default. Users can switch the language to English in web page menu.(please refer to 3.5<Menu>) You can find the the hotspot and password in top left corner as shown in the figure below; RX hotspot name : ASK nano-XXXXXX;... -
Page 11: Phone Screen Projection
3.3 Phone Screen Projection 3.3.1 Apple Select two modes of iPhone projection: "Mirror" and "Streaming" which can be done on the web menu, as mentioned in 3.5<Menu> Both modes should connect the RX’s hotspot in TX/DLNA/AirPlay Mode. Operation steps are as follow: 1. - Page 12 2. Click "Wireless Projection" in general Settings to project the current image to the big screen. Miracast Mode The screen projection steps of Android phones in Miracast Mode are as follows: 1. Touch the Mode Switch Key on the RX to enter Miracast Mode. The screen on the RX will show "Miracast Mode".
-
Page 13: Examples Demonstration Of Screen Projection
Operation steps are as follows: 1. Connect RX’s micro USB port and power with 2.4G wireless cable; 2. Search RX's own hotspot in Settings. The WIFI name is usually ASK Nano-XXXXXX, and the initial password is 12345678 or check the password displayed on the standby interface of RX. 3. -
Page 14: Menu
3) Clicking “Wireless Projection” on Android phone, mode, ① if it is in TX/DLNA/AirPlay the pictures and videos will be cast to the big screen; ② if it is in Miracast mode,the current image of phone will be cast to the big screen; ③... -
Page 15: Add Wireless Network
1. After connection, type the IP address of RX in the web site bar on your phone or computer, as shown in the figure above: 192.168.43.1; Note: In case of problems such as abnormal size of interface ICONS and blue background, users can clear browser data before entering the web page. -
Page 16: Screen Position
Click the Language bar and select Chinese or English from the drop-down menu. The device will restart automatically. 3.1.3 Screen Position Click "Screen Position" to zoom in or zoom out the image of big screen. 3.1.4 Airplay Mode For devices that support AirPlay, users can select the screen projection mode of "Mirror" or "Streaming." "... - Page 17 Click “Meeting Invitation”,open Meeting Invitation in Meeting Status, and fill in the Meeting Name,Start Time,End Time and Meeting Topics(up to eight topics),then click Confirm,the information will show on the top right corner of the screen. ASK nano User Manual...
-
Page 18: Chapter 4 Order Codes
Chapter 4 Order Codes 4.1 Product Code 450-0101-02-0 ASK nano TX 450-0002-02-0 ASK nano RX 450-1002-01-0 ASK nano Starter Set (TX*1+RX*1) 450-1004-01-0 ASK nano Meet Set (TX*2+RX*1) ASK nano User Manual... -
Page 19: Chapter 5 Support
Chapter 5 Support 5.1 Contact Us ASK nano User Manual... -
Page 20: Chapter 6 Appendix
Chapter 6 Appendix 6.1 FAQ 1. What if the pairing of TX and RX fail? A: Situation 1:First, determine which mode RX is in. If RX power supply via common USB cable (It does not need to consider this problem if 2.4G wireless cable is used), then RX must be in TX/DLNA/ Airplay mode before pairing. If RX is in Miracast mode, touch RX button to switch the mode. -
Page 21: Specification
6.2 Specification Receiver Connectors Output HDMI 1×HDMI-A Power 1×microUSB Performance Output Resolutions HDMI SMPTE 1080p@60 Supported Standard HDMI Power Input Voltage DC 5V/0.5A Max Power 2.5W Environment Temperature 0 ℃ ~70 ℃ Humidity 10%~85% Physical Weight 0.026kg Packaged 0.41kg(TX*2+RX*1) Dimension 73.8mm×32mm×13mm Packaged 173mm×120mm×52mm(TX*2+RX*1) - Page 22 Transmitter Connectors Output HDMI 1×HDMI-A Power 1×microUSB Performance Input Resolutions HDMI VESA 800×600@60 |1024×768@60 1280×720@60 |1280×800@60 1280×960@60 |1280×1024@60 1400×1050@60 |1600×1200@60 1920×1080@60 Supported Standard HDMI Power Input Voltage DC 5V/0.5A Max Power 2.5W Environment Temperature 0 ℃ ~70 ℃ Humidity 10%~85% Physical Weight 0.027kg...
-
Page 23: Accessory Supplement
6.3 Accessory Supplement As shown in the picture above,Type C(F) port connected with a charger can supply power to computer or phone which connect with Type C(M) port. 6.4 Terms & Definitions ●RCA：Connector used primarily in consumer AV equipment for both audio and video. The RCA connector was developed by the Radio Corporation of America. - Page 24 HD-SDI. ●6G-SDI: standardized in SMPTE ST-2081 released in 2015, 6Gbit/s bitrate and able to support 2160p@30. ●12G-SDI:standardized in SMPTE ST-2082 released in 2015, 12Gbit/s bitrate and able to support 2160p@60. ●U-SDI:Technology for transmitting large-volume 8K signals over a single cable. a signal interface called the ultra high definition signal/data interface (U-SDI) for transmitting 4K and 8K signals using a single optical cable.
- Page 25 Stream Compression 1.2 (DSC), DSC is a "visually lossless" encoding technique with up to a 3:1 compression ratio. Using DSC with HBR3 transmission rates, DisplayPort 1.4 can support 8K UHD (7680 × 4320) at 60 Hz or 4K UHD (3840 × 2160) at 120 Hz with 30 bit/px RGB color and HDR. 4K at 60 Hz 30 bit/px RGB/HDR can be achieved without the need for DSC. ●Multi-mode Fiber: Fibers that support many propagation paths or transverse modes are called multi-mode fibers, generally have a wider core diameter and are used for short-distance communication links and for applications where high power must be transmitted.
- Page 26 ● USB 3.2: Super Speed USB with 3 varieties of 3.2 Gen 1(original name USB 3.0), 3.2Gen 2(original name USB 3.1), 3.2 Gen 2x2 (original name USB 3.2) with speed up to 5Gbps,10Gbps,20Gbps respectively. USB version and connectors figure: Type A Type B Mini A Mini...
- Page 27 uncompressed digital audio on IP based networks. The more recent Dante AV specification includes support for digital video. ●NDI: Network Device interface (NDI) is a software standard developed by NewTek to enable video-compatible products to communicate, deliver, and receive broadcast quality video in a high quality, low latency manner that is frame-accurate and suitable for switching in a live production environment over TCP (UDP) Ethernet based networks.
- Page 28 data. OSC is transported via UDP packets between devices connected on an Ethernet. ●Brightness： Usually refers to the amount or intensity of video light produced on a screen without regard to colour. Sometimes called black level. ●Contrast Ratio ： The ratio of the high light output level divided by the low light output level. In theory, the contrast ratio of the television system should be at least 100:1, if not 300:1.
-
Page 29: Revision History
All information herein is Xiamen RGBlink Science & Technology Co Ltd. excepting noted. is a regist ered trademark of Xiamen RGBlink Science & Technology Co Ltd.While all efforts are made for accuracy at time of printing, we reserve the right to alter otherwise make change without notice.
