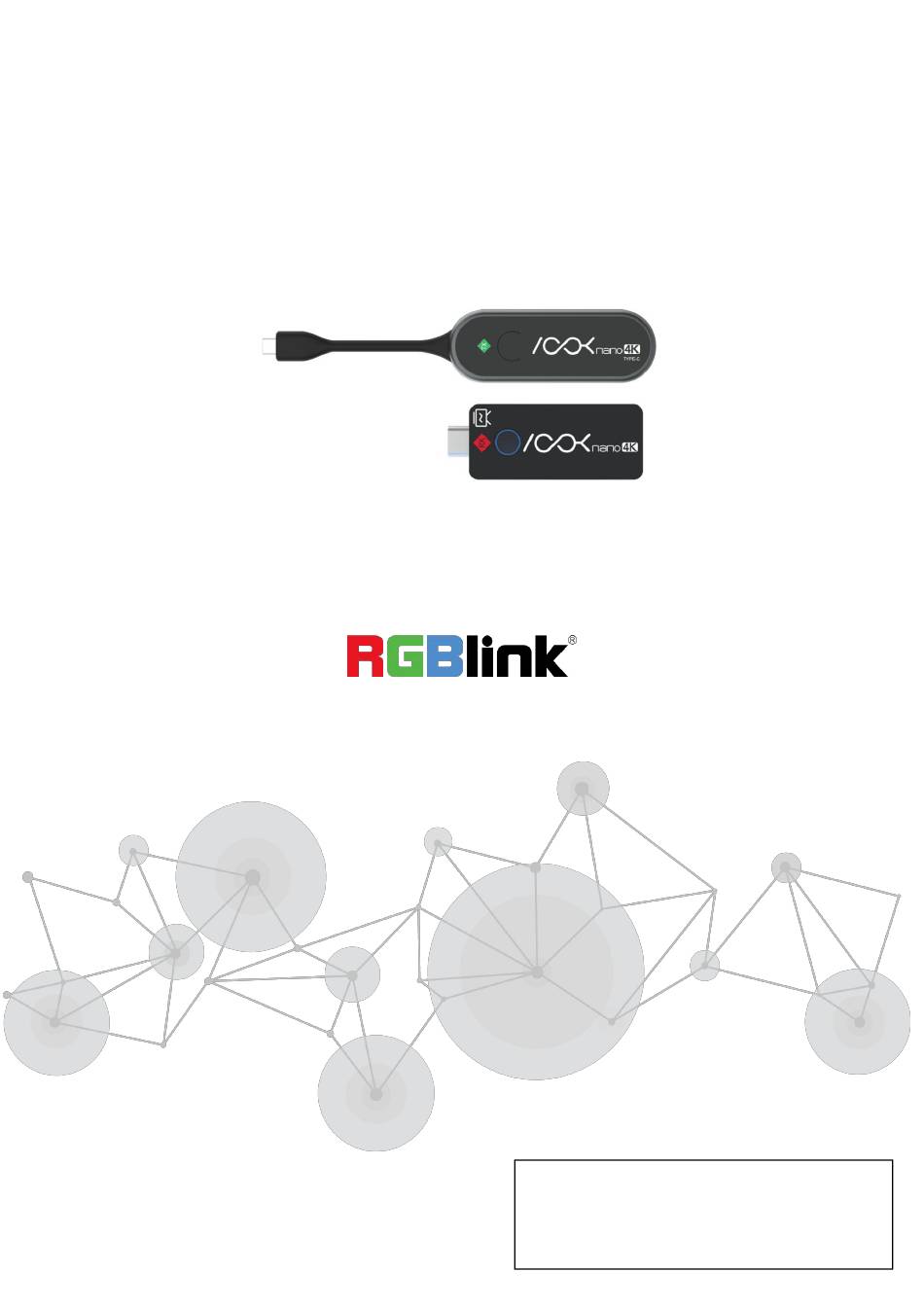

- Page 1 ASK nano 4K (USB-C) Wireless Presentation and Collaboration System User Manual Article No: RGB-RD-UM-ASK nano 4K E000 Revision No: V1.0...
-
Page 2: Table Of Contents
2.4 Phone Screen Projection ........................14 2.4.1 iOS ..............................15 2.4.2 Android ............................15 2.5 Connect to Internet ..........................16 2.6 AP Password Management ........................18 2.7 Language ..............................19 2.8 Screen Position ............................19 2.9 AirPlay Mode ............................. 19 ASK nano 4K (USB-C) User Manual... - Page 3 Chapter 3 Order Codes ............................20 3.1 Product Code .............................20 Chapter 4 Support ..............................21 4.1 Contact Us ..............................21 Chapter 5 Appendix ..............................22 5.1Terms & Definitions ..........................22 5.2 Revision History ............................32 ASK nano 4K (USB-C) User Manual...
-
Page 4: Declarations
Guarantee and Compensation RGBlink provides a guarantee relating to perfect manufacturing as part of the legally stipulated terms of guarantee. On receipt, the purchaser must immediately inspect all delivered goods for damage incurred during transport, as well as for material and manufacturing faults. -
Page 5: Operators Safety Summary
RGBlink. If the purchaser or a third party carries out modifications or repairs on goods delivered by RGBlink, or if the goods are handled incorrectly, in particular if the systems are commissioned operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid. -
Page 6: Installation Safety Summary
If you find any shortages, contact your sales representative. Once you have removed all the components from their packaging and checked that all the listed components are present, visually inspect the system to ensure there was no damage during ASK nano 4K (USB-C) User Manual... - Page 7 If there is damage, notify the shipping carrier immediately for all claims adjustments. Site Preparation The environment in which you install your ASK nano should be clean, properly lit, free from static, and have adequate power, ventilation, and space for all components. ASK nano 4K (USB-C) User Manual...
-
Page 8: Chapter 1 Your Product
A standard ASK nano 4K（USB-C) is a combination of one transmitters and one receiver, the receiver is connected to a projector or display, and the USB-C male interface of the transmitter is connected to the USB-C port of the PC. - Page 9 ASK nano 4K (USB-C) System Connection Diagram 1 ASK nano 4K (USB-C) System Connection Diagram 2 ASK nano 4K (USB-C) User Manual...
-
Page 10: Interface
ASK nano 4K (USB-C) System Connection Diagram 3 1.3 Interface Transmitter Illumination ASK nano 4K (USB-C) User Manual... - Page 11 Indicator light of Transmitter Illumination Static Red TX system is booting on Flashing Red TX is searching for RX Flashing Blue Waiting for the connection Static blue Connected and start to presenting Purple No signal resource ASK nano 4K (USB-C) User Manual...
- Page 12 Short press to switch mode between TX/DLNA/Airplay Mode and Miracast Mode To display different status USB-C Jack For power supply Indicator light of Receiver Illumination Flashing Blue Waiting for connection Static blue Connected and start to presenting ASK nano 4K (USB-C) User Manual...
-
Page 13: Dimensions
1.4 Dimensions Following is the dimension of ASK nano 4K (USB-C) for your reference: 93mm×28.3mm×13mm (TX) (cable excluded) 83mm×32mm×13mm (RX) ASK nano 4K (USB-C) User Manual... -
Page 14: Chapter 2 Use Your Product
2.2 Transmitter Installation 1. Connect ASK nano 4K (USB-C) TX’s USB-C jack to USB-C output on PC or other source device. 2. The LED indicator of the ASK nano 4K (USB-C) TX will turn red when it’s booting up. -
Page 15: Pairing A Transmitter And Receiver
3. The LED indicator will become blue and flash when ASK nano 4K (USB-C) is ready to stream. 4. Wait and the system will automatically to stream. After it is successfully connected, the LED indicator turns to static blue. Note: Not every USB-C interface supports ASK nano 4K (USB-C) TX, only the device support DP 1.3 or above can export the video to TX for wireless transmission. -
Page 16: Ios
1. Search RX SSID and connect. (SSID: ASK nano 4Kxxxx, Password: 12345678), the SSID is shown on the right upper corner of the screen. Note: If ASK nano 4K (USB-C) RX is connected to Internet, you need to keep device connected to the same network as ASK nano 4K (USB-C) RX. -
Page 17: Connect To Internet
2.5 Connect to Internet When your iOS or Android device needs to connect to Internet but is not able to use celluar data, such as iPad or or other tablets, it is necessary to connect your ASK nano 4K (USB-C) RX to Internet. - Page 18 3. Select the network and connect in the management platform, the RX will link to the network and show the network SSID on the upper right corner of the screen. ASK nano 4K (USB-C) User Manual...
-
Page 19: Ap Password Management
Note: To get a better performance, we recommend to connect with 5G router. When connected to router, the IP address will be updated accordingly. 2.6 AP Password Management User can change AP password in the management page. Note：If the password are changed, the TX and RX have to pair again. ASK nano 4K (USB-C) User Manual... -
Page 20: Language
2.7 Language User can change language in the management page. ASK nano 4K (USB-C) supports user interface displayed in English or Chinese. 2.8 Screen Position If the RX HDMI OUT size is not compatible with the display, user can use Screen Position to adjust the zoom in and zoom out the screen. -
Page 21: Chapter 3 Order Codes
Chapter 3 Order Codes 3.1 Product Code 450-2003-01-0 ASK nano 4K (USB-C) Set (TX*1+RX*1) ASK nano 4K (USB-C) User Manual... -
Page 22: Chapter 4 Support
Chapter 4 Support 4.1 Contact Us ASK nano 4K (USB-C) User Manual... -
Page 23: Chapter 5 Appendix
●SDI: Serial Digital Interface. Standard definition video is carried on this 270 Mbps data transfer rate. Video pixels are characterized with a 10-bit depth and 4:2:2 color quantization. Ancillary data is included on this interface and typically includes audio or other metadata. Up to sixteen audio channels ASK nano 4K (USB-C) User Manual... - Page 24 June 5, 2009, added support for 4096 × 2160 at 24 Hz, 3840 × 2160 at 24, 25, and 30 Hz, and 1920 × 1080 at 120 Hz. Compared to HDMI 1.3, 3 more features added which are HDMI ASK nano 4K (USB-C) User Manual...
- Page 25 3840 × 2160@60Hz. ● DP 1.4: Publish on 1 Mar, 2016.overall transmission bandwidth 32.4 Gbit/s ,DisplayPort 1.4 adds support for Display Stream Compression 1.2 (DSC), DSC is a "visually lossless" encoding technique with ASK nano 4K (USB-C) User Manual...
- Page 26 Because of its small dimensions, it is the perfect fit for high-density connections, XFP, SFP, and SFP+ transceivers. ● FC: (Ferrule Connector) is a screw type connector with a 2.5mm ferrule. FC is a round shaped ASK nano 4K (USB-C) User Manual...
- Page 27 USB 3.1), 3.2 Gen 2x2 (original name USB 3.2) with speed up to 5Gbps,10Gbps,20Gbps respectively. USB version and connectors figure: Type A Type B Mini A Mini B Micro-A Micro-B Type C USB 2.0 USB 3.0 3.1&3.2 ASK nano 4K (USB-C) User Manual...
- Page 28 A SMPTE developed standard, ST2110 describes how to send digital video over and IP networks. Video is transmitted uncompressed with audio and other data in a separate streams. SMPTE2110 is intended principally for broadcast production and distribution facilities where quality and ASK nano 4K (USB-C) User Manual...
- Page 29 ●H.264: Also known as AVC (Advanced Video Coding) or MPEG-4i is a common video compression standard. H.264 was standardized by the ITU-T Video Coding Experts Group (VCEG) together with the ISO/IEC JTC1 Moving Picture Experts Group (MPEG). ASK nano 4K (USB-C) User Manual...
- Page 30 ●OSC: The principle of Open Sound Control (OSC) protocol is for networking sound synthesizers, computers, and multimedia devices for musical performance or show control. As with XML and JSON, the OSC protocol allows sharing data. OSC is transported via UDP packets between devices connected on an Ethernet. ASK nano 4K (USB-C) User Manual...
- Page 31 ● Genlock: Allows synchronisation of otherwise video devices. A signal generator provides a signal pulses which connected devices can reference. Also see Black Burst and Color Burst. ● Blackburst: The video waveform without the video elements.It includes the vertical sync, ASK nano 4K (USB-C) User Manual...
- Page 32 . ●HDR: is a high dynamic range (HDR) technique used in imaging and photography to reproduce a greater dynamic range of luminosity than what is possible with standard digital imaging or ASK nano 4K (USB-C) User Manual...
-
Page 33: Revision History
The source device will then output the provided EDID data, ensuring proper video image quality. 5.2 Revision History The table below lists the changes of ASK nano 4K (USB-C) User Manual. Format Time ECO#...
