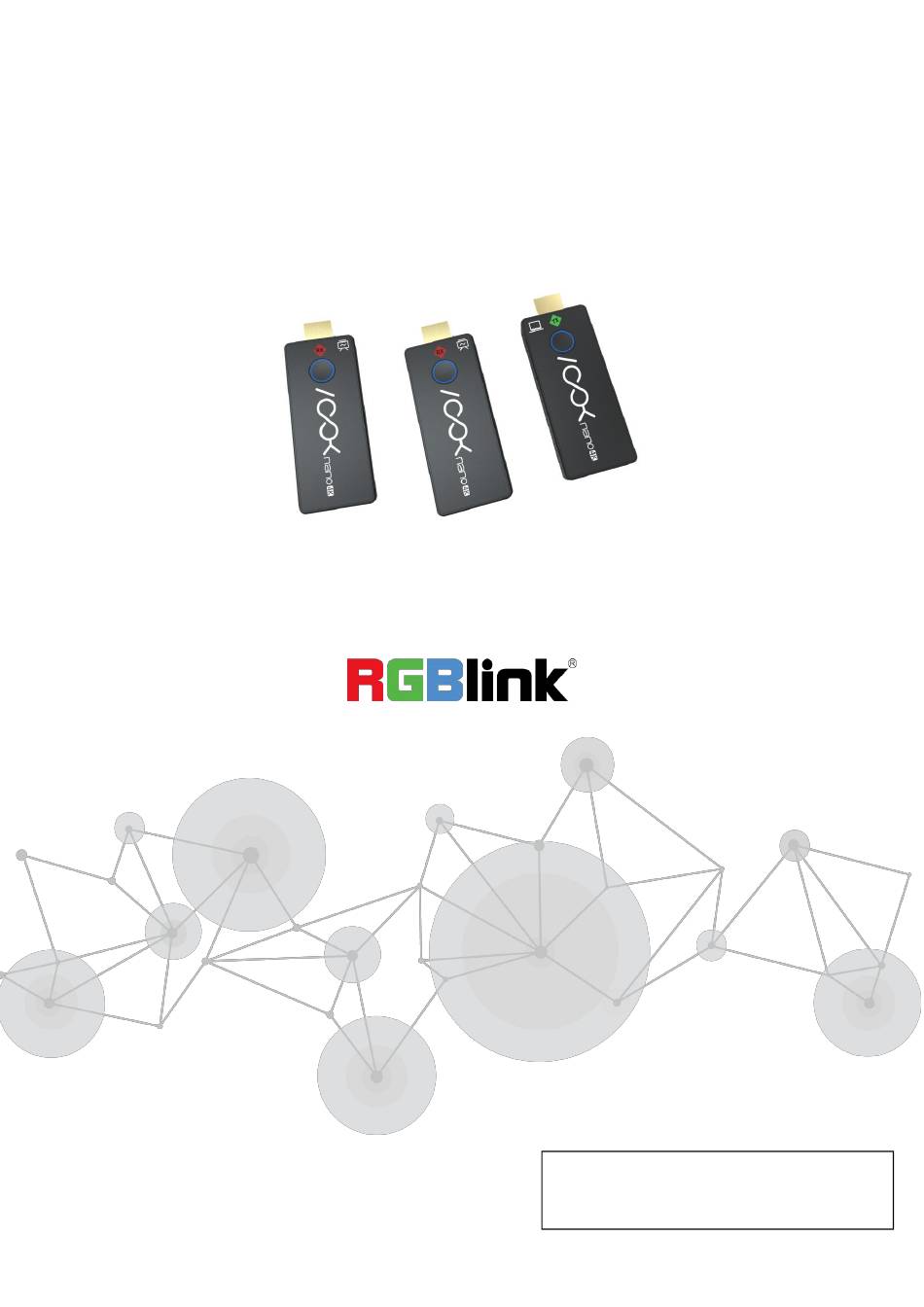

- Page 1 ASK nano 4K Wireless Presentation and Collaboration System User Manual Article No: RGB-RD-UM-ASK nano 4K E000 Revision No: V1.0...
-
Page 2: Table Of Contents
Content Declarations ..................................2 FCC/Warranty ................................. 2 Operators Safety Summary ............................ 3 Installation Safety Summary ...........................3 Chapter 1 Your Product ..............................4 1.1 In the Box ................................4 1.2 Product Overview ............................. 4 1.3 Interface ................................5 1.4 Dimensions ............................... 6 Chapter 2 Use Your Product ............................7 2.1 Receiver Installation ............................ -
Page 3: Declarations
RGBlink. If the purchaser or a third party carries out modifications or repairs on goods delivered by RGBlink, or if the goods are handled incorrectly, in particular if the systems are commissioned operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid. -
Page 4: Operators Safety Summary
Operators Safety Summary The general safety information in this summary is for operating personnel. Do Not Remove Covers or Panels There are no user-serviceable parts within the unit. Removal of the top cover will expose dangerous voltages. To avoid personal injury, do not remove the top cover. Do not operate the unit without the cover installed. Power Source This product is powered by USB on TX end and DC 5V at RX end. -
Page 5: Chapter 1 Your Product
APP required, no set up, no messy cables, just click and share. A standard ASK nano 4K is a combination of one transmitters and two receivers, the receiver is connected to a projector or display, and the transmitters are connected with PC or any device with HDMI jack, after connected, users just need to wait the screen streaming to the display automatically. -
Page 6: Interface
ASK nano System Connection Diagram 2 1.3 Interface Transmitter Illumination Item Illumination HDMI IN Connect with the HDMI port of the source devices Button Click to discontinue projection or resume projection To display different status Reset Press the button up to 3s for factory reset USB-C Jack For power supply Indicator light of Transmitter... -
Page 7: Dimensions
Indicator light of Receiver Illumination Flashing Blue Power on and ready for projection Static blue Already in projection 1.4 Dimensions Following is the dimension of ASK nano 4K for your reference: 91mm×34mm×13mm (TX/RX) ASK nano User Manual... -
Page 8: Chapter 2 Use Your Product
2.2 TX Mode 1. Check the TV screen and make sure it is under TX Mode, if not press the button on ASK nano 4K RX. 2. Power ASK nano 4K TX via 5V/1A power adapter or connect its USB port to PC by a USB A-C cable. -
Page 9: Multicast Function
4. The LED indicator of the ASK nano 4K TX will turn red when it’s booting up. 5. The LED indicator will become blue and flash when ASK nano 4K is ready to stream. 6. Wait and the system will automatically to stream. After it is successfully connected, the LED indicator turns to static blue. -
Page 10: Airplay/Miracast Mode
First make sure ASK nano 4K RX is still under TX Mode before doing paring. 1. Power on receiver and connect with display and wait for RX to enter the home page. -
Page 11: Android
When your iOS or Android device needs to connect to Internet but is not able to use celluar data, such as iPad or or other tablets, it is necessary to connect your ASK nano 4K RX to Internet. 1. Press button on RX to switch it to Airplay/Miracast mode. - Page 12 3. Open the browser with your phone, and input the IP address shown on the right upper corner of the screen to enter to the ASK nano 4K RX management platform. ASK nano User Manual...
- Page 13 Note: When connected to router, the IP address will be updated accordingly. Note: After ASK nano 4K is connected to Internet, you do not need to connect iOS or Android device to ASK nano 4K RX’s SSID any more. Just keep device connected to the same network as ASK nano 4K RX.
-
Page 14: Ios
2.5.1 iOS From Quick Settings, select Screen Mirroring and choose ASK nano 4K XXXXX-iTV from the device list. 2.5.2 Android Search wireless projection device from setting and choose ASK nano 4K-XXXXX. ASK nano User Manual... -
Page 15: Chapter 3 Order Codes
Chapter 3 Order Codes 3.1 Product Code 450-2002-02-0 ASK nano 4K Set (TX*1+RX*2) ASK nano User Manual... -
Page 16: Chapter 4 Support
Chapter 4 Support 4.1 Contact Us ASK nano User Manual... -
Page 17: Chapter 5 Appendix
Chapter 5 Appendix 5.1 Specification Receiver Connectors Output HDMI 1×HDMI-A Power 1×USB-C Performance Output Resolutions HDMI VESA Up to 3840×2160@60 Supported Standard HDMI HDCP Power Input Voltage DC 5V/1A Max Power 3.5W Operating Temperature 0 ℃ ~40 ℃ Environment Humidity 10%~80% RH Storage Temperature... -
Page 18: Terms & Definitions
Power Input Voltage DC 5V/1A Max Power 3.5W Operating Temperature 0 ℃ ~40 ℃ Environment Humidity 10%~80% RH Storage Temperature -10 ℃ ~60 ℃ Environment Humidity 5%~95% RH Physical Weight 0.03kg Dimension 91mm×34mm×13mm 5.2 Terms & Definitions ●RCA: Connector used primarily in consumer AV equipment for both audio and video. The RCA connector was developed by the Radio Corporation of America. - Page 19 ●12G-SDI: Standardized in SMPTE ST-2082 released in 2015, 12Gbit/s bitrate and able to support 2160p@60. ●U-SDI: Technology for transmitting large-volume 8K signals over a single cable. a signal interface called the ultra high definition signal/data interface (U-SDI) for transmitting 4K and 8K signals using a single optical cable. The interface was standardized as the SMPTE ST 2036-4.
- Page 20 Stream Compression 1.2 (DSC), DSC is a "visually lossless" encoding technique with up to a 3:1 compression ratio. Using DSC with HBR3 transmission rates, DisplayPort 1.4 can support 8K UHD (7680 × 4320) at 60 Hz or 4K UHD (3840 × 2160) at 120 Hz with 30 bit/px RGB color and HDR. 4K at 60 Hz 30 bit/px RGB/HDR can be achieved without the need for DSC. ●Multi-mode Fiber: Fibers that support many propagation paths or transverse modes are called multi-mode fibers, generally have a wider core diameter and are used for short-distance communication links and for applications where high power must be transmitted.
- Page 21 ●USB 3.2: Super Speed USB with 3 varieties of 3.2 Gen 1(original name USB 3.0), 3.2Gen 2(original name USB 3.1), 3.2 Gen 2x2 (original name USB 3.2) with speed up to 5Gbps,10Gbps,20Gbps respectively. USB version and connectors figure: Type A Type B Mini A Mini B...
- Page 22 uncompressed digital audio on IP based networks. The more recent Dante AV specification includes support for digital video. ●NDI: Network Device interface (NDI) is a software standard developed by NewTek to enable video-compatible products to communicate, deliver, and receive broadcast quality video in a high quality, low latency manner that is frame-accurate and suitable for switching in a live production environment over TCP (UDP) Ethernet based networks.
- Page 23 ●Brightness: Usually refers to the amount or intensity of video light produced on a screen without regard to colour. Sometimes called black level. ●Contrast Ratio: The ratio of the high light output level divided by the low light output level. In theory, the contrast ratio of the television system should be at least 100:1, if not 300:1.
-
Page 24: Revision History
All information herein is Xiamen RGBlink Science & Technology Co Ltd. excepting noted. is a regist ered trademark of Xiamen RGBlink Science & Technology Co Ltd.While all efforts are made for accuracy at time of printing, we reserve the right to alter otherwise make change without notice.
