Chapter 6 Configuring and

Booting Software

This chapter describes how to configure and boot the Switch 7700.

Configure the local terminal and Switch 7700, using Figure 21 as a reference. The terminal (a PC in this example) is

connected to the switch console port through a console cable.

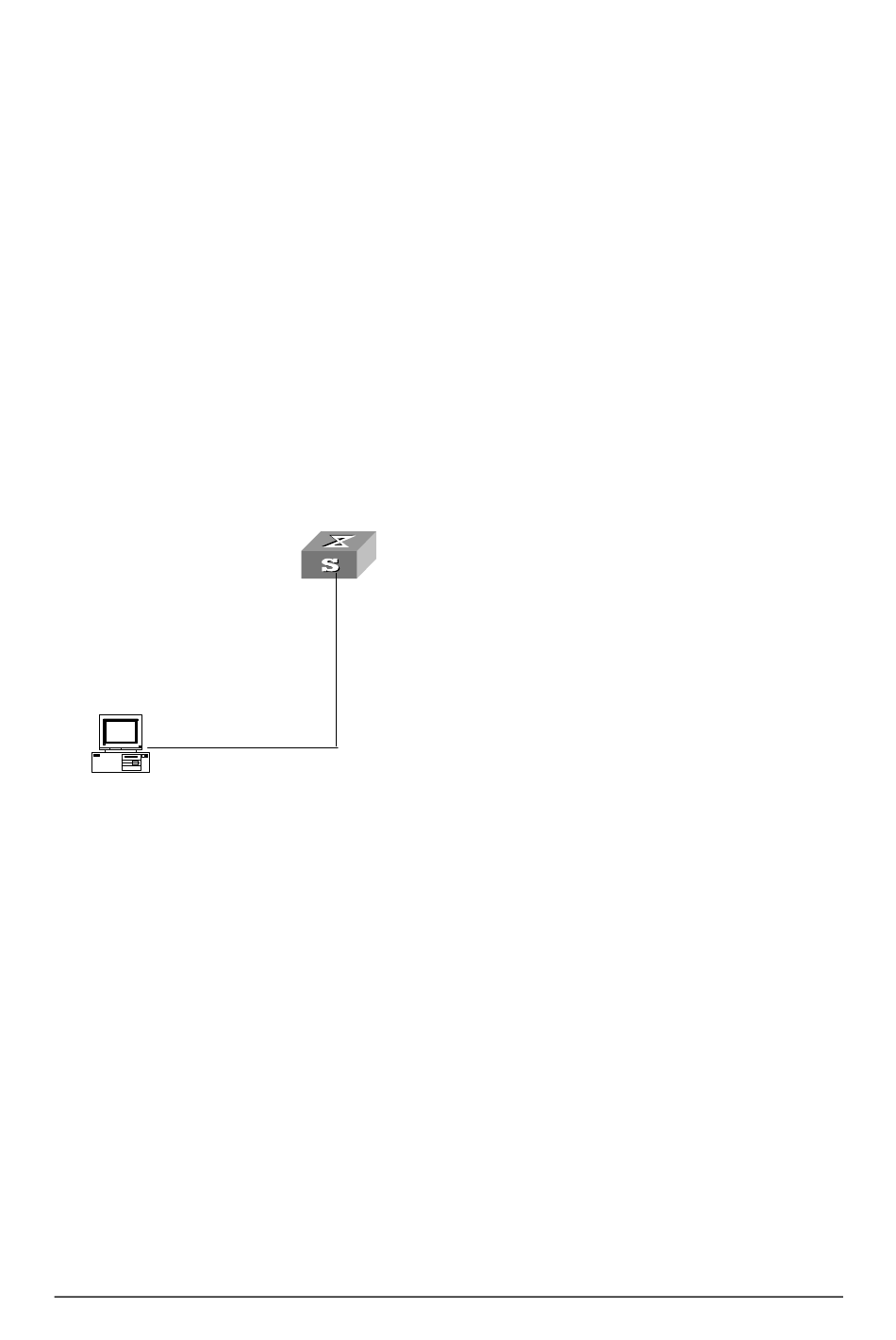

Figure 21 Connecting the Switch 7700 to a PC

Console cable

1. Plug the DB-9 or DB-25 female plug of the console cable into the serial port of the PC or the terminal

where the switch is to be configured.

2. Connect the RJ-45 connector of the console cable to the console port of the switch.

To set terminal parameters

1. Start the PC and select Start > Programs > Accessories > Communications > HyperTerminal.

2. The HyperTerminal window displays the Connection Description dialog box, as shown in Figure 22.

Switch
