Visonic CLIP MCW Installation Instructions

CLIP MCW / CLIP T MCW
Wireless Curtain-Type PowerCode Infrared Detector
1. INTRODUCTION
The CLIP MCW is the smallest and most elegant wireless curtain-
pattern PIR detector for indoor use and designed for easy
installation. Its function is based on new and sophisticated,
patented FM data acquisition and digital signal processing.
Modern technology is used to include 3 different detectors in a
single case, each programmable for optimized performance at
the specific mounting location. This results in better catch
performance and virtually no false alarms.
The superiority in performance of this detector is achieved by
applying an improved version of the patented True Motion
Recognition™ (TMR) algorithm. This advanced motion analysis
method allows the CLIP MCW to distinguish between the true
motion of the human body and any other disturbances that cause
false alarms.

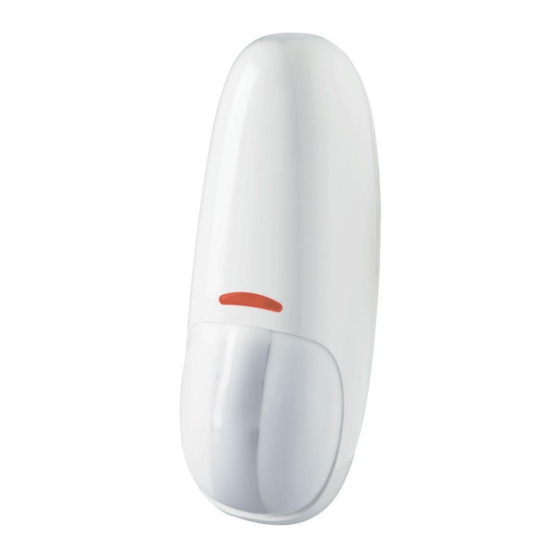

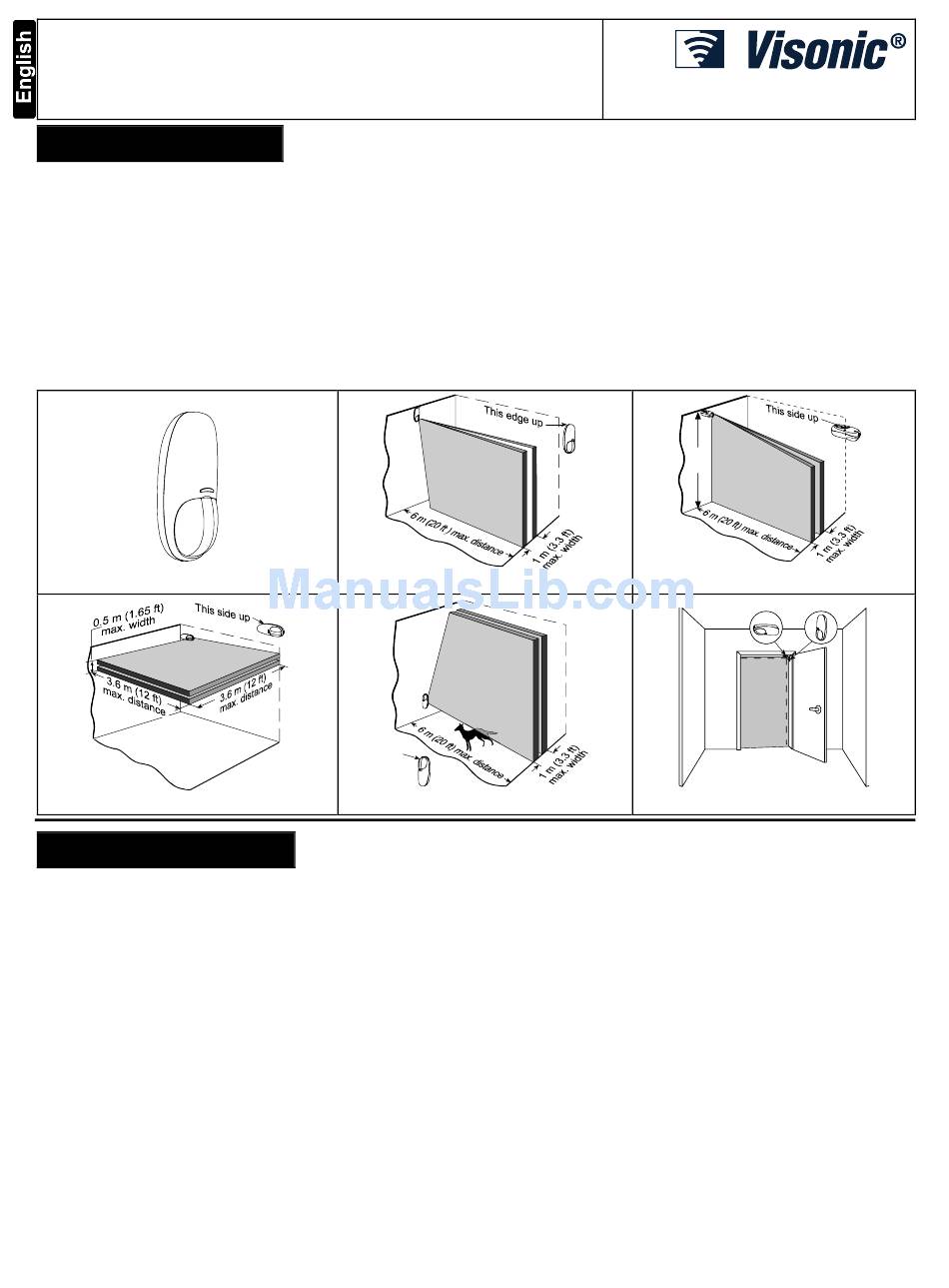

Figure 1. CLIP MCW General View
Figure 4. Overhead Curtain
2. SPECIFICATIONS
OPTICAL
Detector Type: Dual-element low noise pyroelectric sensor.
Number of Curtain Beams: 2
Mounting Positions: See Figures 2 through 6.
Range Settings: Long (6 m), Medium (4 m) and Short (1.2 - 2m)
(Jumper-selected).
ELECTRICAL
Internal Battery: 3V Lithium battery, type CR123A. For UL
installations, use Panasonic or Sanyo only.
Nominal Battery Capacity: 1450 mA/h.
Battery Life (with LED on): 3 years (for typical use).
Battery Power Test: Performed immediately upon battery
insertion and periodically every several hours.
Microprocessor: 8-bit, low power CMOS.
FUNCTIONAL
Visual Indications:
LED Lights for about 3 seconds upon transmission of alarm &
tamper messages and upon motion detection in the walk test mode.
LED Flashes during the power-up stabilization period (approx. 2
min), or after restoring the cover (by pressing the tamper switch).
LED Does not light upon transmission of supervision
messages.
Alarm Period: Approx. 3 seconds.
DE3594
After detection, the detector disarms itself to save battery power.
It rearms (reverts to the ready state) if there is no subsequent
detection throughout the following 2-minute period.
The CLIP MCW includes the following features:
• Very low current consumption
• Microprocessor-controlled temperature compensation
• Sealed chamber protects the optical system
• Front cover tamper switch
• Back tamper switch (CLIP T MCW)
• White light protection
• Elegantly styled, sturdy case
Detailed coverage patterns and mounting alternatives are
illustrated in Figures 2 through 6.
Figure 2. Wall-Mount Curtain
This
side
up
Figure 5. Curtain / Pet Alley
Rearm Timer: Rearms the detector 2 minutes after the last alarm.
WIRELESS
Frequency (MHz): 315 (U.S. version), 433.92, 868.95, 869.2625
or other frequency according to local requirements.
Transmission Sequence: 3 data bursts at variable intervals within
3 seconds.
Encoding: 24-bit ID, over 16 million possible combinations.
Total Message Length: 36 bits.
Tamper Alert: Reported when a tamper event occurs and in any
subsequent message, until the tamper switch is restored.
Supervision Message: Signaling at 60-minute intervals (U.S.
version), 15 minute intervals (UK version), or according to the local
standards.
MOUNTING
Height: 1.8 - 2.4 m (6 - 8 ft).
Installation Options: See Figures 9 through 13.
ENVIRONMENTAL
Operating Temperature: -10°C to 50°C (14°F to 122°F).
Storage Temperature: -20°C to 60°C (-4°F to 140°F).
RFI Protection: > 20 V/m to 1000 MHz.
Compliance with standards: Directive 1999/5/EC of the
European Parliament. EN 50131-2, Grade 2, Class II
Installation Instructions
2.4m
Figure 3. Ceiling-Mount Curtain
OPTION A
DETECTION
CURTAIN
Figure 6. CLIP MCW on Internal Doorframe
OPTION B
1
