Visonic CLIP SMA Installation

Hide thumbs Also See for CLIP SMA:

Motion Sensor Battery Installation - Visonic CLIP SMA

What You'll Need

•

CLIP SMA Motion Sensor

•

A Phillips-head screwdriver

•

One CR123A battery

•

Double-sided tape (optional)

Before proceeding, please be sure that your system is disarmed. Working on devices while the system is armed can

generate false alarms.

Did You Know? You may want to have some double-sided tape on hand if you need to remove your Sensor from the

wall to install a battery. Cut the tape to size and reattach your Sensor if the existing adhesive fails to hold it in place.

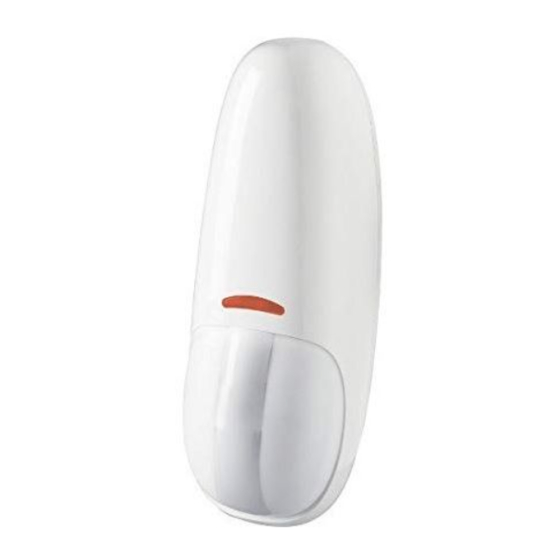

Is This Your Sensor? Make sure that your

Sensor looks like the one in the image. If it

does, you have the right document to find out

how to install a battery in your Sensor.

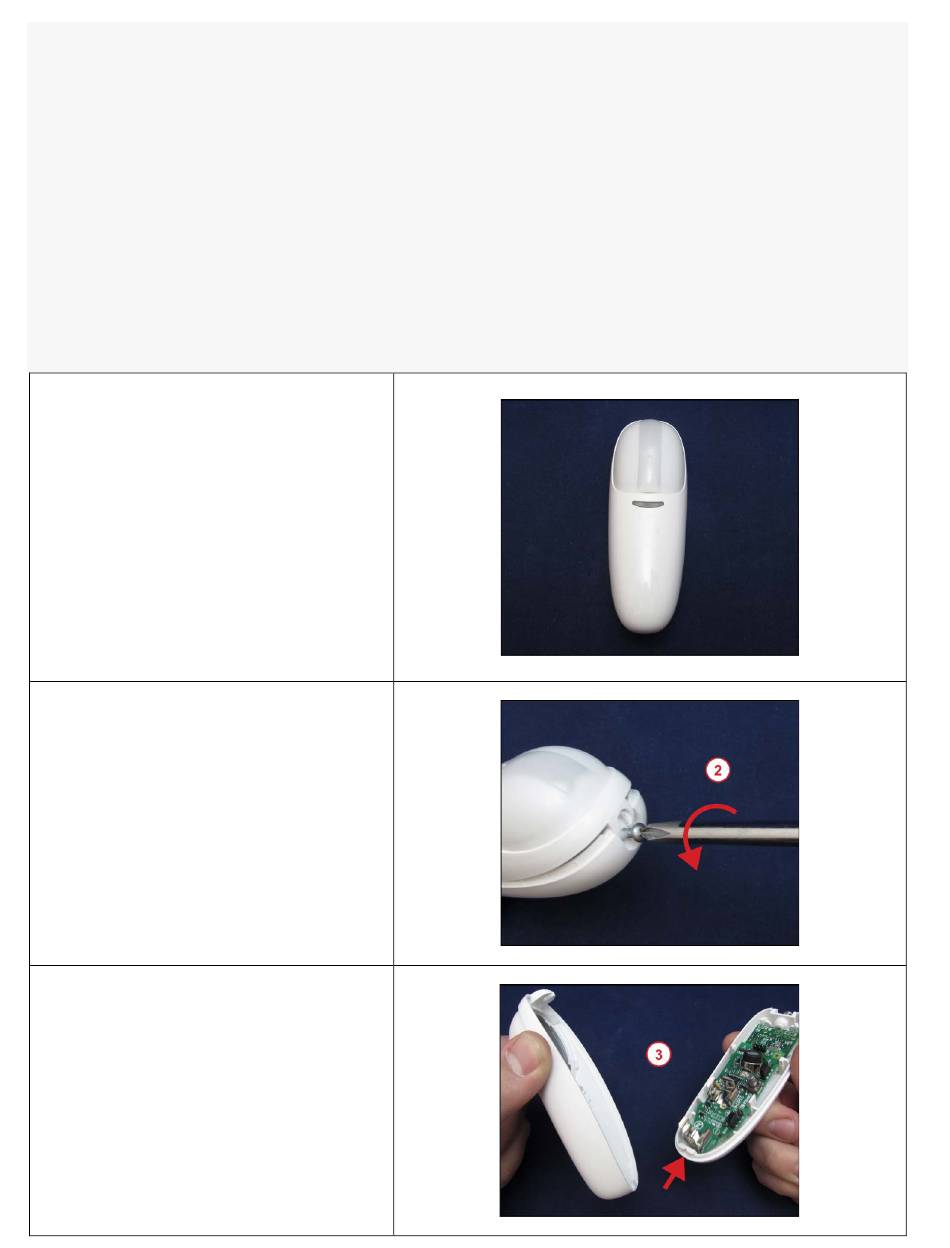

1. Locate the screw on the top of the Sensor.

2. Using a Phillips-head screwdriver, turn the

screw counterclockwise until the cover is

loose.

3. Gently pull the top of the cover away from

the screw, then pull down to free the

bottom tab on the cover from the slot in the

bottom of the Sensor. The battery slot is on

the circuit board.

Table of Contents

Need help?

Do you have a question about the CLIP SMA and is the answer not in the manual?

Page 1 Motion Sensor Battery Installation - Visonic CLIP SMA What You’ll Need • CLIP SMA Motion Sensor • A Phillips-head screwdriver • One CR123A battery • Double-sided tape (optional) How to Install the Battery Before proceeding, please be sure that your system is disarmed. Working on devices while the system is armed can generate false alarms.
Page 2 Take a Look. If a battery is already present, remove it by using your fingertip to gently pull one end of the battery up until the battery is loose and you can pull it free from the slot. 4. Install a CR123A battery by aligning the positive (+) and negative (-) ends of the battery with the positive (+) and negative (-) indicators on the circuit board and...
