Visonic NEXT CAM PG2 Installation Instructions Manual

NEXT CAM PG2,
NEXT CAM-K9 PG2
Wireless, PowerG, PIR / Pet Immune Detectors with
Integrated Camera
1. INTRODUCTION
The Next CAM PG2 is a 2-way, microprocessor-controlled,
wireless digital PIR detector with integrated camera and
microphone for alarm verification. Activated upon PIR detection
or upon demand, the Next CAM PG2 sends clear images with
optional audio to the Monitoring Station. It thus enables accurate
status assessment of the premises.
The PIR detector's features are as follows:
• Up to 15 meters (49 ft).
• 90° angle camera overlaps PIR field of view
• 10 meter (33 ft) range in complete darkness overlaps PIR rangge
• Wall creep zone protection.
• For pet immune version - Target Specific Imaging™ (TSI)
technology is used for distinction between human beings and
pets weighing up to 38 kg (85lb).
• Includes a fully supervised PowerG transceiver.
• True Motion Recognition™ algorithm.
• No vertical adjustment is needed.
• Temperature compensation.
• Sealed chamber protects the optical system from insects.
• Front cover and back tamper, for improved tamper protection.
• White light protection.
The camera's features are as follows:
• Optional AC power
• Up to 10 cameras
• Optional audio with images for listen -in
• Images multiplexed from all cameras
• Color and back & white images
• Auto-setup (brightness, contrast)
2. SPECIFICATIONS
GENERAL
Detector Type: Dual element low-noise pyroelectric sensor
Lens Data: No. of Curtain Beams / curtains:
Next CAM PG2: 18 far, 18 mid, 10 close.
Next CAM-K9 PG2: 18 far, 18 mid, 18 close.
Max. Coverage: 12 x 12 m, (40 x 40 ft) / 90°
Pet Immunity (Next CAM-K9 PG2 only): Up to 38 kg (85 lb).
ELECTRICAL
:
Internal Battery 6V Lithium battery (two CR-123A 3V batteries
or two CR17450 3V batteries, in series) or equivalent.
Note: For UL installations use Panasonic, Sanyo, GP or Varta
only. Use only the above battery. Dispose of used battery
according to the manufacturer's instructions.
Nominal Battery Capacity: 6V 1450 mA/h (2xCR123A), 2200
mA/h (2xCR17450)
Battery Life (for typical use): 4 to 5 years (CR123A) / 8 years
(CR17450).
Optional MAINS supply: Additional to batteries, 7.5 V DC.
Power Supply: Type C
FUNCTIONAL
True Motion Event Verification: 2 remote selections - 1 (OFF)
or 2 (ON) motion events
IR Illumination: 10 m (33 ft)
D-302893

Installation Instructions

• Camera tuning by simple walk-test
• Day and night CMOS camera, with IR illumination. This allows
taking pictures in full darkness without letting the intruder know.
• Instant capture: guarantees capture of fast moving intruder.
• Camera operation modes:
Post alarm – pictures are taken after detection by
o
detector.
On demand – pictures are taken after a command from
o
the monitoring station.
• An event records 2 images per second. 10-15 images total
(can be customized by request)
• Works with repeaters for extended range
A. Microphone
B. Camera lens
C. IR LED
D. Light sensor
E. LEDs

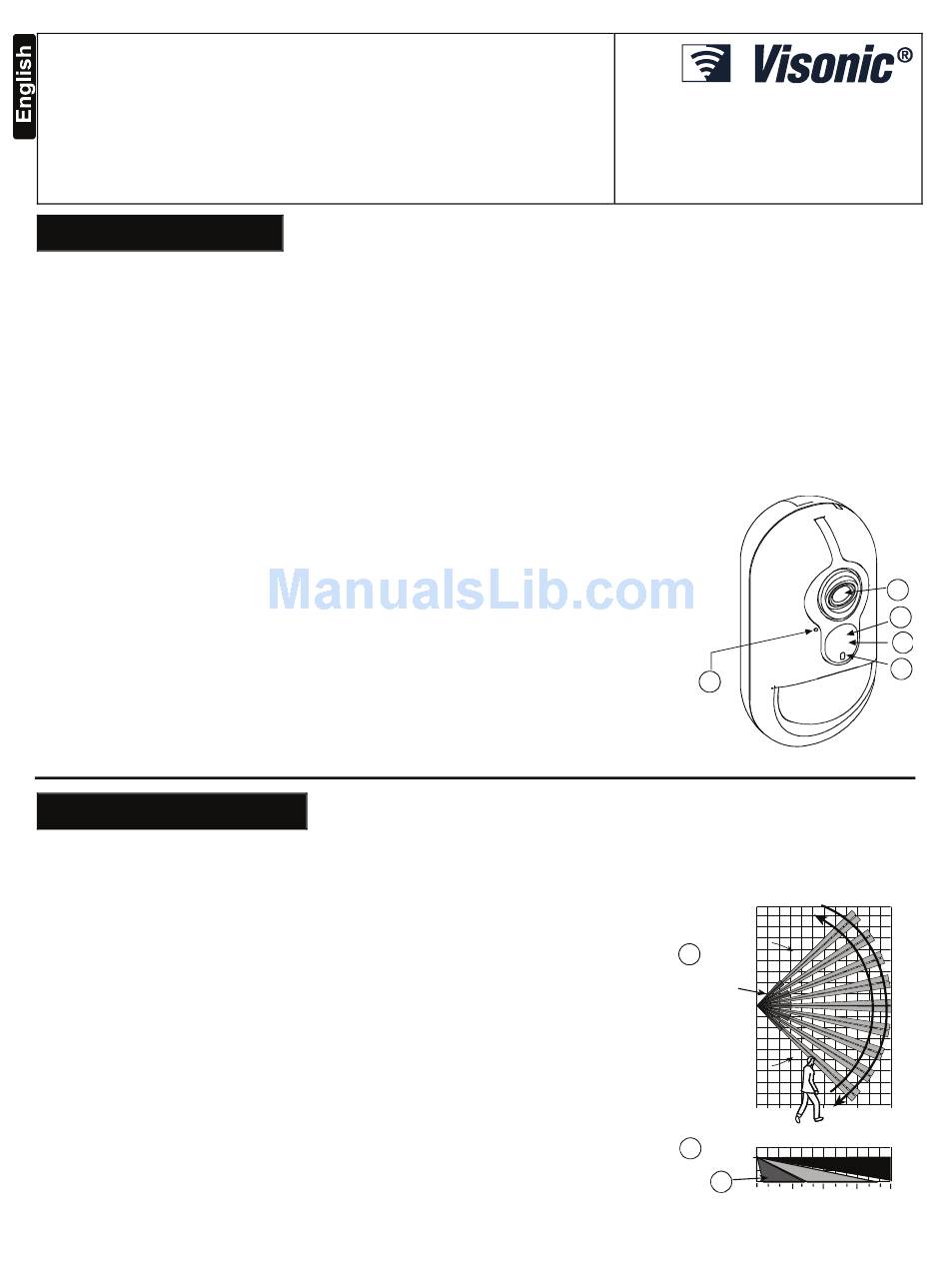

Fig. 1. External View
Picture Resolution: 320x240 pixels QVGA
Frame Rate: up to 2 fps (for user)
Alarm Period: 2 seconds
A. TOP VIEW
B. SIDE VIEW
C. Next CAM PG2: 0.5-
4m, Next CAM-K9
PG2: 2-4m
Fig. 2. Coverage Pattern & Walk-test
A
9 (30ft)
6 (20ft)
90°
A
3 (10ft)
0
3 (10ft)
6 (20ft)
9 (30ft)
0 3 6 9
10 20 30
B
2.4 m
(8 ft)
C
0 3 6 9
10 20 30
B
C
D
E
12 m
40 ft
12 m
40 ft
1
