Summary of Contents for Mio MiVue M350
- Page 1 User Manual MiVue M350...
-
Page 2: Table Of Contents
Table of Contents Precautions and notices.............3 Getting to know the recorder............5 Inserting a memory card ............7 Charging the battery ..............8 Connecting to the AC charger ..........8 Connecting to a computer ...........9 Connecting to a motobike ..........10 Operating basics ..............11 Turning the recorder ON and OFF ........ - Page 3 Caring for your device ..............24 Regulatory information .............25 CE ..................25 WEEE................26 Safety precautions ............26 About charging ............26 About the charger ............26 About the battery ............27 English...
-
Page 4: Precautions And Notices
Precautions and notices Never attempt to disassemble, repair or make any modifications to ƒ your recorder. Disassembly, modification or any attempt at repair could cause damage to the recorder and will void any warranty. If you see or smell smoke from the recorder, unplug the power charger ƒ... - Page 5 It is normal for the quality of video to be momentarily affected as the ƒ recorder moves from very dark to very bright conditions. When a major accident happens and causes the power supply to ƒ disrupt, the incident might not be recorded. Do not submerge the recorder below 3 metres of water.
-
Page 6: Getting To Know The Recorder

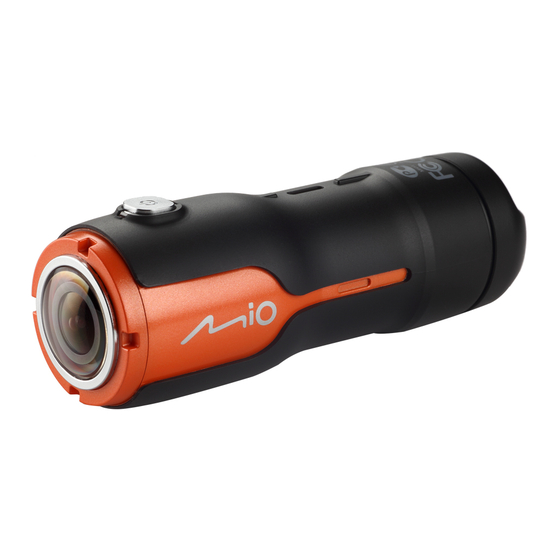

Getting to know the recorder Name Description Camera lens Make sure that no object is blocking the camera lens and no reflective material appears near the lens. Status indicator Glows in when the recording is in progress. Power/Record Press and hold to turn the recorder ON and OFF. - Page 7 Name Description Mode button Press to switch between standard mode and continuous mode. Press to change the resolution/frame rate. Memory card Accepts a MicroSD card. Note: You are advised to use a Class 6 memory slot card with at least 8GB capacity. Charge Glows in green...
-
Page 8: Inserting A Memory Card
Note: MiTAC does not guarantee the product’s compatibility with MicroSD cards from all manufacturers. Note: Before you start recording, please format the MicroSD card to avoid malfunction caused by files not created by MiVue M350. English... -
Page 9: Charging The Battery
Charging the battery When charging the battery for the first time, you should fully charge the battery. To reduce the battery charging time, turn off your recorder when charging. The charge indicator glows in green when charging is in progress. When the battery is fully charged, the indicator turns off. -
Page 10: Connecting To A Computer
Connecting to a computer Note: The recorder will automatically power on when connecting to a power source. Turn on your computer. Remove the protective cap. Connect the mini-USB end of the USB cable to your recorder. Then tightly secure the cap at the mini-USB end. Push the cap at the USB end inwards to reveal the connector, and plug the connector to a USB port on your computer. -
Page 11: Connecting To A Motobike
Connecting to a motobike If your motorbike is equipped with a charger socket, you can charge your recorder on a motobike with the supplied USB charger. Note: To install the cigar plug cable on a motorbike, contact your motorbike dealer. Remove the protective cap. -
Page 12: Operating Basics
Operating basics Turning the recorder ON and OFF To turn on the recorder, press and hold the Power/Record button ( ) for 5 seconds. The recorder will vibrate 3 times and the power indicator will glow in blue. To turn off the recorder, press and hold the Power/Record button ( ) for 5 seconds. -
Page 13: Setting Your Recorder
Setting your recorder Setting the date and time To ensure the accuracy of recorded date and time, make sure to set the date and time before recording. Make sure the MicroSD card is inserted. Remove the protective cap. Turn on your computer and the recorder. Connect the recorder to your computer. -
Page 14: Setting The Resolution
For the changes to take effect, restart the recorder with the MicroSD card inserted. Setting the resolution Note: You cannot set the recorder when the recording is in progress. Make sure the MicroSD card is inserted. Remove the protective cap. Turn on the recorder. -
Page 15: Standard Recording
Standard recording Note: You cannot swtich to a different mode when the recording is in progress. CAUTION: Keep the MicroSD card inserted in the recorder while recording. Make sure the MicroSD card is inserted. Remove the protective cap. Turn on the recorder. Press the Power/Record button ( ) briefly. -
Page 16: Continuous Recording
Continuous recording Note: You cannot swtich to a different mode when the recording is in progress. CAUTION: Keep the MicroSD card inserted in the recorder while recording. Make sure the MicroSD card is inserted. Remove the protective cap. Turn on the recorder. Press and hold the Mode button ( ) until the continuous mode indicator glows in amber. -
Page 17: Playback On An External Viewing Device
Playback on an external viewing device You can connect the recorder to an external viewing device to view the recorded video. For your safety, DO NOT use this feature when you are on the road. Make sure the MicroSD card with the recorded video is inserted. Turn on the recorder and the external device. -
Page 18: System Settings
System settings You can set the advanced features using the "Config.txt" file. Note: The settings are for professional users only. If you are not familiar with the settings, do not try to change them; otherwise, it may cause damage to the recorder. Item Descriptoin Range/Option... - Page 19 Item Descriptoin Range/Option Microphone volume Range: 0 ~ 59db Digital effect Range: 0 ~ 5 Options: (0) Off; (1) Art; (2) Sepia; (3) Negative; (4) Black White; (5) Vivid Flicker Range: 0 ~ 2 Options: (0) Auto; (1) 60Hz; (2) 50Hz SPLIT Split file setting for Range: 60/180/300...
-
Page 20: Mivue Manager
Note: Not all features are available for every model. Installing MiVue Manager Go to Mio website (www.mio.com) to download MiVue Manager. Double- click Setup.exe and follow the on-screen prompts to install MiVue Manager. Playing the recording files Note: You are advised to copy the recording files to your computer for backup and playback. - Page 21 Minimise Maximise Exit Calendar Video playback File type screen File list Playback controls By default, MiVue Manager shows the calendar and the file list on the right. Click on the upper-left corner to select the folder that stores the recording files. When a recording file exists, you will see the date marked with “▲.”...
- Page 22 To display all files in the current folder, click All. To return to the ƒ calendar view, click Calendar. Calendar Calendar and File List All File List Double-click the desired file on the file list to start playback. The playback controls are described as follows: Icon Description Starts or resumes the playback.
- Page 23 Icon Description Mutes or unmutes the volume. Adjusts the volume level. Plays the video in full screen. Returns to the normal view. Displays the playback progress. You can click on a point along the track bar to move directly to a different location for the playback.
-
Page 24: Settings Menu
Click to upload the selected file to Facebook or YouTube ƒ Click to open the Settings menu. (See the next section.) ƒ Settings menu Click to open the Settings menu. The Settings items are described as follows: Change Language: Sets the display language of MiVue Manager. ƒ... -
Page 25: Caring For Your Device
Caring for your device Taking good care of your device will ensure trouble-free operation and reduce the risk of damage. Keep your device away from excessive moisture and extreme ƒ temperatures. Avoid exposing your device to direct sunlight or strong ultraviolet light ƒ... -
Page 26: Regulatory Information
Regulatory information Products with the CE marking comply with the Electromagnetic Compatibility Directive (2004/108/EC) - issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European Standards: EN 55022:2010 ƒ EN 61000-3-2:2006 +A1:2009 +A2:2009, ƒ... -
Page 27: Weee
WEEE This product must not be disposed of as normal household waste, in accordance with the EU directive for waste electrical and electronic equipment (WEEE – 2002/96/EC). Instead, it should be disposed of by returning it to the point of sale, or to a municipal recycling collection point. Safety precautions About charging Use only the charger supplied with your device. -
Page 28: About The Battery
Connect the charger to a proper power source. The voltage ƒ requirements are found on the product case and/or packaging. Do not use the charger if the cord becomes damaged. ƒ Do not attempt to service the unit. There are no serviceable parts ƒ... - Page 29 An IPX8 designation means that the unit withstands immersion in three metres (approx 10 ft.) of still water for up to 1 hour. Mio guarantees this grade provided the battery door and all the jack covers are properly and securely closed.
- Page 30 MiTAC Europe Ltd www.mio.com...
