INTRODUCTION

The unit provides a flexible control and monitoring solution using SMS text messaging to work with
remotely located devices or equipment. There are many SMS control products in the market...
ControlMate offers a number of PLC-like capabilities not found in any of those other products.
Ensure you are using the correct commands for your ControlMate software.
(Currently v190224 – this document)
Due to continuous improvement, this online manual always reflects the latest features
and typo corrections included in ControlMate. A controller chip with the latest updated
software is available for exchange.
IMPORTANT: On 10 August 2017, some less important commands were removed – which are
available under other existing commands – e.g. SHOwing in and out states.
SECURE PASSCODE – from v190122, we have REMOVED the CLI #0 PIN feature, replaced with a
customer defined (single word) PASSCODE. If defined, typing the correct passcode unlocks the
controller for operations for a period after the most recent command – then re-locks automatically.
If you forget the passcode – there is a 'back door' – only accessible from the serial console – which
allows you to unlock the controller – to re-set or remove the passcode.
Applications for ControlMate may be as simple as sensing a gate open or closed, or starting and
stopping a generator. Sensing a tank is full, remotely starting a pump, turning on the security lights -
and everything between.
ControlMate is normally supplied as a naked card, for integration to your own control or monitoring
system. The unit implements four contact-closure inputs, and four change-over (SPDT) relays to
operate external devices with the unit.

INPUTS

•
2-wire / 'zero-volt' inputs (contact-closure).
Configurable for N/O or N/C sources
<20mS detection timing.
•
User defined 'text' messages attached to
the ON and OFF states when sending SMS
notifications.
e.g. ON = Gate Open OFF = Gate Closed
•
Separate ON and OFF hold delay before the new
input state is raised. e.g. wait for a door to be held
for 10 secs before triggering... or Ignore a
chattering gate / sensor...
•
Separately assignable 'internal' control of other
functions based on input changes.
•

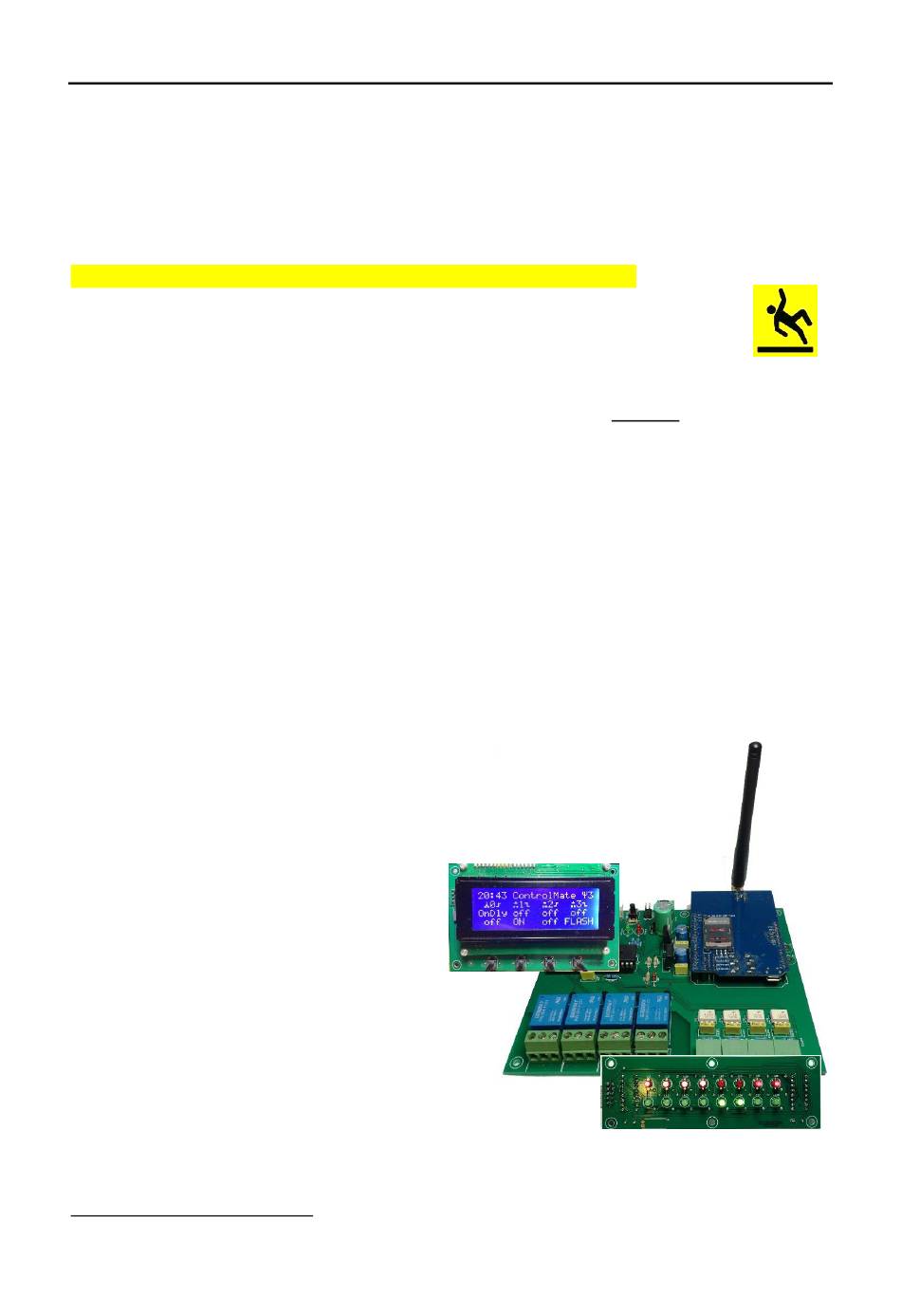

The LCD panel* includes four assignable buttons for local operations.
*The standard LED panel is provided, an optional LCD panel at extra cost.
1
N/C (Normally Closed) inputs offer the added benefit of detecting a broken wire in the switching circuit.
