INPUTS & OUTPUTS
The front of the controller module contains –

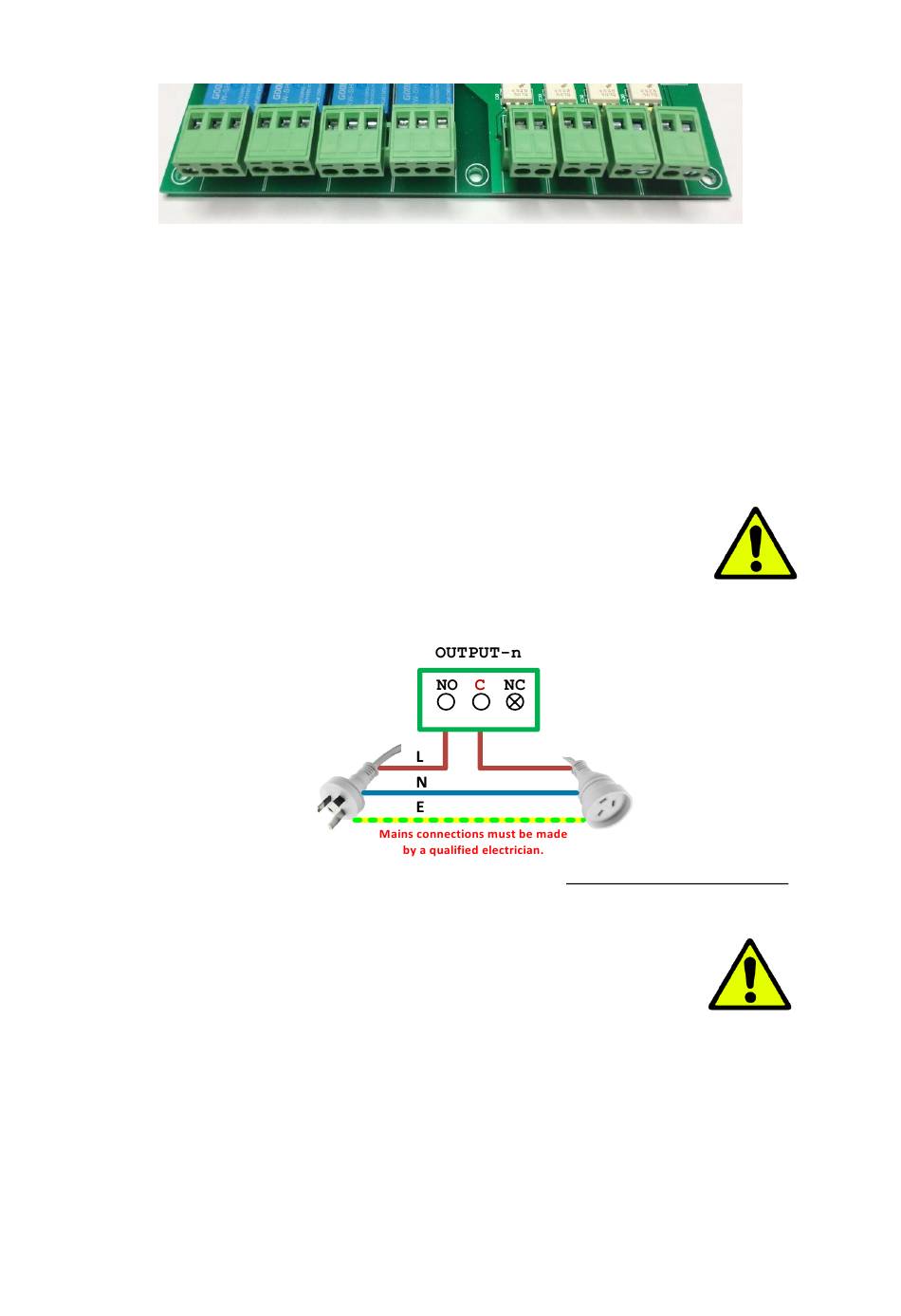

The RELAY OUTPUTS (0-3 left-to-right) 10A@24VDC / 5A@240VAC
N/O-COM-N/C
The physical orientation of connectors may differ from those shown above.
The relay outputs may be used to trigger virtually any external device, but installers ensure
that all cables are secured and isolated from each other to avoid incorrect operation, or
hazardous electrical conditions.
OUTPUTS may activate at ANY TIME under automatic control. Ensure
adequate signage and safety procedures are in place to avoid injury or
death from moving equipment or electric shock.
Mains wiring to achieve 'relay on' = 'socket on' with LIVE/ACTIVE WIRE SWITCHED
CONTACT WITH MAINS VOLTAGES CAN BE LETHAL!
APPLY ALL COLOUR CODES AND STANDARDS WHEN INSTALLING!
SMS ControlMate/3G © 2016-2018
FRONT connection points on the ControlMate module
3-way 5.08mm
(available as vertical or horizontal mounting).
