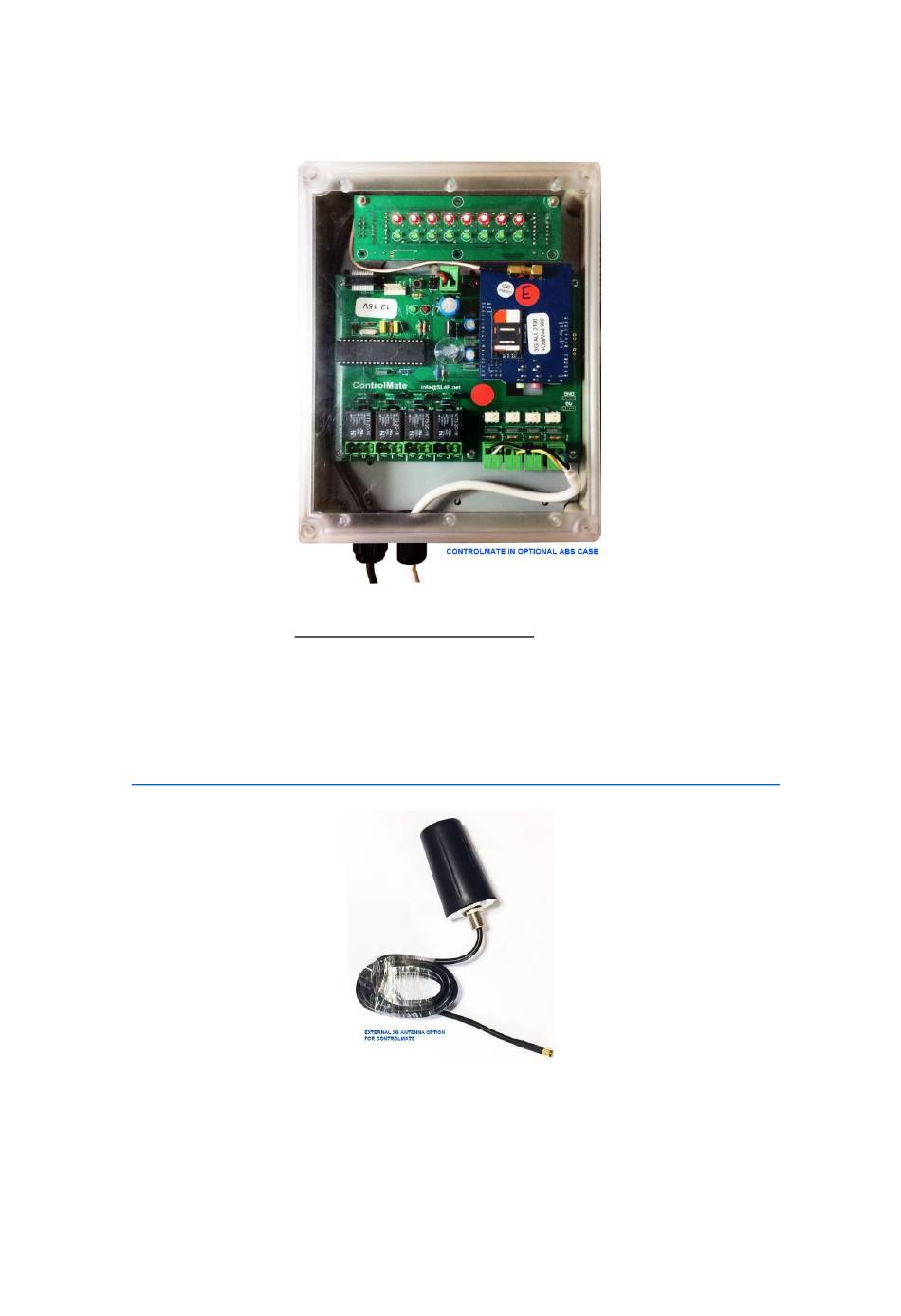

RECOMMENDED ENCLOSURE
Altronics H 0332A / RITEC 220x160x60mm ABS IP65 Clear Lid – use the supplied gasket!
This may also be manipulated to contain the LED panel as shown below.
The following are required to maintain the IP65 ingress rating
•
Floating internal mounting plate HA 0312A (steel)
•
Altronics H0370 / RITEC external mounting kit
•
An SMA Male-Female extension is required to externalise the multi-band 3G antenna
to the exterior of the case.
•
IP-rated cable glands to suit the cable diameters you're using, see...
http://www.altronics.com.au/hardware/cable-glands-grommets/?pz=32&type_1=cable-glands
We can supply this 3G antenna when ordered as an optional item. (3dBi gain)
SMS ControlMate/3G © 2016-2018
info@SL4P.net
Page 25 of 56
