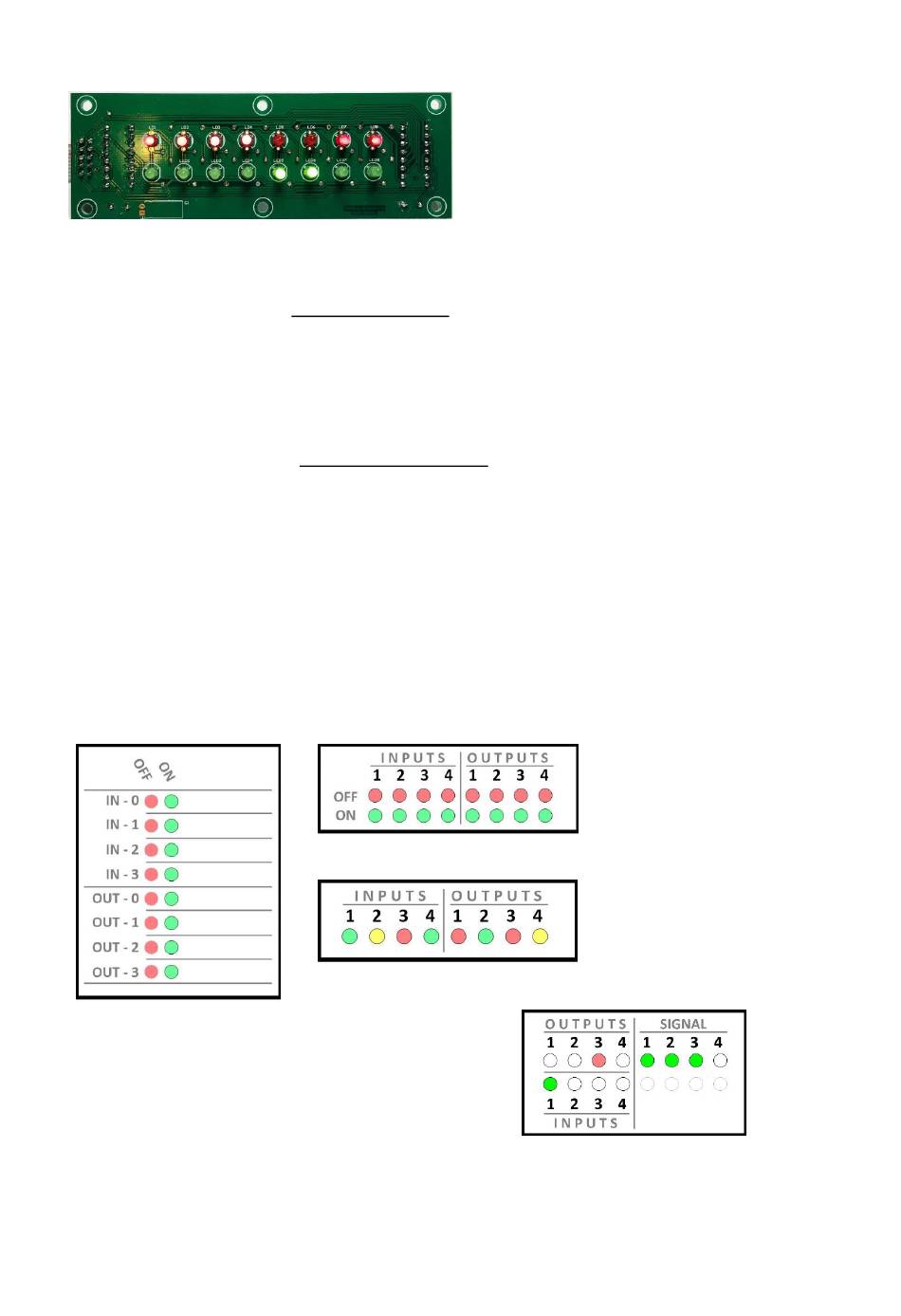

LED In/Out Status Display

LED INPUT states may be :
RED
Currently 'OFF'
Blinking: The input is within a delay period before 'on' or 'off' state is asserted
GRN
Currently 'ON'
LED OUTPUT states may be:
RED
Currently 'OFF'
Blinking:
utput is within a pulse 'on' period
The o
GRN
Currently 'ON'
Possible layout / labelling options...
Other LED layout / functions are available.
To set the current LED panel display layout, use SET LEDPANEL n
Legend sheet may be mounted to an internal bracket, behind a clear acrylic faceplate – with the
LEDs facing forward through the sheet for maximum protection. Alternately, holes may be drilled in
the user's cabinet for the indicators to protrude as needed.
LED PANEL MODE 0 (default)
LED PANEL MODE 1 (configurable)
Signal level is updated every 10 seconds.
SMS ControlMate/3G © 2016-2018
The LED panel is provided as two rows of single
colour LEDs. The leftmost four columns are the
input states, the right-hand four LEDs are the
output states.
info@SL4P.net
Two rows of 1 colour LEDs
One row of Bi-colour LEDs
Page 45 of 56
