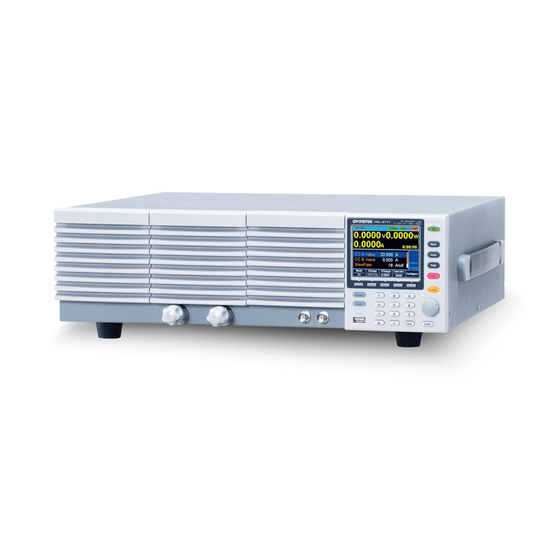

Page 1 DC Electronic Load PEL-3000 Series USER MANUAL VERSION: 2.00 ISO-9001 CERTIFIED MANUFACTURER...
Page 2 This manual contains proprietary information, which is protected by copyright. All rights are reserved. No part of this manual may be photocopied, reproduced or translated to another language without prior written consent of Good Will company. The information in this manual was correct at the time of printing. However, Good Will continues to improve products and reserves the rights to change specification, equipment, and maintenance procedures at any time without notice.
Page 3: Table Of Contents
Table of Contents Table of Contents SAFETY INSTRUCTIONS ..........3 GETTING STARTED ............8 PEL-3000 Series Introduction ....10 Accessories .......... 12 Appearance .......... 15 First Time Use Instructions ....24 OPERATION ..............50 Basic Operation ........52 Basic Configuration ......65 Advanced Configuration Settings ..
Page 4 PEL-3000 User Manual Interface Configuration ...... 192 FAQ ................203 APPENDIX ..............205 Replacing the Dust Filter ....207 Replace the Clock Battery ....208 GPIB Installation ....... 209 PEL-3000 Default Settings ....210 Frame Control Connector Contacts ..213 Operating Mode Description ....
Page 5: Safety Instructions
SAFETY INSTRUCTIONS AFETY INSTRUCTIONS This chapter contains important safety instructions that you must follow during operation and storage. Read the following before any operation to insure your safety and to keep the instrument in the best possible condition. Safety Symbols These safety symbols may appear in this manual or on the instrument.
Page 6 PEL-3000 User Manual Safety Guidelines Do not place any heavy object on the General  instrument. Note: Only 2 units can be stacked Guideline vertically. CAUTION Avoid severe impact or rough handling that  leads to damaging the instrument. Do not discharge static electricity to the ...
Page 7  240VAC (90-132VAC/180-250VAC) WARNING Frequency: 47-63Hz  Power:  PEL-3021: 90VA Max PEL-3041: 110VA Max PEL-3111: 190VA Max PEL-3211: 230VA Max To avoid electrical shock connect the protective  grounding conductor of the AC power cord to an earth ground.
Page 8 PEL-3000 User Manual (Pollution Degree) EN 61010-1:2010 specifies the pollution degrees and their requirements as follows. The instrument falls under degree 2. Pollution refers to “addition of foreign matter, solid, liquid, or gaseous (ionized gases), that may produce a reduction of dielectric strength or surface resistivity”.
Page 9 SAFETY INSTRUCTIONS Power cord for the United Kingdom When using the instrument in the United Kingdom, make sure the power cord meets the following safety instructions. NOTE: This lead/appliance must only be wired by competent persons WARNING: THIS APPLIANCE MUST BE EARTHED IMPORTANT: The wires in this lead are coloured in accordance with the following code: Green/ Yellow:...
Page 10 PEL-3000 Front Panel ..............15 (PEL-3021/PEL-3041)............. 15 (PEL-3111) ................. 15 (PEL-3211 Booster Pack) ............16 Rear Panel ..................20 PEL-3021 / PEL-3041 ............. 20 (PEL-3111) ................. 20 (PEL-3211 Booster Pack) ............21 Display ....................23 First Time Use Instructions ........24...
Page 11: Getting Started
GETTING STARTED Rack Mount Kits ................24 Power Up and Self Test ..............27 Load Default Settings ..............28 Setting the Date and Time.............. 28 Load Wiring ..................29 Load Wire Connections ..............32 Using the Front Panel Input Terminals ........33 Using the Rear Panel Input Terminals .........
Page 12: Pel-3000 Series Introduction
Model Line Up There are a total of 3 DC electronic load models and 1 booster pack model. Operating Voltage (DC) Current Power Model 1.5V-150V 175W PEL-3021 1.5V-150V 350W PEL-3041 1.5V-150V 210A 1050W PEL-3111 Operating Voltage (DC) Current...
Page 13: Main Features
GETTING STARTED Main Features High slew rates of up to 16A/μS(PEL-3111) for a  Performance fast response speed High capacity when used in parallel:  5250W, 1050A (PEL-3111 x 5)/ 9450W, 1890A (PEL-3111 + PEL-3211 x 4) High resolution – 16 bit ...
Page 14: Accessories
PEL-3000 User Manual Accessories Standard Part number Description Accessories Quick Start Guide User / Programming manual Region dependant Power cord PEL-011 Load input terminal Cover screw PEL-012 Terminal fittings: 2 sets of bolts/nuts/springs/washers (type: M8) M8 x 20 Spring washer Flat washer M8 nut PEL-013...
Page 15 GETTING STARTED 61SF-062104N1 Front terminal washers Spring washer (M6) x2 Optional Part number Description Accessories 3813-030D0501 CR123A 3V lithium battery for clock. GRA-413 Rack mount bracket for booster PEL-3211 (EIA + JIS) GRA-414-E Rack mount frame for PEL- 3021, PEL-3041, PEL-3111/EIA GRA-414-J Rack mount frame for PEL- 3021, PEL-3041, PEL-3111/JIS...
Page 16: Package Contents
PEL-3000 User Manual Package Contents Check the contents before using the instrument. Opening the box Main unit Terminal fittings Contents   (single unit) Quick Start manual Power cord x1 (region   dependent) User / Programming  manual CD Calibration certificate ...
Page 17: Appearance
GETTING STARTED Appearance PEL-3000 Front Panel (PEL-3021/PEL-3041) Air inlet LCD Display Function keys Power key Main/Local FUNC/File Local Main File FUNC Help/Utility Utility Help Short Short Load Preset Shift Load On/Off CAL. Lock Clear Enter 175W 1.5 - 150V 0 - 35A...
Page 18: (Pel-3211 Booster Pack)
PEL-3000 User Manual (PEL-3211 Booster Pack) LINK STBY The air inlet has a removable dust filter Air Inlet 3.5 inch LCD display LCD display Function keys The function keys directly correspond to the soft menu keys at the bottom of the display. Turns the unit on or puts the unit ON/STBY into standby mode.
Page 19 GETTING STARTED File (Shift + FUNC): File Accesses the file system. FUNC Shift Help: Access the help menu. Help/Utility Help Utility (Shift + Help): Utility Access the utility menu. Help Shift Pressing the Short key will Short Short simulate shorting the input terminals.
Page 20 PEL-3000 User Manual Number pad CAL. Lock Clear Number pad: Used to enter numerical values. P0-P9 (Preset + Number keys): Loads one of 10 preset settings. Clear: Clears the current Clear/Lock Lock parameter values. Clear Lock (Shift + Clear): Locks the front panel keys and selector knob.
Page 21 GETTING STARTED Front panel input terminals 175W 1.5 - 150V 0 - 35A Negative terminal. Positive terminal. Current monitor BNC terminal: IMON Out Output connector used to monitor the current by outputting a voltage. An output voltage of 1V I MON OUT corresponds to the full scale current for the H and L ranges.
Page 22: Rear Panel
PEL-3000 User Manual Rear Panel PEL-3021 / PEL-3041 Frame control ports, Remote sense Rear panel J1, J2 inputs inputs FRAME CONT WARNING TO AVOID ELECTRIC SHOCK THE POWER CORD RS232C PROTECTIVE GROUNDING CONDUCTOR MUST BE CONNECTED TO GROUND. NO OPERATOR SERVICEABLE COMPONENTS INSIDE.
Page 23: (Pel-3211 Booster Pack)
GETTING STARTED (PEL-3211 Booster Pack) The USB B, RS232C and GPIB port are used for RS232C Port remote control. GPIB USB B GPIB 24 pin USB B port RS232C 9 pin female. DSUB port. Frame control FRAME CONT ports, J1, J2 J1: The J1 connector is assigned to external control.
Page 24 PEL-3000 User Manual The exhaust fan is used to expel the heat from the Exhaust fan unit. Please ensure there is at least 20cm distance between any object and the fan. Rear Panel Input terminals Rear Panel Input Terminals. Electrically connected to the front panel input terminals.
Page 25: Display
GETTING STARTED Display Date Mainframe status panel 03/Sep/2012 RS232 LOAD 0.000 0.00 Measurement area 0.000 CC A Value 0.000 Operation Setting area CC B Value 0.000 status panel Fine SlewRate 2500.00 mA/us A Value Mode I Range V Range Function Configure H 35A L 15V...
Page 26: First Time Use Instructions
PEL-3211 booster pack. The GRA-414 rack mounts are capable of holding 1x PEL-3111 or 2x PEL-3021/3041 units. For installation details, please see the GRA-413 and GRA-414 Rack Mount Assembly Manual. Please see your distributor for which rack...
Page 27 GETTING STARTED GRA-413 (EIA standard) GRA-413 (JIS standard)
Page 28 PEL-3000 User Manual GRA-414-E (EIA standard) GRA-414-J (JIS standard)
Page 29: Power Up And Self Test
GETTING STARTED Power Up and Self Test 1. Insert the AC power cord into the power Steps socket. 2. Turn the external power switch on. (O → —) 3. If the unit doesn’t turn on, press the On/Standby key. The ON/STBY key will go from standby (red) ...
Page 30: Load Default Settings
PEL-3000 User Manual Load Default Settings When first using the PEL-3000, recall the Description factory default settings to ensure the unit is in a known state. See page 210 for a list of the default settings. File 1. Press Operation FUNC Shift Select Media/Default[F1].
Page 31: Load Wiring
GETTING STARTED RS232 LOAD 03/Sep/2012 Date Date/Time Month Year 2012 Hour Minute System Load Interface Time Set Other Info Load Wiring Before connecting the unit to a power source, Wire Gauge the wire gauge must be taken into account. considerations Load wires must be large enough to resist overheating when a short-circuit condition occurs as well as to maintain a good regulation.
Page 32 PEL-3000 User Manual 6.54304 0.51266 5.82676 0.64616 5.18922 0.81508 4.62026 1.02762 4.1148 1.29593 3.66522 1.6341 3.2639 2.0605 2.90576 2.59809 2.58826 3.27639 2.30378 4.1328 2.05232 5.20864 1.8288 6.56984 1.62814 8.282 When using the PEL-3000 load generator, Load Line voltage drop and voltage generated due to load Inductance Considerations line inductance and current change must be...
Page 33 GETTING STARTED Current ∆I time ∆T Voltage Min. V time The diagram above shows how changes in current can affect voltage. Load line inductance can be reduced in two Limiting Load line ways. inductance 1. Ensure load wires are as short as possible and twist the positive and negative load wires together.
Page 34: Load Wire Connections
PEL-3000 User Manual Load Wire Connections The PEL-3000 has input terminals on both the Description front and rear panels. Follow the procedures below for all load connections. Please adhere to the following precautions to ensure your safety and to protect the unit from damage. When connecting the PEL-3000 to the DUT, Connection make sure that the polarity of the connection...
Page 35: Using The Front Panel Input Terminals
GETTING STARTED Using the Front Panel Input Terminals The front panel input terminals feature Description polarity-distinct caps and accept M6 sized crimped terminals. The front panel input terminals on the PEL-3000 Caution are physically connected to the rear panel terminals. 1.
Page 36: Using The Rear Panel Input Terminals
PEL-3000 User Manual Using the Rear Panel Input Terminals The rear panel input terminals accept up to Description M8-sized crimped terminals. The rear terminals come with a load input terminal cover for safety. The front panel input terminals on the PEL-3000 Caution are physically connected to the rear panel terminals.
Page 37: Using The Terminal Cover
GETTING STARTED Using the Terminal Cover The rear panel terminal cover should be used Description to prevent electric shock. The rear panel terminal covers should always be used when connecting a load to the rear panel terminals. As the front panel and rear panel terminals are physically connected, the terminal cover should also be used as a safety measure when a DUT is connected to the front terminals...
Page 38 PEL-3000 User Manual Detail 4. Use your thumb to slide the terminal covers shut, as shown in the diagram below.
Page 39 GETTING STARTED 5. When the top and bottom covers are flush, reinsert the screw that was removed in step 1.
Page 40: Using The Terminal Cover (Pel-013)
PEL-3000 User Manual Using the Terminal Cover (PEL-013) The flexible rear panel terminal cover should Description be used when the load wiring becomes too thick to be used with the PEL-012 terminal cover. This is especially true when using the load generators in parallel.
Page 41 GETTING STARTED 2. Secure the insulation sheets using the supplied velcro fasteners. 2 fasteners should be used for each sheet. Fasteners...
Page 42: Remote Sense
PEL-3000 User Manual Remote Sense Remote sense can be used to help compensate Description for long cable length. The longer the cable, the higher the potential resistance and inductance, therefore a short cable is best. Twisting the cable can help reduce induced inductance and using the Vsense terminals compensates the voltage drop seen across the load leads, especially leads with higher resistance.
Page 43: Firmware Update
Firmware Update The PEL-3000 allows the firmware to be Description updated by end-users. Before using the PEL- 3000, please check the GW Instek website or ask your local distributor for the latest firmware. Before updating the firmware, please check the System version firmware version.
Page 44 PEL-3000 User Manual RS232 LOAD 03/Sep/2012 Model : PEL-30XX Serial Number : 00000001 Firmware Ver. : 1.01.011 http://www.goodwill.com.tw System Load Interface Time Set Other Info Update Firmware 1. Insert a USB drive into the USB port. Ensure the USB drive has the firmware file located in the root directory.
Page 45: Conventions
GETTING STARTED Conventions The following conventions are used throughout the user manual. Read the conventions below for a basic grasp of how to operate the PEL-3000 menu system using the front panel keys. The F1 to F5 function keys at the bottom of the Soft Menu keys display correspond directly to the soft-menu keys on top.
Page 46 PEL-3000 User Manual Toggle Parameter Function/Item or State Mode Parameter or State This type of soft-menu icon has the function/item on the top of the label and the selected setting or mode on the bottom of the label. Repeatedly press the associated function key (F1-F5) to cycle through each setting.
Page 47 GETTING STARTED The scroll wheel, Enter key and number pad Parameter Input can be used to edit parameter values. Number pad Scroll wheel CAL. Lock Enter key Clear Enter 1. Use the scroll wheel to move the cursor to the desired parameter.
Page 48 PEL-3000 User Manual 3. Then use the number pad* or scroll wheel** to edit the parameter value. 03/Sep/2012 RS232 LOAD 0.00 0.000 0.000 Parameter CC A Value 0.000 CC B Value 1.000 Fine SlewRate 2500.00 mA/us A Value Mode I Range V Range Function Configure...
Page 49 GETTING STARTED Step Mode: This is the default step resolution method and will only be available to use when it is applicable (Indicated by Fine or Coarse in the Operation Status panel). When a parameter is highlighted (step 3 above) pressing the scroll wheel will toggle the step resolution between fine and coarse.
Page 50 PEL-3000 User Manual When renaming files, creating memos or notes, Entering you will be required to enter alphanumeric Alphanumeric Characters characters when the character entry screen appears. Only alphanumeric characters as well as space  [ ], underscore [_] and minus [-] characters allowed.
Page 51: Help Menu
GETTING STARTED Help Menu When any function key has been pressed or when a menu has been opened, the HELP key can be used to display a detailed description. 1. Press any function key or soft-menu key. Help Selection 2. Press to see the help contents on that Help particular function key or menu.
Page 52 PEL-3000 User Manual PERATION Basic Operation ............52 CC Mode ................... 52 CR Mode.................... 54 CR Units ..................56 CV Mode ................... 56 CP Mode .................... 57 +CV Mode ..................59 Turning on the Load ............... 60 Shorting the Load ................61 Safety Short .................
Page 53: Operation
OPERATION Step Mode Configuration ............... 80 Protection Settings ..........82 OCP ....................82 OPP ....................83 UVP ....................84 UVP Ring Time ................85 OVP ....................87 UnReg ....................88 Para ..................... 89 System Settings ............90 Sound Settings .................. 90 Speaker Settings .................
Page 54: Basic Operation
PEL-3000 User Manual Basic Operation The PEL-3000 supports 7 main operating modes: CC, CC+CV; CR, CR+CV; CP, CP+CV CC Mode In Constant Current Mode the load units will Description sink the amount of current programmed. Regardless of the voltage, the current will stay the same.
Page 55 OPERATION 6. Set the current level parameters using the scroll wheel and number pad. For Static mode, set CC A Value and/or CC B  Value. For Dynamic mode, set Level1 and Level2.  The maximum and minimum current levels ...
Page 56: Cr Mode
PEL-3000 User Manual CR Mode In Constant Resistance Mode, the unit will Description maintain a constant resistive load by varying the current. CR mode uses ohms, Ω (resistance) or siemens, S (conductance) for the setting units. For more details on CR mode, see the appendix on page 219.
Page 57 OPERATION 6. Set the resistance or conductance level parameters using the scroll wheel and number pad. For Static mode, set CR A Value and/or CR B  Value. For Dynamic mode, set Level1 and Level2.  The maximum and minimum conductance/ ...
Page 58: Cr Units
PEL-3000 User Manual CR Units The CR setting units can be set to ohm (Ω) or Description millisiemens (mS). 1. Make sure the load is off. Operation 2. Press > Configure[F5] > Other[F2] and Main set the CR Unit setting. Ω, mS Range: CV Mode...
Page 59: Cp Mode
OPERATION 6. Set the voltage level parameters using the scroll wheel and number pad. Set CV A Value and/or CV B Value.  The maximum and minimum voltage levels  depend on the selected voltage range. 7. Set the remaining basic configuration settings such as the response settings.
Page 60 PEL-3000 User Manual If you change the mode or the range when the load Warning is already on, the load will be turned off automatically. 1. Make sure the load is off. Operation 2. Press Main 3. Select CP mode with the Mode[F1] soft-key. 4.
Page 61: Cv Mode
OPERATION Display 03/Sep/2012 RS232 LOAD 0.00 0.00 0.000 Current setting Power settings Active setting CP A Value 0.00 CP B Value 0.00 Mode Voltage range Fine A Value Mode I Range V Range Function Configure H 35A H 150V Static Current range Basic CP mode configuration is complete.
Page 62: Turning On The Load
PEL-3000 User Manual Display 03/Sep/2012 RS232 LOAD 0.000 0.00 0.000 Timer1 0.025 +CV setting Timer2 0.025 5.500 Mode I Range V Range Function Configure H 35A L 15V Dynamic The +CV settings apply to all the applicable Note operating modes. For example: The +CV settings made in CR mode will be carried over to the +CV settings in CC and CP mode.
Page 63: Shorting The Load
OPERATION The load can be set to automatically turn on at  Note start up. See page 77. The load can be turned on via remote control.  See the programming manual. The load can be turned on via external control. ...
Page 64: Safety Short
PEL-3000 User Manual 1. The short function can be turned on and off by Operation pressing the key. Short key will turn red when the short  Short function is active. The Short icon will appear when the short  function is active.
Page 65: Short Key Configuration
OPERATION 1. Press > Configure[F5] > Other[F2] and Main Operation set the Short Safety. When set to OFF, the load can be shorted at  anytime. When set to ON, the load can only be shorted  when the load is already on. Short (Safety): OFF, ON The Short Safety setting will be grayed out if Short...
Page 66: Short Function Enable/Disable
PEL-3000 User Manual Short Function Enable/Disable The short key can be disabled to prevent the Description operator accidentally shorting the load. 1. Press > Configure[F5] > Other[F2] and Main Operation set the Short Function. When set to OFF, the Short key is disabled and ...
Page 67: Basic Configuration
OPERATION Basic Configuration The basic configuration settings are the common configuration settings that are used for each operating mode. After selecting a basic operating mode (CC, CR, CV or CP mode), the slew rate, switching mode, response rate and other common parameters should be configured.
Page 68 PEL-3000 User Manual Dynamic Mode Level Level 2 Level 1 Timer1 Timer2 Timer1 Time Dynamic mode is not available for CV mode. Note 1. Make sure the load is off. Operation 2. Press Main 3. Select Dynamic or Static mode with the Function[F4] soft-key.
Page 69: Select The Display Units For Dynamic Mode Levels
OPERATION The load can be “on” when switching between  A Value and B Value. Display: RS232 LOAD 03/Sep/2012 Static Mode 0.00 0.00 A Value 0.000 B Value CP A Value 0.00 Active setting CP B Value 0.00 Static mode Fine OFF V A Value...
Page 70 PEL-3000 User Manual 1. Make sure the load is off. Operation 2. Press > Configure[F5] > Other[F2] and Main set the Dyna. Level setting. Value, Percent Range: Display: RS232 LOAD 03/Sep/2012 Percent Setting 0.000 0.00 Set level 0.000 % from the Set value 1.00 Level 50.0...
Page 71: Select The Switching Time Configuration For Dynamic Mode
OPERATION Select the Switching Time Configuration for Dynamic Mode The switching time for dynamic mode can be Description configured to switch between two preset on- times (Timer1, Timer2) or by setting a switching frequency and duty cycle. 1. Press > Configure[F5] > Other[F2] and Operation Main set the Dyna.
Page 72: Cv Mode Response Speed
PEL-3000 User Manual Display RS232 LOAD 03/Sep/2012 0.00 0.00 0.000 Slewrate settings Slewrate settings SlewRate 2500.00 mA/uS SlewRate 2500.00 mA/uS Timer1 0.025 Mode I Range V Range Function Configure H 35A H 150V Dynamic CV Mode Response Speed The response speed setting is the response Description speed for the negative feedback control of the load current when used in CV mode.
Page 73: Cc, Cr And Cp Mode Response Speed
OPERATION Display RS232 LOAD 03/Sep/2012 0.000 0.00 0.000 CV A Value 15.000 CV B Value 15.000 Fine Response setting A Value Mode I Range V Range Response Configure H 35A L 15V Slow CC, CR and CP Mode Response Speed By default, the “normal current response”...
Page 74: Advanced Configuration Settings
PEL-3000 User Manual Advanced Configuration Settings Use the advanced configuration settings to configure settings other than those described in the basic configuration chapter. Soft Start Setting The soft start setting is used to limit the amount Description of input current at start-up or from when the Von Voltage threshold is tripped.
Page 75: Von Voltage Settings
OPERATION Von Voltage Settings Von Voltage Level The Von Voltage is the threshold voltage at Description which the load module will start to sink current. Von voltage V out Load on Time PEL-3000 Time 1. Press > Configure[F5] > Other[F2] and Operation Main set the Von Voltage level.
Page 76: Von Voltage Latch
PEL-3000 User Manual Von Voltage Latch When Von Latch is set to ON, the load will Description continue to sink current after being “latched”, even if the voltage drops below the Von Voltage threshold level. When Von Latch is set to OFF, the load will turn off when the voltage drops below the Von Voltage threshold level.
Page 77: Von Voltage Delay
OPERATION Von Voltage Delay Von Delay is the amount of time the unit will Description wait before turning the load on after the Von Voltage threshold has been latched. This will prevent overshoot current from affecting the Von Voltage threshold. 2.
Page 78: Cut Off Time
PEL-3000 User Manual 1. Press > Configure[F5] > Other[F2] and Operation Main turn the Count Time on or off. ON, OFF Range: Display RS232 LOAD 03/Sep/2012 0.000 0.00 Elapsed time 0.000 0:00:05 Level1 0.00 Level2 0.00 Cut Off Time Fine Timer1 0.025 Mode...
Page 79: Auto Load Configuration
OPERATION Auto Load Configuration The PEL-3000 can be configured to Description automatically load the last program, normal sequence, fast sequence or load setting at startup. By default, this setting is disabled. Utility 1. Press > Load[F2]. Operation Help Shift 2. Turn Auto Load On or Off. When set to OFF, the Auto Load setting is ...
Page 80: Load Off (Mode) And Load Off (Range)
PEL-3000 User Manual Load Off (Mode) and Load Off (Range) By default the load will automatically turn off Description when the either the operating mode (CC, CV, CR, CP) or the range (I range, V range) is changed. To allow the load to stay on when the operating mode is changed, set the Load Off (Mode) setting to OFF.
Page 81: Step Resolution Configuration
OPERATION Step Resolution Configuration There are two different ways to set the set resolution when using the scroll wheel to edit parameters. Step Mode and Cursor Mode. Step Mode is the default method. Only one mode can be active at a time;...
Page 82: Step Mode Configuration
PEL-3000 User Manual Step Mode Configuration When set to Step Mode, the voltage, current, Description resistance and power settings can have the step resolution configured. The step resolution refers to the step resolution of the coarse adjustment for these settings. The fine adjustment cannot be configured.
Page 83 OPERATION 1. Press > Configure[F5] > Next Menu[F4] Operation Main > Knob[F2] and make sure the Status setting is set to Step. 2. Set the desired step resolution settings. (The step resolution settings are only available when Status=Step (coarse/fine)) For example if the step resolution for CCM Step ...
Page 84: Protection Settings
PEL-3000 User Manual Protection Settings The Protection settings are used to prevent damage to the unit or the DUT by excessive current, voltage or power. An alarm is generated and a message is displayed on the screen when a protection setting is tripped. When an alarm is activated, the load is turned off (or limited), and the ALARM STATUS pin of the J1 connector on the rear panel (pin 16) turns on (open collector output by a photocoupler).
Page 85: Opp
OPERATION Display RS232 LOAD 03/Sep/2012 Alarm message 2.596 1.2982 OCP indicator when OCP is set to Load Off 500.06 OCP Alarm Please Press Enter CV A Value 15.000 To Clear Alarm CV B Value 15.000 Fine A Value Mode I Range V Range Response Configure...
Page 86: Uvp
PEL-3000 User Manual Display RS232 LOAD 03/Sep/2012 Alarm message 2.596 1.2982 OCP indicator when OPP is set to Load Off 500.06 OPP Alarm Please Press Enter CV A Value 15.000 To Clear Alarm CV B Value 15.000 Fine A Value Mode I Range V Range...
Page 87: Uvp Ring Time
OPERATION Display RS232 LOAD 03/Sep/2012 Alarm message 2.596 1.2982 UVP indicator when UVP is tripped 500.06 UVP Alarm Please Press Enter CV A Value 15.000 To Clear Alarm CV B Value 15.000 Fine A Value Mode I Range V Range Response Configure L 0.7A...
Page 88 PEL-3000 User Manual When the voltage dips below the UVP level, the Alarm  UVP indicator and message will appear on the screen. The UVP buzzer will sound if UVP Ring Time is set. Under this scenario the following outcomes are possible: 1.
Page 89: Ovp
OPERATION If the OVP is tripped, the PEL-3000 will turn off Description the load. The OVP levels can be set from 0V to 10% higher than the rating voltage. 1. Press > Configure[F5] > Protection[F1] Operation Main and set the OVP Level. OVP Level: OFF, 0-Rating voltage + Range: Note: To turn OVP off, set the OVP voltage greater...
Page 90: Unreg
PEL-3000 User Manual UnReg The UnReg error message will appear on the Description display when the electronic load is operating in an unregulated state. The UnReg indicator will appear on the display Alarm  when the set load is inadequate for the source. To clear the UnReg indicator, increase the load ...
Page 91: Para
OPERATION Para The Para error message will appear on the Description display when the PEL-3000 is used in parallel and if an error is produced. The Para error message indicates one of the Alarm  following possible conditions: UnReg, ROCP, OTP.
Page 92: System Settings
PEL-3000 User Manual System Settings The following section covers a number or miscellaneous system settings such as: Speaker settings  Display settings  Alarm tone settings  Input control settings  Language settings  Input/output trigger settings  All system settings are accessible in the Utility menu. Sound Settings Speaker Settings Turns the speaker sound on or off for the user...
Page 93: Alarm Tone Settings
OPERATION Alarm Tone Settings The alarm tone for the unit can be turned on or Description off in the utility menu. The alarm tone can be set separately for the protection settings (OCP, OPP, UVP, OVP), Go-NoGo testing or for when the unit is operating in an unregulated state (see page 88).
Page 94: Control Settings
PEL-3000 User Manual Control Settings The Knob Type setting determines if values are Description updated immediately as they are edited or if they are only updated after the Enter key is pressed. The Updated setting is applicable for when the load is already on and the user wishes to change the set values (current, voltage, etc.) in realtime.
Page 95: Input/Output Trigger Settings
OPERATION Input/Output Trigger Settings Trigger In Delay The Trig In Delay setting determines how long Description to delay any action after a trigger is received. Utility 1. Press > Other[F5]. Operation Help Shift 2. Set the Trig In Delay setting. 0.0 - 5000µs Range: Default: 0µs...
Page 96: Go-Nogo
PEL-3000 User Manual Go-NoGo The Go-NoGo configuration is used to create pass/fail limits on the voltage or current input. If the voltage/current exceeds the pass/fail limits, an alarm will be output. The Go-NoGo configuration can be used with the Program function to create complex pass/fail tests.
Page 97: Running A Go-Nogo Test
OPERATION 5. Set the Delay Time. The delay time setting will delay activating the  Go-NoGo testing by a specified amount of time. The delay setting can compensate for startup  oscillation and other instabilities during startup. Delay Time 0.0-1.0 seconds (0.1s resolution ) When the Main settings are saved or recalled, the Note Go-NoGo settings are also saved/recalled.
Page 98 PEL-3000 User Manual Display: 03/Sep/2012 RS232 LOAD 0.000 0.00 Test result 0.000 SPEC test = ON SPEC Level1 0.00 Level2 0.00 Fine Timer1 0.025 Display: RS232 LOAD 03/Sep/2012 0.000 0.00 Test result Mode IRange VRange Function Configure H 35A L 15V Dynamic 0.000 SPEC test = ON...
Page 99: Save Recall
OPERATION Save Recall The PEL-3000 can save and recall system settings, preset data, memory data, Go-NoGo settings as well as normal and fast sequences to internal memory or to USB. File Structure The PEL-3000 file system can save files to Description internal memory (Media|Memory) and external memory (Media|USB).
Page 100: File Types
PEL-3000 User Manual For example: To load Preset Data P7 from USB, you must first load Preset Data P0-P9 to internal memory, then from internal memory load Preset P7 to be the active preset setting. For normal and fast sequences however, files can be saved or recalled directly to/from USB memory.
Page 101: Saving Files To Internal Memory
OPERATION Preset Data contains the same settings as the Preset Data Memory Data. Preset Data contains the operating mode, range, response and Go-NoGo settings. Internal Format P0 - P9 External Format model no_file no.P example: 3021_00.P NSeq Data contains the Normal Sequence NSeq Data settings.
Page 102 PEL-3000 User Manual Memory Data Media | Memory Example M001 Active setting MXXX M256 Display RS232 LOAD 03/Sep/2012 Save file type 0.35A Data Type Memory Memory M256 Static Save file location Memory A Value Media File Save Recall Memory Utility File 1.
Page 103: Saving Files To Usb Memory
OPERATION Normal Sequence and Fast Sequence data cannot Note be recalled from or saved to an internal memory slot. Saving Files to USB Memory When saving files to USB memory, all the Description memory locations from the selected data type are saved as a single file to the USB file path directory.
Page 104 PEL-3000 User Manual 1. Insert a USB drive into the USB port. Operation File 2. Press FUNC Shift 3. Select USB with the Media[F1] soft-key. 4. Select the Data Type and choose the type of file to save. Data Type: Memory Data, Setup Data, Preset Data, NSeq, FSeq 5.
Page 105: Recalling Files From Internal Memory
OPERATION Recalling Files from Internal Memory When recalling Memory, Setup or Preset Data Description from the internal memory slots, the recalled file becomes the active setting. Memory Data has 256 memory slots, Setup Data has 100 memory slots and Preset Data has 10 memory slots.
Page 106: Recalling Files From Usb Memory
PEL-3000 User Manual 4. Select which memory slot to recall from. M001 - M256 Memory: 1 - 100 Setup Memory: Preset: P0 - P9 5. Press Recall[F4] to recall. For Memory Data and Preset Data, a popup  window will appear. Press the key to Enter confirm the recall.
Page 107 OPERATION Memory Data Media | Memory Media | USB Example M001 MXXX Recall file M256 For example, if the file 3021_01.M is recalled, all the Memory Data from M001 to M256 will be overwritten. Display RS232 LOAD 03/Sep/2012 Save file type 0.35A Data Type Memory...
Page 108: Recall Memory Safety Setting
PEL-3000 User Manual Model_file number.M Memory: Model_file number.S Setup Memory: Preset: Model_file number.P NSeq: Model_file number.N FSeq: Model_file number.F 6. Press Recall[F4] to recall. Recall Ok will be displayed when the recall has  been completed. Press File Utility[F5] to access the file utility. See File Utilities page 106 for details.
Page 109: File Utility
OPERATION This setting only applies when recalling preset Note settings from internal memory, either by using the Presets keys (P0 - P9) or by using the File menu. See page 109 and 103. File Utility The file utility allows you to create new folders, Description rename files and set the USB path directory.
Page 110: Preset
PEL-3000 User Manual Rename a Folder 1. Use the scroll wheel to move the cursor to the file/folder you wish to rename. 2. Press Rename[F3]. Use the on-screen display to enter the filename.  A maximum of 8 characters.  1.
Page 111: Quick Preset Recall
OPERATION Quick Preset Recall Presets P0 to P9 can be recalled quickly by Description using the Preset key and the number pad. Operation 1. Press Preset 2. Press to confirm the recall when a Enter popup window appears. 3. Press again to deactivate the preset Preset key.
Page 112: User's Default Setting
PEL-3000 User Manual User’s Default Setting The currently active settings can be set as the Description “User’s Default” settings. File 1. Press Save User’s FUNC Shift Default Setting 2. Select Default with the Media[F1] soft-key. 3. Press Save[F3]. The User’s Default is saved immediately. ...
Page 113: Function Menu
FUNCTION MENU UNCTION MENU Function Menu Overview ........112 Select a Function ................112 Turning on the Load with the Selected Function ....114 Complete Ring Time ..............115 NSEQ Timer .................. 116 Program ..............118 Program Overview ................. 118 Create a Program ................120 Create a Program Chain ..............
Page 114: Function Menu Overview
PEL-3000 User Manual Function Menu Overview The Function menu can be used as a quick access hub to the Program, Normal Sequence, Fast Sequence or OCP menus. It is also used to set Function specific settings: Function Select.  Complete Ring Time. ...
Page 115 FUNCTION MENU 1. Press FUNC Operation 2. Select Function Select and choose a function to turn on or choose to turn off the last function. OFF, PROG, NSEQ, FSEQ, OCP Range After a function is selected, it is then “turned ...
Page 116: Turning On The Load With The Selected Function
PEL-3000 User Manual Turning on the Load with the Selected Function 1. When a function is turned on, the load can be Description turned on (with the selected function) by Shift Load pressing . This can be done at anytime. Load key will turn orange when the load ...
Page 117: Complete Ring Time
FUNCTION MENU Complete Ring Time The Complete Ring Time function turns the Description alarm on for a user-set amount of time after a program, sequence or OCP function has finished. Function Select 03/Sep/2012 RS232 PROG Screen FUNCTION Function Select PROG Complete Ring Time NSEQ Timer Elapsed...
Page 118: Nseq Timer
PEL-3000 User Manual NSEQ Timer The NSEQ Timer setting determines whether Description the timer for the Normal Sequence function displays the elapsed time or the remaining time for both the current step and the overall test time for the sequence. Function Select 03/Sep/2012 RS232...
Page 119 FUNCTION MENU Display example Elapsed or 03/Sep/2012 RS232 NSEQ remaining time for 0.000 0.00 the total test time 0.000 0:00:05 Run N.Seq. Seq. No: Step 0003 0:00:05 Loop: 0001 Elapsed or Continue remaining time for the current step When the total test time is >1000 hours, then the Note total test time will always be displayed as the elapsed time.
Page 120: Program
PEL-3000 User Manual Program The PEL-3000 can create programs that are designed to step- through up to 16 pre-set load operations. The program function is a powerful tool that can allow you to perform a number of different operations in succession. The execution time of each step is user-defined.
Page 121 FUNCTION MENU program chains. Program chains need not be executed in order.  There are 16 steps to a program.  There are up to 16 programs to a chain.  STEP 01 STEP 02 PROGRAM 1 STEP 16 STEP 01 STEP 02 PROGRAM 2 STEP 16...
Page 122: Create A Program
PEL-3000 User Manual Below is a timing diagram of a single step in a Timing Diagram program. for Single Step P/F End Test Time (fixed) P/F Start Test Time (fixed) 0.06s P/F Time 0.04s Short-Time Start of Step On-Time Off-Time End of Step Step test time Create a Program...
Page 123 FUNCTION MENU 01 - 16 PROG 5. Select a STEP in the selected program. 01 - 16 STEP 6. Select Memory and select which memory location to load for the selected step. Settings loaded from the memory location will  be used for the selected step.
Page 124 PEL-3000 User Manual 10. Choose the P/F-Time (pass/fail time) in seconds. The P/F-Time refers to the P/F delay time. This  delay time includes the 0.06 P/F start test time, as shown in the timing diagram on page 120. P/F-Time Off, 0.0 - 119.9 seconds 11.
Page 125: Create A Program Chain
FUNCTION MENU Create a Program Chain Before creating a program chain, make sure a Note number of programs have already been saved. These will be used to create the program chain. Chain Setting Starting program 03/Sep/2012 RS232 LOAD Display Overview for the chain Program Chain Set Start...
Page 126: Running A Program Or Chain
PEL-3000 User Manual 4. Repeat step 3 for any remaining programs in the chain. 5. Press Save to save the program chain to internal memory. Pressing Recall Default[F4] will reset the chain to the default settings. See page 210 for details. Recall Default[F4] will essentially clear the ...
Page 127 FUNCTION MENU 5. When a program/chain has finished running, a list of the Go-NoGo results for each step are displayed. Press Exit[F5] to exit.  Display: 03/Sep/2012 RS232 PROG Program/Chain 0.000 0.00 Running Program number that 0.000 is currently running. Run Program Program No: Step(Memory)
Page 128: Sequence
PEL-3000 User Manual Sequence The PEL-3000 supports both programs and sequences. The essential difference between programs and sequences is that programs can use different operating modes for each step while sequences use the same operating mode throughout the whole sequence. In effect sequences are used to create complex load simulations.
Page 129 FUNCTION MENU STEP 01 STEP 02 Start Sequence Sequence 1 STEP N STEP 01 STEP 02 Sequence 2 STEP N STEP 01 STEP 02 Sequence 10 STEP N Normal Sequence configuration is split into Description Timing Edit configuration and Data Edit configuration.
Page 130 PEL-3000 User Manual A user-created note for the Memo 12 characters currently selected sequence. Operating mode for the Mode CC, CR, CV, CP sequence. +CV mode is supported. Low I range, low V range Range ILVL Middle I range, low V range IMVL High I range, low V range IHVL...
Page 131 FUNCTION MENU When turned on the current RAMP ON, OFF transition is evenly ramped from the start of the step to the end of the step. When turned off the current transition is stepped. Ramp = On amplitude Time Step time Ramp = Off amplitude Time...
Page 132: Timing Edit Configuration
PEL-3000 User Manual Pause: Inserts a pause at the PAUSE ON, OFF end of the step. When paused, the unit will pause at the end of the step current/voltage/resistance/ power level. The sequence can be resumed by pressing Next[F2] or by using an external trigger signal (page 179).
Page 133 FUNCTION MENU 4. Set the following parameters for the currently selected sequence. See page 126 for details on each parameter. Memo  Mode  Range  Loop  Last Load  Last  Chain  5. Press Save[F3] to save the timing settings for the currently selected sequence.
Page 134: Data Edit Configuration
PEL-3000 User Manual Data Edit Configuration Data Edit Display Total number of steps Active step number RS232 LOAD 03/Sep/2012 Data Edit for Normal Sequences Step: 0001 0001 Value: 0.00000 Time: 000 H: 00 M: 00 s 0.05 ms LOAD: TRIG OUT RAMP: PAUSE: Step settings...
Page 135 FUNCTION MENU 5. Set the following parameters for the currently selected step. See the Data Edit Overview on page 128 for configuration details. Value  Time  LOAD  RAMP  TRIG OUT  PAUSE  6. If you wish to edit a previously inserted point/step, use the Step parameter.
Page 136: Running A Normal Sequence
PEL-3000 User Manual Running a Normal Sequence Unlike a normal static or dynamic load, a load Description created with the Normal Sequence function is turned on by pressing the Shift and Load keys. 1. Press > Normal Sequence[F2]. FUNC Operation 2.
Page 137 FUNCTION MENU and resumed again by pressing Continue[F1]. If no steps have been created “No N.Seq.” will  be displayed on the screen. “Sequence Complete” will be displayed at the end  of the sequence. Display: Current step readback Sequence/Chain measurements Elapsed or Running...
Page 138: Fast Sequence Overview
PEL-3000 User Manual Fast Sequence Overview A fast sequence is comprised of a user-defined Description number of steps that can be executed at a high frequency. Unlike normal sequences, each step in a fast sequence has the same execution time (time base).
Page 139 FUNCTION MENU Fast Sequence configuration is split into Timing Description Edit configuration and Data Edit configuration. Timing Edit configuration is used to configure all the settings that are common to all the steps of the fast sequence. This includes settings such as the mode, range, loops and time base.
Page 140 PEL-3000 User Manual Each step in a fast sequence contains the Data Edit following setting parameters: Overview Setting Setting Range Description Selects/displays the current Step 0001 - 1000 step in the sequence. The number of available  steps is dependent on the number of steps added using the Ins.
Page 141 FUNCTION MENU range. FILL example Value setting End_Value Filled values Start_Value Step Step Step Step Step Start_Step Filled steps End_Step Setting Setting Range Description Sets the current or resistance Start_Value value for the starting step. Sets the current or resistance End_Value value for the ending step.
Page 142: Timing Edit Configuration
PEL-3000 User Manual Timing Edit Configuration Edit Timing RS232 LOAD 03/Sep/2012 Display Timing Edit for Fast Sequence Memo: Mode: Last Load: Range: ILVL Last 0.00000 A Loop: Infinity RPTSTEP 0004 Time Base: 600.00 ms F. Seq. Edit Previous Sequence Menu Sequence settings 1.
Page 143: Data Edit Configuration
FUNCTION MENU Go to Data Edit to edit the steps used in the Fast  Sequence. Page 141. Go to Running a Fast Sequence to run the fast  sequence. Page 143. Data Edit Configuration Data Edit Display Total number of steps Active step number RS232 LOAD...
Page 144 PEL-3000 User Manual sequence. Every-time Insert Point is pressed the Step  parameter is incremented. The newly inserted “point” becomes the active  step. 3. Set the following parameters for the currently selected step. See page 135 for configuration details. Value ...
Page 145: Running A Fast Sequence
FUNCTION MENU Data Edit for Fast Sequences configuration is complete. Go to Timing Edit for Fast Sequences to edit the  sequence. Page 140. Go to Running a Fast Sequence to run the fast  sequence. Page 143. Running a Fast Sequence Unlike a normal static or dynamic load, a Fast Description Sequence load is turned on by pressing the Shift...
Page 146 PEL-3000 User Manual 4. When a fast sequence is running, the screen displays which step and loop is currently active. “Sequence Complete” will be shown on the  display at the end of the sequence. Display: RS232 FSEQ 03/Sep/2012 Fast Sequence 0.998 0.1528 Running...
Page 147: Ocp Test Automation
FUNCTION MENU OCP Test Automation The OCP test function creates an automatic test to Background test the OCP of power supply products. This test will test to see when the over current protection of a power supply is tripped and return the measurements for the voltage and current when the over current protection was tripped.
Page 148 PEL-3000 User Manual OCP. No Selects one of 12 OCP test Parameters setup memories. Range High(CC Mode High), Mid(CC Mode Middle) and Low(CC Mode Low) Start Current(Start C) Starting current value for the test. End Current(End C) The current value that will end the test.
Page 149 FUNCTION MENU Trig Voltage(Trig_V) Sets the trigger to a level needed to see when the power supply OCP has been triggered. When the power supply OCP has been triggered, its voltage output will reset. The voltage trigger level is used to test to see if the voltage output has been reset.
Page 150 PEL-3000 User Manual Last_C  Step_T  Delay  Trig_V  4. Press the Save[F3] to save the selected test setup. 5. Press OCP[F1] to turn the OCP function on if it Start OCP is off. 6. The OCP function can be started by turning the Shift Load load on by pressing...
Page 151 FUNCTION MENU Results: Power Source Measured current, indicating power supply OCP tripped 03/Sep/2012 RS232 FSEQ OCP was tripped 0.93 0.00 0.000 OCP Test Set Curr: Fetch Volt: 2.500 0.90 Current: 2.000 0.91 2.500 A 1.500 0.91 1.000 0.92 Step current setting on the load when the power supply’s OCP was tripped The OCP Test will return the current setting of the...
Page 152 PEL-3000 User Manual Power Source RS232 FSEQ 03/Sep/2012 Config Error 0.00 0.00 0.000 OCP Test Set Curr: Fetch Volt: Config Error Config Error indicates that upon starting the power supply voltage is less than the Trig V voltage. Config Error indicates that the power supply voltage is less than the Trig V voltage setting after the test has started.
Page 153: Opp Test Automation
FUNCTION MENU OPP Test Automation The OPP test function creates an automatic test to Background test the OPP of power supply products. This test will test to see when the over power protection of a power supply is tripped and return the measurements for the voltage and current when the over power protection was tripped.
Page 154 PEL-3000 User Manual OPP. No Selects one of 12 OPP test Parameters setup memories. Memo A user-created note for the currently selected OPP function. Range High(CP Mode High) Middle(CP Mode Middle) Low(CP Mode Low) Start Watt (Start W) Starting watt value for the test.
Page 155 FUNCTION MENU Trig Voltage(Trig V) Sets the trigger to a level needed to see when the power supply OPP has been triggered. When the power supply OPP has been triggered, its voltage output will reset. The voltage trigger level is used to test to see if the voltage output has been reset.
Page 156 PEL-3000 User Manual Range  Start W  End W  Step W  Step T  Delay  Trig V  Last W  3. Press the Save[F3] to save the selected test setup. 4. Press OPP[F1] to turn the OPP function on if it Start OPP is off.
Page 157 FUNCTION MENU Example: OPP Function running Results: Power Source OPP tripped The OPP Test will return the current setting of the last step when the power supply’s OPP was tripped.
Page 158 PEL-3000 User Manual Power Source OPP time out OPP time out will occur if the power supply’s OPP fails to trigger. This is determined when the measured voltage is less than Trig V and the measured current is greater than End W. Power Source Config Error Config Error indicates that the power supply...
Page 159: Batt Test Automation
FUNCTION MENU BATT Test Automation The BATT test function creates an automatic test to Background test the discharge of Battery products. The test will discharge in a fixed mode (CC, CR, CP) and will end after a defined stop point (stop voltage, stop time, stop AH) has been detected.
Page 160 PEL-3000 User Manual Begin Discharge Stop Volt Current Setting CR mode SlewRate = SlewRate ? Stop Time Stop AH Begin Discharge Stop Volt Current Setting CP mode SlewRate = SlewRate ? Stop Time Stop AH BATT No. Selects one of 12 BATT test setup Parameters memories.
Page 161 FUNCTION MENU IMVL(I range middle, V range low) IHVL(I range high, V range low) ILVH(I range low, V range high) IMVH(I range middle, V range high) IHVH(I range high, V range high) Setting Sets the values corresponding to the defined discharging mode (CC mode in A, CR mode in mS and CP mode in W).
Page 162 PEL-3000 User Manual...
Page 163 FUNCTION MENU 2. Set the following parameters for the selected test setup above: BATT No.  Memo  Mode  Range  Setting  SlewRate=  SlewRate?  Stop Volt  Stop Time  Stop AH  Datalog timer  3.
Page 164 PEL-3000 User Manual Example: BATT Function running...
Page 165 FUNCTION MENU Results: Battery stop Voltage or stop time or stop AH tripped...
Page 166 PEL-3000 User Manual The BATT Test will return the information of the last discharge when the Battery stop voltage or stop time or stop AH was tripped. In addition to the BATT Function settings as described Note above, the VON voltage settings must also be set according to the output characteristics of the DUT.
Page 167: External Control
Monitor Signal Output ..............182 Trigger Signal Output ............. 182 Current Monitor Output ............182 Parallel Operation ..........184 Parallel Capacity, PEL-3021, PEL-3041, PEL-3111....184 Parallel Capacity, PEL-3211 ............185 Connection ..................185 Configuration .................. 187 Turning the Load On ............. 189...
Page 168: Analog Control
PEL-3000 User Manual Analog Control The Analog Control subsection describes how to use the J1 Frame Control Connector for voltage or resistance control. The J2 connector, located under the J1 connector is used for parallel control. See page 213 for details about the J1 and J2 connectors. J1 Connector Overview The J1 External Control Connector is a standard Description...
Page 169: External Voltage Control - Overview
EXTERNAL CONTROL External Voltage Control - Overview External voltage control of the CC, CR, CV and Background CP mode is accomplished using the J1 connector on the rear panel. An input voltage of 0-10V corresponds to 0% - 100% of the rated current (CC mode), rated voltage (CV mode), or rated power (CP mode).
Page 170: External Voltage Control - Operation
PEL-3000 User Manual When using external voltage control, make sure no Caution more than ±11V is applied across pins 1 and 3. Exceeding this voltage could damage the PEL-3000. Exceeding 11.8V will cause an EXT.OV alarm message to appear which also will reset the voltage output to 0V until the external voltage is reduced back down below 11.8V.
Page 171 EXTERNAL CONTROL Input conductance = CR Mode rated conductance × (external voltage/10) Input Conductance Rated Conductance External Voltage Input voltage = rated voltage × (external CV Mode voltage/10) Input Voltage Rated Voltage External Voltage Input power = rated power × (external CP Mode voltage/10) Input Power...
Page 172: External Resistance Control - Overview
PEL-3000 User Manual 3. Turn the power on the PEL-3000. 4. Set the operating mode and range. See page 52 for CC mode.  See page 54 for CR mode.  See page 56 for CV mode.  See page 57 for CP mode. ...
Page 173 EXTERNAL CONTROL When connecting the external resistance source Connection to the J1 connector, use a ferrite core and use twisted pair wiring. EXT-R PEL-3000 connector Ferrite Core and twisted wiring Input Terminals Pin1 → EXT-R  Pin3 → EXT-R  Use resistors with minimum residual resistance of Note 50Ω...
Page 174: External Resistance Control - Operation
PEL-3000 User Manual External Resistance Control – Operation External resistance control can be used to Description control the current, voltage, resistance and power for CC, CR, CV and CP modes. Configuration for each operating mode is the same. Proportional Control: CC Mode Input current = rated current ×...
Page 175 EXTERNAL CONTROL Proportional Control: CR Mode Input conductance = rated conductance × (external resistance/10). Inverse Control: Input conductance = rated conductance × (1 - external resistance/10). Inverse control Input Conductance Proportional control Rated Conductance External Resistance 0Ω 10kΩ Proportional Control: CV Mode Input voltage = rated voltage ×...
Page 176 PEL-3000 User Manual Proportional Control: CP Mode Input power = rated power × (external resistance/10). Inverse Control: Input power = rated power × (1 - external resistance/10). Inverse control Input Power Proportional control Rated Power External Resistance 0Ω 10kΩ The inverse configuration is recommended for Note safety reasons.
Page 177: Turning The Load On Using External Control
EXTERNAL CONTROL 5. Press > Configure [F5] > Next Menu [F4] Main > External [F3]. 6. Set the Control to R for proportional control or to Rinv for inverse control. The J1 connector is now ready for external  resistance control. Turning the Load On using External Control The load can be turned on and off with an Description...
Page 178 PEL-3000 User Manual The LoadOn IN setting determines whether the Example load is turned on when the external switch is closed (low) or open (high). High LoadOn In = High High LoadOn In = Low Load off Load Load on 1.
Page 179: Load On/Off Status
EXTERNAL CONTROL Load On/Off Status Pin 13 (Load On Status) of the J1 connector is Description used to monitor the load status (on or off). The Load On Status Pin out pin is a photo- coupled open- collector output. Photocoupler input: 30V max, 8mA, max. External Control of the Range The range for the present operating mode can Description...
Page 180: I Range Status
PEL-3000 User Manual Pins 8 and 9 of the J1 connector are internally Pin Inputs pulled up to 5V with a 10kΩ resistor when open. When closed, pin 8 and 9 are pulled down to the A COM ground level. PEL-3000 Switches 10kΩ...
Page 181: External Trigger Signal
EXTERNAL CONTROL The Range Status Pin out 14, 15 pins are photo- coupled open- collector outputs. Photocoupler input: 30V max, 8mA, max. External Trigger Signal Pins 11 and 12 of the J1 connector are the Description trigger signal inputs. The trigger signal is used to resume a sequence after a pause.
Page 182: External Control Of The Alarm
PEL-3000 User Manual External Control of the Alarm An alarm can be activated/deactivated using Description external control with the J1 connector (pins 10, 12). When the alarm is activated, an EXT.AL message is also output. The alarm can be activated by an external device or by a parallel slave unit.
Page 183: Alarm Status
EXTERNAL CONTROL Alarm Status Pins 16 and 17 of the J1 connector are used to Description monitor whether the alarm is on or off. The Alarm Status pin Pin out is a photo-coupled open-collector output. Photocoupler input: 30V max, 8mA, max. Short Control The Short Signal Out pins (19 and 20) are Description...
Page 184: Monitor Signal Output
PEL-3000 User Manual Monitor Signal Output Trigger Signal Output The trigger output signal is generated every Description time a switching operation is performed (i.e., Dynamic mode) or when a Fast or Normal Sequence is executed and the TRIG OUT parameter is enabled. The trigger output signal from TRIG OUT BNC is a 5V pulse of at least 2us with an impedance of 500Ω.
Page 185 EXTERNAL CONTROL settings. Current Rated Current IMON V Monitor Output Range Monitor Monitor Connector Current Range Output Range H, L 0 - 1V I MON OUT (BNC) 0 - 0.1V H, L 0 - 10V I MON (J1) 0 - 1V The IMON OUT BNC connector outputs a I MON OUT BNC voltage of 0 - 1V for the High and Low current...
Page 186: Parallel Operation
When a master unit is used in parallel mode, to ensure stability, the response speed will drop down to 1/2 if it was originally 1/1. You can however, reset the response speed back (or to another value) in the Main>Configure menu. Parallel Capacity, PEL-3021, PEL-3041, PEL-3111 Model Single Unit 2 Units...
Page 187: Parallel Capacity, Pel-3211
EXTERNAL CONTROL Parallel Capacity, PEL-3211 Model No. of Total Sink Current Total Power Units PEL-3111 + PEL-3111 + PEL-3211 PEL-3211 150V 210A PEL-3111: Master 150V 420A 630A 3150W 150V 840A 1050A 5250W PEL-3211: Slave Boosters 150V 1260A 1470A 7350W 150V 1680A 1890A 9450W Note: The PEL-3211 booster packs do not have a control panel.
Page 188 PEL-3000 User Manual MASTER Load wiring Sense wiring SLAVE 1 SLAVE 2 SLAVE 3 Only the rear terminals can be used for parallel Cautions connections. Make sure all connections are correct before turning on the load. Incorrect connections could damage the units. Only units of the same type and rating can be used in parallel (except for when the PEL-3211 booster pack is used with the PEL-3111).
Page 189: Configuration
EXTERNAL CONTROL Configuration When using the multiple units in parallel all the Description basic settings are adopted from the master unit. 1. Make sure all load units are turned off. Operation 2. Make sure the DUT is turned off. 3. Connect the load units to the DUT. Ensure the wire gauge is sufficient to handle the ...
Page 190 PEL-3000 User Manual A maximum of 5 units can be used in parallel.  A maximum of 4 boosters can be used with a  single PEL-3111, acting as a master unit. RS232 LOAD 03/Sep/2012 Configure Operation Master Fast Parallel Booster A Value Previous...
Page 191: Turning The Load On
EXTERNAL CONTROL Turning the Load On Operating the PEL-3000 Series in parallel mode Description is the same as for single units. When using the units in parallel, the load line Note inductance could be increased or the stability of the units could be reduced. It may be necessary to reduce the response speed setting to increase stability.
Page 192: Disable Parallel Mode
PEL-3000 User Manual Disable Parallel Mode To disable parallel mode, each unit must be set Description as a “Master”. 1. Turn the power off on all the units and remove Operation the GTL-255 frame link cables. 2. Turn the power back. 3.
Page 193: Remote Control
EMOTE CONTROL This chapter describes basic configuration of IEEE488.2 based remote control. For a command list, refer to the programming manual, downloadable from GW Instek website, www.gwinstek.com Interface Configuration ...........192 Configure to USB Remote Interface .......... 192 Configure GPIB Interface ............192 Configure RS232C .................
Page 194: Interface Configuration
PEL-3000 User Manual Interface Configuration Configure to USB Remote Interface Type A, host PC side configuration connector Rear panel Type B, slave PEL-3000 side connector 2.0 (full speed) Speed USB CDC ACM USB Class Before USB can be used for remote control, it is Note necessary to install the PEL-3000 USB device driver, located on the accompanying User Manual...
Page 195 REMOTE CONTROL 4. Connect a GPIB cable from a GPIB controller to the GPIB port on the PEL-3000. 5. Turn the PEL-3000 on. Utility 6. Press > Interface[F3] and set Help Shift the Interface setting to GPIB. 7. Set the GPIB address. GPIB address 0-30 Maximum 15 devices altogether, 20m cable length,...
Page 196: Configure Rs232C
PEL-3000 User Manual Configure RS232C RS232C Connector DB-9, Male Configuration Baud Rate 2400, 4800, 9600, 19200, 38400 Stop Bit 1, 2 Parity None, Odd, Even 1. Connect an RS232C cable from the PC to the Operation rear panel RS232 port. Utility 2.
Page 197: Rs232C/Usb Remote Control Function Check
GW-INSTEK,PEL-3000, XXXXXXXXXXXX,  V.X.X.X.X Manufacturer: GW-INSTEK Model number : PEL-3000 Serial number : XXXXXXXXXXXX Firmware version : V.X.X.X For further details, please see the programming Note manual, available on the GW Instek web site @ www.gwinstek.com.
Page 198: Using Realterm To Establish A Remote Connection
PEL-3000 User Manual Using Realterm to Establish a Remote Connection Realterm is a terminal program that can be Background used to communicate with a device attached to the serial port of a PC or via an emulated serial port via USB. The following instructions apply to version 1.99.0.27.
Page 199 REMOTE CONTROL If using USB, the baud rate, stop bit and parity settings can be viewed by right-clicking connected device and selecting the Properties option. 5. Start Realterm on the PC as an administrator. Click: Start menu>All Programs>RealTerm>realterm Tip: to run as an administrator, you can right click the Realterm icon in the Windows Start menu and select the Run as Administrator option.
Page 200 PEL-3000 User Manual 6. After Realterm has started, click on the Port tab. Enter the Baud, Parity, Data bits, Stop bits and Port number configuration for the connection. The Hardware Flow Control, Software Flow Control options can be left at the default settings.
Page 201 REMOTE CONTROL 7. Click on the Send tab. In the EOL configuration, check on the +CR and +LF check boxes. Enter the query: *idn? Click on Send ASCII. 8. The terminal display will return the following: GW, PEL-3XXX,EXXXXXXX,VX.XX.XXX (manufacturer, model, serial number, version) 9.
Page 202: Gpib Function Check
GPIB/LAN functionality. See the National Instrument website, http://www.ni.com for details. For further details, please see the programming Note manual, available on the GW Instek web site @ www.gwinstek.com. 1. Start the NI Measurement and Operation Automation Explorer (MAX) program.
Page 203 REMOTE CONTROL 3. Press the Scan for Instruments button. 4. In the Connected Instruments panel the PEL-3000 should be detected as Instrument 0 with the address the same as that configured on the PEL-3000. 5. Double click the Instrument 0 icon. 6.
Page 204 PEL-3000 User Manual 9. The function check is complete.
Page 205: Faq
• The load voltage indicated on the load module is below expected. • The front panel keys are not working. • The load won’t turn on. • The performance does not match the specification The load voltage indicated on the load module is below expected. Ensure the load leads are as short as possible, twisted and use the appropriate wire gauge.
Page 206 PEL-3000 User Manual For more information, contact your local dealer or GWInstek at www.gwinstek.com / marketing@goodwill.com.
Page 207: Appendix
Remote Sensing ................235 Protection Function ..............235 Sequence ..................235 Other ....................236 Analog External Control .............. 237 Front Panel BNC Connector ............238 General..................... 238 PEL-3000 Dimensions ..........239 PEL-3111 ..................239 PEL-3021, PEL-3041 ..............240 PEL-3211 ..................241...
Page 208 PEL-3000 User Manual Declaration of Conformity ....242...
Page 209: Replacing The Dust Filter
PEL-3000 to malfunction. 1. Turn the PEL-3000 off completely at the rear Procedure panel power switch. Gently lift the grill up from the bottom. 2. Remove the filter from the grill and replace with GW Instek part number: PEL-010.
Page 210: Replace The Clock Battery
PEL-3000 User Manual Replace the Clock Battery The system clock keeps time using a user- Background replaceable battery. The battery should be replaced approximately every 3 years. Battery type: CR123A 1. Turn off the PEL-3000 and remove the case. Procedure First remove the handle by carefully removing ...
Page 211: Gpib Installation
APPENDIX GPIB Installation GPIB is an optional extra. The following Background instructions describe how to install the optional GPIB card if necessary. 1. Turn off the PEL-3000. Procedure 2. Remove the two screws holding the cover on the option bay. 3.
Page 212: Pel-3000 Default Settings
PEL-3000 User Manual PEL-3000 Default Settings The following default settings are the factory configuration settings for the PEL-3000. Main Settings Setup Memory Settings Item Panel Settings (all 100 sets) Current(CC) Conductance(CR) Voltage(CV) Maximum value Maximum value Wattage(CP) Current range Voltage range 150 V 150 V Load on/off...
Page 213 APPENDIX Main > Configure > Other Setup Memory Settings Item Panel Settings (all 100 sets) Soft Start Von Voltage 0.00V 0.00V Von Latch Von Delay 2.0 ms 2.0 ms Short Key Toggle Toggle Count Time(elapsed time display) Cut Off Time Response Mem.Recall Safety...
Page 214 PEL-3000 User Manual Main > Configure > Next Menu > Knob Setup Memory Settings Item Panel Settings (all 100 sets) Status Step Step CCH Step Resolution Resolution CCM Step Resolution Resolution CCL Step Resolution Resolution CRH Step Resolution Resolution CRM Step Resolution Resolution CRL Step...
Page 215: Frame Control Connector Contacts
APPENDIX Frame Control Connector Contacts J1 Connector Pin name Pin number Description EXT R/V CONT 1 Used for voltage/resistance control of CC, CR, CV and CP mode. 0V to 10V corresponds to 0% to 100% of the rated current (CC mode), rated voltage (CV mode), or rated power (CP mode).
Page 216 PEL-3000 User Manual TRIG INPUT 11 When paused, clears the pause when a low level TTL signal is applied for 10 μs or longer. Pulled down the internal circuit to A COM using approx. 50kΩ. A COM 12 Connected to the negative load input terminal on the rear panel.
Page 217 APPENDIX J2 Connector Pin name Pin number Description N.C. 1 Not connected. N.C. 2 Not connected. N.C. 3 Not connected. SUM I MON 4 Connect to SUM I MON of the J1 connector. PRL OUT+ 5 Used during master/slave operation. Connected to PRL IN+ of the J1 connector.
Page 218 PEL-3000 User Manual SUM I MON 4 Connected to SUM I MON of the J2 connector. PRL IN+ 5 Connected to PRL OUT+ of the J2 connector. PRL IN- 6 Connected to PRL OUT- of the J2 connector. LOAD ON/OFF 7 Turns on the load with low (or high) TTL level CONT signal.
Page 219 APPENDIX J2 Connector Booster Pin name Pin number Description N.C. 1 Not connected. N.C. 2 Not connected. N.C. 3 Not connected. SUM I MON 4 Connect to SUM I MON of the J1 connector. PRL OUT+ 5 Used during master/slave operation. Connected to PRL IN+ of the J1 connector.
Page 220: Operating Mode Description
PEL-3000 User Manual Operating Mode Description CC Mode When the unit is set to CC mode it will operate CC Mode as a constant current load when connected to a constant voltage source. This means the unit will sink a designated amount of current, up to the rated power level, regardless of the voltage.
Page 221: Cr Mode
APPENDIX CC + CV Mode Load Input Voltage CV level Load Current CC Current Value Note that when the source voltage is less than the CV level, no current will flow due to a very high impedance. CR Mode When the unit is set to CR mode it will operate CR Mode as a constant resistance load when connected to a constant voltage source.
Page 222: Cp Mode
PEL-3000 User Manual When CR+CV mode is enabled, the unit will act CR+CV Mode as constant resistive load after the input voltage is greater than the user-defined CV level. At the CV level, the unit works as a constant voltage load.
Page 223 APPENDIX CP Mode Load Input Voltage CP Value Load Current When CP+CV mode is enabled, the unit will act CP+CV Mode as a constant power load after the input voltage is greater than the user-defined CV level. At the CV level, the unit works as a constant voltage load.
Page 224: Cv Mode
PEL-3000 User Manual CV Mode When the unit is set to CV mode it will operate CV Mode as a constant voltage load when connected to a constant current source. This means the unit will maintain a set voltage level, up to the rated power, regardless of the input current.
Page 225: Operating Area
APPENDIX Operating Area PEL-3021...
Page 226 PEL-3000 User Manual PEL-3041...
Page 227 APPENDIX PEL-3111...
Page 228 PEL-3000 User Manual PEL-3211 Booster Pack...
Page 229: Pel-3000 Specifications
The maximum slew rate settings also don’t change. N = Number of units in parallel (same model) N = 1 + 2 x Number of units in parallel (PEL-3211) Rating (Master / Slave) Model PEL-3021 PEL-3041 PEL-3111 Operating Voltage 1.5V-150V 1.5V-150V...
Page 230: Cc Mode
PEL-3000 User Manual CC Mode Model PEL-3021 PEL-3041 PEL-3111 Operating Range H Range 0A-35A 0A-70A 0A-210A M Range 0A-3.5A 0A-7A 0A-21A L Range 0A-0.35A 0A-0.7A 0A-2.1A Setting Range H Range 0A-35.7A 0A-71.4A 0A-214.2A M Range 0A-3.57A 0A-7.14A 0A-21.42A L Range 0A-0.357A...
Page 231: Cr Mode
APPENDIX CR Mode Model PEL-3021 PEL-3041 PEL-3111 Operating Range H Range 140.0016S-2.4mS 23.3336S-400uS 46.6672S-800uS (7.1427mΩ (42.857mΩ-2.5kΩ) (21.428mΩ-1.25kΩ) -416.6667Ω) M Range 14.0001S-242.4uS 2.33336S-40uS 4.6667S-80uS (71.427mΩ- (428.566mΩ-25kΩ) (214.28mΩ-12.5kΩ) 4.16667kΩ) L Range 1.40001S-24.24uS 0.233336S-4uS 0.46667S-8uS (714.27mΩ (4.28566Ω-250kΩ) (2.1428Ω-125kΩ) -41.6667kΩ) Setting Range H Range 24.5S-0S...
Page 232: Cp Mode
It is also applied for the condition of the parallel operation. *2 With respect to a change in the current of 10 % to 100 % of the rating at an input voltage of 1.5 V (during remote sensing). CP Mode Model PEL-3021 PEL-3041 PEL-3111 Operating Range H Range 17.5W -175W...
Page 233: Slew Rate
APPENDIX Slew Rate Model PEL-3021 PEL-3041 PEL-3111 Setting Range (CC Mode) H Range 16.02mA/us- 2.5mA/us-2.5A/us 5mA/us-5A/us 16.002A/us M Range 1.602mA/us- 250uA/us-250mA/us 500uA/us-500mA/us 1.6002A/us L Range 160.2uA/us- 25uA/us-25mA/us 50uA/us-50mA/us 160.02mA/us Setting Range (CR Mode) H Range 250uA/us-250mA/us 500uA/us-500mA/us 1.602mA/us- 1.6002A/us M Range...
Page 234: Dynamic Mode
Voltmeter 100ppm Ammeter 200ppm *1 M range applies to the full scale of H range. Dynamic Mode Model PEL-3021 PEL-3041 PEL-3111 Operating Mode CC, CR and CP T1 & T2 0.025ms - 10ms / Res: 1us 10ms - 60s / Res: 1ms Accuracy ±...
Page 235 APPENDIX H Range 2.5mA/us-2.5A/us 5mA/us-5A/us 16mA/us-16A/us M Range 250uA/us-250mA/us 500uA/us-500mA/us 1.6mA/us-1.6A/us L Range 25uA/us-25mA/us 50uA/us-50mA/us 160uA/us-160mA/us Slew Rate Setting Range (CR Mode) H Range 250uA/us-250mA/us 500uA/us-500mA/us 1.6mA/us-1.6A/us M Range 25uA/us-25mA/us 50uA/us-50mA/us 160uA/us-160mA/us L Range 2.5uA/us-2.5mA/us 5uA/us-5mA/us 16uA/us-16mA/us Slew Rate Resolution Resolution Setting 250mA/us-2.5A/us...
Page 236: Soft Start
PEL-3000 User Manual Resistance Resolution H Range 400uS 800uS 2.424mS M Range 40uS 80uS 242.4uS L Range 24.24uS Resistance Accuracy of setting (R set(S) > 0.03% of f.s) H, M Range ±(0.5 % of set + 0.5 % of f.s ) + Vin /500 kΩ...
Page 237: Remote Sensing
APPENDIX Remote Sensing Voltage that can be Compensated 2V for a single line Protection Function Model PEL-3021 PEL-3041 PEL-3111 Overvoltage protection(OVP) Turns off the load at 110% of the rated voltage Overcurrent protection(OCP) 0.03 - 38.5A 0.06A - 77A 0.2A - 231A...
Page 238: Other
PEL-3000 User Manual Maximum number of 1000 steps Step Execution 0.05ms – 999 h 59 min Time Time 0.05 ms (0.05 ms – 1 min)/100 ms (1 min – 1 h)/1 s (1 h – 10 h)/10 resolution s (10 h – 100 h)/1 min (100 h – 999 h 59 min) Fast Sequence Operation CC or CR...
Page 239: Analog External Control
APPENDIX Analog External Control Load on/off Control Input Turn on the load with low (or high) TTL level signal Load on Status Output On when the load is on (open collector output by a photocoupler) Range Switch Input Switch ranges L, M, and H using a 2-bit signal Range Status Output Outputs range L, M, or H using 2-bit signal (open collector output by a photocoupler)
Page 240: Front Panel Bnc Connector
Outputs a pulse during sequence operation and switching operation. I MON OUT Current monitor output 1 V f.s (H or L range) and 0.1 V f.s (M range) General Model PEL-3021 PEL-3041 PEL-3111 PEL-3211 Inrush Current 45A Max Insulation Resistance Primary to input terminal: 500 VDC, 20MΩ...
Page 241: Pel-3000 Dimensions
APPENDIX PEL-3000 Dimensions PEL-3111 143.8 124.0...
Page 242: Pel-3021, Pel-3041
PEL-3000 User Manual PEL-3021, PEL-3041 213.8 DC Electronic Load P E L -3 0 2 1 0 - 35A / 1.5 - 150V , 175W Local Main File FUNC Utility Help Short Load Preset Shift CAL. Lock Clear Enter 175W 1.5 - 150V...
Page 243 APPENDIX PEL-3211 147.8 127.8...
Page 244: Declaration Of Conformity
No. 69 Lushan Road, Suzhou New District Jiangsu, China. declare that the below mentioned product Type of Product: Programmable Electronic Load Model Number: PEL-3021, PEL-3041, PEL-3111 Slave Model: PEL-3211 are herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (2004/108/EC &...
Page 245: Index
INDEX NDEX Accessories ......... 12 Default settings ......210 operation ........109 Advanced configuration User ..........110 Alarm tone ........91 Display diagram ......23 Auto Load ........77 Control settings ......92 Disposal instructions ....6 Count time ........75 Disposal symbol ......3 Cut off time ........76 Dynamic mode frequency ..
Page 246 Safety instruction ......5 OCP alarm ........82 Power up ........27 OCP test automation 145, 151, 157 Preset ......... 109 Operating area Presets PEL-3021 ........223 Save/Recall......... 108 PEL-3041 ........224 Program PEL-3111 ........225 Chain ........123, 135 PEL-3211 ........226 Configuration ......117, 120...
Page 247 INDEX Remote control function check195 About disassembly ......4 Contact ........204 GPIB ..........200 Setting the date and time ..28 Realterm........196 Remote sense ......40 Short enable/disable ....64 Replace the clock battery ..208 Specifications Replace the dust filter ..... 207 Dimensions .........

This manual is also suitable for:

Pel-3000 series Pel-3211 Pel-3041 Pel-3111

GW Instek PEL-3021 User Manual

Table of Contents

Etting Started

Peration

Basic Operation

Basic Configuration

Advanced Configuration Settings

Step Resolution Configuration

Protection Settings

System Settings

Go-Nogo

Save Recall

Unction Menu

Function Menu Overview

Program

Sequence

OCP Test Automation

OPP Test Automation

BATT Test Automation

Xternal Control

Emote Control

Ppendix

Quick Links

Chapters

Need help?

Questions and answers

Related Manuals for GW Instek PEL-3021

Summary of Contents for GW Instek PEL-3021
