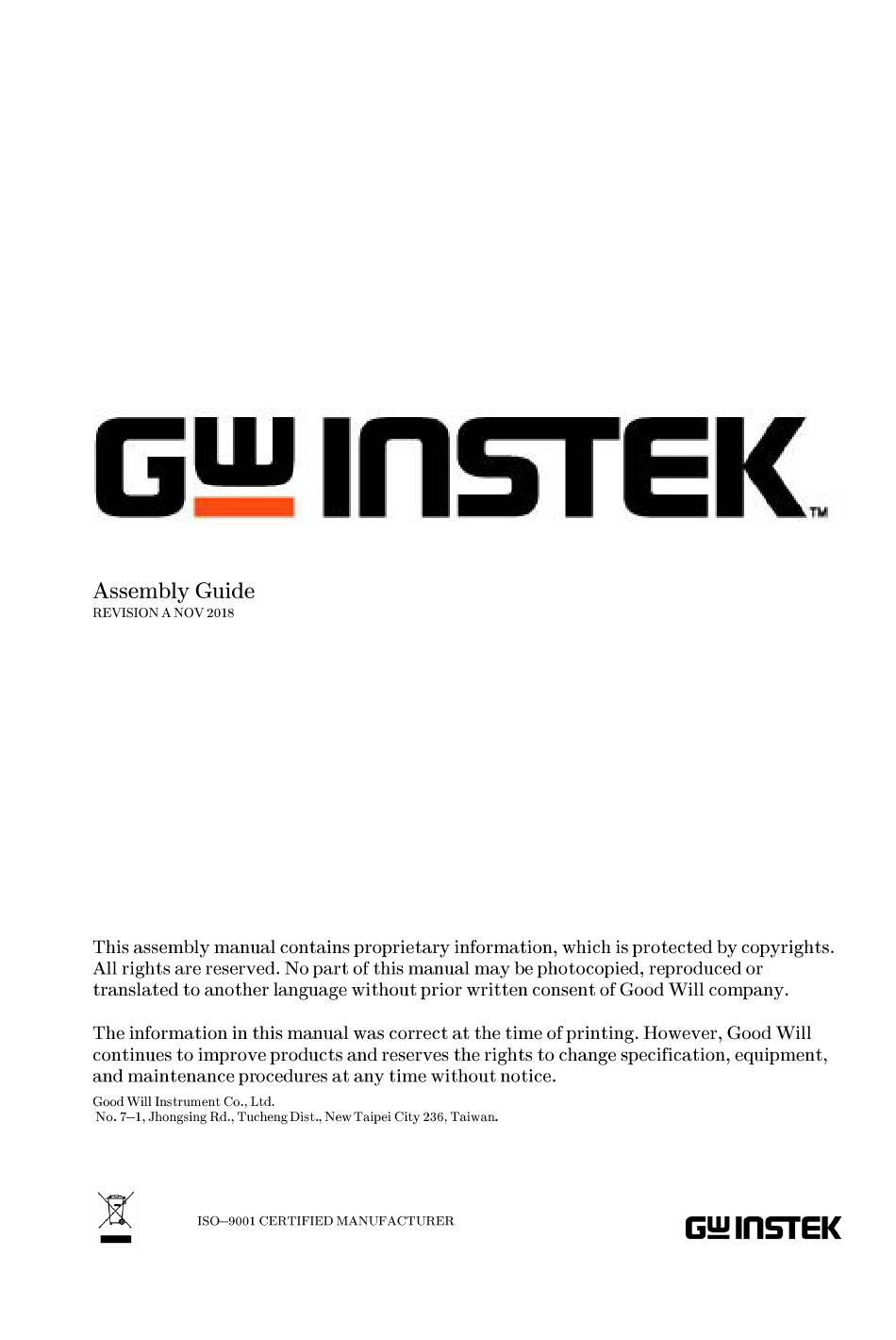

- Page 1 PEL-3000...
- Page 3 Bus Bar Connector (Included PEL-005) PEL-009 11EL-00900101 Bus Bar Connector (Included PEL-005) GRA-413-E 01RA4130000GT PEL-3111 3U Frame (Optional) GRA-414-E 01RA414E000GT PEL-3111 3U Frame (Optional) Refer to the PEL-3000 Series Rack Parts details_EN.doc for the other models. Front View Rear View...
- Page 4 PEL-3000 Series Parallel Assembly Guide Put the 1st PEL-3211 on the bottom of the rack followed by fastening the 4 screws for side bracket in the front but not tightening them completely.
- Page 5 PEL-3000 Series Parallel Assembly Guide Screw the L-shape brackets in the interior side of rack. An approx. 1mm distance between the bottom of brackets and the top of PEL-3211 is required. L-shape bracket The L-shape brackets screwed on the interior side of rack Approx.
- Page 6 PEL-3000 Series Parallel Assembly Guide Repeat the previous steps in order to install the rest of PEL-3211s and further install the bracket (GRA-414-3) of PEL-3111 on the upper side followed by installing the PEL-3111 onto the top of the bracket.
- Page 7 PEL-3000 Series Parallel Assembly Guide Assemble the L-type copper stick (PEL-005) onto the output terminal in the rear side of each unit as the figure below shown. L-type copper stick assembly L-type copper sticks assembly completion In accordance with the figure below, assemble the copper sticks for unit conjunction followed by fastening the screws in the front of rack tightly.
- Page 8 PEL-3000 Series Parallel Assembly Guide...
- Page 9 PEL-3000 Series Parallel Assembly Guide Install the parallel cables in accord with the following figure. The last cable connecting to the last unit cannot be clipped with core. When only one PEL-3111 connects to a PEL-3211 (Booster) in parallel, the cable in...
- Page 10 PEL-3000 Series Parallel Assembly Guide Refer to the figure below; connect the AC power cords for all units to the power sockets in the rear side individually followed by powering on the power switch that is underneath the power socket (─ indicates power ON).
- Page 11 PEL-3000 Series Parallel Assembly Guide Power on the power switch in the Master front panel and the indicator lights up in green as figure below shown: Press > Configure[F5] > Next Manu[F4] in the front panel followed by selecting “4” for Booster number within Configure page, which indicates 4 Booster units in parallel.
- Page 12 PEL-3000 Series Parallel Assembly Guide Properly confirm if the indicator in the front panel of all PEL-3211 (Booster) lights up with LINK in green, which means the software setting connects to Booster appropriately. Refer to the figure below.
- Page 13 PEL-3000 Series Parallel Assembly Guide The current sink power of PEL-3111 and PEL-3211 is 1KW:2KW; therefore, the ratio of current sink will always be the exactly 1:2. E.g., PEL-3332 (3KW); when current sink is set 30A, Master (PEL-3111) will sink current by 10A, whilst Booster (PEL-3211) will sink current by 20A.
- Page 14 PEL-3000 Series Parallel Assembly Guide IV. Based on the connection method in the figure below, connect current sink cable to the unit followed by setting current sink value for unit. Measure the currents from both the current sink cable of Master positive pole and the current sink cable of Booster positive pole, via current probe, to validate the accuracy of currents.
- Page 15 PEL-3000 Series Parallel Assembly Guide The 2nd Booster current checkup: I. Connect the parallel cable to the J2 connector in the rear of PEL-3111 in one end and the J1 connector in the rear of PEL-3211 in the other end.
