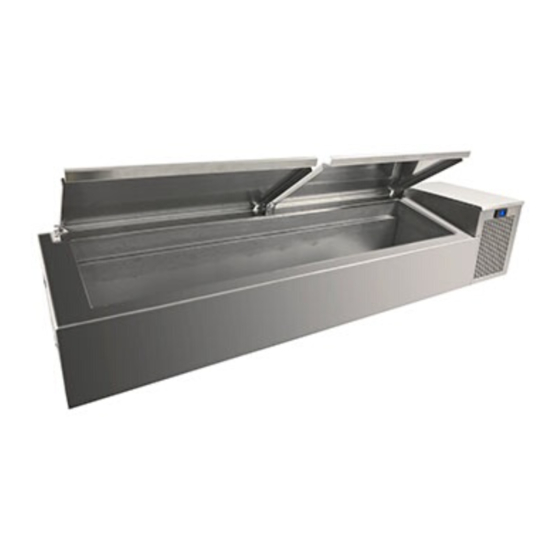

Randell CR9039-290 Operator's Manual

OPERATOR MANUAL
IMPORTANT INFORMATION, KEEP FOR OPERATOR
1055 Mendell Davis Drive, Jackson, MS 39272
888-994-7636, fax 888-864-7636
unifiedbrands.net
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ,
UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS
CONTAINED IN THIS MANUAL.
FOR YOUR SAFETY Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
WARNING R290 flammable refrigerant in use. Improper installation,
adjustment, alteration, service or maintenance can cause property
damage, injury or death. Read the installation, operating and maintenance
instructions thoroughly before installing or servicing this equipment.
NOTIFY CARRIER OF DAMAGE AT ONCE It is the responsibility of the
consignee to inspect the container upon receipt of same and to determine
the possibility of any damage, including concealed damage. Unified
Brands suggests that if you are suspicious of damage to make a notation
on the delivery receipt. It will be the responsibility of the consignee to file
a claim with the carrier. We recommend that you do so at once.
Manufacture Service/Questions 888-994-7636.
EQUIPMENT DESCRIPTION
MODEL LENGTH
CR9039-290 39"
CR9046-290 46"
CR9060-290 60"
CR9067-290 67"
CR9074-290 70"
DEPTH HEIGHT
CAPACITY
18" 23.5"
18" 23.5"
18" 23.5"
18" 23.5"
18" 23.5"
Information contained in this document is known to be current and accurate at the time of printing/creation. Unified Brands recommends
referencing our product line websites, unifiedbrands.net, for the most updated product information and specifications. © 2018 Unified Brands.
All Rights Reserved. Unified Brands is a wholly-owned subsidiary of Dover Corporation.
This manual provides information for:
CR9000-290 COUNTERTOP RAILS
RETAIN THIS MANUAL FOR FUTURE REFERENCE
NOTICE: Due to a continuous program of product improvement, Unified Brands
reserves the right to make changes in design and specifications without prior notice.
NOTICE: Please read the entire manual carefully before installation. If certain
recommended procedures are not followed, warranty claims will be denied.
MODEL NUMBER _________________________
SERIAL NUMBER _________________________
INSTALLATION DATE ______________________
The serial number is located on the rear of thee
countertop rail adjacent to the rear vented panel. An
example is shown here.
PAN
HP
(3) 1/3 1/5
(4) 1/3 1/5
(6) 1/3 1/5 115/60/1
(7) 1/3 1/5 115/60/1
(8) 1/3 1/5 115/60/1
PART NUMBER PP MNL1806, REV. A (10/18)
VOLT AMPS
115/60/1 1.8
115/60/1 1.8
1.8
1.8
1.8
NEMA SHIP WT (LBS)
5-15P 123
5-15P 162
5-15P 220
5-15P 249
5-15P 278
