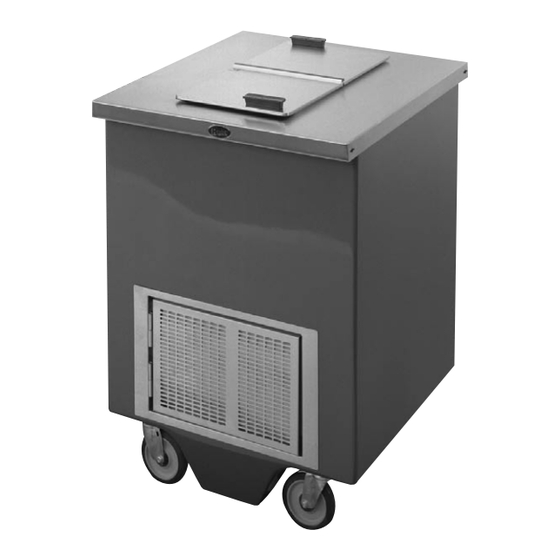

Randell RAN FRA-1 Operator's Manual
Randell ran fra-1: user guide
Hide thumbs
Also See for RAN FRA-1:
- Brochure (8 pages) ,
- Reference manual (2 pages) ,
- Specifications (2 pages)
Table of Contents
Advertisement

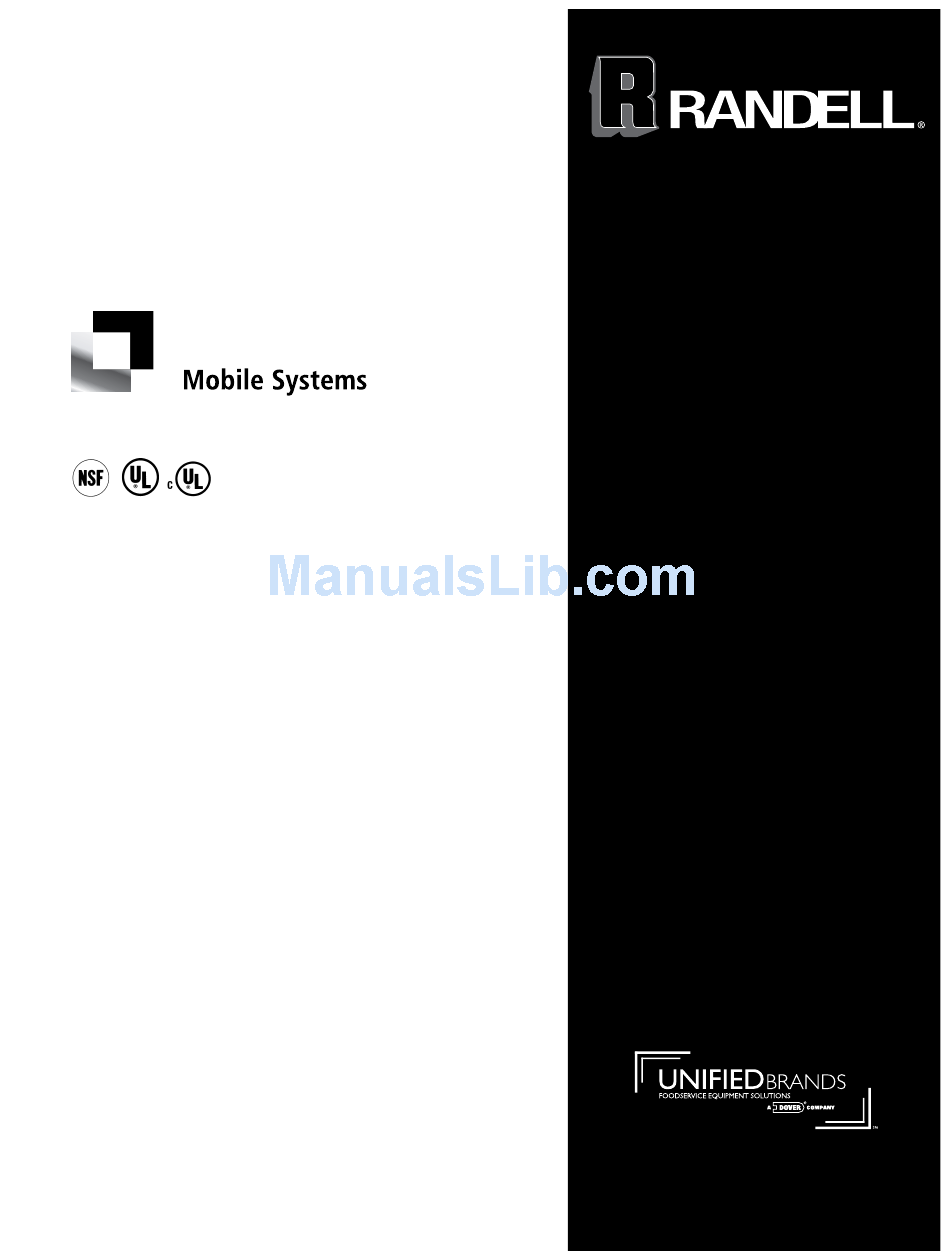

OPERATORS MANUAL
ranserve
This manual provides information on
Installation, operating, maintenance,
trouble shooting & replacement parts for
ranserve
NOTIFY CARRIER OF DAMAGE AT ONCE.
It is the responsibility of the consignee to inspect the
container upon receipt of same and to determine
the possibility of any damage, including concealed
damage. Randell suggests that if you are suspicious
of damage to make a notation on the delivery re-
ceipt. It will be the responsibility of the consignee to
file a claim with the carrier. We recommend that you
do so at once.
Information contained in this document is known to be
current and accurate at the time of printing/creation.
Unified Brands recommends referencing our product line
websites, unifiedbrands.net, for the most updated product
information and specifications.
P/N OMANUAL_MS-8/10/04
1055 Mendell Davis Drive
Jackson, MS 39272
888-994-7636, fax 888-864-7636
randell.com
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Randell RAN FRA-1
Summary of Contents for Randell RAN FRA-1
- Page 1 Randell suggests that if you are suspicious of damage to make a notation on the delivery re- ceipt. It will be the responsibility of the consignee to file a claim with the carrier.
- Page 2 23 ... Unit Specifications page 24 ... Unit Parts Congratulations on your recent purchase of Randell food service equipment, and welcome to the growing family of satisfied Randell customers. Our reputation for superior products is the result of consistent quality craftsman- ship.
-
Page 3: Serial Number Location
1. The serial number tag on Randell refrigerated equipment is located in the mechanical housing. 2. The serial number tag on Randell hot food and silverware stand are located on the far left front side of the unit. 3. The serial number tag on Randell cashier stands and cold pans are located on the far left side. -
Page 4: Parts Warranty
In the event equipment was shipped to a site other than the final installation site, Randell will warranty for a period of three months following installation, with proof of starting date, up to a maximum of eighteen months from date of purchase. -
Page 5: Export Warranty
States. FREIGHT DAMAGE Any and all freight damage that occurs to a Randell piece of equipment as a result of carrier handling is not considered warranty, and is not covered under warranty guidelines. Any freight damage incurred during shipping needs to have a freight claim filed by the re- ceiver with the shipping carrier (note all damages on freight bill at time of delivery). -
Page 6: Frequently Asked Questions
2. Is it possible to plug in one unit to run my entire line? ANSWER: Yes, we offer an electrical distribution system vs a duct system. With the Randell Electrical Distribution System (EDS), you can bank several units together so a common electrical connection point is possible. - Page 7 SECTION 1 RANFG FRA SHOWN FRA SERIES Model RAN FRA-1 24" 27" 35" RAN FRA-2 36" 27" 35" RANFG FRA-1 RANFG FRA-2 *14G models available with 14Gauge SS tops Randell Refrigerated Equipment UNIT SPECIFICATIONS FOR: THE RANDELL FRA RanServe SERIES Storage Gallon L D H Cu. Ft. Capacity 1.8 6 1/3 115/60/1 3.6 12 1/3 115/60/1 26" 30" 35" - - 36" 30" 35"...
- Page 8 RAN SCA-5S COMMON DATA FOR SCA SERIES (INCLUDES THE STANDARD SCA SERIES AND THE “S” STORGAE BASE SERIES) RANFG SCA-2 RANFG SCA-3 RANFG SCA-4(S) RANFG SCA-5(S) RANFG SCA-6(S) STORAGE SHELF INFORMATION FOR SCA “S” SERIES 2 & 3 pan not abailable with storage shelf (too small) Model RANFG SCA-4S RANFG SCA-5S 72" 37.5" 14.5" 425 RANFG SCA-6S 86" 51.5" 14.5" 475 Amp loads may change when adding incandescent light options. 888-994-7636 *14G models available with 14Gauge SS tops UNIT SPECIFICATIONS FOR: THE RANDELL SCA SERIES 12" x 20" Pan Coldpan L D H Capacity Interior Dimensions HP Volts Amps NEMA Ship Wt. 2 26 1/4" x 21" x 8 3/4" 1/4 115/60/1 5 5-15P 250 3 39 1/8" x 21" x 8 3/4" 1/4 115/60/1 5 5-15P 300 4 52 1/16" x 21" x 8 3/4" 1/4 115/60/1 5 5-15P 350 5 64 15/16" x 21" x 8 3/4" 1/4 115/60/1 5 5-15P 400 6 77 7/8" x 21" x 8 3/4" 1/4 115/60/1 5 5-15P 400 36" 30" 35" 2 28 1/8" x 21" x 8 3/4" 1/4 115/60/1 5 5-15P 275...
- Page 9 UNIT SPECIFICATIONS FOR: THE RANDELL FTA SERIES RANFG FTA SHOWN FTA & FTA “S” SERIES Model L D H H.P. RAN FTA-3 48" 27" 35" 1/3 RAN FTA-4 60" 27" 35" 1/3 RAN FTA-5 78" 27" 35" 1/3 RAN FTA-3S 48" 27" 35" 1/3 RAN FTA-4S 60" 27" 35" 1/3 RAN FTA-5S 78" 27" 35" 1/3 Note: Frost area is 7" less than overall dimension. COMMON DATA FOR FTA SERIES (Includes the standard FTA series and the “S” storage base series)
- Page 10 888-994-7636 UNIT SPECIFICATIONS FOR: THE RANDELL IC SERIES RANFG IC SHOWN RAN IC SERIES 12" x 20" Pan Coldpan Model L D H Capacity Interior Dimensions Ship Wt. RAN IC-2 36" 30" 35" 2 RAN IC-3 48" 30" 35" 3 RAN IC-4 60" 30" 35" 4 RAN IC-5 78" 30" 35" 5 RAN IC-6 86" 30" 35" 6 Open Base RAN IC-2S 36" 30" 35" 2 RAN IC-3S 48" 30" 35"...
-
Page 11: Receiving Shipment
Avoid placing the unit near heat generating equipment such as ovens, ranges, heaters, fryers, steam kettles, etc. and out of direct sunlight. Avoid locating the make table in an unheated room or where the room temperature may drop below 55º or above 90º F. WEIGHT POUNDS TOTAL CAPACITY 200 230 randell.com... -
Page 12: Electrical Supply
UNIT INSTALLATION The wiring should be done by a qualified electrician in accordance with local electrical C. ELECTRICAL SUPPLY codes. A properly wired, and grounded outlet will assure proper operation. Please consult the data plate attached to the compressor to ascertain the correct electrical requirements. Supply voltage and amperage requirements are located on the serial number tag located inside the far left door. -
Page 13: Unit Operation
Restoration/Passivation UNIT OPERATION Randell has attempted to preset the cold control to ensure that your unit runs at an opti- mum temperature, but due to varying ambient conditions, including elevation, food prod- uct as well as type of operation you may need to alter this temperature. Additional adjust- ments can be made (within limits) by turning the control dial up or down until the desired temperature is reached. - Page 14 These services often offer guarantees as well as the flexibility in scheduling of maintenance for your convenience. Randell be- lieves strongly it the products it manufacturers and backs those products with one of the best warranties in the industry.
-
Page 15: Troubleshooting
1. Lower setting. 2. Test control. See #4 3. Clean coil. See #1 4. Call for service at 888-994-7636 1. Adjust control 2. Test control. See #4 1. Tighten or replace compressor 2. Inspect condenser fan. See #9 PROCEDURE mountings. randell.com... -
Page 16: Section 1 Refrigerated Units
Hinge, Insulated Cover Rocker Switch Cold Pan Drain 1” Brass Inserts, Perforated Cold Pan Drain Screen Handle, Extended Ball Valve Drain Valve 1” Ball Valve 888-994-7636 RANDELL REFRIGERATED UNITS PART # COLD PAN 001450 HD CST3050 HD CST3051 RP PNL001 EL WIR461... - Page 17 Randell RanServe SECTION 2 Hot Food Equipment UNIT SPECIFICATIONS FOR: THE RANDELL HTD SERIES RAN HTD SHOWN randell.com...
- Page 18 HTD SERIES Enclosed Base Models L D H Wells RAN HTD-2 30" 27" 35" 2 RAN HTD-3 48" 27" 35" 3 RAN HTD-4 60" 27" 35" 4 RAN HTD-5 72" 27" 35" 5 RAN HTD-6 86" 27" 35" 6 Dry Storage Base RAN HTD-2S 30" 27" 35" 2 RAN HTD-3S 48" 27" 35" 3 RAN HTD-4S 60" 27" 35" 4 RAN HTD-5S 72" 27" 35" 5 RAN HTD-6S 86" 27" 35" 6 Heated Storage Base RAN HTD-2B 30" 27" 35" 2 RAN HTD-3B 48" 27" 35" 3 RAN HTD-4B 60" 27" 35" 4 RAN HTD-5B 72" 27" 35" 5 RAN HTD-6B 86" 27" 35" 6 * Note: Amperage for base unit only. Any accessory heat lamp or display illumination loads must be added to the total amperage. COMMON DATA FOR HTD SERIES (INCLUDES THE STANDARD HTD SERIES AND THE “S” STORAGE BASE SERIES) Top Work No. of 120V Operation 208V Operation Models L D H 12x20 Wells KW/well Amps* NEMA KW/well Amps* NEMA KW/well Amps* NEMA Wt. RANFG HTD-2 30" 30" 35" 2 RANFG HTD-3(S) 48" 30" 35" 3 RANFG HTD-4(S) 60" 30" 35" 4 RANFG HTD-5(S) 72" 30" 35" 5 RANFG HTD-6(S) 86" 30" 35" 6 STORAGE SHELF INFORMATION FOR HTD ”S” SERIES 2-well not available with storage shelf (too small) Models L (A) W(B) H(C) Ship Wt. RANFG HTD-2S 48" 23" 14.5" 250 RANFG HTD-3S 60" 35" 14.5" 300 RANFG HTD-4S 72" 47" 14.5" 350 RANFG HTD-5S 86" 61" 14.5" 400...
-
Page 19: Unit Installation
Burnout of electrical components due to exceeding voltage limits will void the warranty. NOTE: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to this manual for assistance or consult a qualified installer, service agency, or dealer. randell.com... -
Page 20: Section 2 Hot Food Units
These services often offer guarantees as well as the flex- ibility in scheduling of maintenance for your convenience. Randell believes strongly in the products it manufactures, and backs those products with one of the best warranties in the industry. We believe with proper maintenance and use... -
Page 21: Troubleshooting
3. Reset or replace circuit breaker. 4. Test and/or replace thermostat see Fig. 1. 5. Call 888-994-7636 for service agency. 1. Turn on thermostat. 2. Test and/or replace thermostat see Fig. 1. 3. Test and/or replace element. 4. Call 888-994-7636 for service agency. REMEDY randell.com... -
Page 22: Replacement Parts
REPLACEMENT PARTS LIST 888-994-7636 Randell RanServe Hot Food Units ITEM DESCRIPTION Caster Set Non Locking Caster Locking Caster Stainless Steel Panel, Specify Dimensions Power Cord w/Plug Speify Voltage & Wattage Door Right Hand Door Left Hand Gasket, 15” x 15 3/8”... -
Page 23: Section 3 Serving Equipment
SECTION 3 Randell Mobile Serving Equipment UNIT SPECIFICATIONS FOR: THE RANDELL SERVING EQUIPMENT & COUNTER PROTECTORS RANFG SW SHOWN SERVING EQUIPMENT & COUNTER PROTECTORS Model L D H RAN SW-8 30" 27" 35" 8 RAN SW-12 36" 27" 35" 12 120 RAN FGCA 30" 30" 35" - RAN FGSW-8 30" 30" 35" - RAN FGSW-12 36" 30" 35" - RAN FGSW-8PS 36" 30" 35" - RAN FGST-2 26" 30" 35" - RAN FGST-3 36" 30" 35" -... - Page 24 Laminate PPanel, Specify Dimensions, MFG of Laminate, Color and Color Code Glass w/Frame, Specify Dimensions Counter Protector Frame Work, Specify Par- ticular Model or Type Bracket Adj. Sneezeguard 888-994-7636 Randell Serving Equipment PART # CASHIER COUNTER STAND PROTECTOR 001450 HD CST3051...
