OPERATOR MANUAL
IMPORTANT INFORMATION, KEEP FOR OPERATOR
This manual provides information on installation, operating, maintenance, trouble
shooting & replacement parts for:

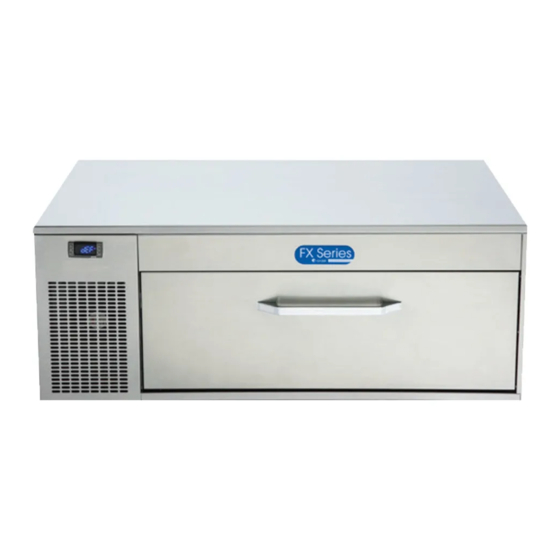

FX SERIES:
FX-1-290
FX-2WS-290
FX-1A-290
FX-2WSA-290
FX-1UC-290
FX-2WSRE-290
FX-1RE-290
FX-2WSREA-290
FX-1REA-290
FX-2UCB-290
FX-3SS-290
• 2N1-Two Cooling Systems in one:
- Refrigerator (40ºF)
- Freezer (-5º to 0ºF)
- Or anywhere in between (-5º to 40ºF)
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ, UNDERSTAND
AND FOLLOW THE INSTRUCTIONS AND WARNINGS CONTAINED IN THIS MANUAL.
WARNING / FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
WARNING
R290 flammable refrigerant in use. Improper installation, adjustment,
alteration, service or maintenance can cause property damage, injury
or death. Read the installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.
NOTIFY CARRIER OF DAMAGE AT ONCE
It is the responsibility of the consignee to inspect the container upon receipt of same and to deter-
mine the possibility of any damage, including concealed damage. Randell suggests that if you are
suspicious of damage to make a notation on the delivery receipt. It will be the responsibility of the
consignee to file a claim with the carrier. We recommend that you do so at once.
Manufacture Service/Questions 888-994-7636.
Information contained in this document is known to be current and accurate at the time of printing/creation.
Reference our product line website for the most updated product information and specifications. © 2023
Electrolux Professional, Inc. All Rights Reserved.
PART NUMBER PP MNL1701, REV E (08/23)
FX-1CS-290
FX-1CS-60-290
FX-2SC-290
FX-1CS-52-290
FX-1CSRE-290
FX-2CSRE-290
888-994-7636, fax 888-864-7636
unifiedbrands.net

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FX Series and is the answer not in the manual?

Questions and answers

Related Manuals for Randell FX Series

Summary of Contents for Randell FX Series

  • Page 1 It is the responsibility of the consignee to inspect the container upon receipt of same and to deter- mine the possibility of any damage, including concealed damage. Randell suggests that if you are suspicious of damage to make a notation on the delivery receipt. It will be the responsibility of the consignee to file a claim with the carrier.
  • Page 2 In addition, all Randell food service equipment is backed by some of the best warranties in the food service industry and by our professional staff of service technicians.
  • Page 3 Labeling The following warning labels will be found on your equipment: INTERIOR EVAPORATOR COVER NEAR MACHINE COMPARTMENT AND NAMEPLATE OM-FX SERIES...
  • Page 4 Labeling EXTERIOR OF UNIT NEAR EXPOSED REFRIGERANT TUBING OM-FX SERIES...

  • Page 5: Equipment Description

    1/4(1) 115/60/1 5-15P(1) FX-1CS-60-290 60” 33” 23.3” 0.88 1.65 1/4(1) 115/60/1 5-15P(1) FX-2CS-290 96” 33” 23.3” 1.76 1/4(2) 115/60/1 5-15P(2) FX-1CS-290 FX-1CSRE-290 38.65” 35.58” 23.2” 0.88 1.65 1/4(1) 115/60/1 5-15P(1) FX-2CSRE-290 76” 35.58” 23.2” 1.76 1/4(2) 115/60/1 5-15P(2) OM-FX SERIES...

  • Page 6: Installation Checklist

    NOTE: Damage THE DANFOSS CONTROLLER HAS LOW to equipment may result if not followed. Randell is not responsible for damage to VOLTAGE PROTECTION AND WILL NOT equipment if improperly installed.

  • Page 7: Operation

    Unit is designed for normal operating temperatures are between 70-100°F. Operating outside of those temperatures may cause premature product wear or failure Randell has attempted to preset the temperature control to ensure that your unit runs at an optimum temperature, but due to varying ambient conditions, including elevation, food type and your type of operation, you may need to alter this temperature using control adjustment until desired temperature is reached.
  • Page 8 “0” Disables the alarm. b. Any other number is the number of minutes before the buzzer sounds after the drawer is opened. 6. Press the top left button repeatedly to return to exit and return to the home screen. OM-FX SERIES...

  • Page 9: Maintenance

    Randell ASA please visit www.unifiedbrands.net. Randell believes strongly in the products it manufactures and backs those products with one of the best warranties in the industry. We believe with the proper maintenance and use, you will realize a profitable return on your investment and years of satisfied service.

  • Page 10: Troubleshooting

    Ice on the coil Initiate manual defrost Unit noisy Ice on the coil Initiate manual defrost Unit does not defrost Excessive ice on the coil Initiate manual defrost When in doubt, turn unit off and call for service at 888-994-7636. OM-FX SERIES...

  • Page 11: Refrigerant Recovery

    • Evacuate system to a minimum 500 micron • Weigh in correct charge • Leak check the system again • Bleed the refrigerant from the high side hose to the low side hose • Disconnect the hoses • Remove line taps OM-FX SERIES...

  • Page 12: Parts List

    RF FLT9902 DRYER, 1/4x.042 FILTER EKP-032 SC DBL INL CAP TUBE N RP WRP1701 CAP TUBE HEAT EXCHANGER ASSY RF COI1606 COIL, 3.46" X 9.00" X 5.90"CONDENSER RF COI1608 COIL, 3.46" X 9.00" X 5.90"CONDENSER (FX-1RE(A) - 290) OM-FX SERIES...
  • Page 13 CLIP COUNTER WEIGHT BOTTOM RP LVR1702 LOUVER, S/S, FX-1 RP LVR0907 LOUVER, FX-1UC RP TOP1501 TOP, 1100MM X 712MM FOR CHEF STAND TOPS CONSULT FACTORY EL WIR461-90 POWER CORD, 9' 16/3-9O HD WCK1401 CF-SE2001 CONDENSATE 7.00IN X3.00IN X 1/16 IN OM-FX SERIES...
  • Page 14 RP DWR1603 DRAWER CARRAIGE ASSY W/FRONT, FX-1, FX-1RE RP DWR1504 DRAWER CARRIAGE ASSY W/FRONT, FX-1UC RP PNL1703 PANEL, FRONT, S/S, FX-1 RP FRT1701 FRONT, DRAWER, S/S, FX-1, FX-1RE RP FRT1601 FRONT, DRAWER FX-1UC HD HDL130 CHROME SCULPTURED HANDLE OM-FX SERIES...
  • Page 15 HOSE, .375" ID X 1/2" OD POLYETHYLENE FLEXIBLE TUBE PB ELB0701 ELBOW, BARB NYLON 3/8 X 3/8 EL CLM550 CLAMP, 1/2" CABLE CLAMP 3308 N* RF CNT1602 THERMISTER, QT COIL SENSOR, BLUE 10' RF CNT1603 THERMISTER, QTI AIR SENSOR, BLACK 10' OM-FX SERIES...

  • Page 16: Electrical Schematic

    Electrical Schematic OM-FX SERIES...

  • Page 17: Service Log

    Service Log Model No: Purchased From: Serial No: Location: Date Purchased: Date Installed: Purchase Order No: For Service Call: Date Maintenance Performed Performed By OM-FX SERIES...

This manual is also suitable for:

Fx-1-290Fx-1a-290Fx-1uc-290Fx-1re-290Fx-1rea-290Fx-2ws-290 ... Show all

Table of Contents
