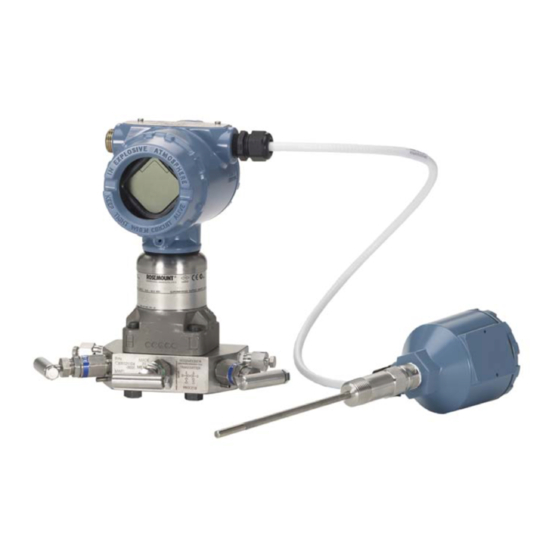

Rosemount 4088A MultiVariable Quick Start Manual
  1. Manuals
  2. Brands
  3. Rosemount Manuals
  4. Transmitter
  5. 4088A MultiVariable
  6. Quick start manual

Rosemount 4088A MultiVariable Quick Start Manual

With modbus output protocol
Hide thumbs

Advertisement

Quick Links

Download this manual
Quick Start Guide
00825-0100-4088, Rev AE
September 2016
™
™
Rosemount
4088A MultiVariable
Transmitter
®
with Modbus
Output Protocol

Advertisement

loading
Need help?

Need help?

Do you have a question about the 4088A MultiVariable and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rosemount 4088A MultiVariable

Summary of Contents for Rosemount 4088A MultiVariable

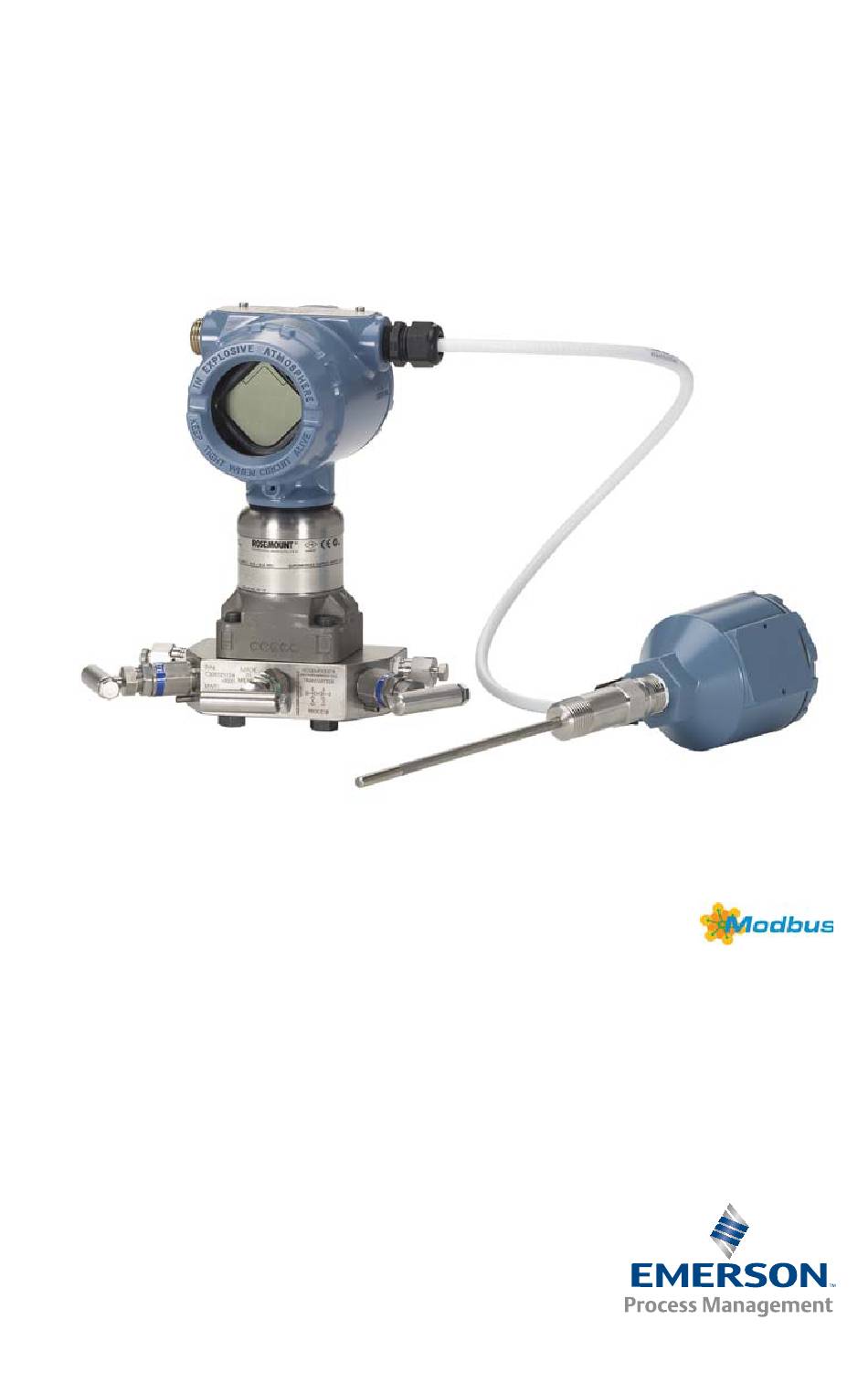

  • Page 1 Quick Start Guide 00825-0100-4088, Rev AE September 2016 ™ ™ Rosemount 4088A MultiVariable Transmitter ® with Modbus Output Protocol...

  • Page 2: Table Of Contents

    September 2016 Quick Start Guide NOTICE This guide provides basic guidelines for the Rosemount 4088 MultiVariable Transmitter. It does not provide instructions for diagnostics, maintenance, service, or troubleshooting. Reference the 4088 MultiVariable Transmitter Reference Manual for more instruction. All documents are available electronically at EmersonProcess.com/Rosemount.

  • Page 3: Steps Required For Quick Installation

    Quick Start Guide September 2016 1.0 Steps required for quick installation Start > Mount the transmitter Consider housing rotation Set the switches Wiring and power up Verify device configuration Trim the transmitter > Finish 2.0 Mount the transmitter 2.1 Liquid flow applications 1.
  • Page 4 September 2016 Quick Start Guide 2.3 Steam flow applications 1. Place taps to the side of the line. 2. Mount beside or below the taps. 3. Fill impulse lines with water.
  • Page 5 Quick Start Guide September 2016 2.4 Mounting brackets Figure 1. Coplanar Flange Panel mount Pipe mount Figure 2. Traditional Flange Panel mount Pipe mount Figure 3. In-Line Flange Panel mount Pipe mount...
  • Page 6 A. Transmitter with coplanar flange B. Transmitter with coplanar flange and optional flange adapters C. Transmitter with traditional flange and optional flange adapters D. Transmitter with coplanar flange and optional Rosemount Conventional Manifold and flange adapters Note For all other manifolds, contact Customer Central technical support.
  • Page 7 Quick Start Guide September 2016 2. Finger-tighten the bolts. 3. Torque the bolts to the initial torque value using a crossing pattern. See Table 1 for initial torque value. 4. Torque the bolts to the final torque value using the same crossing pattern. See Table 1 for final torque value.

  • Page 8: Consider Housing Rotation

    September 2016 Quick Start Guide 2.7 Environmental seal for housing Thread sealing (PTFE) tape or paste on male threads of conduit is required to provide a water/dust tight conduit seal and meets requirements of NEMA Type 4X, IP66, and IP68. Consult factory if other Ingress Protection ratings are required. For M20 threads, install conduit plugs to full thread engagement or until mechanical resistance is met.

  • Page 9: Set The Switches

    Quick Start Guide September 2016 Note Do not rotate the housing more than 180° without first performing a disassembly procedure [reference Rosemount 4088 MultiVariable Transmitter Reference Manual more information]. Over-rotation may sever the electrical connection between the sensor module and the electronics.

  • Page 10: Wiring And Power Up

    4. Connect the positive lead from the power source to the “PWR +” terminal, and the negative lead to the “PWR –” terminal. Note The Rosemount 4088 MultiVariable Transmitter uses RS-485 Modbus with 8 data bits, one stop bit and no parity. The default baud rate is 9600. Note Twisted pair wiring is required for RS-485 bus wiring.
  • Page 11 When the enclosed threaded plug is utilized in the conduit opening, it must be installed with a minimum engagement of five threads in order to comply with explosion-proof requirements. Reference the Rosemount 4088 MultiVariable Transmitter Reference Manual for more information.
  • Page 12 September 2016 Quick Start Guide electrical codes. The most effective transmitter case grounding method is a Ω direct connection to earth ground with minimal impedance (< 1 ). Methods for grounding the transmitter case include: Internal ground connection The internal ground connection screw is inside the terminal side of the electronics housing.
  • Page 13 (Option Code T1 in the transmitter model number) or as a spare part to retrofit existing 4088 MultiVariable Transmitters in the field. For a complete listing of spare part numbers for transient protection terminal blocks, reference the Rosemount 4088 MultiVariable Reference Manual. A lightning bolt symbol on a terminal block identifies it as having transient protection.
  • Page 14 September 2016 Quick Start Guide 2. Connect the RTD cable to the Rosemount 4088 MultiVariable Transmitter by inserting the cable wires through the unused housing conduit and connect to the screws on the transmitter terminal block. An appropriate cable gland should be used to seal the conduit opening around the cable.

  • Page 15: Verify Device Configuration

    Quick Start Guide September 2016 6.0 Verify device configuration Use RTIS with the Rosemount 4088 DTM or a HART Field Communicator with the Rosemount 4088 Device Descriptor to communicate with and verify configuration of the Rosemount 4088 MultiVariable transmitter. Figure 14...
  • Page 16 Figure 15. Configuration via RS-485 Network Port The Rosemount 4088 may be configured with the Rosemount 3095FB Configuration Software. When using this legacy tool, only functionality that was available with the Rosemount 3095FB can be accessed. The device must be ® removed from the Modbus network prior to communicating over the RS-485 bus.
  • Page 17 Quick Start Guide September 2016 Table 3. Fast Keys Category Function Fast Key sequence Sensor Module Temperature Upper Alert Limit 2,2,4,4 Device Sensor Module Temperature Lower Alert Limit 2,2,4,5  Device Device Address 2,2,6,1,1 Device Device Status Device Baud Rate 2,2,6,1,2 Device Turnaround Delay...

  • Page 18: Trim The Transmitter

    Transmitters are shipped fully calibrated per request or by the factory default of full scale. Use RTIS with the Rosemount 4088 DTM or a HART Field Communicator with the Rosemount 4088 Device Descriptor to communicate with and perform maintenance on the Rosemount 4088 MultiVariable Transmitter.

  • Page 19: Product Certifications

    A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU Declaration of Conformity can be found at EmersonProcess.com/Rosemount. 8.2 Ordinary Location Certification As standard, the transmitter has been examined and tested to determine that the...
  • Page 20 Class III; Class I Zone 0 AEx ia IIB T4; Nonincendive Class I, Division 2, Groups ≤ ≤ A, B, C, D; T4(-50 °C 70 °C); when connected per Rosemount drawing 04088-1206; Type 4X Special Conditions for Safe Use (X): 1. The maximum permitted ambient temperature of the Model 4088 Pressure Transmitter is 70 °C.
  • Page 21 CSA C22.2 No. 213-M1987, CSA C22.2 No. 60079-0:2011, CSA C22.2 No. 60079-11:2011, ANSI/ISA 12.27.01-2003 Markings: Class I, Division 1, Groups C, D, Temp Code T3C; Class I Zone 0 Ex ia IIB T4; when installed per Rosemount Drawing 04088-1207; Type 4X Europe E1 ATEX Flameproof...
  • Page 22 September 2016 Quick Start Guide I1 ATEX Flameproof Certificate: Baseefa13ATEX0221X Standards: EN 60079-0:2012, EN 60079-11:2012 ≤ ≤ Markings: II 1 G Ex ia IIB T4 Ga (-60 °C +70 °C) Supply Modbus Voltage U 22 V 15.51 V Current I 147 mA 26 mA 20.89 mA...
  • Page 23 Quick Start Guide September 2016 International E7 IECEx Flameproof Certificate: IECEx FMG 13.0024X Standards: IEC 60079-0:2011, IEC 60079-1: 2007, IEC 60079-26: 2006 Markings: Ex d IIC T6…T4, T4/T5 T =-50 °C to 80 °C, T6 T =-50 °C to 65 °C, Ga/Gb Special Conditions for Safe Use (X): 1.
  • Page 24 September 2016 Quick Start Guide Special Conditions for Safe Use (X): 1. Cable entries must be used which maintain the ingress protection of the enclosure to at least IP66/68. 2. Unused cable entries must be filled with suitable blanking plugs which maintain the ingress protection of the enclosure to at least IP66/68.
  • Page 25 Quick Start Guide September 2016 Supply Modbus Voltage U 22 V 15.51 V Current I 147 mA 26 mA 20.89 mA Power P 80.94 mW Capacitance C Inductance L Special Conditions for Safe Use (X): 1. If the equipment is fitted with an optional 90V transient suppressor, it is not capable of withstanding the 500V insulation test required by ABNT NBR IRC 60079-11.
  • Page 26 September 2016 Quick Start Guide Figure 16. Rosemount 4088 Declaration of Conformity...
  • Page 27 Quick Start Guide September 2016...
  • Page 28 September 2016 Quick Start Guide...
  • Page 29 Quick Start Guide September 2016...
  • Page 30 September 2016 Quick Start Guide Rosemount 4088A China RoHS List of Rosemount 4088A Parts with China RoHS Concentration above MCVs / Hazardous Substances Hexavalent Polybrominated Polybrominated Part Name Lead Mercury Cadmium Chromium biphenyls diphenyl ethers (Pb) (Hg) (Cd) (Cr +6)
  • Page 31 Quick Start Guide September 2016...
  • Page 32 The Emerson logo is a trademark and service mark of Emerson Emerson FZE P.O. Box 17033, Electric Co. Jebel Ali Free Zone - South 2 Rosemount and Rosemount logotype are trademarks of Emerson Dubai, United Arab Emirates Process Management. +971 4 8118100 HART is a registered trademark of the FieldComm Group.
