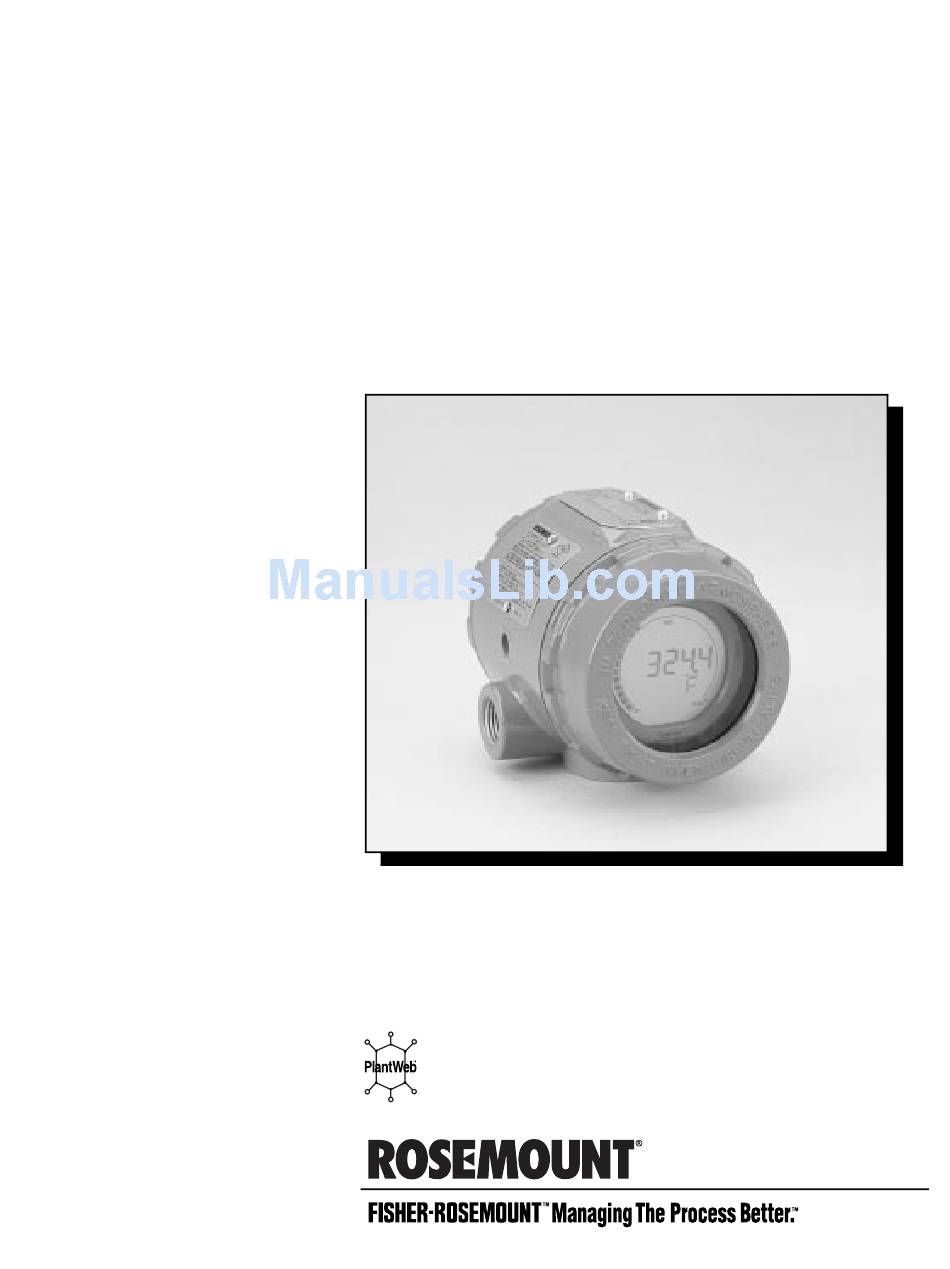

  • Page 1 00809-0100-4724 English Rev. CA Model 3144 and 3244MV Smart Temperature Transmitters...
  • Page 2 For information on Rosemount nuclear-qualified products, contact your local Rosemount Sales Representative. Rosemount Models 3144 and 3244MV Smart Temperature Transmitters may be protected by one or more U.S. Patents Pending. Other foreign patents pending. Rosemount, the Rosemount logotype, SMART FAMILY, Hot Backup, and Tri-Loop are registered trademarks of Rosemount Inc.
  • Page 3 Table of Contents SECTION 1 Using this Manual ........1-1 Introduction Getting Acquainted with the Transmitter .
  • Page 4 Rosemount Model 3144 and 3244MV Smart Temperature Transmitters SECTION 3 Overview......... 3-1 On-line Operations Safety Messages .
  • Page 5 Warnings ........6-1 Custom Transmitter Configuration (Option Code C1) . . . 6-1 Trim to Specific Rosemount RTD Calibration Schedule (Transmitter-Sensor Matching) (Option Code C2) ..6-1 Five-Point Calibration (Option Code C4) .
  • Page 6 Warnings ........C-1 3144/3244MV ........C-2 Connections and Hardware .

  • Page 7: Using This Manual

    Section Introduction USING THIS MANUAL This manual is intended to assist in installing, operating, and maintaining Rosemount Model 3144 and 3244MV Smart Temperature Transmitters. Section 2: Installation Section 2 explains how to commission transmitters; provides an installation flowchart; and describes electrical, mechanical, and environmental installation considerations.

  • Page 8: Getting Acquainted With The Transmitter

    Each transmitter is designed to communicate with a HART communicator. Communicators are used to interrogate, configure, test, or format the transmitter, as well as other products in the Rosemount family of microprocessor-based instruments. Moreover, HART communicators can communicate with a transmitter from the control...

  • Page 9: Overview

    Section Installation OVERVIEW The information in this section includes transmitter installation instructions, an installation flowchart (Figure 2-1 on page 2-2), installation drawings, and special installation considerations. SAFETY MESSAGES Instructions and procedures in this section may require special precautions to ensure the safety of the personnel performing the operations.

  • Page 10: Commissioning: On The Bench Or In The Loop

    Rosemount Model 3144 and 3244MV Smart Temperature Transmitters COMMISSIONING: ON THE The transmitter may be commissioned before or after installation. However, it may be useful to commission the transmitter on the bench BENCH OR IN THE LOOP before installation to ensure proper operation and to familiarize yourself with its functionality.

  • Page 11: General Considerations

    (RTDs) and thermocouples (T/Cs) produce low-level signals CONSIDERATIONS proportional to temperature. The Model 3144 and 3244MV transmitters convert low-level sensor signals to a standard 4–20 mA dc signal that is relatively insensitive to lead length and electrical noise. This current signal is then transmitted to the control room via two wires.

  • Page 12: Field Wiring

    Rosemount Model 3144 and 3244MV Smart Temperature Transmitters Field Wiring All power to the transmitter is supplied over the signal wiring. Signal wiring does not need to be shielded, but twisted pairs should be used for the best results. Do not run unshielded signal wiring in conduit or open trays with power wiring, or near heavy electrical equipment.

  • Page 13: Grounding

    Installation NOTE Do not connect the power/signal wiring to the test terminals. The voltage present on the power/signal leads may burn out the reverse-polarity protection diode that is built in to the test terminal. If the test terminals’ reverse polarity protection diode is burned out by the power/signal wiring, the transmitter can still be operated by jumping the current from one test terminal to the other.

  • Page 14: Surges/Transients

    To protect against high-energy transients, install either the integral transient protection board (Option Code T1) or the Rosemount Model 470 Transient Protector. The integral transient protection board is available as an ordered option or as an accessory. Refer to “Transient Protection (Option Code T1)”...

  • Page 15: Failure Mode And Security Jumpers

    Installation FAILURE MODE AND SECURITY JUMPERS Failure Mode Jumper The transmitter monitors itself during normal operation with an automatic diagnostic routine. If the diagnostic routine detects a sensor failure or a failure in the transmitter electronics, the transmitter goes into alarm (high or low, depending on the position of the failure mode jumper).

  • Page 16: Sensor Connections

    Rosemount Model 3144 and 3244MV Smart Temperature Transmitters Figure 2-6. Transmitter Jumper Security Jumper Locations. Failure Mode Jumper (without a Meter Installed) Failure Mode Jumper (with a Meter Installed) SENSOR CONNECTIONS Figure 2-7 on page 2-9 shows the correct input connections to the sensor terminals on the transmitter.

  • Page 17: Mechanical Considerations

    Transmitter must be configured for a 3-wire RTD in order to recognize an RTD with a compensation loop. ** Rosemount provides 4-wire sensors for all single-element RTDs. You can use these RTDs in 3-wire configurations by leaving the unneeded leads disconnected and insulated with electrical tape.
  • Page 18 Rosemount Model 3144 and 3244MV Smart Temperature Transmitters Circuit Side of Electronics Mount the transmitter so that the circuit side is accessible. Be sure to Housing provide adequate clearance for cover removal. Also, be sure to account for extra room if an LCD meter is installed. Refer to Section 6: Options for more information on the LCD meter option.

  • Page 19: Environmental Considerations

    Figure 2-11 describes the relationship between transmitter housing temperature rise and extension length. Figure 2-10. Model 3144/3244MV Transmitter Housing Temperature Rise 60 (108) versus Extension Length for a Test Installation.

  • Page 20: Moist Or Corrosive Environments

    Rosemount Model 3144 and 3244MV Smart Temperature Transmitters Moist or Corrosive The Model 3144 and 3244MV transmitters have a highly reliable dual compartment housing designed to resist attack by moisture and Environments corrosives. The sealed electronics module is mounted in a compartment that is isolated from the terminal side conduit entries.

  • Page 21: Hazardous Locations Installations

    Installation Hazardous Locations The transmitter is designed with explosion-proof housings and circuitry suitable for intrinsically safe and non-incendive operation. Each Installations transmitter is clearly marked with a tag indicating the approvals carried. To maintain certified ratings for installed transmitters, install in accordance with all applicable installation codes and approval drawings.
  • Page 22 Rosemount Model 3144 and 3244MV Smart Temperature Transmitters Figure 2-13. Typical North American Mounting Configuration. Sensor Hex Union or Coupling Extension Thermowell Conduit for Field Wiring (dc power) NOTE Extension Fitting Dimensions are in inches (millimeters). (81) Length NOTE The National Electrical Code requires that a barrier or seal be used in addition to the primary (sensor) seal to prevent process fluid from entering the electrical conduit and continuing to the control room.

  • Page 23: Typical European Configuration

    Installation Typical European 1. Mount the thermowell to the pipe or the process container wall. Install and tighten thermowells and sensors. Perform a leak Configuration check before starting the process. 2. Attach a connection head to the thermowell. 3. Insert the sensor into the thermowell and attach it to the connection head.

  • Page 24: Installation In Conjunction With A Model 333 Hart Tri-Loop Hart-To-Analog Signal Converter

    Rosemount Model 3144 and 3244MV Smart Temperature Transmitters INSTALLATION IN Use the Model 3244MV transmitter in operation with two sensors in ® conjunction with a Model 333 HART Tri-Loop HART-to-Analog Signal CONJUNCTION WITH A Converter to acquire an independent 4–20 mA analog output signal for MODEL 333 HART each sensor input.

  • Page 25: Hart Tri-Loop

    Installation COMMISSIONING THE To prepare the Model 3244MV transmitter for use with a Model 333 HART Tri-Loop, you must configure the transmitter to Burst Mode and TRANSMITTER FOR USE set the process variable output order. In Burst Mode, the transmitter WITH THE HART TRI-LOOP provides digital information for the analog current in mA to the HART Tri-Loop.
  • Page 26 Rosemount Model 3144 and 3244MV Smart Temperature Transmitters Special Considerations To initiate operation between a Model 3244MV transmitter and the HART Tri-Loop, you must consider the configuration of both the differential temperature and the Hot Backup features, if used. Differential Temperature Measurement...
  • Page 27 Installation 4. Specify a range for the TV such as –100 to 100 °C. If the range is large, then a sensor drift of a few degrees will represent only a small percent of range. If Sensor 1 or Sensor 2 fails, the TV will be +9999 (high saturation) or –9999 (low saturation).
  • Page 28 Rosemount Model 3144 and 3244MV Smart Temperature Transmitters 2-20...

  • Page 29: Section 3 Overview

    NOTE The information in this section applies to the use of a Model 275 HART Communicator to communicate with a Model 3144 or 3244MV Smart Temperature Transmitter. For information regarding the use of a Model 268 Communicator, refer to Appendix C: Model 268 SMART FAMILY Interface.

  • Page 30: Setting The Loop To Manual

    These process variables are continuously updated. Select Variable Re-map to change the sequencing of the process variables. With the Model 3144, two screens follow that allow you to select the primary variable (PV) and the secondary variable (SV).
  • Page 31 On-line Operations TABLE 3-1. Valid Options/Outputs Using Sensor 1 (Model 3144 and 3244MV). Diff Term Sensor Sensor Average Primary Analog Digital Temp Temp Temp Variable Output Status Value Value Value Value Value Invalid Invalid Sensor 2 Invalid Differential Differential None ±9999...
  • Page 32 Rosemount Model 3144 and 3244MV Smart Temperature Transmitters TABLE 3-3. Valid Options/Outputs Using Both Sensor 1 and Sensor 2 (Model 3244MV Only). Diff Term Sensor Sensor Average Primary Analog Digital Temp Temp Temp Variable Output Status Value Value Value Value...

  • Page 33: Basic Setup

    (1) Pt 1000 α = 0.00385 and Pt 100 α = 0.003916 RTD sensor input types are not available in previous versions of the Model 3144 and 3244MV transmitters.

  • Page 34: Rerange

    Rosemount Model 3144 and 3244MV Smart Temperature Transmitters Rerange The Range Values command sets the 4 and 20 mA points or the lower and upper range values. Setting the range values to the limits of HART Fast Keys 1, 3, 3 expected readings maximizes transmitter performance;...

  • Page 35: Alarm Values

    For information regarding the damping function when the input change is greater than 2 percent of the output range, refer to “Intermittent Sensor Algorithm” on page 5-14. (1) This command is not available in previous versions of the Model 3144 and 3244MV transmitters.

  • Page 36: Differential Temperature

    Rosemount Model 3144 and 3244MV Smart Temperature Transmitters Figure 3-1. Change in Input versus Change in Output with Damping Enabled. ÿÿþýþ ÿþýþ ÿþýþ ÿþýþ ÿþýþ ÿþýþ ÿþýþ ÿþýþ ÿþýþ Input Value Output Value ÿþÿýþ ÿþþýþ 9.5 10.0 Time (Seconds) Differential Temperature The Model 3244MV transmitter can accept any two inputs and display the differential temperature between them.

  • Page 37: Average Temperature

    On-line Operations NOTE The transmitter determines differential temperature by subtracting Sensor 2 from Sensor 1 (S1 – S2). Ensure that this order of subtraction is consistent with the desired reading for your application. Refer to Figure 2-7 on page 2-9, or inside the transmitter terminal-side cover for sensor wiring diagrams.

  • Page 38: Hot Backup

    Rosemount Model 3144 and 3244MV Smart Temperature Transmitters 7. Select 1 Device Setup, 4 Detailed Setup, 1 Sensors, 1 Process Sensor, 4 Sensor Setup, 5 Misc Config, 4 Avg Units to set the desired average temperature units. 8. Select HOME to return to the Home screen.

  • Page 39: Drift Alert

    On-line Operations To set up and enable the Hot Backup feature for the Model 3244MV transmitter, perform the following procedure: 1. Attach two different sensors of any type to the transmitter as shown in Figure 2-7 on page 2-9. 2. From the Home screen, select 1 Device Setup, 1 Process Variables, 8 Variable Re-map to set primary, secondary, tertiary, and quaternary variables.
  • Page 40 Rosemount Model 3144 and 3244MV Smart Temperature Transmitters NOTE The Drift Alert alarm cannot be enabled while Hot Backup is enabled. The Drift Alert warning, however, can be used simultaneously with Hot Backup. For information on configuring the transmitter for Hot Backup see page 3-10.

  • Page 41: Information Variables

    On-line Operations NOTE Enabling Drift Alert (Step 14) will allow a message to be sent via HART whenever the maximum acceptable difference between Sensor 1 and Sensor 2 has been exceeded. Proceed to Step 15 only if you want the transmitter’s analog signal to go into alarm when Drift Alert is detected.

  • Page 42: Diagnostics And Service

    Rosemount Model 3144 and 3244MV Smart Temperature Transmitters DIAGNOSTICS AND The following commands enable various transmitter diagnostics, testing, and measurement functions. Use these commands to customize SERVICE the transmitter to your particular application. Test Device The Test Device command initiates a more extensive diagnostics routine than that performed continuously by the transmitter.

  • Page 43: Sensor Current

    Callendar-Van Dusen constants. Sensors with Callendar-Van Dusen constants are NIST-traceable when ordered from Rosemount Inc. (1) Previous versions of the Model 3144 and 3244MV transmitters use the RTD current or T/C Pulsing Mode commands instead of Active Calibrator Mode where steady current is desired.

  • Page 44: Sensor Trim

    Sensor trim is suitable for validation procedures or for applications that require calibrating the sensor and transmitter together. To perform a sensor trim with a Model 3144 or 3244MV transmitter, perform the appropriate procedure: 3-16...
  • Page 45 On-line Operations Model 3144 1. Connect the calibration device to the transmitter. Refer to Figure 2-7 on page 2-9 or inside of the transmitter terminal side cover for sensor wiring diagrams. 2. Connect the communicator to the transmitter loop. 3. From the Home screen, select 1 Device setup, 2 Diag/Service, 3 Calibration, 3 Sensor trim, 1 Snsr 1 inp trim to prepare to trim the sensor.
  • Page 46 Rosemount Model 3144 and 3244MV Smart Temperature Transmitters Model 3244MV This procedure assumes that your Model 3244MV transmitter is connected to two sensors and that both are enabled and functioning properly. If you have only one sensor connected and enabled, skip Step 1.

  • Page 47: Transmitter-Sensor Matching

    Beta = Sensor Specific Constant Delta = Sensor Specific Constant Refer to the Sensors Assemblies and Accessories Product Data Sheet Volume 1, 2, and 3 to order Rosemount temperature sensors with Callendar-Van Dusen constants. To input Callendar-Van Dusen constants, perform the following procedure: 1.

  • Page 48: Output Trim

    In Step 1, replace 1 Snsr 1 Config with 2 Snsr 2 Config. If you are using a Rosemount dual element sensor with Callendar-Van Dusen Constants, two tags are supplied. The two letters at the end of...

  • Page 49: Scaled Output Trim

    Communication between the host and the transmitters takes place digitally with the analog output of the transmitters deactivated. Many of the Rosemount SMART FAMILY transmitters can be multidropped. With the HART communications protocol, up to 15 transmitters can be connected on a single twisted pair of wires or over leased phone lines.
  • Page 50 NOTE The Model 3144 and 3244MV transmitters are set to address 0 at the factory, allowing them to operate in the standard point-to-point manner with a 4–20 mA output signal. To activate multidrop communication, the transmitter address must be changed to a number between 1 and 15.

  • Page 51: Overview

    Section Maintenance OVERVIEW This section contains transmitter diagnostics and maintenance information. SAFETY MESSAGES Instructions and procedures in this section may require special precautions to ensure the safety of the personnel performing the operations. Information that raises potential safety issues is indicated by a warning symbol ( ).

  • Page 52: Hardware Diagnostics

    Rosemount Model 3144 and 3244MV Smart Temperature Transmitters HARDWARE If you suspect a malfunction despite the absence of diagnostics messages on the HART communicator display, follow the procedures DIAGNOSTICS described in Table 4-1 to verify that transmitter hardware and process connections are in good working order.

  • Page 53: Hardware Maintenance

    • Connect a HART communicator and enter the transmitter test mode to isolate an electronics module failure. HARDWARE The Model 3144 and 3244MV transmitters have no moving parts and require a minimum amount of scheduled maintenance. Both MAINTENANCE transmitters feature modular design for easy maintenance. If you suspect a malfunction, check for an external cause before performing the diagnostics as discussed later in this section.

  • Page 54: Disassembling The Electronics Housing

    Electronics Housing compartment contains all wiring terminals and the communication receptacles. Removing the Electronics The electronics module of the Model 3144 and 3244MV transmitters is Module located in the compartment opposite the wiring terminals (see Figure 4-1). Use the following procedure to remove the electronics module.
  • Page 55 Maintenance Figure 4-1. Models 3144 and 3244MV Exploded View. Cover with Wiring Diagram Label Nameplate Electronics Module Housing with LCD Meter Permanent Terminal Block Extended Cover Figure 4-2. Electronics Module. Security Jumper Failure Mode Jumper (without a Meter Installed)

  • Page 56: Assembling The Electronics Housing

    RETURN OF MATERIALS To expedite the return process, call the Rosemount North American Response Center toll-free at 800-654-7768. This center, available 24 hours a day, will assist you with any needed information or materials.

  • Page 57: Specifications

    Model 275 HART Communicator or AMS. ROSEMOUNT CONFORMANCE TO SPECIFICATIONS You can be confident that a Rosemount product not only meets our published specifications, but probably exceeds them. Our advanced manufacturing techniques and use of Statistical...
  • Page 58 Rosemount Models 3144 and 3244MV Smart Temperature Transmitters Load Limitations Maximum Load = 43.5 (Supply Voltage – 12.0) 4–20 mA dc 1250 1100 1000 Operating Region 40 42.4 12.0 Supply Voltage (V dc) NOTE HART communication requires a loop resistance between 250 and 1100 ohms.
  • Page 59 Specifications and Reference Data Institut Scientifique de Service Public (ISSeP)/CENELEC Flameproof Approval E9 EEx d IIC T6 (T = –20 to 60 °C) British Approvals Service for Electrical Equipment in Flammable Atmospheres (BASEEFA) Approvals N1 Type N Approval Ex N IIC T6 (T = –40 to 50 °C) Ex N IIC T5 (T = –40 to 75 °C)
  • Page 60 Rosemount Models 3144 and 3244MV Smart Temperature Transmitters Input Entity Parameters: Power/Loop Sensor = 30 V dc = 4.5 V dc max:in max:in = 300 mA = 51 mA max:in max:in = 1.0 W = 0.057 W max:in max:in = 0.005 µF = 24.2 V dc...
  • Page 61 Loop resistance added by protector: 22 ohms max. Nominal clamping voltages: 90 V (common mode), 77 V (normal mode) The Model 3144 and 3244MV transmitters feature software-driven Failure Mode alarm diagnostics as well as an independent circuit designed to provide separate, backup alarm output in case the microprocessor electronics hardware or software fails.

  • Page 62: Performance Specifications

    Performance within specifications less than 5.0 seconds after power is applied to transmitter Update Time Approximately 0.5 seconds Performance The Model 3144 and 3244MV transmitters maintain a specification conformance of at least 3 σ. Specifications Accuracy Refer to Table 5-1 on page 5-10.

  • Page 63: Physical Specifications

    Specifications and Reference Data Ambient Temperature Effect Transmitters may be installed in locations where the ambient temperature is between –40 and 85 °C. Each transmitter is individually characterized over this ambient temperature range at the factory in order to maintain excellent accuracy performance in dynamic industrial environments.

  • Page 64: Transmitter Dimensional Drawings

    Rosemount Models 3144 and 3244MV Smart Temperature Transmitters TRANSMITTER DIMENSIONAL DRAWINGS Figure 5-1. Transmitter Exploded View, Jumper Locations, and Meter Faceplate. Cover with Wiring Diagram Label Security Jumper Nameplate Failure Mode Jumper (without a Meter Installed) Electronics Module LCD Meter...
  • Page 65 Specifications and Reference Data Figure 5-3. Optional Transmitter Mounting Brackets. OPTION CODE B4 BRACKET OPTION CODE B5 BRACKET 1.04 (26) 3.65 ±0.06 (92) 2 (51) Diameter 1.0 (2.5) Washer (Provided) 1.55 (39) 6.4 (162.6) 7.15 (181.6) (25) 2.81 ±0.03 (71) 0.41 (10) Diameter 0.375 (10)

  • Page 66: Reference Data

    Rosemount Models 3144 and 3244MV Smart Temperature Transmitters REFERENCE DATA TABLE 5-1. Models 3144 and 3244MV Input Options and Accuracy. Recommeded Digital Sensor Options Sensor Reference Input Ranges Min. Span Accuracy D/A Acuracy 2, 3, or 4 Wire RTDs °C °F...
  • Page 67 Specifications and Reference Data TABLE 5-2. Model 3144 and 3244 Ambient Temperature Effects. D/A Effect per 1.0 °C Sensor Options Digital Accuracy per 1.0 °C (1.8 °F) Change in Ambient Change in Ambient 2, 3, or 4 Wire RTDs Pt 100 (α = 0.00385) 0.0015 °C...

  • Page 68: Ordering Information

    Rosemount Models 3144 and 3244MV Smart Temperature Transmitters ORDERING INFORMATION TABLE 1. Model 3144 and 3244MV Ordering Information. (• = Applicable, — = Not Applicable) Model Product Description 3144 3244MV 3244MV Smart Temperature Transmitter with Dual-Sensor Input — • 3144 Smart Temperature Transmitter •...
  • Page 69 Specifications and Reference Data TABLE 1. Model 3144 and 3244MV Ordering Information. (• = Applicable, — = Not Applicable) Model Product Description 3144 3244MV Calibration Certification Options Calibration Certificate (3-Point standard; use C4 with Q4 option for a 5-Point Calibration Certificate) •...

  • Page 70: Parts List

    Rosemount Models 3144 and 3244MV Smart Temperature Transmitters PARTS LIST TABLE 5-3. Models 3144 and 3244MV Parts List. (• = Applicable, — = Not Applicable) Part Description Part Number 3144 3244MV Model 3144 Electronics Module 03144-3011-0007 • — Model 3244MV Electronics Module 03144-3012-1007 —...
  • Page 71 Specifications and Reference Data Case 2: Temperature Change Greater than the Threshold Value If the algorithm detects a process temperature change greater than the threshold value, but which is not a true open sensor condition, the transmitter will go into a hold period. During the hold period, the transmitter determines whether or not this temperature measurement is valid by using three additional measurement points.
  • Page 72 Rosemount Models 3144 and 3244MV Smart Temperature Transmitters c. If any of the next three measurements is outside the new threshold value (at Time = 500 ms), the output remains unchanged at the initial reading (Time = 0 ms). The...
  • Page 73 Specifications and Reference Data Intermittent Sensor If the transmitter has both intermittent sensor detect and damping Algorithm and Damping enabled, the output reading is calculated by the following formula:   – × Damped Value – ----------------- -   previous damped value new sensor value damping time constant...

  • Page 74: Intermittent Sensor Detect (Advanced Function)

    100%.) The output delay due to the intermittent sensor algorithm will be eliminated. (1) The Intermittent Sensor Detect command is not available in previous versions of the Model 3144 and 3244MV transmitters. 5-18...
  • Page 75 Specifications and Reference Data Implementation The Intermittent Sensor Detect feature can be turned ON or OFF when the transmitter is connected to a Model 275 HART Communicator. Select 1 Device Setup, 4 Detailed Setup, 3 Output Conditioning, 5 Intermit Detect, 1 Intermit Detect. Choose “On” or “Off”. “On” is the normal setting.

  • Page 76: Overview

    Option Code C2 allows you to order the transmitter trimmed to a Rosemount RTD specific calibration schedule. This option requires that you specify a Rosemount Series 65, 68, or 78 RTD sensor ordered with a special Calibration Schedule calibration schedule. An additional special curve will be added to the (Transmitter-Sensor sensor input choices.

  • Page 77: Calibration Certificate (Option Code Q4)

    Rosemount Models 3144 and 3244MV Smart Temperature Transmitters Calibration Certificate Option Code Q4 specifies that a calibration certificate be shipped with the transmitter. If a Five-Point Calibration (Option Code C4) is also (Option Code Q4) ordered, calibration data for five points will be included on the calibration certificate.

  • Page 78: Assembly Options (Option Code X1, X2, And X3)

    Option Code X1, X2, or X3 specifies that the transmitter will be assembled to a sensor. The same option code must be included on the (Option Code X1, X2, Rosemount sensor model number. These options are only available with and X3) the transmitter when ordered in conjunction with an integral connection head.

  • Page 79: Transient Protection (Option Code T1)

    Rosemount Models 3144 and 3244MV Smart Temperature Transmitters Transient Protection The transient protector helps to prevent damage to the transmitter from transients induced on the loop wiring by lightning, welding, heavy (Option Code T1) electrical equipment, or switch gears. The transient protection electronics are contained in an add-on assembly that attaches to the standard transmitter terminal block.

  • Page 80: Two Independent Sensors (Option Code U4)

    Options Average Temperature with This configuration is ideal for critical applications such as safety interlocks and control loops. The Model 3244MV transmitter should be Hot Backup and Drift Alert used in conjunction with a dual-element sensor or two sensing elements (Option Code U2) measuring the same process temperature.

  • Page 81: Lcd Meter (Option Code M5)

    Rosemount Models 3144 and 3244MV Smart Temperature Transmitters LCD METER The LCD meter for the Model 3144 and 3244MV transmitters provides local indication of the transmitter output, and abbreviated diagnostic (OPTION CODE M5) messages governing transmitter operation. The meter features a five-character liquid crystal display that provides a direct reading of the digital signal from the microprocessor.

  • Page 82: Installing The Meter

    Transmitters ordered with the LCD meter option (Option Code M5) are shipped with the meter installed. After-market installation of the meter on a conventional Model 3144 or 3244MV transmitter requires a small instrument screwdriver and the meter kit, which includes: •...

  • Page 83: Diagnostic Messages

    Rosemount Models 3144 and 3244MV Smart Temperature Transmitters NOTE Do not remove the transmitter security jumper from the face of the electronics module. The LCD meter installs over the transmitter security jumper. 5. Insert the interconnection header in the six-pin socket on the face of the electronics module.
  • Page 84 • The transmitter self-test has failed. If diagnostics indicate a failure of the electronics module, replace the electronics module with a new one. Contact the nearest Rosemount Field Service Center if necessary. SNSR 1 FAIL -or- SNSR 2 FAIL The transmitter has detected an open sensor condition.
  • Page 85 Rosemount Models 3144 and 3244MV Smart Temperature Transmitters OFLOW The location of the decimal point, as configured in the meter setup, is not compatible with the value to be displayed by the meter. For example, if the meter is measuring a process temperature greater than 9.9999 degrees, and the meter decimal point is set to 4 digit precision,...
  • Page 86 Sensor 2 failure with Hot Backup enabled, the Process Variable line displays “WARN,” and the Process Variable Unit line alternates between “SNSR 2” and “RANGE.” The device sometimes requires further interrogation to determine the source of the warning. Contact Rosemount Customer Central at (800) 999-9307 for technical support. 6-11...
  • Page 87 OVERVIEW This appendix describes the additional features available in the improved Model 3144 and 3244MV transmitters. Both the field device and the software revision numbers have been changed. To determine which Model 3144 or 3244MV transmitter version you have, first establish communications with the Model 275 HART Communicator.

  • Page 88: Overview

    (field device revision 2). To determine whether or not you need to upgrade, turn on your communicator, select 4 Utility, then 5 Simulation. Choose “Rosemount” from the list of manufacturers and “3244 Temp” (“3144 Temp” if applicable) from the list of models.

  • Page 89: Safety Messages

    Rosemount Model 3144 and 3244MV Smart Temperature Transmitters SAFETY MESSAGES Instructions and procedures in this section may require special precautions to ensure the safety of the personnel performing the operations. Information that raises potential safety issues is indicated by a warning symbol ( ). Please refer to the following safety messages before performing an operation preceded by this symbol.
  • Page 90 Model 275 HART Communicator Figure B-1. HART Communicator Menu Tree for the Model 3144 and 3244MV. Any reference to Sensor 2, 1 Differential Temperature PV—Engineering Units Differential Temperature, 1 PV 2 Terminal Temperature 1 PROCESS PV—Percent Range Sensor Average, Hot...

  • Page 91: Connections And Hardware

    Rosemount Model 3144 and 3244MV Smart Temperature Transmitters TABLE B-1. HART fast-key Sequences for the Model 3144 and 3244MV Transmitters. Function HART Communicator Fast Keys Function HART Communicator Fast Keys Active Calibrator 1, 2, 3, 3, 5, 1 Process Variables...
  • Page 92 Model 275 HART Communicator Figure B-2. Rear Connection Panel with Optional NiCad Recharger Jack. Loop Connection Ports Serial Port Optional NiCad Recharger Jack Figure B-3. Connecting the Model 275 to a Transmitter Loop. Power/Signal Terminals Signal loop may be grounded at any point or left ungrounded.

  • Page 93: Communicator Keys

    Rosemount Model 3144 and 3244MV Smart Temperature Transmitters COMMUNICATOR KEYS The keys of the Model 275 HART Communicator include action, function, alphanumeric, and shift keys. Figure B-4. The Model 275 HART Communicator. Function Keys Action Keys Alphanumeric Keys Shift Keys...
  • Page 94 F3 key. HOME Simply press the key to activate the function. See the Model 275 HART Communicator Product Manual (Rosemount publication no. 00809-0100-4275) for details on specific function key definitions. Alphanumeric and Shift Keys The alphanumeric keys (Figure B-4) perform two functions: the fast selection of menu options and data entry.

  • Page 95: Fast-Key Sequences

    Use Table B-1 on page B-4, an alphabetical listing of every on-line function, to find the corresponding HART fast-key sequences. These codes are applicable only to Models 3144 and 3244MV transmitters and the Model 275 HART Communicator. MENUS AND FUNCTIONS The communicator uses a menu driven system.

  • Page 96: Online Menu

    Once selecting a Main menu option, the communicator provides the information you need to complete the operation. If further details are required, consult the Model 275 HART Communicator Product Manual (Rosemount publication no. 00809-0100-4275). Online Menu The Online menu can be selected from the Main menu as outlined above, or it may appear automatically if the communicator is connected to an active loop and can detect an operating transmitter.
  • Page 97 Rosemount Model 3144 and 3244MV Smart Temperature Transmitters Message Description Device busy The connected device is busy performing another task. Device disconnected Device fails to respond to a command. Device write protected Device is in write-protect mode. Data can not be written.
  • Page 98 Model 275 HART Communicator Message Description Press OK Press the OK softkey. This message usually appears after an error message from the application or as a result of HART communications. Restore device value? The edited value that was sent to a device was not properly implemented.
  • Page 99 Model 3144 and 3244MV with limited functionality. The transmitter information is read-only except for reranging the 4–20 mA signal. The Model 268 revision 7.0 communicates with the Model 3144 and 3244MV and has the ability to perform such tasks as changing sensor type and number of wires.
  • Page 100 Rosemount Models 3144 and 3244MV Smart Temperature Transmitters Figure C-1. Model 268 Menu Tree for the Models 3144 and 3244MV. Save Off-Line Recall Data Abort Change Units 4/20mA pts Damping Output Configure Xmtr Info Tag, Desc Mesg, Date Integ Meter...

  • Page 101: Basic Features

    Model 268 SMART FAMILY Interface CONNECTIONS AND The Model 268 can communicate with a transmitter from the control room, the transmitter site, or any other wiring termination point in the HARDWARE loop. To communicate, it must be connected in parallel with the transmitter;...

  • Page 102: Alphanumeric And Shift Keys

    Rosemount Models 3144 and 3244MV Smart Temperature Transmitters Figure C-3. Model 268 Keypad. Software-Defined Keys (Green) Dedicated Keys (Peach) Alphanumeric Keypad (White) Help Use the Help key to explain the software-defined key functions (F1–F4) in detail. Restart Use the Restart key to initiate communication with a smart transmitter while the Model 268 is still turned on.

  • Page 103: Function Keys

    Model 268 SMART FAMILY Interface If you press an Alphanumeric key alone from within an edit menu, the bold character in the center of the key appears. These characters include the numbers zero through nine, the decimal point (.), and the dash symbol (–).

  • Page 104: Diagnostics Messages

    Rosemount Models 3144 and 3244MV Smart Temperature Transmitters NOTE Certain tasks require that you set the control loop to manual control before completing them. One of the Function Key Sequence steps often includes the warning to return the loop to manual. If the loop is not in manual control, be sure to watch for this screen.
  • Page 105 Transmitter has given improper response to Model 268. Perform a transmitter test. If OK, make note of conditions and keystrokes leading to failure, and contact Rosemount Service Center. Making changes Data is being sent to transmitter and transmitter is accepting the permanent–PLEASE...
  • Page 106 • Check that power is reaching transmitter • Check for minimum 250 ohms resistance in loop WARNING–268 does Model 268 recognizes a Rosemount transmitter in the loop but not know this Xmtr cannot communicate with it. The message usually indicates a software revision level incompatibility between the Model 268 and the transmitter.
  • Page 107 This section contains the following drawings: Rosemount Drawing 03144-0220, 1 Sheet: Factory Mutual Explosion-proof Installation Drawing. Rosemount Drawing 03144-0221, 2 Sheets: Factory Mutual Intrinsic Safety and Nonincendive Field Circuit Configuration Installation Drawing.
  • Page 108 Rosemount Model 3144 and 3244MV Smart Temperature Transmitters Figure D-1. Factory Mutual Explosion-Proof Installation Drawing 03144-0220, Rev. D.
  • Page 109 Hazardous Area Approval Installation Drawings Figure D-2. Factory Mutual Intrinsic Safety and Noincendive Field Circuit Configuration Installation Drawing 03144-0221, Rev. AA.
  • Page 110 Rosemount Model 3144 and 3244MV Smart Temperature Transmitters...
  • Page 111 Hazardous Area Approval Installation Drawings Figure D-3. CSA Intrinsic Safety Approval Configuration Installation Drawing 03144-0222, Rev. B.
  • Page 112 Rosemount Model 3144 and 3244MV Smart Temperature Transmitters Figure D-4. ISSEP\CENELEC Flame-Proof Temperature Measurement Assembly Installation Drawing 031444-0224, Rev. C.
  • Page 113 Hazardous Area Approval Installation Drawings Figure D-5. Standard Australia Quality Assurance Services Flameproof Temperature Measurement Assembly Installation Drawing.
  • Page 114 Some of the terms used in this manual relate specifically to the operation of Rosemount transmitters, hand-held communicators, and other Rosemount products. The following list provides brief definitions. See the sections listed for additional information. 50 or 60 Hz Setting Hardware- or factory-selectable option to reject line frequency noise present on the sensor leads.
  • Page 115 Rosemount Model 3144 and 3244MV Smart Temperature Transmitters Format Functions Set-up functions performed with a HART communicator and transmitter that configure the transmitter for a specific sensor input and adjust the transmitter electronics to conform to plant standards. Characterize and Digital Trim are the two Format functions.
  • Page 116 Smart Term used to describe instruments that are microprocessor-based and feature advanced communications capabilities. SMART FAMILY Rosemount pressure, temperature, level, and flow instruments with microprocessor-based digital electronics. Span Algebraic difference between the upper and lower range values. Eight-character field for identifying the transmitter. The tag is stored in the transmitter and can be changed using a HART communicator and the transmitter information function.

  • Page 117: Index

    Index Diagnostics 3-14 Hardware 4-2 Access requirements 2-9 General considerations 2-3 Differential temperature 2-18, 3-8 Circuit side 2-10 Glossary G-1 Dimensional drawings 5-8 Terminal side 2-9 Ground lug 6-3 Disable special sensor 3-6 Accuracy 5-10 Grounding 2-5 Disassembling electronics Action keys B-6 housing 4-4 ON/OFF key B-6 Drain seal mounting 2-12...
  • Page 118 Rosemount Model 3144 and 3244MV Smart Temperature Transmitters Ordering information 5-12 Terminal temperature units 3-6 Output trim 3-16, 3-20 Test Jumpers Output units, setting 3-5 Device 3-14 Failure mode Loop 3-14 Changing position of 2-7 Test terminals 4-3 Locations 2-8...
  • Page 119 Rosmeount Inc. 8200 Market Boulevard Chanhassen, MN 55317 USA Tel 1-800-999-9307 Telex 4310012 Fax (612) 949-7001 © Rosemount Inc. http://www.rosemount.com ¢00809-0100-4724+¤ 00809-0100-4724, Rev. CA 06/99...
