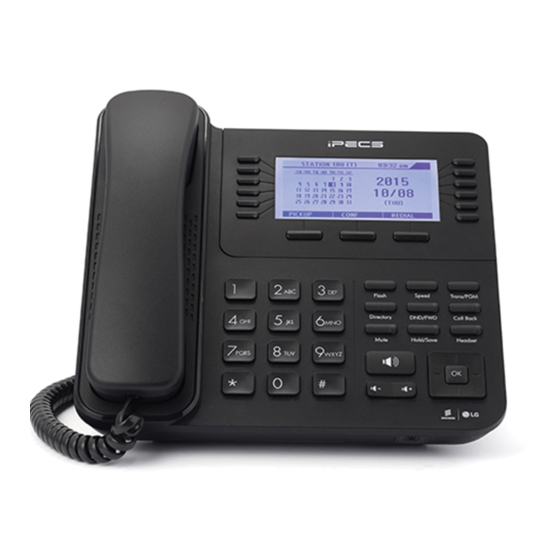

iPECS LDP-9240 User Manual

1. LCD Screen: Displays your phones status, dialing directories, and text message information.
2. Soft keys: Soft keys are interactive, changing function based on the phones status.
3. Flexible Button ('flex key'): a line or feature can be assigned to these 24 flexible buttons.
4. Flash button: use the flash button to dial straight out to another line once you have finished a call.
6. Trans/PGM: transfer the current active call or access the Program menu while the phone is idle.
7. Directory: Accesses your private or public directory for speed dialing.
8. DND (Do-Not-Disturb): blocks incoming calls. You can also activate Do-Not-Disturb while the phone is ringing.
9. Call Back: when a light shows on the call back button this indicates you have a message.
11. Hold/Save: Use to place a call on Hold. Also, use to access a held call. In menu mode, it saves your inputs.
12. Headset: when a headset is connected, toggle call between headset and speaker.
13. Flash button: use the flash button to dial straight out to another line once you have finished a call.
14. Volume control: adjust the ring, headset, handset, and speaker volume.
15. Speakerphone: toggle the speakerphone on and off during a call. The button will automatically illuminate
for assistance please call
Ask your system administrator for help.
5. Speed: assign or use assigned speed dial numbers.
Use to allow you to forward all calls to another number
Use to access your Voice Mailbox.
10. Mute: mute the call so that the caller cannot hear your voice.
when the phone is in menu mode.
www.link-solutions.co.uk
01603 964288
LDP-9240
1. LCD screen 2. 3 Soft Flex Keys
4. 5. 6.
7. 8. 9.
10. 11. 12.
14. Volume
3. 24 Flexible
buttons (flex keys)
across twp pages
16. Navigation
15. Speaker
