Fema Electronica S Series User Manual

Panel meter for dc voltages and dc currents
Hide thumbs Also See for S Series:
Table of Contents

Advertisement

Quick Links

Download this manual

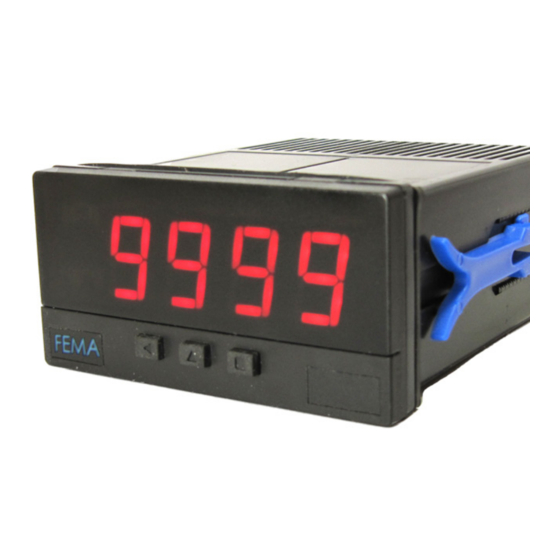

Series S
Panel Meters
Model S40-D
Panel meter for DC voltages and DC currents. Measure category in CAT-III up to
300Vdc and CAT-II up to 600Vdc. Current signal ranges for 5Adc and 1Adc. Reduced
size 72x36mm. Reading with 4 digits. Maximum and minimum display memory, scalable
reading, filters, steps, signal autocorrection, "measure" function, peak&hold, alarms with
double setpoints, 5 levels of brightness, ... Universal AC and DC power modules and up
to 2 modules for signal retransmission and control (relay outputs, analogue outputs, ...).
USER'S MANUAL
(1542R05)
Panel meter 72x36mm
DC voltages
DC currents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S Series and is the answer not in the manual?

Questions and answers

Related Manuals for Fema Electronica S Series

Summary of Contents for Fema Electronica S Series

  • Page 1 Series S Panel Meters Panel meter 72x36mm Model S40-D DC voltages DC currents Panel meter for DC voltages and DC currents. Measure category in CAT-III up to 300Vdc and CAT-II up to 600Vdc. Current signal ranges for 5Adc and 1Adc. Reduced size 72x36mm.

  • Page 2: Table Of Contents

    User’s Manual S40-D 1. Meter S40-D Panel meter 72x36mm size for DC voltages and currents Panel meter for DC voltages and DC currents. Measure signal to the low or high reading), “peak&hold” function and category in CAT-III up to 300Vdc and CAT-II up to 600Vdc. password.

  • Page 3: Front View

    User’s Manual S40-D 1.2 Front View 1.5 Signal connections - DC current The current measuring has a single jumper position. Select Alarms the input range in the configuration menu. 1 2 3 4 5 1 2 3 4 Jumpers for input signal range selection. See Table 1 + Adc Logo...

  • Page 4: Technical Data

    User’s Manual S40-D 1.7 Technical data 1.7 Technical data (cont.) Digits Functions available Type 7 segments, red Fixed digits yes, configurable Height 14 mm Filter on display yes, recursive, configurable Display maximum 9999 Steps yes, configurable Display minimum -1999 Memory of maximum Decimal point selectable 8.8.8.8.

  • Page 5: Mechanical Dimensions (Mm)

    User’s Manual S40-D 1.8 Mechanical dimensions (mm) Panel 32,5 cut-out FEMA ELECTRÓNICA - Page 5...

  • Page 6: Operating The Menus

    User’s Manual S40-D 1.9 Operating the menus 1.10 Configuration menu The instrument has two menus accessible to the user : Press SQ button to enter Configuration Menu “Configuration Menu” (key SQ) “Information Menu” (key UP) Range ±600Vdc Input The “Configuration Menu” allows to change the configuration Range ±100Vdc of the instrument.

  • Page 7: Configuration Menu (Cont.)

    User’s Manual S40-D 1.10 Configuration menu (cont.) Setpoint2 Second setpoint Tools Password Select password Menu for Alarm2 Factory Apply configuration Firmware version Version Fixed Digits Fix digits Display Minimum Brightness Standard Average Maximum Steps Menu for optional module at Opt1 Option1 Menu for optional module at Opt2 Option2...

  • Page 8: Input Menu

    User’s Manual S40-D Setpoint (SET) - Value from “9999” to “-1999”. Alarm set point. 1.10.1 Input menu Hysteresis (HYST) - Value from “0” to “9999”. Points of hyster- The input menu selects the input signal range. Options avail- esis. The hysteresis applies on the deactivation of the alarm. able are ±600Vdc, ±100Vdc, ±10Vdc, ±1Vdc, ±100mVdc ±5Adc and ±1Adc.

  • Page 9: Tools

    User’s Manual S40-D Peak & Hold (P.HLD) - Peak & Hold function detects sharp 1.11 Default factory configuration drops in the displayed value, and holds the display if a display drop is detected. To disable the hold function for a moment, Range and scaling 0/600Vdc = 0/600.0 press any of the front buttons or wait for a predefined time :...

  • Page 10: Information Menu

    User’s Manual S40-D 1.13 Information menu 1.13.1 Information menu Configuration (Conf) - Informs the configured input signal Press UP button to enter Information Menu range (4/20mA, 0/10Vdc, ...), and the values for input low “ILo”, display low “dLo”, input high “IhI” and display high “dhI”. mA or Vdc Maximum (MAX) - Value of the maximum display.

  • Page 11: Warranty

    User’s Manual S40-D 1.15 Warranty 1.17 CE declaration of conformity All instruments are warranted against all manufacturing Manufacturer FEMA ELECTRÓNICA, S.A. Altimira 14 - Pol. Ind. Santiga defects for a period of 24 MONTHS from the shipment date. E08210 - Barberà del Vallès This warranty does not apply in case of misuse, accident or BARCELONA - SPAIN manipulation by non-authorized personnel.

  • Page 12: Output And Control Modules

    Module with 1 relay. Up to a maximum of two R1 modules 0/10Vdc. Output signal proportional to the reading. Scaling can be installed in one S Series panel meter. For more relay through the frontal keypad. Up to a maximum of two AO output needs, check special modules R2 and R4.

  • Page 13: Modules R2, R4

    Only one special Opt 1 Opt 2 module R2 or R4 can be installed in an S Series panel me- ter. Special modules R2 and R4 are not compatible with R1 A B C D E F G H I J K L modules.

  • Page 14: More Options And Accessories

    User’s Manual S40-D 3. More options and accessories 3.1 Option G Green led option. Green led FEMA ELECTRÓNICA - Page 14...
  • Page 15 User’s Manual S40-D FEMA ELECTRÓNICA - Page 15...
  • Page 16 other products Panel Meters Panel Meters Panel Meters Standard 96x48mm Small 72x36mm Miniature 48x24mm Large Displays Signal Converters Bar Meters 60&100mm digit & Isolators www.fema.es ELECTRONIC INSTRUMENTATION FOR INDUSTRY FEMA ELECTRÓNICA, S.A. Altimira 14 - Pol. Ind. Santiga E08210 Barberà del Vallès BARCELONA - SPAIN Tel.
