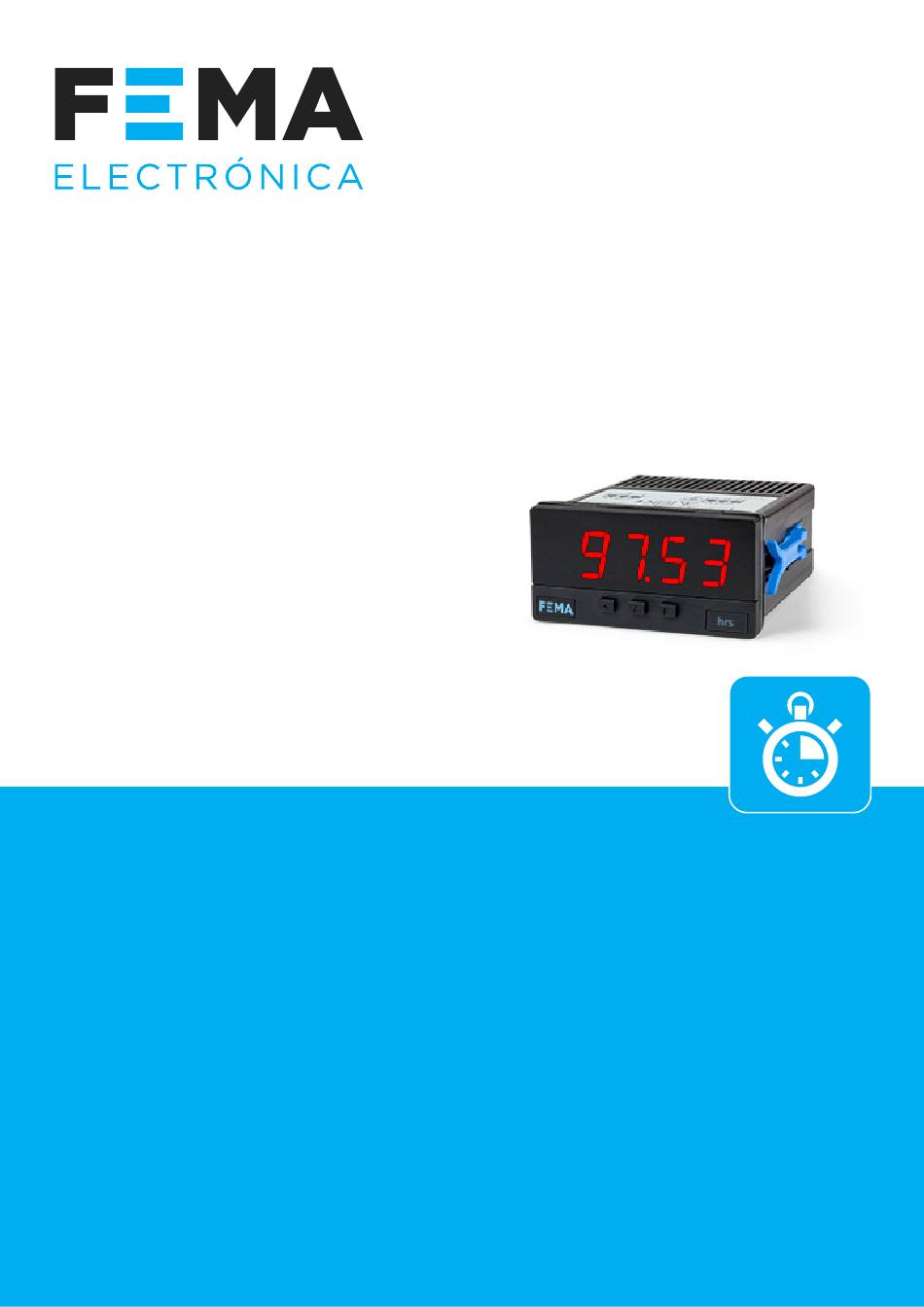

Series S . S40-CR
Chronometer, time counter
PANEL METERS
Chronometer and time counter, in compact size 72 x 36 mm, and standard 14 mm digit height. Con-
figurable with up and down counting modes. Independent controls for start, stop and reset. Display
modes in decimal format and sexagesimal (clock) format. Reading with 4 digit display. Fast access to
alarm setpoints, special modes for counting exceeded time and totalized counting times, 'on power
up' function, configurable led brightness. Universal AC and DC power. Up to 2 optional modules for
output and control (relays, transistor, control SSR, analog outputs, Modbus RTU communications, RS-
485 ASCII, RS-232, ...)
3216r07
ELECTRONICS
FOR
PANEL METERS . SIGNAL CONVERTERS . LARGE DISPLAYS
Tel. (+34) 93.729.6004 info@fema.es
User's Manual
INDUSTRIAL
AUTOMATION
www.fema.es
Advertisement
Table of Contents
Related Manuals for Fema Electronica S40-CR
Summary of Contents for Fema Electronica S40-CR
- Page 1 ELECTRONICS INDUSTRIAL AUTOMATION PANEL METERS . SIGNAL CONVERTERS . LARGE DISPLAYS Series S . S40-CR Chronometer, time counter PANEL METERS Chronometer and time counter, in compact size 72 x 36 mm, and standard 14 mm digit height. Con- figurable with up and down counting modes. Independent controls for start, stop and reset. Display modes in decimal format and sexagesimal (clock) format.
-
Page 2: Panel Meter S40-Cr
FEMA ELECTRÓNICA . Series S . S40-CR 1. Panel meter S40-CR Chronometer and time counter, in compact 72 mm size Panel meter in compact 72 x 36 mm size with 14 mm digit height, and Several options allow to configure the display flash in case of ‘stop’... -
Page 3: Table Of Contents
Index 1. Panel meter S40-CR ..... . 2 1.13 Full configuration menu ....14 1.1 How to order . -
Page 4: Included Functions
FEMA ELECTRÓNICA . Series S . S40-CR 1.2 Included functions 1.4 Front view Alarms Control led* Functions included Section Fast access yes, configurable 1.12.5 Preset yes, configurable 1.12.1 yes, configurable : front, Reset rear and/or linked to alarm activation Logo... -
Page 5: Control Connections
FEMA ELECTRÓNICA . Series S . S40-CR 1.7 Types of reset 1.6 Control connections The reset function can be activated from three independent and con- • Normal connections (‘con.a’) - controls for ‘start’, ‘stop’ and ‘re- figurable sources: set’ are independent. Activation by default is by falling edge (by short-circuit to the 0 Vdc terminal). -
Page 6: Technical Specifications
FEMA ELECTRÓNICA . Series S . S40-CR 1.8 Technical specifications Digits Mechanical number of digits mounting panel 7 segments led connections plug-in screw terminal color red or green housing material ABS, polycarbonate (V0) digit height 14 mm weight <150 grams front size 72 x 36 mm... -
Page 7: How To Operate The Menus
FEMA ELECTRÓNICA . Series S . S40-CR 1.10 How to operate the menus The instrument has two menus accessible to the user : Example of operation inside the ‘configuration menu’. ‘Configuration menu’ (key SQ) (<) 1. The SQ (<) key enters into the ‘Fast access’... -
Page 8: Configuration Menu
FEMA ELECTRÓNICA . Series S . S40-CR 1.12 Configuration menu Press ‘SQ’ (<) for 1 second to access the ‘configuration menu’. 1.12.1 Initial set-up For a description on how to operate inside the menus see section 1.10 . For a full vision of the ‘configuration menu’ structure see To configure the initial set up of the instrument, select the viewing 1.13... - Page 9 FEMA ELECTRÓNICA . Series S . S40-CR 1.12 Configuration menu (cont.) • the ‘State’ (‘StAt’) parameter controls the state of the counter after power-up. Select ‘Strt’ to count after power-up or ‘StoP’ to remain stopped after power-up. Flash ‘Flash on stop’...
-
Page 10: Controls Configuration
FEMA ELECTRÓNICA . Series S . S40-CR 1.12 Configuration menu (cont.) • function ‘B.4 exceeded’ (‘Fn.b.4’) enables an internal counter for exceeded time, which can be made visible on display by activation of channel ‘B’ signal. To reset the exceeded counter, view the counter Function B.4... -
Page 11: Alarms
FEMA ELECTRÓNICA . Series S . S40-CR 1.12 Configuration menu (cont.) els, value ‘on_h’ activates the reset on high signal value, and value Trigger level (from ‘on_0’ activates reset on low signal. Front reset activates always by 0 to 31). Each state. -
Page 12: Fast Access
FEMA ELECTRÓNICA . Series S . S40-CR 1.12 Configuration menu (cont.) • at ‘Activation delay’ (‘dEL.0’) configure the delay to apply before alarm activation. The activation delay starts counting when the set- point value is passed. Value from 0.0 to 99.9 seconds. -
Page 13: Super Fast Access
FEMA ELECTRÓNICA . Series S . S40-CR 1.12 Configuration menu (cont.) 1.12.6 Super fast access If only a single function is selected for the ‘fast access’ menu, press- ing the the ‘UP’ (5) key will shortly display the function name and then automatically jump to the function value. -
Page 14: Full Configuration Menu
FEMA ELECTRÓNICA . Series S . S40-CR 1.13 Full configuration menu Press ‘SQ’ (<) for 1 second to access the ‘Configuration menu’. See 1.12 section for a description of each menu entry. Function on channel ‘B’ 0.00 to 99.59 Function View format 0.00 to 99.59... - Page 15 FEMA ELECTRÓNICA . Series S . S40-CR 1.13 Full configuration menu (cont.) ‘Start’ Alarms Disabled Alarm 1 Alarm mode Normal Function B.5 ‘hold’ Repeat Type of alarm Function B.6 ‘Max / min’ Setpoint Activation delay No pull Pulls for Controls Pull up ‘Start’ and ‘Stop’...
-
Page 16: Factory Configuration
FEMA ELECTRÓNICA . Series S . S40-CR 1.13 Full configuration menu (cont.) Configuration menu for the module installed at Opt.1 Key UP Tools Setpoint 1 Option (‘Fast access’) Configuration menu for the module installed at Opt.2 Setpoint 2 Option Memory of... -
Page 17: Application Example 1
15 seconds. The second signal must activate at the end of the drying time and must remain The S40-CR chronometer can be configured to activate a relay output active until the operator manually the ‘reset’ signal. -
Page 18: To Access The Instrument
FEMA ELECTRÓNICA . Series S . S40-CR 1.17 To access the instrument You may need to access the inside of the instrument to add or re- place internal modules. Use a flat screwdriver to unlock the upper clips marked with ‘A’. Then unlock the lower clips marked with ‘B’ and remove the front cover. -
Page 19: Precautions On Installation
FEMA ELECTRÓNICA . Series S . S40-CR 1.19 Precautions on installation 1.21 CE declaration of conformity Manufacturer FEMA ELECTRÓNICA, S.A. Risk of electrical shock. Instrument terminals can be connected Altimira 14 - Pol. Ind. Santiga to dangerous voltage. E08210 - Barberà del Vallès BARCELONA - SPAIN Instrument protected with double isolation. -
Page 20: Output And Control Modules
FEMA ELECTRÓNICA . Series S . S40-CR 2. Output and control modules 2.1 Module R1 2.2 Module T1 The R1 module provides 1 relay output to to install at digital panel The T1 module provides 1 transistor output to install at digital panel meters from Series S, up to a maximum of 2 relays in a single meter. -
Page 21: Module Ssr
FEMA ELECTRÓNICA . Series S . S40-CR 2.3 Module SSR 2.4 Module AO The SSR module provides 1 output to control SSR relays, to install at The AO module provides 1 analog output with 4/20 mA or 0/10 Vdc digital panel meters from Series S, up to a maximum of 2 SSR con- configurable output range. -
Page 22: Module Rtu
FEMA ELECTRÓNICA . Series S . S40-CR 2.5 Module RTU 2.6 Module S4 The S4 module provides a RS-485 communications module for Series The RTU module provides a Modbus RTU communications module for Series S of panel meters. The RTU module implements function S of panel meters. -
Page 23: Module S2
FEMA ELECTRÓNICA . Series S . S40-CR 2.7 Module S2 2.8 Modules R2, R4 The S2 module provides a RS-232 communications module for Series The R2 and R4 modules provide 2 and 4 relay outputs for Series S S of panel meters. ASCII protocol with ‘Master’ / ‘Slave’ architecture.
