Controlling Digital Inverter Systems

The Falcon, via a model specific adapter can control
various Digital Inverter Systems. This includes changing
modes and capacity output if permitted by the system.
When ordering the Inverter Adaptor, we must know the
brand on model number of the system you wish to control.

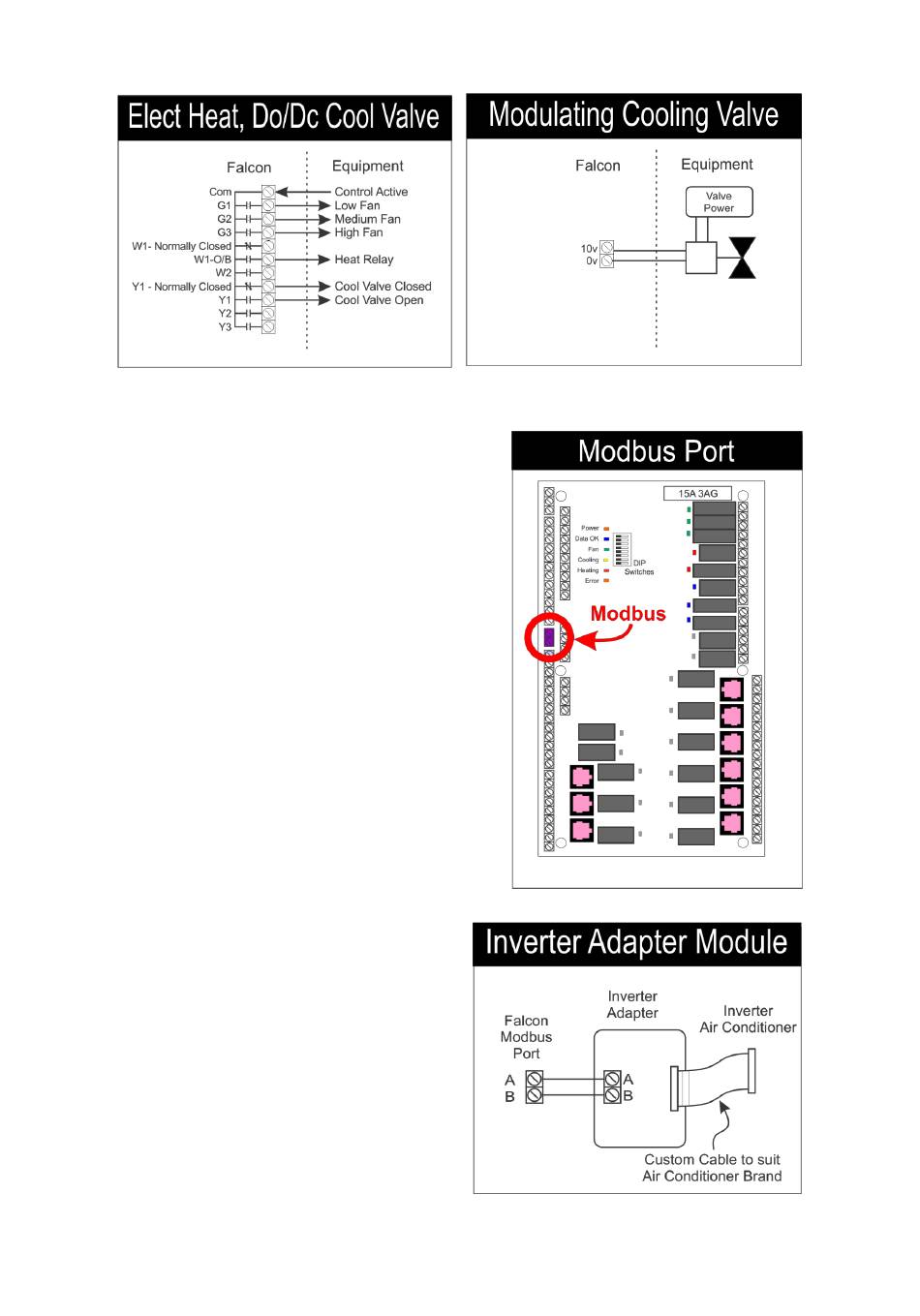

The Falcon if fitted with a Modbus Port that is used to
connect to the Inverter Adapter.
Each Inverter Adapter module is supplied with a custom
cable and detailed instructions on setting the adapter up
to the specific air conditioning system requirements.
Simply connect the Falcon Modbus "A" & "B" terminals to
the Inverter Adapter "A" & "B" terminals and plug the
custom cable supplied with the adapter into the Air
Conditioner wall controller input. These cable and
connections vary brand by brand, so it is important to
follow the specific instructions supplied with the Inverter
Adapter.
Not all functions supported by one brand of air
conditioner may be supported by other brands. This
is not a limitation of the Falcon Controller.
Please discuss your needs with Smart Temp or an
authorised distributor should you have questions.
Page 22 DRAFT
