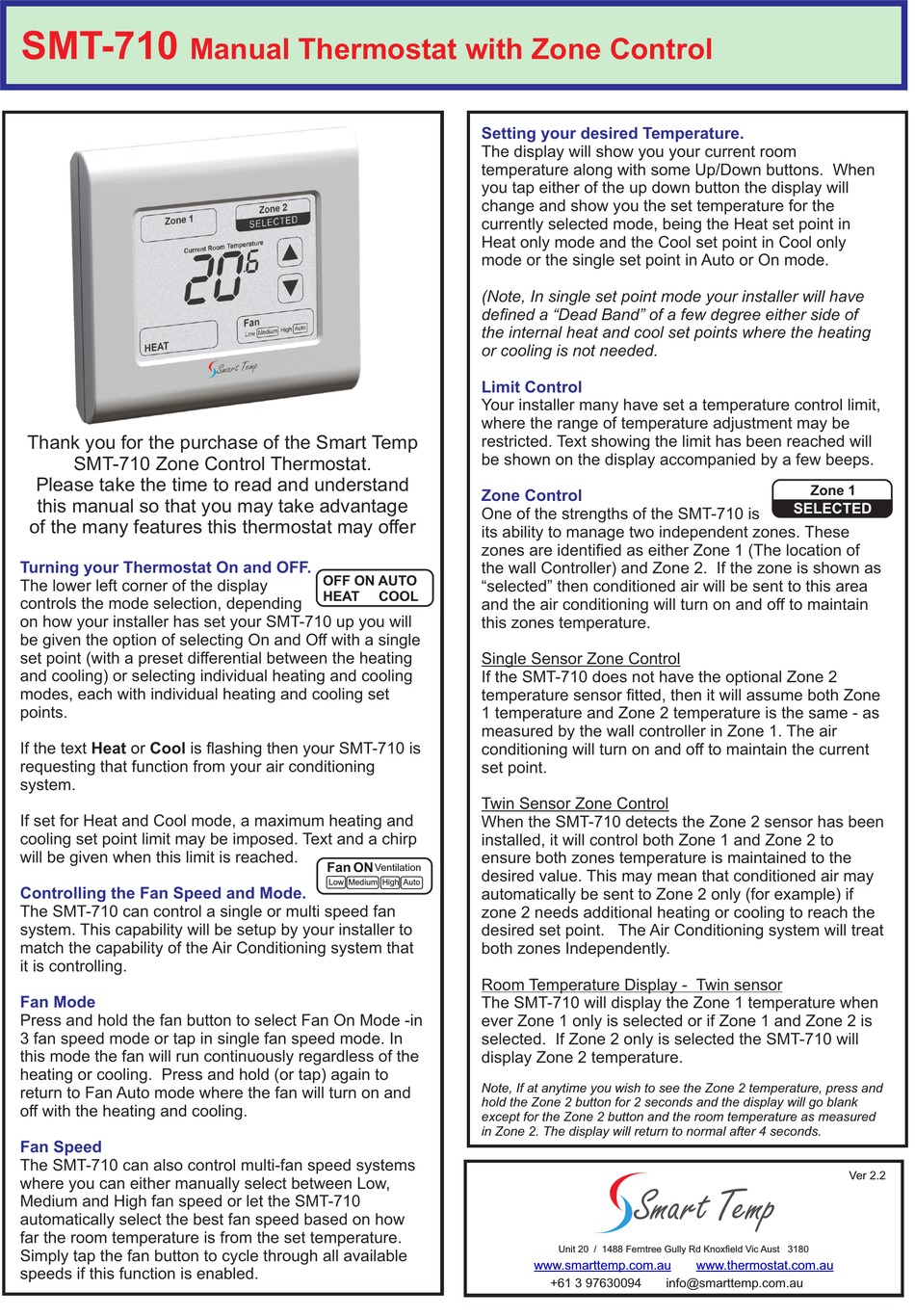

Smart temp SMT-710 Manual

SMT-710
Manual Thermostat with Zone Control
Thank you for the purchase of the Smart Temp
SMT-710 Zone Control Thermostat.
Please take the time to read and understand
this manual so that you may take advantage
of the many features this thermostat may offer
Turning your Thermostat On and OFF.
The lower left corner of the display
controls the mode selection, depending
on how your installer has set your SMT-710 up you will
be given the option of selecting On and Off with a single
set point (with a preset differential between the heating
and cooling) or selecting individual heating and cooling
modes, each with individual heating and cooling set
points.
If the text Heat or Cool is flashing then your SMT-710 is
requesting that function from your air conditioning
system.
If set for Heat and Cool mode, a maximum heating and
cooling set point limit may be imposed. Text and a chirp
will be given when this limit is reached.
Controlling the Fan Speed and Mode.
The SMT-710 can control a single or multi speed fan
system. This capability will be setup by your installer to
match the capability of the Air Conditioning system that
it is controlling.
Fan Mode
Press and hold the fan button to select Fan On Mode -in
3 fan speed mode or tap in single fan speed mode. In
this mode the fan will run continuously regardless of the
heating or cooling. Press and hold (or tap) again to
return to Fan Auto mode where the fan will turn on and
off with the heating and cooling.
Fan Speed
The SMT-710 can also control multi-fan speed systems
where you can either manually select between Low,
Medium and High fan speed or let the SMT-710
automatically select the best fan speed based on how
far the room temperature is from the set temperature.
Simply tap the fan button to cycle through all available
speeds if this function is enabled.
Setting your desired Temperature.

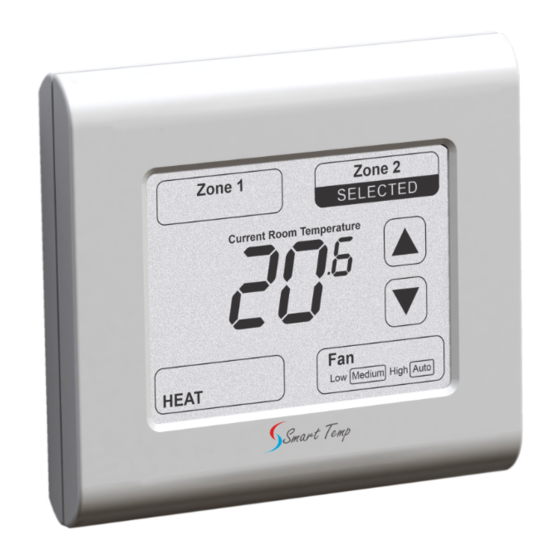

The display will show you your current room
temperature along with some Up/Down buttons. When
you tap either of the up down button the display will
change and show you the set temperature for the
currently selected mode, being the Heat set point in
Heat only mode and the Cool set point in Cool only
mode or the single set point in Auto or On mode.
(Note, In single set point mode your installer will have
defined a "Dead Band" of a few degree either side of
the internal heat and cool set points where the heating
or cooling is not needed.
Limit Control
Your installer many have set a temperature control limit,
where the range of temperature adjustment may be
restricted. Text showing the limit has been reached will
be shown on the display accompanied by a few beeps.
Zone Control
One of the strengths of the SMT-710 is
its ability to manage two independent zones. These
zones are identified as either Zone 1 (The location of
the wall Controller) and Zone 2. If the zone is shown as
OFF ON AUTO
"selected" then conditioned air will be sent to this area
HEAT COOL
and the air conditioning will turn on and off to maintain
this zones temperature.
Single Sensor Zone Control
If the SMT-710 does not have the optional Zone 2
temperature sensor fitted, then it will assume both Zone
1 temperature and Zone 2 temperature is the same - as
measured by the wall controller in Zone 1. The air
conditioning will turn on and off to maintain the current
set point.
Twin Sensor Zone Control
When the SMT-710 detects the Zone 2 sensor has been
installed, it will control both Zone 1 and Zone 2 to
ensure both zones temperature is maintained to the
Fan ON
Ventilation
desired value. This may mean that conditioned air may
Low Medium High Auto
automatically be sent to Zone 2 only (for example) if
zone 2 needs additional heating or cooling to reach the
desired set point. The Air Conditioning system will treat
both zones Independently.
Room Temperature Display - Twin sensor
The SMT-710 will display the Zone 1 temperature when
ever Zone 1 only is selected or if Zone 1 and Zone 2 is
selected. If Zone 2 only is selected the SMT-710 will
display Zone 2 temperature.
Note, If at anytime you wish to see the Zone 2 temperature, press and
hold the Zone 2 button for 2 seconds and the display will go blank
except for the Zone 2 button and the room temperature as measured
in Zone 2. The display will return to normal after 4 seconds.
Smart Temp
Unit 20 / 1488 Ferntree Gully Rd Knoxfield Vic Aust 3180
www.smarttemp.com.au www.thermostat.com.au
+61 3 97630094 info@smarttemp.com.au
Zone 1
SELECTED
Ver 2.2
