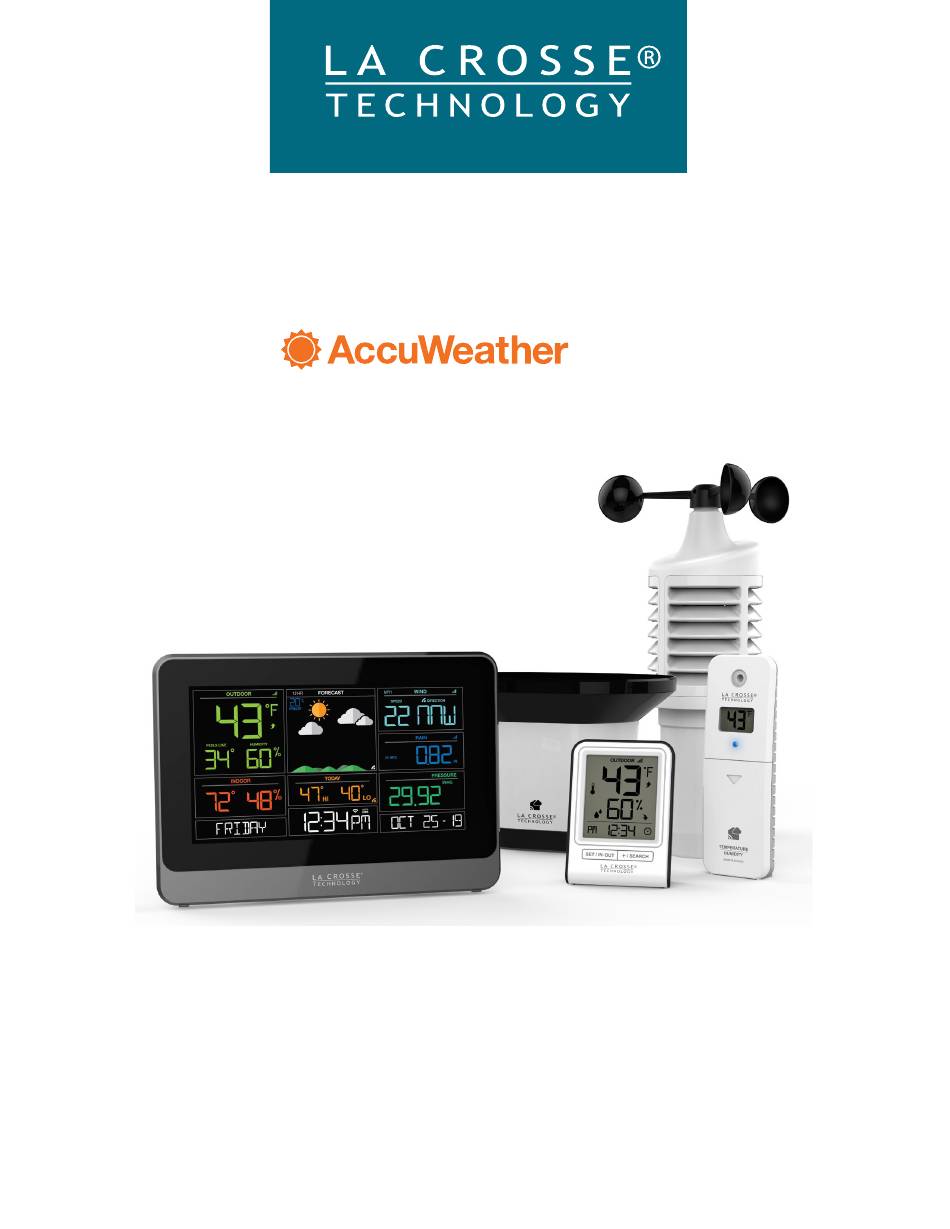

WI-FI PROFESSIONAL
W EATHE R STATI ON
WITH
FORECAST
INSTRUCTION MANUAL
Welcome!
Congratulations on your new Professional Weather Station and welcome to the
La Crosse Technology family! This product was designed with you in mind by our
hometown team of weather enthusiasts based in La Crosse, Wisconsin.

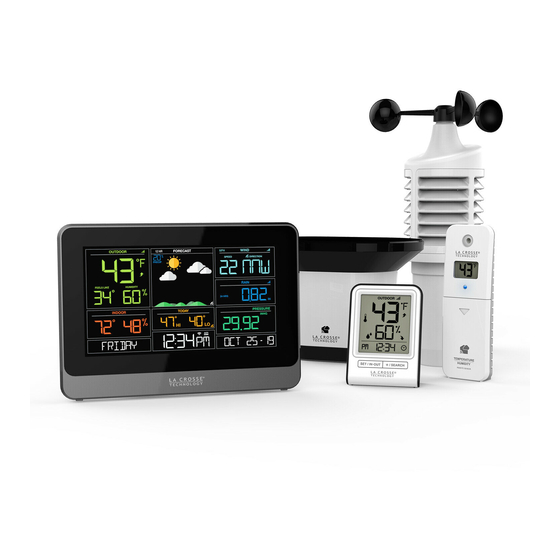

Model: C83100
DC: 012619
Wi-Fi Professional Station
Page | 1
Advertisement
Table of Contents
Related Manuals for La Crosse C83100
Summary of Contents for La Crosse C83100
- Page 1 INSTRUCTION MANUAL Welcome! Congratulations on your new Professional Weather Station and welcome to the La Crosse Technology family! This product was designed with you in mind by our hometown team of weather enthusiasts based in La Crosse, Wisconsin. Model: C83100...
-
Page 2: Table Of Contents
Button Functions Records Weather Station Icons Feels Like Temperature Connect to La Crosse View™ App Temperature Trend Arrows Benefits of Connecting to La Crosse View™ Relative Pressure Reading Enhanced Weather Forecasts w/La Crosse Sensor Reception Indicators View™ Sensor ID and Search Advanced Forecast &... -
Page 3: View
2. Insert 2 - AA batteries into your LTV-R2 Rain Sensor. 3. Insert 2 - AA batteries into your LTV-TH2 Thermo-Hygro Sensor. 4. Insert the power cord into your C83100 station. Remove the red insulation tab from the CR2032 battery compartment found on the bottom of your station. -
Page 4: Wind Speed
Q UI CK M OUNT ING T I PS WIND SPEED Ensure the sensor is mounted vertically – an unobstructed rooftop is ideal. • Your wind sensor should be the tallest object in the area to avoid educed wind speed values. RA IN Mount in an open area, preferably off the ground on a level platform. - Page 5 WE ATHE R STAT IO N I CO N S PRESSURE INHG 12 HR MPH / KMH Miles or Low Battery 12 Hour Kilometers Indicator Forecast IN / MM Sensor Chance of Inches or Reception Precipitation Millimeters INHG / HPA Inches of Mercury Temperature Forecast...
- Page 6 EXTRA SENSOR AREA ICONS: • The Extra Sensor area of your station will default to Pressure when you first power up. • When you choose to add additional sensors, the Sensor Reception Indicator will show in the upper left corner whether Press ure or Sensor reading is displayed. •...
- Page 7 • Your station’s device ID can be found on the back of the display. • Within 15 minutes after your station connects to the La Crosse View app, you should receive notifications to add your sensors. These will display in your app’s Notification Center.
- Page 8 B E N EFITS OF CO NN EC T ING TO LA C RO SSE V IEW™ Connecting You to Your Home Anytime, Anywhere FEATURES STANDALONE CONNECTED Wind Speed Wind Direction Rainfall Data Indoor & Outdoor Temperature “Feels Like” Temperature Indoor &...
-
Page 9: Accuweather Hi/Lo Temperatures
E N HAN CED LAC RO SSE V IEW C O NNEC TED FEATUR E S. • Advanced Forecast Icons & Chance of Precipitation (12 Hour Forecast) • AccuWeather Daily & Hourly Forecasts • AccuWeather HI/LO Temperatures • AccuWeather Wind Direction •... - Page 10 AC C UWEAT HER DAI LY F ORECASTS Press the DAILY button on the side of your station to scroll through 7 days of future forecasts. You’ll see changing forecast icons, HI/LO Temperature readings. IMPORTANT: After viewing your Daily Forecast, the display will automatically revert back to the default 12 hour forecast after 10 seconds.
-
Page 11: Custom Data Streams
C USTOM DATA ST R E AM S Use the Data Stream Menu in the La Crosse View™ app to select up to 3 items to stream on your station. 1. Open the La Crosse View™ app and swipe until you find your station’s device page. - Page 12 1. Install batteries in the sensor, and if the sensor has a TX button, press the TX button to force a signal. 2. Scan sensor bar code ID so it will read in the La Crosse View app. Details: Open your La Crosse View app to add sensors. Watch the video for adding devices to the La Crosse View app: http://bit.ly/LaCrosseView_Support_Vid_10...
- Page 13 La Crosse View app. PRESSURE INHG CHECK APP • The Wi-Fi router connection is working. • Check your connection to the La Crosse View app. • Check Notifications in the La Crosse View app • Is there an update to install? PRESSURE INHG LOST WIFI •...
-
Page 14: Adjustable Backlight
FE ATURE S OF YOU R W E AT H ER STATI ON Your station provides most functionality when connected to the La Crosse View app. However it is fully functional as a standalone station. Here we have included the details for various functions of your station: •... -
Page 15: Settings Menu
Note: If you press the LIGHT button to manually adjust the backlight, the Auto Dim feature will resume at the next scheduled time to dim. SE T TI N G S ME N U 1. Hold the SET button for 3 seconds to enter settings menu. 2. -
Page 16: Extra Sensor Area
Note: Once sensor is found the search will stop. Sensor, ID, and type will show for 3 seconds then return to normal display. 4. Scan sensor bar code ID so it will read in the La Crosse View app. 5. Added sensors will be available for display in Extra Sensor area of station. - Page 17 1. Hold the EXTRA SENSOR button 2. Install batteries in the sensor 3. Press TX button Sensor Barcode ID 4. Allow up to 3 minutes to connect Insert Batteries 5. Scan sensor bar code ID TX Button Station normal display-Pressure showing Water Leak sensor added Delete Extra Sensors from your station: 1.
- Page 18 WI N D S PEE D R E AD INGS & H I STORY Current Speed: Highest wind speed in past 31 seconds. Samples every 3 seconds Top Speed (1 HR): Highest wind speed in past 60 minute period. Wind Direction: When connected wind direction in letters will replace Top 1HR. Top 1HR will still be viewable in history.
- Page 19 Reset Wind Speed History: 1. Press the WIND button to view individual wind speed readings. 2. Hold the MINUS button for five seconds to reset the individual value. 3. Wind speed reading will reset to current wind speed, time and date. RA I N FAL L R E A D IN GS &...
- Page 20 1 Year: • Current month plus past 11 months total. Current year will show. Total: • Total rainfall since station was powered on or reset. Note: As time passes without rain, the 1 hour, 24 hour, and 7 day rain totals will count down to zero. Reset Rainfall History: 1.
- Page 21 T E M P E RATUR E / H UM ID IT Y READING S & HI/ LO R EC O R D S Your current Indoor and Outdoor temperature and Humidity are constantly displayed on your weather station. Your station records your HI and LO Temperature and Humidity with time and date of occurrence. 1.
- Page 22 F E ELS L IKE TE M PE R AT U RE Your “Feels Like” Temperature is a combination of outdoor temperature, humidity and wind speed. It is displayed in the Outdoor Temperature area. • When outdoor temperature is higher than 80˚F, your Feels Like Temperature is showing Heat Index.
- Page 23 SE N S OR I D & SE NSO R S EARC H Your station and each sensor have a unique ID number that will identify them in the La Crosse View app. This has the added bonus of locking them into your weather station until you manually delete them.
- Page 24 3. Allow up to 3 minutes to reacquire all sensors. 4. You will need to reconnect to your La Crosse View app by selecting CONNECT WIFI from the menu in your La Crosse View App and entering your Wi-Fi password.
- Page 25 DE TA ILE D SET U P & MO U N TING LTV-W1 Wind Speed Sensor 1. Turn the battery cover of your wind sensor to the left. 2. Install fresh “C” batteries. 3. Carefully align and turn battery cover right to tighten. 4.
- Page 26 LTV-R2 Rain Sensor: 1. Flip open both locking tabs on your rain sensor and lift off the funnel portion. 2. Pull up on the battery cover and remove. 3. Install 2-AA batteries according to polarity. 4. Reposition the battery cover over the battery compartment, and firmly push down to lock it back into place 5.
- Page 27 3. Use the pull down stand on the back of your station to place on a Battery desk or counter. Power 4. Your station should remain in good Wi-Fi range of your wireless Cord router to use all the remote monitoring options using the La Crosse View app. Wi-Fi Professional Station Page | 27...
- Page 28 • 12/24 Hour Time • Hour • Minutes • Fahrenheit/Celsius Note: This Bonus Station will not connect to the La Crosse View app. View Indoor or Outdoor Data: Press and release the SET/IN-OUT button to switch between: • Outdoor temperature/ humidity readings •...
- Page 29 4. Allow up to 3 minutes to receive your Thermo-hygro sensor HE L P US , H EL P YO U If you require additional support, call our friendly customer support team based out of La Crosse, Wisconsin. Phone: 1.844.200.8752 Or fill out our online support request form here: bit.ly/contact_techsupport...
- Page 30 SP E CI FICAT ION S Indoor C83100 Temperature Range: 32°F to 99°F (0°C to 37°C) LTV-D1 Temperature Range: 32°F to 122°F (0°C to 50°C) Both Stations Humidity Range: 10% RH to 99%RH C83100 Relative Pressure: 23.62 to 32.48 InHg (800 to 1100 hPa)
- Page 31 • Promptly remove expired batteries. WA R RAN T Y & SU PP O RT La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product relating to manufacturing defects in materials & workmanship.
- Page 32 FCC STATE M EN T This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Need help?
Do you have a question about the C83100 and is the answer not in the manual?
Questions and answers
I changed batteries in my wind sensor and now it just has dotted lines
Your La Crosse C83100 wind sensor may display dotted lines after changing the batteries because the base station has lost connection with the sensor. To resolve this:
1. Ensure the new batteries are properly installed in the wind sensor.
2. The station should automatically search for a replacement sensor of the same type. If it does not, manually reset the connection.
3. Press the SENSOR button on the station to confirm the sensor ID.
4. If the issue persists, perform a factory restart by holding the RAIN and LIGHT buttons together for 5 seconds. This will reset all sensor connections and Wi-Fi settings.
If the wind sensor is still not displaying data, it may not be pairing correctly, or there could be interference affecting the connection.
