Summary of Contents for La Crosse C79790

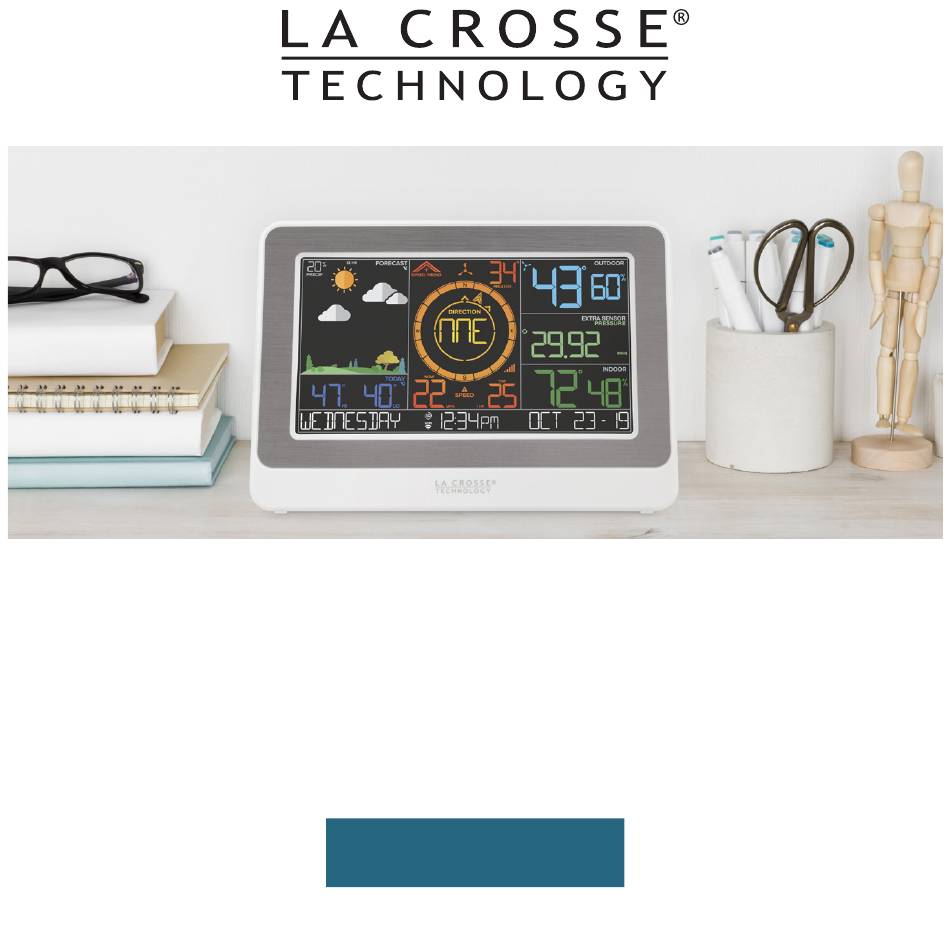

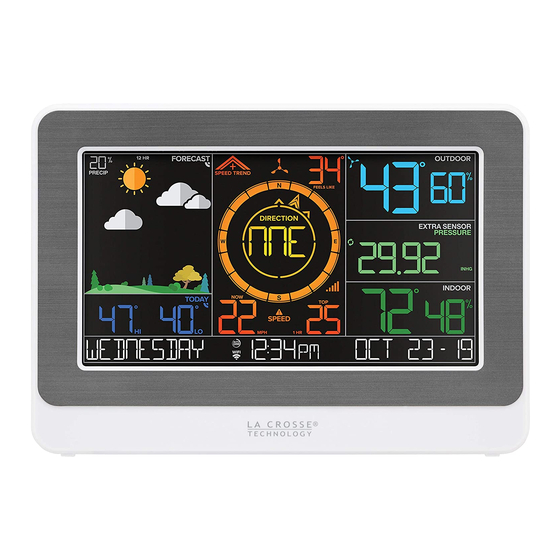

- Page 1 WIRELESS WEATHER STATION SET UP GUIDE MODEL NUMBER C79790...
-
Page 2: Table Of Contents
Table of Contents BASICS LA CROSSE VIEW WIND Initial Setup Connecting to the App Viewing Your Wind Data Station Settings Connecting Your Station History Records Buttons Connecting Your Sensor Wind Speed Alert LCD Display Brightness Auto-Dim Settings Positioning Your Sensor Basic Installation Options TEMP. -
Page 3: Basics
Power Up Bottom of Breeze Pro Sensor Back of Station Model No. LTV-WSDTH01 Model No. C79790 Remove the Insulation Tab from the Insert the 5V Power Adapter into Battery Compartment of your Breeze an outlet, and then plug it into the... -
Page 4: Connecting To The App
Download the La Crosse View Visit the App Store or Google Play Store to download the free La Crosse View app onto your mobile device. Launch the App Open the La Crosse View app and follow the on-screen setup instructions. -
Page 5: Connecting Your Station
LA CROSSE VIEW Connecting Your Station Now that you’ve created your La Crosse View account, it’s time to connect your station to your home router using the La Crosse View app. Connecting to Your Wi-Fi Network Ensure your station’s Wi-Fi Indicator is flashing. -
Page 6: Connecting Your Sensor
• If this does not appear you can manually add the sensor to your app. Scan Sensor ID: 1. Open your La Crosse View app. On the Main Menu go to “ADD/EDIT” and select “DEVICES”. 2. On the Devices page select “ADD DEVICE”. -
Page 7: Station Settings
BASICS Station Settings When the station is first power on, it will begin searching for your outdoor sensor, which should connect shortly. To manually set your time, date, and other settings, hold the button to enter the Settings Menu. Settings Menu Order Language •... -
Page 8: Buttons
BASICS Buttons Side View 1. WIND ALERTS 2. WIND 3. TEMP. Hold to enter Wind Alert Press to view Wind Speed Press to view Temperature Settings. Press to turn Wind History. While viewing, hold the and Humidity History. While Alert on/off. MINUS button to delete the viewing, hold... -
Page 9: Lcd Display Brightness
BASICS LCD Display Brightness Adjusting the LCD Display Brightness Press the LIGHT button to adjust the backlight intensity. There are 4 brightness levels, plus an off option. Auto-Dim Settings Program your display to automatically dim during preselected times. Hold the LIGHT button to enter the Auto-Dim Settings Menu. -
Page 10: Positioning Your Sensor
BASICS Positioning the Breeze Pro Sensor For Accurate Measurements Included Mounting Accessories Mast The horizontal conduit where the sensor Hand Screw attaches. This Piece will connect to either Used to lock down and secure the Mast the Adjustable Base or Pole Adapter. to the Adjustable Base or Pole Adapter. -
Page 11: Basic Installation Options
Chimney Mount Tripod Setup U-bolt Adapters The illustrations above are not to scale and are for informative purposes only. La Crosse Technology is not responsible for any damages or injury that may occur during installation. -
Page 12: Viewing Your Wind Data
WIND Viewing Your Wind Data 1. WIND SPEED TREND 2. COMPASS ROSE 3. LOW BATTERY ICON INDICATOR Appears when the sensor Displays cardinal direction battery needs to be Shows wind speed trends with animated arrows replaced over the past 60 minutes (16 directions total) 4. -
Page 13: History Records
WIND Wind Speed History and Alerts Viewing Wind Speed History Records Press the WIND button to toggle through wind speed history records with time and date stamps. The wind speed records include: past 24 hours, 7 days, 1 month, & 1 year. Monthly Wind Speed Record Example Setting the Wind Speed Alert Hold the... -
Page 14: Viewing Your Th Data
7. INDOOR TEMPERATURE 8. INDOOR HUMIDITY Current Indoor Temperature Current Indoor Humidity... -
Page 15: History Records
Current Temperature: When the temperature is between 51°F and 79°F the reading... -
Page 16: Seasonal Trees
FORECAST Foliage Scenes Viewing Your Forecast Data Seasonal Trees Spring (March 20 to June 20 The foliage scene in the forecast section changes seasonally. The dates are pre-programmed. Forecast Icons When using as a standalone station, the display Summer (June 21 to Sept. -
Page 17: Enhanced Forecast Data
FORECAST Viewing Your Forecast Data Available Forecast Icons when Connected* Sunny Partly Sunny Clouds Light Rain Rain T-Storm Light Snow Snow Wintry Mix Windy Tip: icon will appear in the top right corner of the forecast section when your display is connected and receiving AccuWeather forecasts. -
Page 18: Add-On Th Sensor
PRESSURE Relative Pressure • Your Relative Pressure reading will come from your station’s internal barometer. • Please allow up to 10 days for automatic calibration, or program your local pressure value in the Settings Menu. • The arrows located to the left of the values represents Pressure Tendency (rising/falling). -
Page 19: Add-On Sensor Info
EXTRA SENSORS Additional Add-On Sensors Whether you choose to connect with the La Crosse View app or not, this station can display data for up to 4 extra sensors. This data will appear in the green EXTRA SENSOR section on the LCD, and in your La Crosse View app if connected. -
Page 20: Specifications
Wi-Fi service. (15.77cm L x 31.19cm W x 25.07cm H) • Without Bracket: 6.21” L x 8.25” W x 6.67” H STATION SPECIFICATIONS (C79790) (15.77cm L x 20.96cm W x 16.94cm H) • Indoor Temp. Range: 32°F to 122°F (0°C to 50°C) •... -
Page 21: Warranty/Patents
APPENDIX Warranty La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product, relating to manufacturing defects in materials and workmanship. For full warranty details, you can visit: www.lacrossetechnology.com/support La Crosse Technology, Ltd •... -
Page 22: Fcc Statement
APPENDIX FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 5 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a esidential installation. - Page 23 WARNING: This product can expose you to chemicals including styrene, which is known in the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov Designed in La Crosse, Wisconsin • Made in China • Printed in China •...
-
Page 24: Support
WIND ALERTS LIGHT buttons down together until the display beeps. Follow La Crosse Technology on Youtube, You do not need to remove the button cell Facebook, Twitter, and Instagram. battery to restart the station. Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries.
