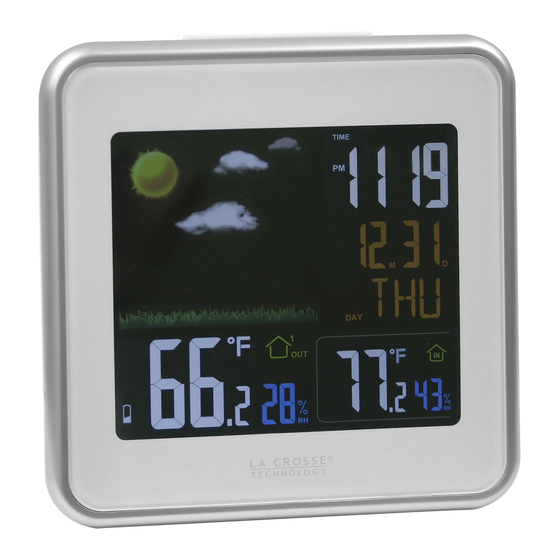

The Wireless Color Forecast Station features atomic time, weather forecast, indoor and outdoor
temperature/humidity as well as heat index and dew point, on a stylish, colorful, and easy to read display.
It has a USB charging port to charge your smartphone or other device. Transmission range of over 200
feet (60 meters) in open air, from transmitter to forecast station.

Wireless Color Forecast Station

Five
Forecast
Icons
Outdoor Temperature ºF/ºC,
Humidity RH %
+ Channel Indicator
Get Support:

INITIAL SETUP

Step 1: Insert the included 5-volt AC power adapter into forecast station and then into wall outlet.
Step 2: Insert 3 new "AA" batteries (not included) into the forecast station. Observe the correct polarity.
Step 3: Insert 2 new "AA" batteries (not included) into the outdoor transmitter. Observe the correct
polarity. The red LED will flash when transmitting.
Do Not Mix Old and New Batteries
Do Not Mix Alkaline, Standard, Lithium or Rechargeable Batteries
RESTART:
If the outdoor temperature is not displayed after 3 minutes, unplug the AC adapter and remove
batteries from the forecast station & transmitter for 15 minutes.
Return to Step 1 above.
ATOMIC SIGNAL SEARCH:
The LCD backlight and USB charging port will momentarily turn off while the station searches for the
atomic signal. After the initial search, this station will only search for the atomic signal after midnight.
Model: C86371
Time,
Alarm,
Month,
Date +
Weekday
Indoor Temperature ºF/ºC
+ Humidity RH%
www.lacrossetechnology.com/c86371
www.lacrossetechnology.com/support
Model: C86371
Instruction Manual
TX14TH
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C86371 and is the answer not in the manual?

Questions and answers

Summary of Contents for La Crosse C86371

  • Page 1: Wireless Color Forecast Station

    Model: C86371 Instruction Manual The Wireless Color Forecast Station features atomic time, weather forecast, indoor and outdoor temperature/humidity as well as heat index and dew point, on a stylish, colorful, and easy to read display. It has a USB charging port to charge your smartphone or other device. Transmission range of over 200 feet (60 meters) in open air, from transmitter to forecast station.
  • Page 2: Table Of Contents

    Channel Scroll WWVB Radio-controlled Time WWVB Reception Icon Manual Signal Search Care and Maintenance Position the Outdoor Transmitter Outdoor Temperature/Humidity Flashes Position the Forecast Station Specifications Indoor Outdoor Humidity Power Requirements Battery Life Dimensions Warranty Information FCC Statement Model: C86371 www.lacrossetechnology.com/support...
  • Page 3: Features

    Do Not Mix Alkaline, Lithium, Standard, or Rechargeable Batteries NOTE: If the forecast station does not display indoor temperature after 60 seconds, remove adapter and batteries, and wait for at least 60 seconds before repeating the setup process. Model: C86371 www.lacrossetechnology.com/support...
  • Page 4: Install Batteries In The Tx14Th Transmitter

    LCD Screen The LCD screen is split into 5 sections displaying the information for time, calendar, weather forecast, indoor data, and outdoor data. Function Buttons Model: C86371 www.lacrossetechnology.com/support...
  • Page 5: Program Menu

    DST will default to the ON position as most of the country observes the DST change. This should be in the ON position all year long. If you live in an area does not observe the DST change, switch this to the OFF position. Model: C86371 www.lacrossetechnology.com/support...
  • Page 6: 12-Hour Or 24-Hour Time Format

    4. Press and release the +/RCC or -/°C/°F button to select the minutes. 5. Confirm with the SET button and exit. 6. The alarm icon will show above the minutes indicating the alarm is active. 7. The alarm icon will flash when the alarm is sounding. Deactivate Alarm Model: C86371 www.lacrossetechnology.com/support...
  • Page 7: Deactivate Alarm

    Note: When the backlight is off, press any button to activate the backlight for 8 seconds, and then it will turn off again. Battery Power Press and release the SNOOZE/LIGHT button and the backlight will show for 8 seconds, when operating on batteries only. Model: C86371 www.lacrossetechnology.com/support...
  • Page 8: A/C Power Adapter

    Hold the MIN/MAX button for 5 seconds to manually reset each indoor and outdoor minimum and maximum value. (The forecast station automatically resets the min/max temperatures at midnight: 12:00 AM). Note: If you are using multiple transmitters connected to the forecast station, all channels will reset at the same time. Model: C86371 www.lacrossetechnology.com/support...
  • Page 9: Heat Index

    3. Set the second outdoor transmitter to Channel 2 and insert 2-AA batteries. 4. Set the third outdoor transmitter to Channel 3 and insert 2-AA batteries. 5. Press and hold CH button on the forecast station until a beep sounds. The forecast station will search for all outdoor transmitters. Model: C86371 www.lacrossetechnology.com/support...
  • Page 10: Channel Scroll

    If this icon disappears after the 2-minute search, the radio time signal is not available at the moment. Recommended distance to any interfering sources like computer monitors or TV sets is a minimum of 6 feet (2 meters). Model: C86371 www.lacrossetechnology.com/support...
  • Page 11: Care And Maintenance

    3. Place within range of the outdoor transmitter. 4. The maximum transmitting range in open air is 200-feet (60 meters). Obstacles such as walls, windows, stucco, concrete, and large metal objects can reduce the range. Model: C86371 www.lacrossetechnology.com/support...
  • Page 12: Position The Forecast Station

    2.4" L x 1.3" W x 3.78" H (64 x 36 x 101mm) Warranty Information La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product relating to manufacturing defects in materials & workmanship.
  • Page 13: Fcc Statement

    This handbook may contain mistakes and printing errors. The information in this handbook is regularly checked and corrections made in the next issue. We accept no liability for technical mistakes or printing errors, or their consequences. All trademarks and patents are acknowledged. Model: C86371 www.lacrossetechnology.com/support...
