Steelcase 8500 Series User Manual

Tables

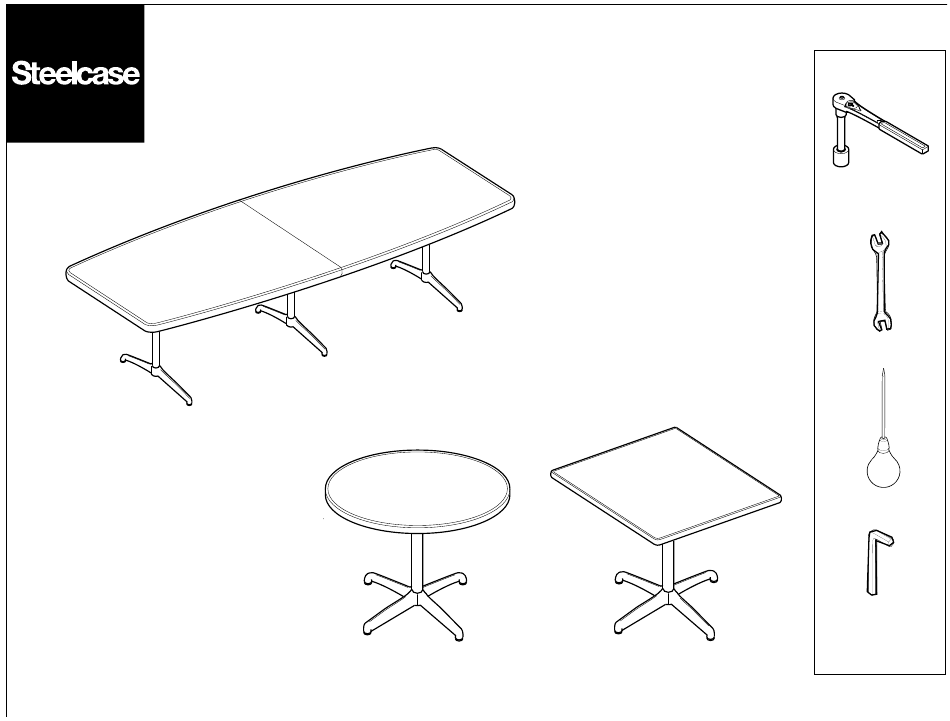

8500 Series Tables

3/8" & 3/4"

SOCKETS

Boat-Shape Table

If you have a problem, question, or request, call

your local dealer, or Steelcase Line 1 at

888.STEELCASE (888.783.3522)

for immediate action by people who want to help you.

5/16" ALLEN

(Outside the U.S.A., Canada, Mexico, Puerto Rico,

WRENCH

and the U.S. Virgin Islands, call: 1.616.247.2500)

Or visit our website: www.steelcase.com

2004 Steelcase Inc.

Round Table

Square Table

Grand Rapids, MI 49501

U.S.A.

Page 1 of 5

Printed in U.S.A.

939501228 Rev C

Table of Contents

Need help?

Do you have a question about the 8500 Series and is the answer not in the manual?

Page 1 3/8" & 3/4" SOCKETS Boat-Shape Table If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. 5/16” ALLEN (Outside the U.S.A., Canada, Mexico, Puerto Rico, WRENCH and the U.S.
Page 2 TOP MOUNTING BRACKET Table Base Assembly Remove table from carton and invert onto a protective surface to avoid marring or scratching the top. PILOT HOLES Locate Top Mounting Bracket with pilot holes in top and secure with (8) screws as shown. 38 INCH BASE- -turn jam nut onto tie rod threads as far as possible.
Page 3 UPRIGHT TUBE TUBE NOTCH Install the upright tube over the tie rod with the MOUNT TABS end with 2 notches toward the base mount. Align the tube notches with the base mount tabs. Assemble fillers on “T” base. Invert the base and position it on the tie rod.
Page 4 SPLINE Boat Table Top Assembly Remove table from carton and invert onto a protective surface to avoid marring or scratching the top. NOTE: The number on underside surface of each top half should be the same to assure the tops match. Insert spline into one top half.
Page 5 TABLE TOP SHAPE DESCRIPTION BASE PART NUMBER Round Tables with Single "X" Base 30" through 37" diameter 801600112 38" through 54" diameter 801600113 Use this chart to identify Square Tables with Single "X" Base and locate the proper base for your table top. Find the 30"...
