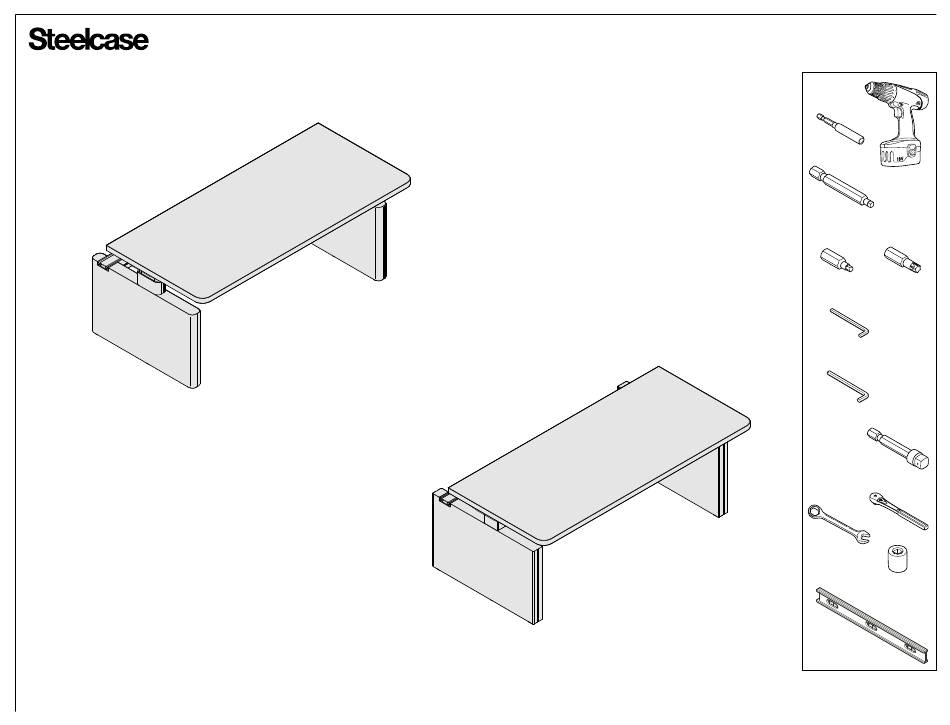

Single Sided Height Adjustable Benching
SERIES 8
Bit Holder
Power Drill
Long #2 Square
Drive Bit
5mm
T-30
Hex Drive Bit
Torx Drive Bit
Hex Key - 2.5mm
(Provided)
Hex Key - 3mm
Socket Adaptor
(or)
Ratchet
10mm
Wrench
8mm & 10mm
Sockets
Level
Page 1 of 38
939564909 Rev B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Steelcase 8 Series

Summary of Contents for Steelcase 8 Series

  • Page 1 (or) Ratchet 10mm Wrench If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 8mm & 10mm 888.STEELCASE (888.783.3522) Sockets for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
  • Page 2 ® SERIES 8 ONLY IMPORTANT SAFETY INSTRUCTIONS When using an electrical furnishing, basic precautions should always be followed, including the following: Read all instructions before using (this furnishing). DANGER - To reduce the risk of electric shock: 1. Always unplug this furnishing from the electrical outlet before cleaning. WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons: Figure 1 1.

  • Page 3: Table Of Contents

    ® TABLE OF CONTENTS: PAGE(S): Lets Get Started!.................... Attaching Mounting Plate to Lifting Columns (Series 5 & 8)...... Mounting Lifting Columns to Worksurfaces (Series 5 & 8)......6 - 7 Series 5 Table Assembly - Determine Switch Position on your Table..........- Identify the Master &...

  • Page 4: Lets Get Started

    ® Prepare a large open space to assemble the table. • Sweep the floor! Screws and small parts can damage the worksurface. • Put down a CLEAN shipping blanket to protect the worksurfaces. Unpack the worksurfaces and place on the shipping blanket upside-down. •...

  • Page 5: Attaching Mounting Plate To Lifting Columns (Series 5 & 8)

    ® Attaching Mounting Plate to Lifting Columns Series 5 Series 8 8mm HEX HEAD M5 x 25 BOLTS Series 8 lifting columns are handed. 10mm HEX HEAD M6 x 25 BOLTS Secure the plastic strain relief block in the notch provided in each lift column MOUNTING PLATE before assembling mounting plate.

  • Page 6: Mounting Lifting Columns To Worksurfaces (Series 5 & 8)

    ® Worksurface Mounting Plate Pilot Holes Mounting Lifting Columns to Worksurfaces With the top still upside down on the floor, TOWARD CENTER turn each leg assembly over and align the OF WORKSURFACE mounting plates to the pre-drilled holes in the top. Install one fastener in each of the = PILOT HOLE pre-drilled pilot holes.
  • Page 7 ® Mounting Lifting Columns to Worksurfaces (cont.) #2 SQUARE DRIVE WORKSURFACE Install one fastener in each of the SCREW remaining holes in the lifting column mounting plate holes. #2 SQUARE DRIVE WORKSURFACE SCREW CAUTION: All holes in the lifting column mounting plates MUST be filled with screws.

  • Page 8: Series 5 Table Assembly

    ® Series 5 Table Assembly Determine Switch Position on your Table • The switch can be located on either on either side of your table, but the switch comes with a short cable to minimize clutter. So, be sure to always locate the master motor near the switch location. NOTE: It does not matter which side of the table the master or slave motor goes on.

  • Page 9: Identify The Master & Slave Motors

    ® Series 5 Table Assembly (cont.) IMPORTANT! The master motor has one other key difference. Identify the Master and Slave Motors It also has a hidden kill switch. This kill switch is inside the front mounting hole. If the front mounting bolt is not properly installed, the table will not operate! The master motor and slave motor look the same, except for the connection panel at the back.

  • Page 10: Installing Driveshafts

    ® Series 5 Table Assembly (cont.) CAP NUT Installing Driveshafts (with plastic cover) Driveshafts are retained using cap nuts, which grip the driveshaft ends and prevent them from backing out of the lifting columns. Tables require one cap nut mounted outside of FINISHED ASSEMBLY each lifting column.
  • Page 11 ® Slave Motor Example: Master motor and switch on user's right-hand side. Series 5 Table Assembly (cont.) Master Motor Installing Driveshafts (cont.) Determine on which side of the table each motor will go. (see page 16) Install M6 x 80 bolts & M6 nuts to each motor as shown.
  • Page 12 ® Series 5 Table Assembly (cont.) Installing Driveshafts (cont.) Insert hex shafts into driveshaft tube. If the hexagon openings are not perfectly aligned, rotate the motor up and down to align the hex shaft with the driveshaft tube, until the driveshaft slides through with ease.
  • Page 13 ® Series 5 Table Assembly (cont.) Installing Driveshafts (cont.) Install M6 hex nut to stud of motor. Tighten the motor mounting nuts. 10mm M6 HEX NUT Page 13 of 38 939564909 Rev B...

  • Page 14: Installing Switch & Power Supply

    ® NOTE: Assemblies with a Nexsis Power Access Door Package require the Power Supply to be POWER SUPPLY installed at an alternate location as shown. Series 5 Table Assembly (cont.) Installing Switch & Power Supply Locate the two (2) pilot holes for mounting the power supply.

  • Page 15: Attaching Driveshaft Covers & Wire Managers

    ® #2 SQUARE DRIVE NOTE: The cover is eliminated WORKSURFACE SCREW on assemblies with a COVER Power & Data Tray. TWO SCREWS PER SIDE Series 5 Table Assembly (cont.) Attach Driveshaft Covers and Wire Managers ALIGN HOLES IN COVER Attach driveshaft covers using four (4) screws WITH PILOT HOLES IN WORKSURFACE.

  • Page 16: Connect And Route All Cables

    ® Switch Master Motor Series 5 Table Assembly (cont.) SEE NOTE Connect and Route All Cables Connect switch to master motor using the SEE NOTE supplied RJ-11 cable. NOTE: To manage switch cable, use the supplied cable clips as shown. Leave a little slack in the cable to avoid damage to the connection point on the motor.

  • Page 17: Connecting The Table Assemblies & Installing The Center Beam

    ® TOP OF Series 5 Table Assembly (cont.) ALUMINUM BEAM LIFTING COLUMN Connecting the Table Assemblies & Installing the Center Beam CONNECTOR TUBE SERIES 5 INDICATOR Install the lifting column connector tube to each end of the aluminum beam as shown, making sure to use the Series 5 connector tube for the lifting columns to be joined with this super structure.
  • Page 18 ® Series 5 Table Assembly (cont.) Remove (4) screws and the bottom plate of leg, each side. Assemble outer cover on each side, using (4) screws removed in step 1. Carefully flip assembly over and install (2) screws per outer cover. T-30 TORX DRIVE M6 SELF-TAPPING SCREW...

  • Page 19: Finishing The Table Assembly

    ® Series 5 Table Assembly (cont.) Test the function of the completed table. Cycle the table all the way up and down to test for correct function. USER GUIDE PLEASE LEAVE THE USER GUIDE IN AN OBVIOUS PLACE FOR THE END USER AFTER ASSEMBLY. Finally, adjust glides to level the table, both left to right and front to back.

  • Page 20: Series 8 Table Assembly

    ® #2 SQUARE DRIVE #8 x 5/8 SCREW (SILVER) Series 8 Table Assembly CONTROL BOX Attaching Control Box & Wire Managers Install Control Box in the predetermined location, using pre-drilled holes. Install the wire management cableway on the underside of the worksurface at the rear using pre-drilled holes.

  • Page 21: Connecting & Routing Cables

    ® Series 8 Table Assembly (cont.) Connecting & Routing Cables Connect the cables to each Lifting Column and connect the terminal end to the Control Box. Route these cables in the wire management cableway provided. For optimal wire management, connect Lifting Columns to the closest port on the Control Box.

  • Page 22: Attaching The Controller

    ® CONTROL WIRE Series 8 Table Assembly (cont.) CABLE CLIP #2 SQUARE DRIVE PAPER BACKING #8 x 5/8 SCREW (SILVER) Attaching the Controller Install the Controller to the underside of the worksurface on the side preferred by the user, using the pre-drilled pilot holes.

  • Page 23: Finishing The Lifting Column Installation

    ® Series 8 Table Assembly (cont.) Finishing the Lifting Column Installation Plug unit in and check for binding, by running the table base all the way through its range of motion and back again, then lower to bottom and unplug unit. CONTROL PLUG Page 23 of 38...

  • Page 24: Connecting The Table Assemblies & Installing The Center Beam

    ® TOP OF Series 8 Table Assembly (cont.) ALUMINUM BEAM LIFTING COLUMN Connecting the Table Assemblies & Installing the Center Beam CONNECTOR TUBE SERIES 5 INDICATOR Install the lifting column connector tube to each end of the aluminum beam as shown, making sure to use the Series 8 connector tube for the lifting columns to be joined with this super structure.
  • Page 25 ® Series 8 Table Assembly (cont.) Remove (4) screws and the bottom plate of leg, each side. Assemble outer cover on each side, using (4) screws removed in step 1. Carefully flip assembly over and install (2) screws per outer cover. T-30 TORX DRIVE M6 SELF-TAPPING SCREW...
  • Page 26 ® Series 8 Table Assembly (cont.) Finishing the Table Assembly Double-check that all nuts, bolts, screws, cap nuts and set screws are securely attached. Carefully turn the table over (2 person operation). NOTE: Do NOT use either lifting column as a brace when turning the table over, as this may cause binding.

  • Page 27: Finishing The Table Assembly

    ® USER GUIDE Series 8 Table Assembly (cont.) Finishing the Table Assembly (cont.) Before use, the table must be completely leveled, front-to-back and side-to-side using the height adjustable glides. Failure to do this could cause the lifting columns to bind. Before articulation, you must synchronize the GLIDES lifting columns as outlined below.

  • Page 28: Installing The Inline Connector

    ® Installing the Inline Connector If multiple Height Adjustable Benches are to be constructed in a row, use the Inline Connector to align the units as shown (this applies if you are attaching two singles, or a single to a double). Insert the pre-assembled connector into the end of the beam and secure using the fasteners (included).

  • Page 29: Assembling & Attaching The Modular Power Blocks

    ® STOP: ALL UNITS SHOULD BE BUILT AND GANGED TOGETHER AT THIS POINT. THE NEXT STEPS ARE TO INSTALL AND ROUTE ALL POWER AND DATA. A SPECIALIST TRADES PERSON OR QUALIFIED ELECTRICIAN MAY BE REQUIRED TO INSTALL POWER AND DATA IN YOUR MUNICIPALITY. Assembling &...

  • Page 30: Assembling & Attaching The Modular Power Blocks

    ® Assembling & Attaching the Modular Power Blocks (cont.) NOTE: Outer Covers not shown for clarity. NOTE: Pinch as indicated to engage into bottom of beam. Page 30 of 38 939564909 Rev B...

  • Page 31: Assembling & Attaching The Hardwire Power Blocks

    ® Assembling & Attaching the Hardwire Power Blocks (where applicable) NOTE: For proper fit of receptacle, remove all ears on receptacle BEND DOWN Page 31 of 38 NOTE: Steps 1e through 1g are also, 939564909 Rev B required on all Power-In feeds.

  • Page 32: Attaching The Power Trays & Data Tray

    ® STOP: BEFORE PROCEEDING, ALL POWER AND DATA SHOULD BE INSTALLED. HAVE ALL NECESSARY INSPECTIONS BEEN COMPLETED? Attaching the Power Trays & Data Tray T-30 TORX DRIVE M6 SELF-TAPPING SCREW Attach tray brackets with screws provided. Four (4) tray brackets per unit. Install data covers (modular faceplate) to power trays.
  • Page 33 ® Attaching the Power Trays & Data Tray Attach power tray on side of the beam. #2 SQUARE DRIVE #8 x 1/4 PAN HEAD SCREW Install tie plates to power trays with screws provided. CAUTION: Failure to install tie plates could result in personal injury.
  • Page 34 ® Attaching the Power Trays & Data Tray (cont.) Attach data tray. NOTE: When installing data tray, pull tray towards you and hook side nearest you onto all tie plates. NOTE: If mounting a second desk, attach the inline connector’s data tray next.

  • Page 35: Attaching The Power Trays & Data Tray

    ® Attaching the Power Trays & Data Tray (cont.) Attach Data Tray End Cover, depending on your assembly condition: Lower Data Tray - Inline Connector NOTE: Outer Covers not shown for clarity. NOTE: All hardware on this page is #2 square drive #8 x 1/4 pan head screws.
  • Page 36 ® Attaching the Power Trays & Data Tray (cont.) Attach Data Tray End Cover, depending on your assembly condition: Power Tray - Inline Connector Power Tray Covers Insert the tabs of the tray cover into the slots of the power tray. Flex the upper surface of the tray cover into the groove on the beam.

  • Page 37: Attaching Interior Covers

    ® OUTER COVER Attaching Interior Covers Tip inner cover up so that top brackets come together. Attach inner covers by inseting small tabs into slots in outer covers, then tip up into place. FRONT INNER COVER REAR INNER COVER Insert tabs into slots of outer cover.
  • Page 38 Attaching Interior Covers (cont.) Align the flat edges of the Top Covers with the center beam, and press down to bond the dual lock tape (3a). Install Steelcase Logo trim cap (for end-of-run conditions only) (3b). Page 38 of 38 939564909 Rev B...
