Ganz MDC-IR3.6N User Manual

OUTDOOR IR COLOR CAMERA
MODEL: MDC-IR3.6N / MDCH-IR3.6N

PRODUCT FEATURES

Selection of 330 and 540TV resolution and low light performance
surveillance camera with a built-in 1/3 type CCD
Integrated 3.6 mm fixed lens
Outstanding 0 lux performance with built-in 24 LEDs.
Photocell activates IR light at night
Designed for indoor or outdoor use

SAFETY PRECAUTIONS

1. The installation should be made by qualified service engineers and
should conform to all local codes.
2. To prevent fire or electric shock, do not expose the camera to rain or
moisture.
3. To prevent fire or electric shock, UL listed wiring should be used for
the DC 12V input.
4. Use only DC 12V regulated power supply marked class 2.
5. Never attempt to disassemble or modify the camera.
6. Be sure to connect each lead to the appropriate terminal.
Wrong connection may cause damage to the camera.
7. Do not attempt to aim the camera at the sun or other extremely bright
objects.
8. Do not allow the camera to be subject to unstable location, strong
shocks and vibration, and strong electromagnetic field.
9. If any abnormality occurs, immediately turn off the power and consult
your dealer.

PARTS DESCRIPTION

After un-packing, check if the following items are contained
inside.
MDC(H)-IR3.6N unit with Power and BNC Cable...1
User Manual... 1
Screw...4
Mating Power Connector ...
1
"L" Wrench ...1

INSTALLATION AND ADJUSTMENT

Note: The camera can be mounted on both ceiling and wall.

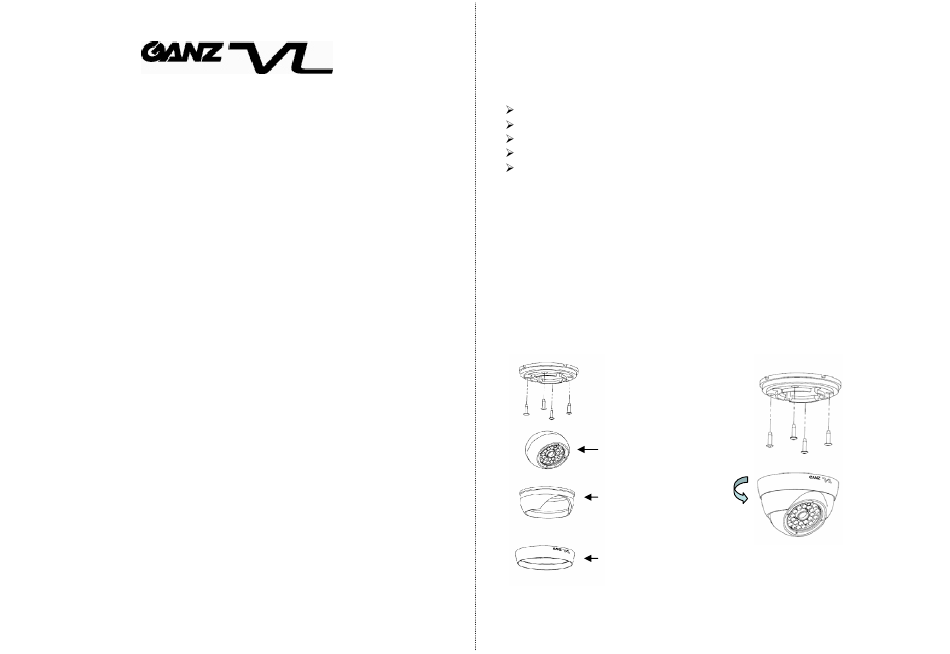

1. Mount the bottom plate on your desired location by screws. (See Pic. 1)
2. Assemble the Ball camera with middle and base rings to the bottom plate.
3. Set the camera angle by rotating the ball camera.(See Pic.2)
4. Fasten the middle ring and set with "L" wrench to secure the
camera angle. .(See Pic.2)
Ball camera
Middle Ring
Base Ring
Picture(1) picture(2)
