4.5 Keyboard Test

On the screen
representation of the measuring heads
keyboards; if a key were pressed again
and again, the one linked on the screen
will become of the his real colour an will

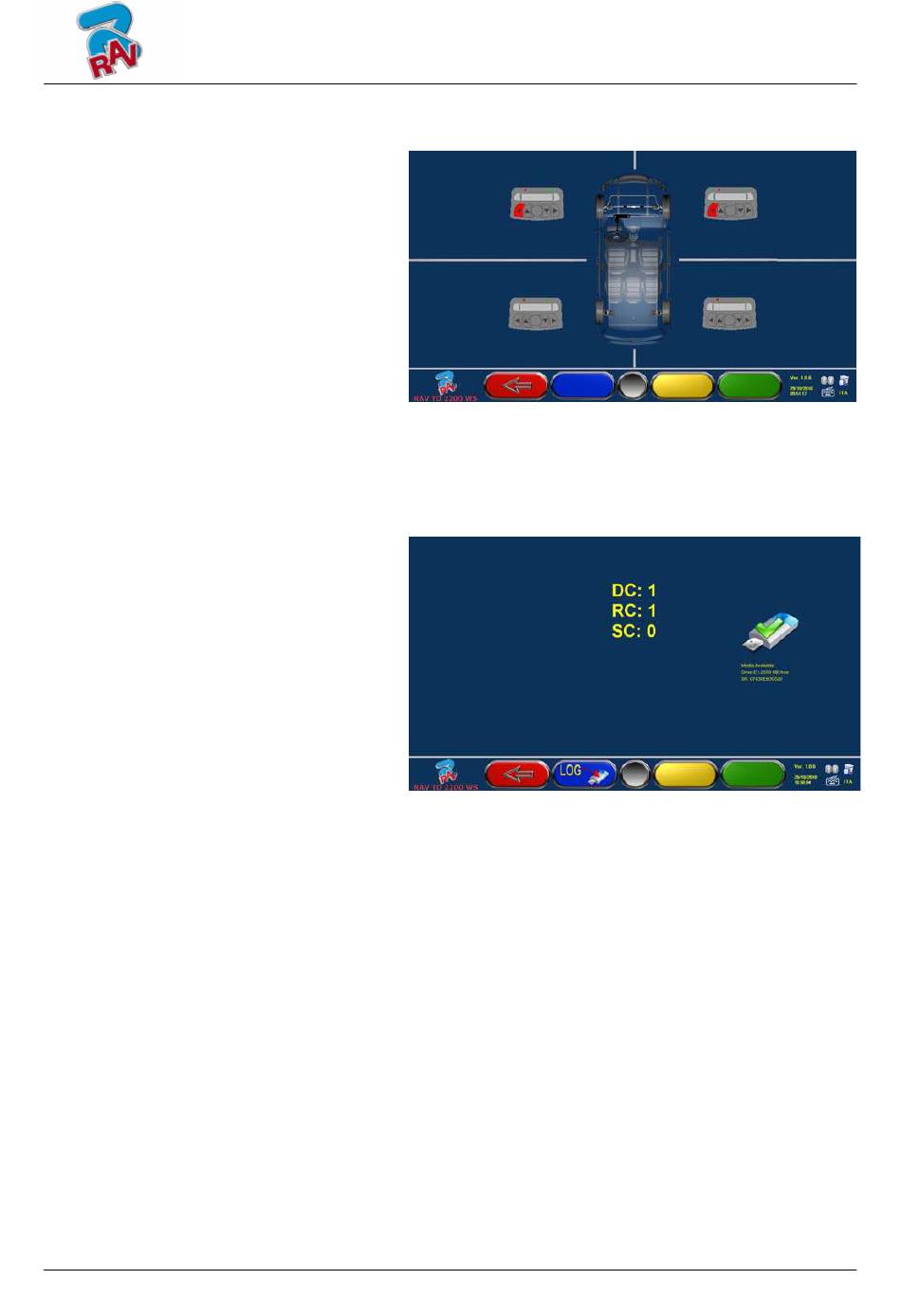

return uncoloured again; (see Figure
41).
Press the key F1 on the PC keyboard to
exit.
4.6 Counter of the performed
aligner test
In the initial
simultaneously the key CTRL-F12, will
appear the counter display page (see
Figure 42).
The meanings is as follow:
DC = Vehicles where Diagnosed Counter
RC = Vehicles where Regulated Counter
SC = Vehicles where Saved Counter
NOTE: The counter is still increased
also after a SW update.
NOTE 2: Pressing the F2 keys a "Log"
file is saved into
filename#.log in a "AS9" folder.
