RAVAGLIOLI S.p.A.
2.2.1

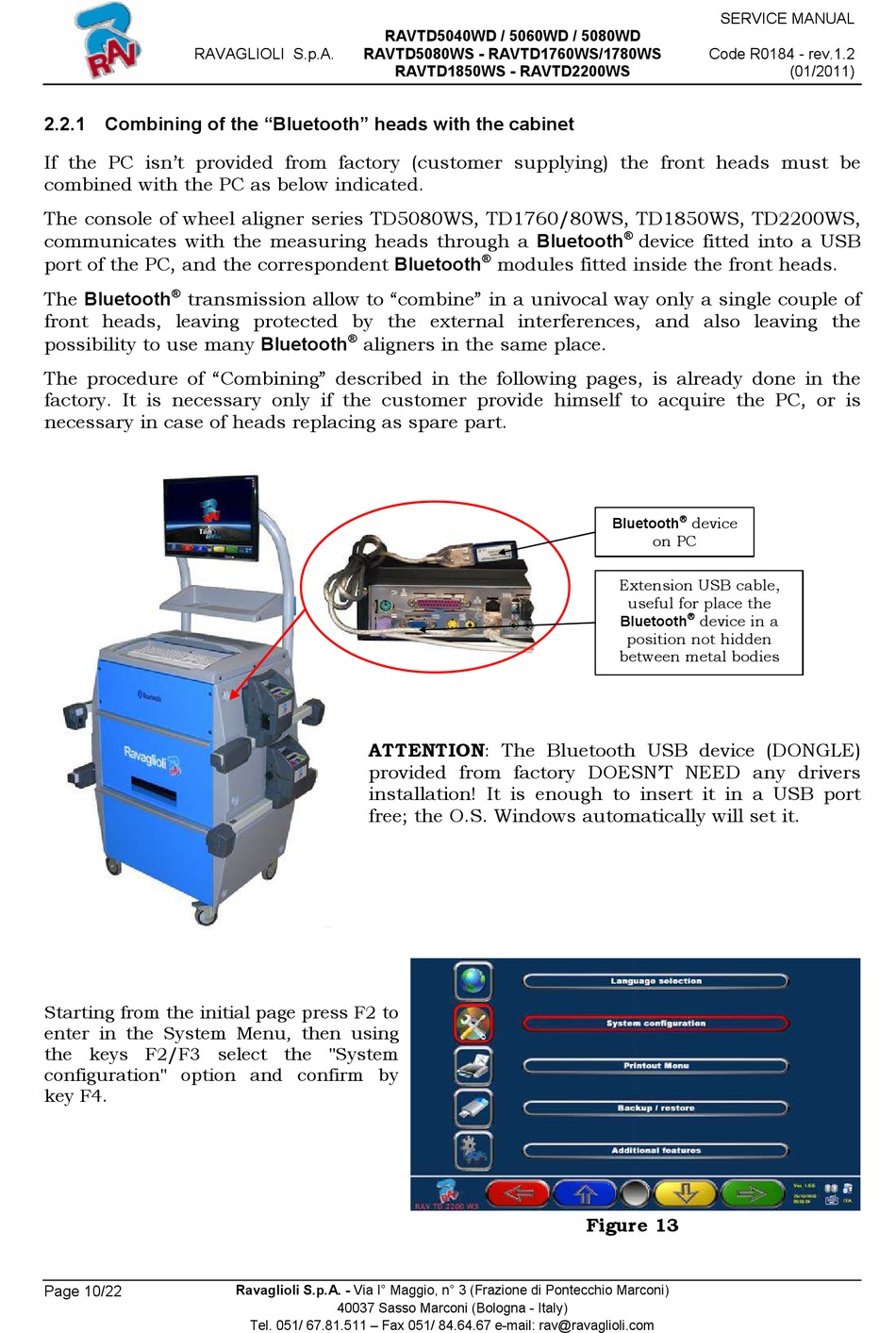

Combining of the "Bluetooth" heads with the cabinet

If the PC isn't provided from factory (customer supplying) the front heads must be
combined with the PC as below indicated.
The console of wheel aligner series TD5080WS, TD1760/80WS, TD1850WS, TD2200WS,
communicates with the measuring heads through a Bluetooth
port of the PC, and the correspondent Bluetooth
The Bluetooth
transmission allow to "combine" in a univocal way only a single couple of
front heads, leaving protected by the external interferences, and also leaving the
possibility to use many Bluetooth
The procedure of "Combining" described in the following pages, is already done in the
factory. It is necessary only if the customer provide himself to acquire the PC, or is
necessary in case of heads replacing as spare part.
Starting from the initial page press F2 to
enter in the System Menu, then using
the keys F2/F3 select the "System
configuration" option and confirm by
key F4.
Page 10/22
RAVTD5040WD / 5060WD / 5080WD
RAVTD5080WS - RAVTD1760WS/1780WS
RAVTD1850WS - RAVTD2200WS
aligners in the same place.
ATTENTION: The Bluetooth USB device (DONGLE)
provided from factory DOESN'T NEED any drivers
installation! It is enough to insert it in a USB port
free; the O.S. Windows automatically will set it.
Ravaglioli S.p.A. - Via I° Maggio, n° 3 (Frazione di Pontecchio Marconi)
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 e-mail: rav@ravaglioli.com
device fitted into a USB
modules fitted inside the front heads.
Bluetooth
on PC
Extension USB cable,
useful for place the
Bluetooth
position not hidden
between metal bodies
Figure 13
SERVICE MANUAL
Code R0184 - rev.1.2
(01/2011)
device
device in a
