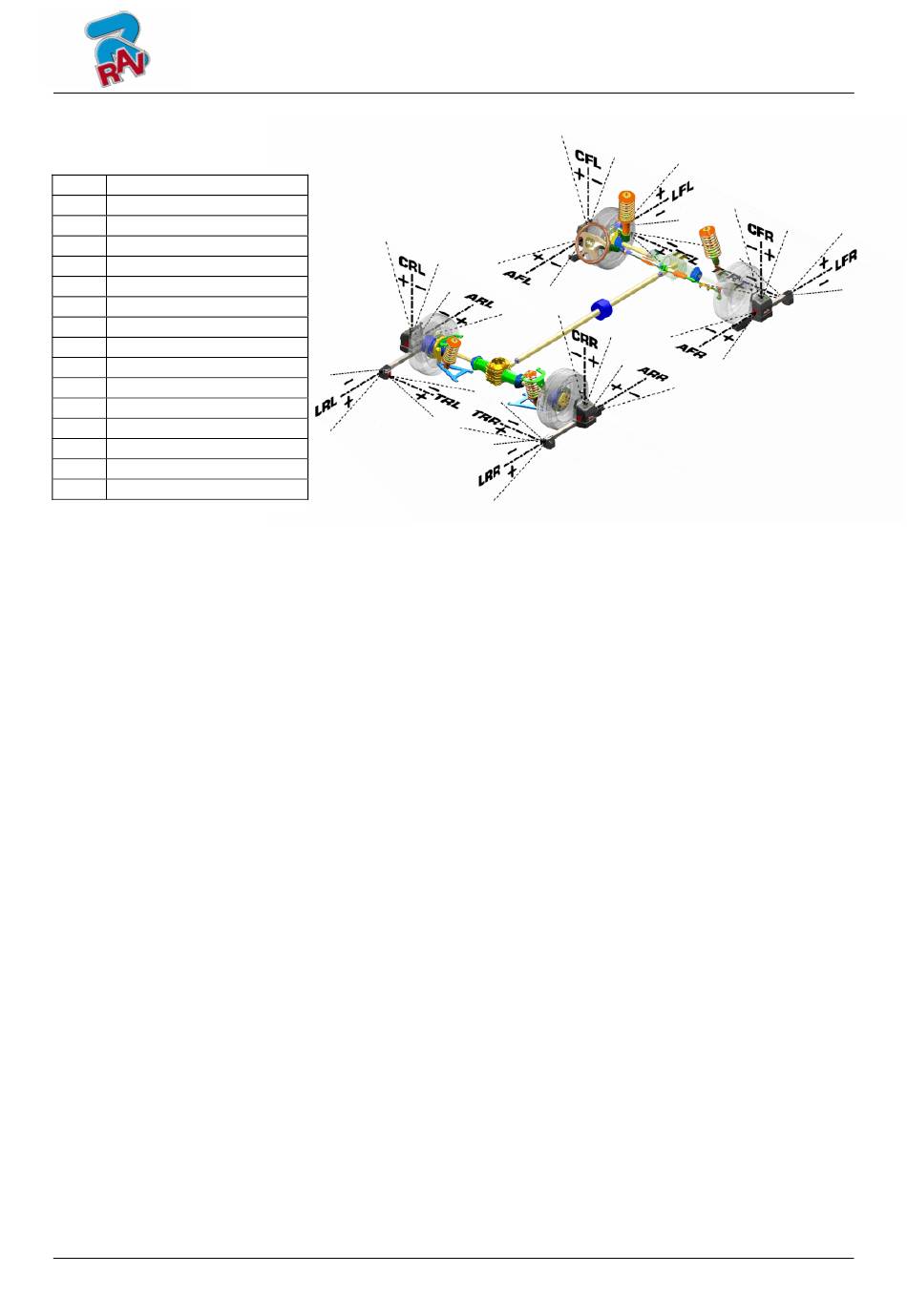

The angles calibrated are pointed out by the following marks, (see Figure 30)
AFL Alignment Front Left
AFR Alignment Front Right
ARL Alignment Rear Left
ARR Alignment Rear Right
CFL Camber Front Left
CFR Camber Front Right
CRL Camber Rear Left
CRR Camber Rear Right
TFL Toe Front Left
TFR Toe Front Right
TRL Toe Rear Left
TRR Toe Rear Right
LFL Level Front Left
LFR Level Front Right
LRL Level Rear Left
LRR Level Rear Right
All models except TD5040WD
Calibration of the measuring heads is split into 8 stages, described in detail, including
graphically, in the calibration program.
In stages 1 and 2, the front and rear left hand measuring heads are fitted and the Left
Alignment and Level angles are calibrated (AFL, ARL, LFL, LRL)
In stages 3 and 4, the front and rear right hand measuring heads are fitted and the Right
Alignment and Level angles are calibrated (AFR, ARR, LFR, LRR)
In stages 5 and 6 the front left hand and front right hand measuring heads are fitted
and the Front Toe-in and Camber angles are calibrated (TFL, TFR, CFL, CFR)
In stages 7 and 8 the rear left hand and rear right hand measuring heads are fitted and
the Rear Toe-in and Camber angles are calibrated (TRL, TRR, CRL, CRR)
RAVTD5040WD / 5060WD / 5080WD
RAVTD5080WS - RAVTD1760WS/1780WS
RAVTD1850WS - RAVTD2200WS
Ravaglioli S.p.A. - Via I° Maggio, n° 3 (Frazione di Pontecchio Marconi)
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 e-mail: rav@ravaglioli.com
Figure 30
