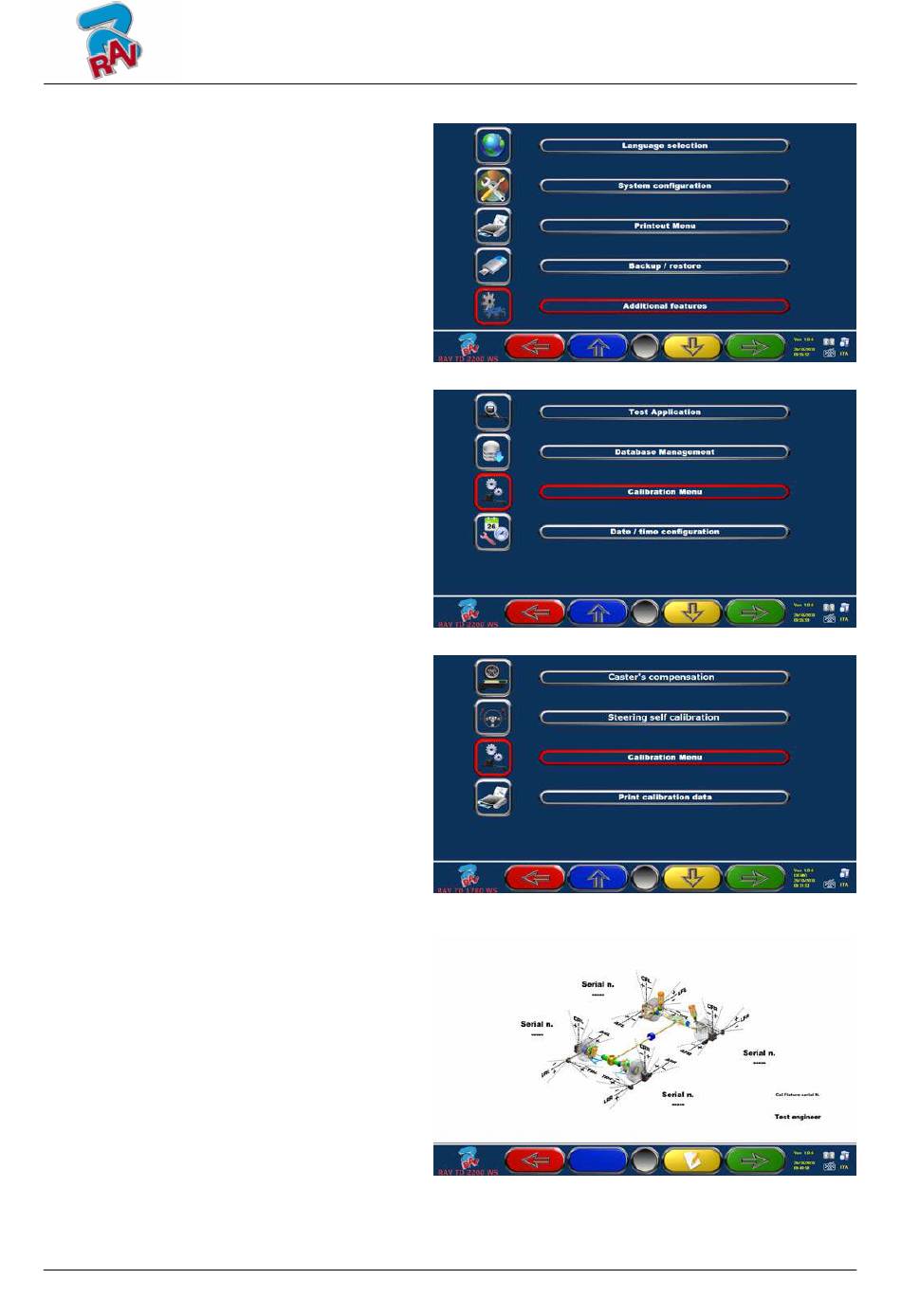

Starting from the initial page of the
program, using the key F2/F3 select the
"Additional features" option and confirm by
key F4.
Using the key
"Calibration" option and confirm by key F4.
Enter the required password to access the
calibration phase: "F8; F7; F6; F8"
Using the key F2/F3, select the "Measuring
Head" calibration option and confirm by
means of key F4.
If required press F3 to enter the serial
number for the sensor heads so the report
eventually printed out will report such
numbers.
Enter eventually also the serial number of
tool and operator name.
Proceed confirming by key F4.
